100 Watt 12 Volt Monocrystalline Solar Panel Kit w/ 20A PWM Charge Controller

SKU:
HQST-STARTER100D-HCCPWM20
|
UPC:
810009715979
$133.99
Current Stock:

OVERVIEW

HQST 100 Watt Off-Grid Monocrystalline Solar Starter Kit is designed specifically for customers new to solar. This 100w solar kit is great for off-grid applications, such as RVs, trailers, boats and sheds providing many benefits, including, but not limited to, quiet power production and grid independence. This off-grid solar kit comes with the tools necessary for a new system. Start your solar adventure with a HQST Starter Kit!

Key Features


The kit includes 1 pack 100 Watt 12 Volt Monocrystalline Solar Panel, 10 Amp 12V/24V PWM Solar Charge Controller with LCD Display, 20Ft 12AWG Solar Panel and Controller Connector Cables, 1 Set of Mounting Z Brackets

Used in various off-grid applications that include 12 volts arrays, water pumping systems, signaling systems and other off-grid applications. Great for off-grid applications, such as RVs, trailers, boats, sheds, and cabins.

HQST 100W monocrystalline compact design 35.6 x 25.9 x 1.18in high module conversion efficiency. Bypass diodes minimize power drop caused by shade and ensure excellent performance in low-light environments. Pre-drilled holes on the back of the panel allow for fast mounting and securing. IP65 rated junction box provides complete protection against environmental particles and low pressure water jets.

HQST 20 Amp 12V/24V solar charge controller is a common positive ground controller.Features a 5V 1A USB output that can be used to charge mobile phones, tablets, speakers, etc. 3 pre-set deep cycle battery options: GeL Flooded, and Sealed Lead Acid/AGM. An upgraded 3-Stage PWM charging algorithm is adopted: Bulk, Boost, Float.
100 Watt 12 Volt Monocrystalline Solar Panel Kit with 20A PWM Charge Controller, Z Bracket, 20FT 12AWG Cable

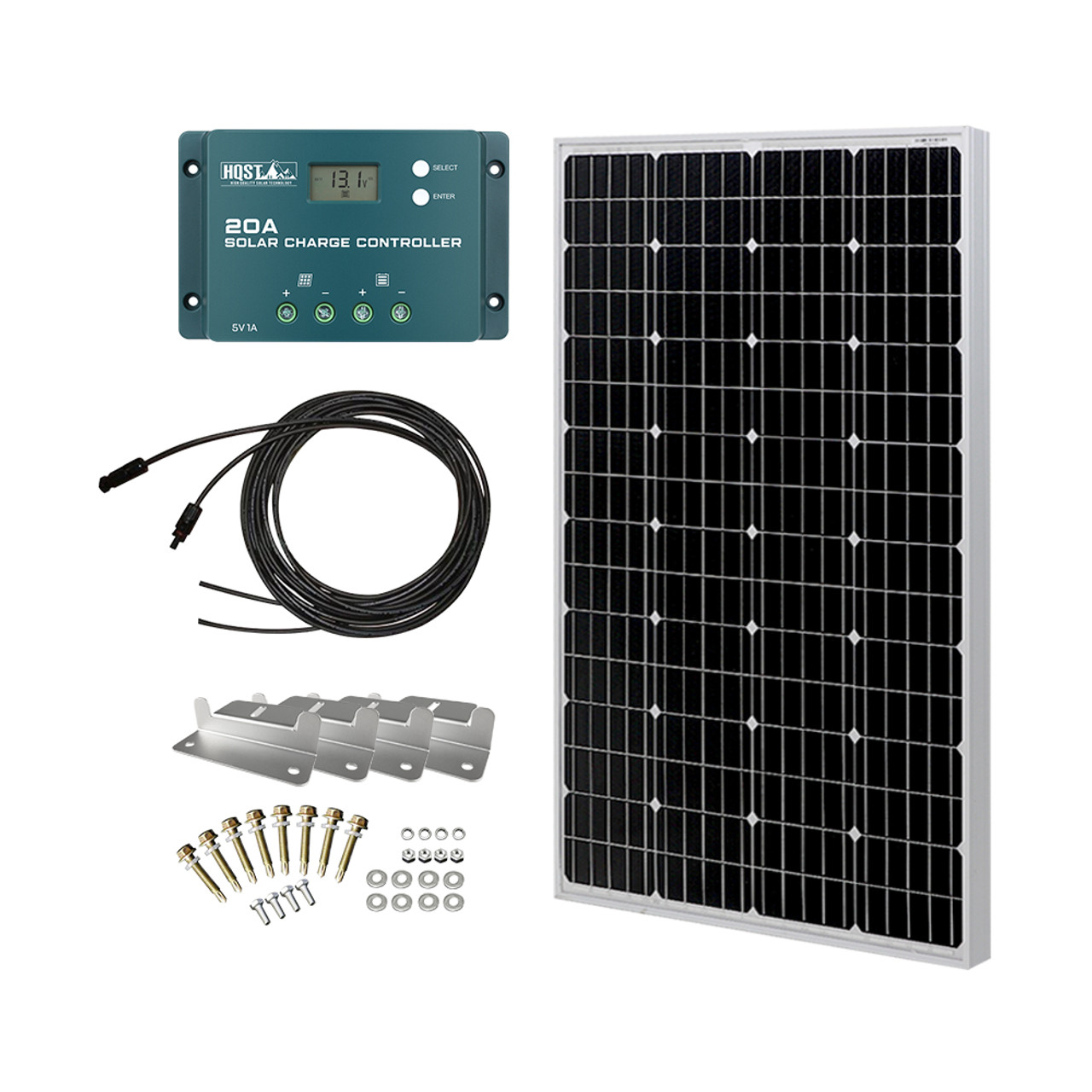

Package Includes

One (1) 100 Watt 12 Volt Monocrystalline Solar Panel
One (1) PWM 20A Positive-Ground Solar Charge Controller
One (1) Pair of MC4 Solar Adaptor Cable
One (1) Set Solar Panel Mounting Z Brackets
One (1) Pair of 8Ft 8AWG Solar Tray Cables - Connecting Charge Controller and Battery (Optional)

HQST 100 Watt 12 Volt Monoscrystalline Solar Panel

  • Max Power at STC (Pmax): 100W

  • Max System Voltage: 600VDC (UL)

  • Optimum Operating Voltage (Vmp): 18.0 V

  • Open-Circuit Voltage (Voc): 21.3V

  • Optimum Operating Current (Imp): 5.58 A

  • Short-Circuit Current (Isc): 5.83A

  • Temp Coefficient of Pmax: -0.23%/0C

  • Temp Coefficient of Voc: -0.33%/0C

  • Temp Coefficient of Isc: 0.05%/0C

  • Dimensions: 35.6 x 25.9 x 1.18 inches

  • Weight: 14.3lbs



HQST 20A PWM Charge Controller w/ LCD Display(Positive Ground)

  • Rated Working Current: 20A

  • Nominal Voltage: 12/24V auto recognition

  • Max. PV Input Power: 50VDC

  • Terminals: Up tp #8AWG

  • Operating Temperature: -31°F - 113°F

  • Temperature Compensation: -3mV/°C/2V

  • Dimensions:6.38X4.03X1.78 in

  • Weight: 0.55 lbs

  • Enclosure: IP20



Warranty Information

  • Solar Panel:

  • 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate;3-year material and workmanship warranty

  • Accessories: 1-year  warranty

Solar Panel: 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate;5-year material and workmanship warranty Accessories: 1-year warranty
100 Watt 12 Volt Monocrystalline Solar Panel:
Solar Panel
Brand:
HQST
