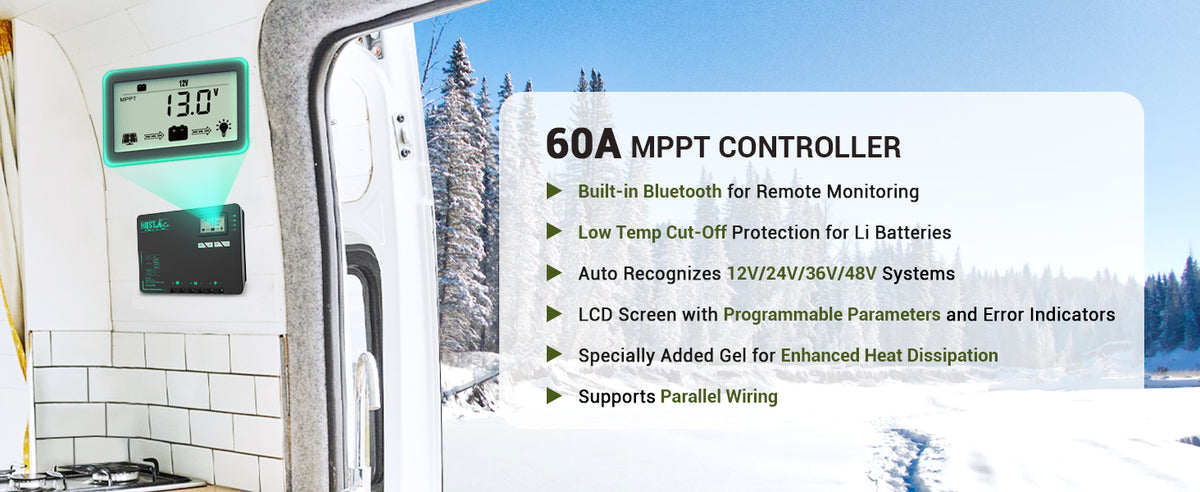

HQST 60A MPPT Solar Charge Controller with Li-Ion Battery Low Temp Protection, Parallel Charging, and Bluetooth

SKU: HCC60HTR-PL-G1-US
$189.99 $305.99

  • 【Low-Temp Cut-Off Protection for LiFePO4】The HQST 60A MPPT solar charge controller features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. You can manually switch on and off this function. The controller can also activate dormant LiFePO4 batteries that have turned off due to over-discharging.
  • 【Smart APP Control & LCD Display】With a built-in Bluetooth module, you can download the "ChargePro 2.0" (new version) or "PVChargePro" (old version) app for remote monitoring, which stores 300 days of historical data. The LCD screen and LED fault indicators allow you to check device operating data and modify controller parameters. Note: The Android version of the app requires location and Bluetooth to be turned on for connection.

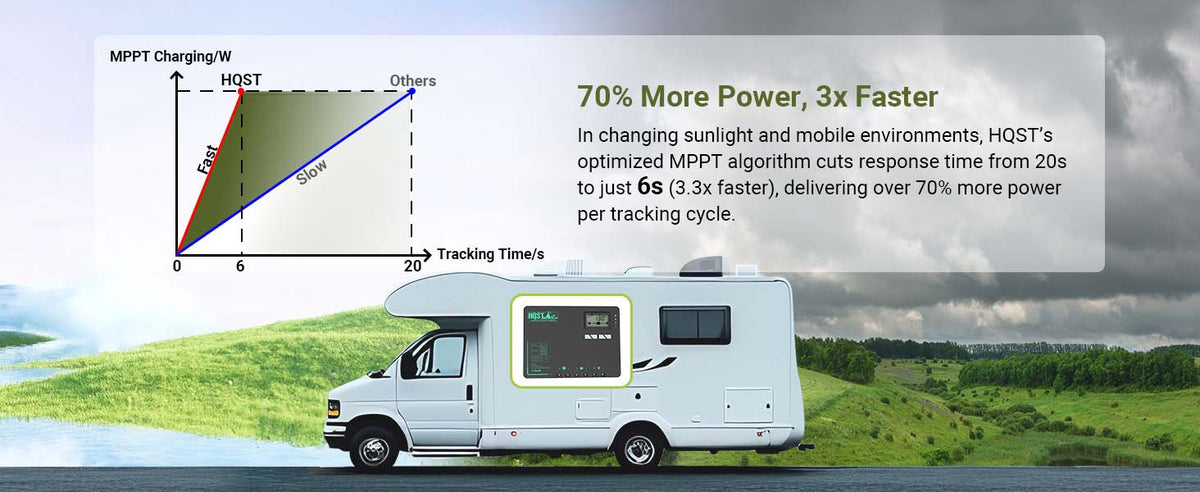

  • 【High-Efficiency Charging】 The HQST 60A solar charge controller uses advanced MPPT technology to quickly and stably track the maximum power point, with a high tracking efficiency of up to 99% and a peak conversion efficiency of 98%. This maximizes energy from solar panels to charge your system. It auto-detects 12V, 24V, 36V, 48V battery system, with a maximum load output current of 20A. If the load exceeds 20A (240 watts), overvoltage protection will turn off the output.
  • 【Parallel Charge Function】Two HQST MPPT controllers (M2420N/M2440N/M4860N) can work together to charge the same battery pack using a parallel charge cable (not included), meeting high power charging requirements. Both controllers should be set to the same battery voltage. Our negative-grounded controller provides protection against overcharging, over-discharging, overload, overheating, short circuits, and reverse polarity, maximizing protection against system faults or installation errors.
  • 【Higher Heat Dissipation Efficiency & Full-Load Working】The die-cast aluminum heat sink enhances heat dissipation efficiency, minimizing power loss due to heat. The internal gel filling improves PCBA cooling conduction and protects against water and other damages, extending the controller's service life. Equipped with a premium IC and superior PCBA, this controller can operate at full load even in high-temperature environments.
Quantity：
Enjoy payments with
Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.


Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description
Includes
Specs
FAQ
Reviews

60A MPPT Solar Charge Controller

x 1

Temperature Sensor

x 1

User Manual

x 1

HQST 60 Amp MPPT Solar Charge Controller, 12V/24V/36V/48V Negative Grounded Controller, w/ Low-Temp Cut-Off, Bluetooth APP Control, LCD Display, for Gel Sealed Flooded and Lithium Battery

Specifications

Battery System Voltage
12V/24V/36V/48V
Rated Solar Charge Current
60A
Self-consumption
12mA/12V, 10mA/24V, 5mA/36V, 2mA/48V
Max PV Input Voltage
150V
Max PV Input Power
900W/12V, 1800W/24V, 2600W/36V, 3200W/48V
Operating Temperature
-31℉~113℉

Why is my controller flashing the error message E02?

It's normal that E02 flashes when the controller detects relatively high voltages. When a Li battery is fully charged, its BMS generates a relatively high volt (about 18V), then it will stop charging. This does no harm to your controller or battery.

Flashing load light with an E04 error message, now what?

E04 indicates that your appliance may have triggered the controller's short-circuit protection. Press the 'Return' key on the controller, or disconnect the appliance that's being powered, then the controller will resume normal work 30s later.

How to Connect Bluetooth (BT)

For Android Users: 1) Allow location first, 2) Tap the BT icon in the app, 3) Select PVChargePro.

For iOS Users: 1) Tap the BT icon in the app, 2) Select PVChargePro.

DC load stops working, What can I do?

Four Solutions For You:

  1. Set the load mode to 17.
  2. Check the indicators for abnormalities.
  3. Press the 'return' key on the controller.
  4. Open ChargePro2.0, enter the Real-Time Monitoring page, and turn off the DC Load Short-circuit Protection.
