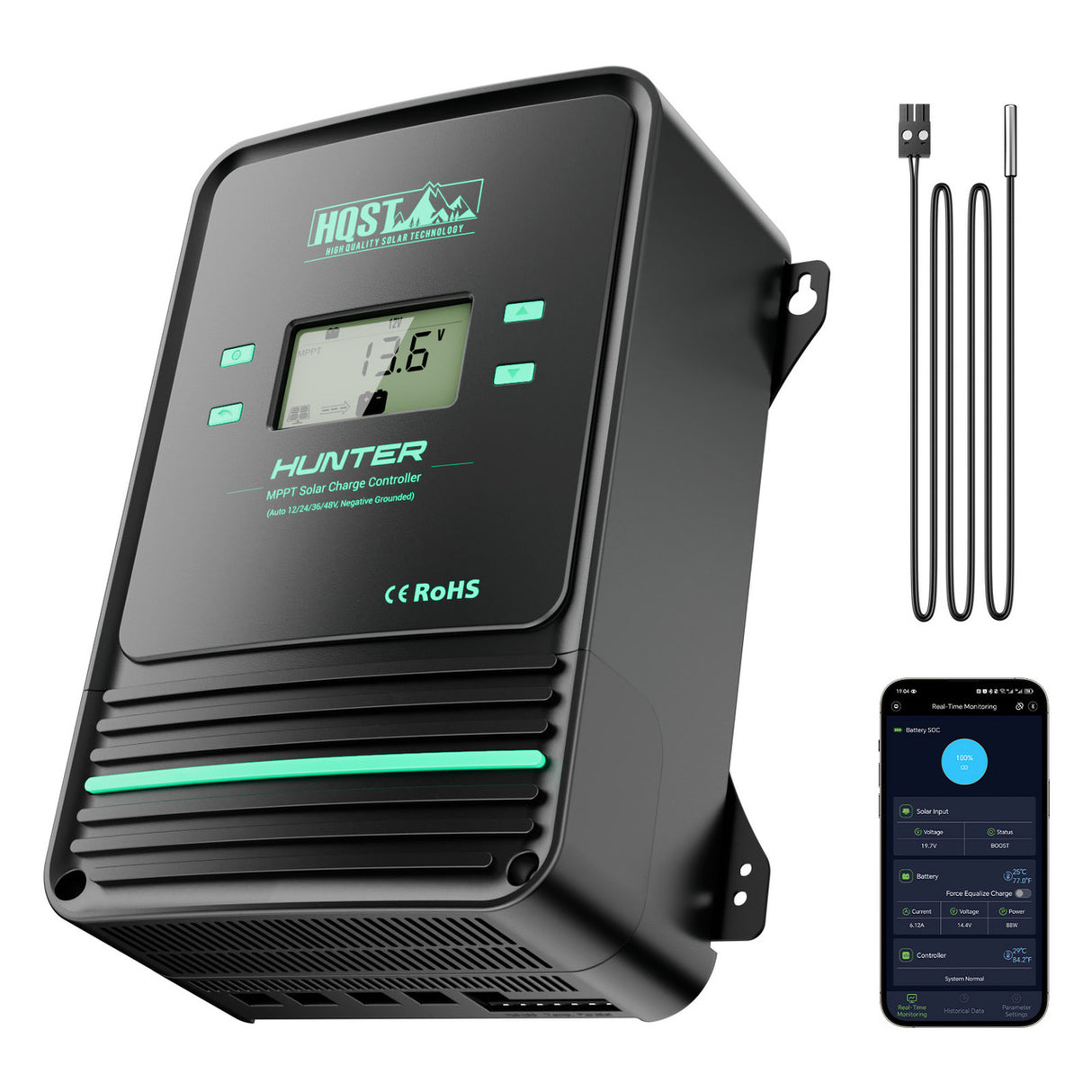

100A MPPT Solar Charge Controller with Smart APP Control, LiFePO4 Battery Low Temp Protection, and Parallel Charging

SKU: HCC100HTR-FC
$169.99 $309.99

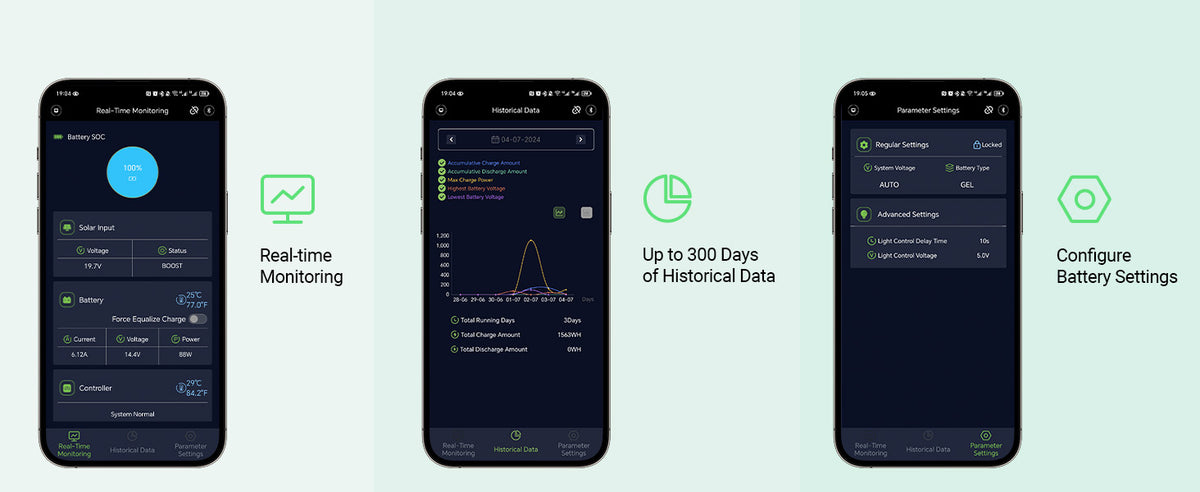

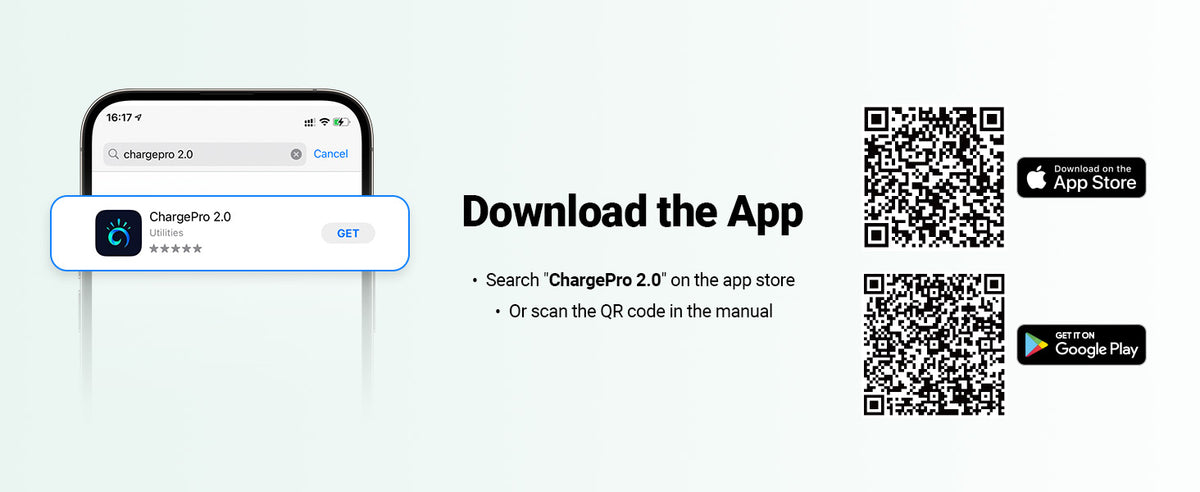

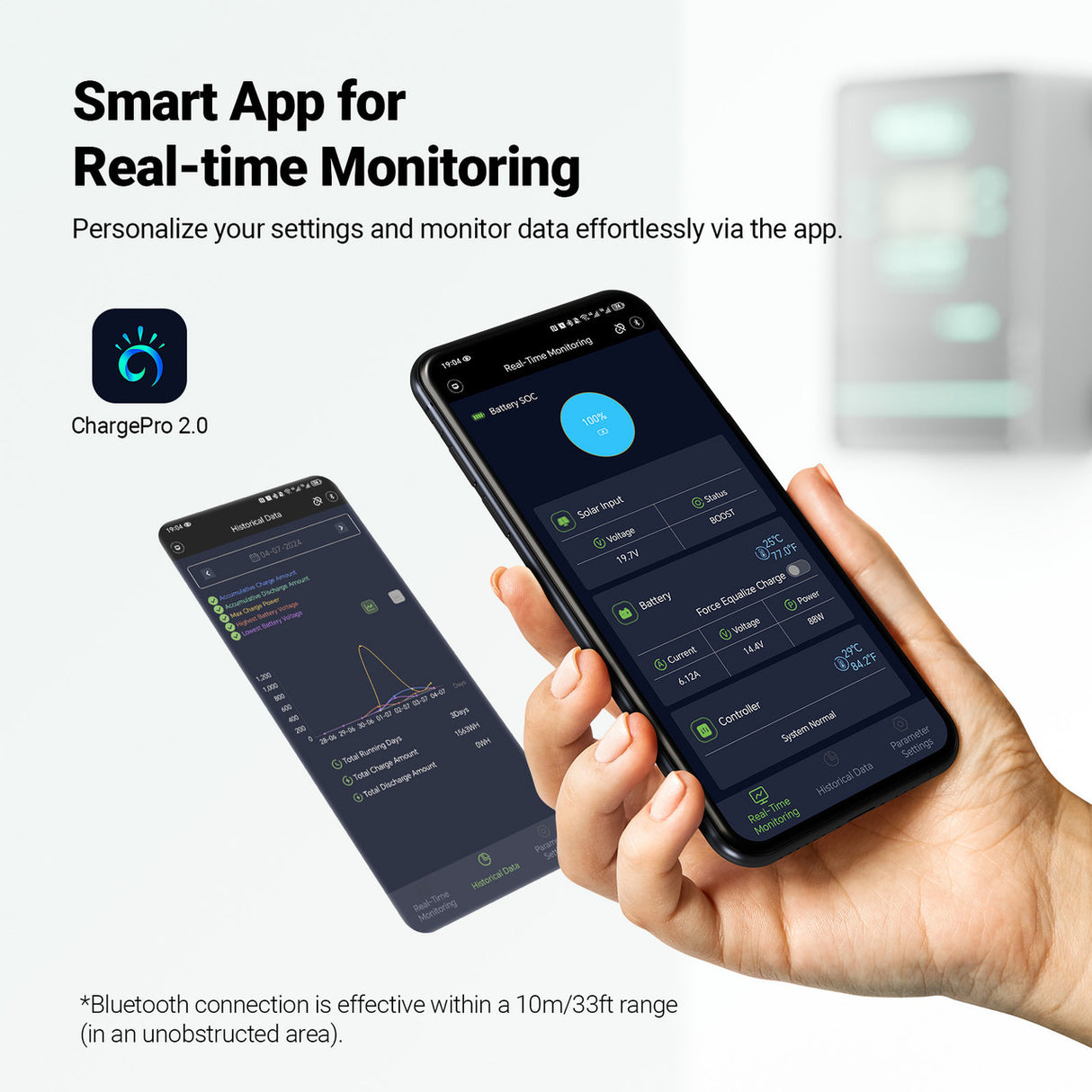

  • 【Bluetooth APP Control & LCD Display】With a built-in Bluetooth module, you can download the ""ChargePro 2.0"" (new version) or ""PVChargePro"" (old version) app for real-time monitoring, which stores 300 days of historical data. The LCD screen and buttons on the machine allow you to check device operating data and modify controller parameters. Note: Bluetooth connection is effective within a 10m/33ft range (in an unobstructed area).

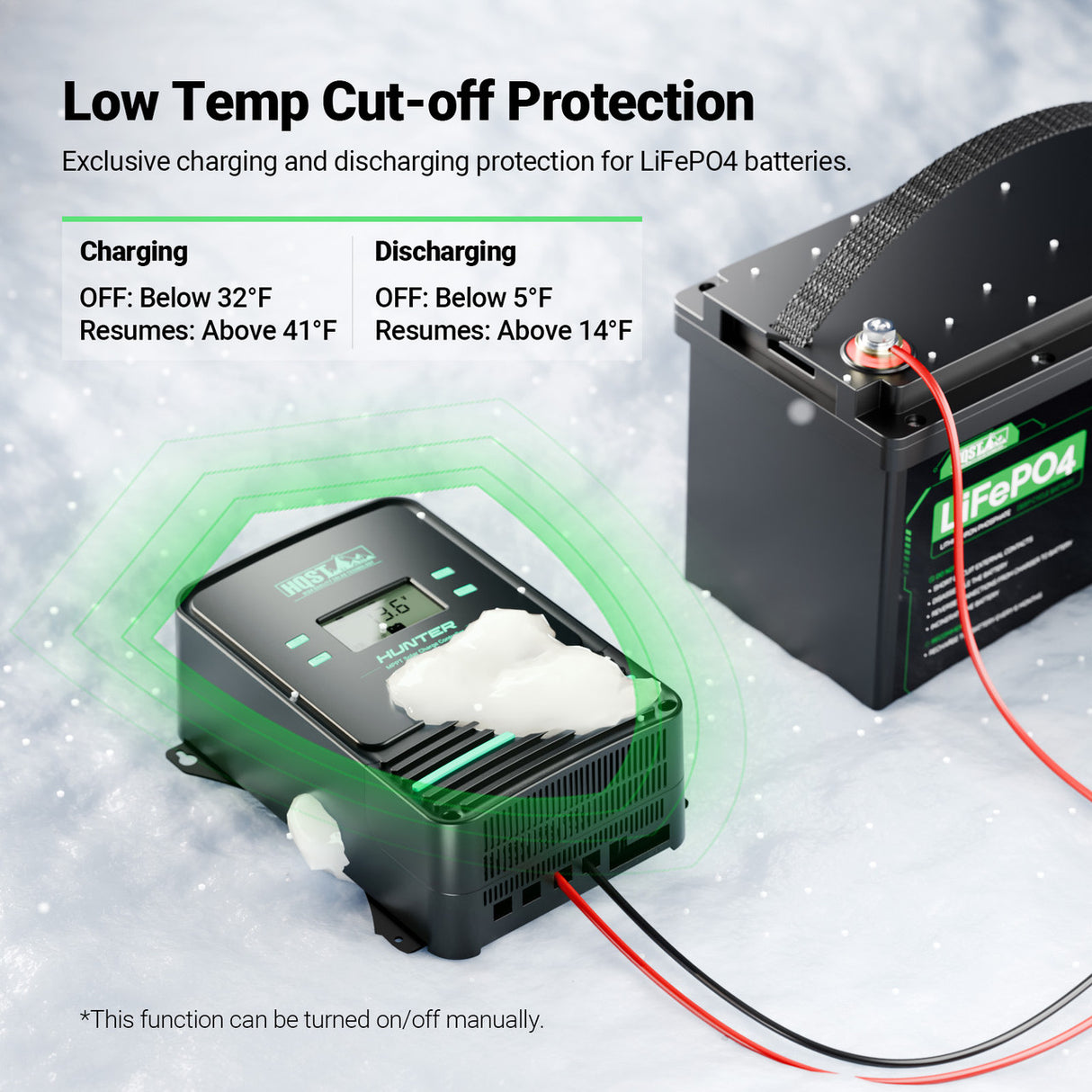

  • 【Low-Temp Cut-Off Protection for LiFePO4】This HQST 100A MPPT solar charge controller features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. You can manually switch on and off this function. This controller can also activate dormant LiFePO4 batteries that have turned off due to over-discharging.

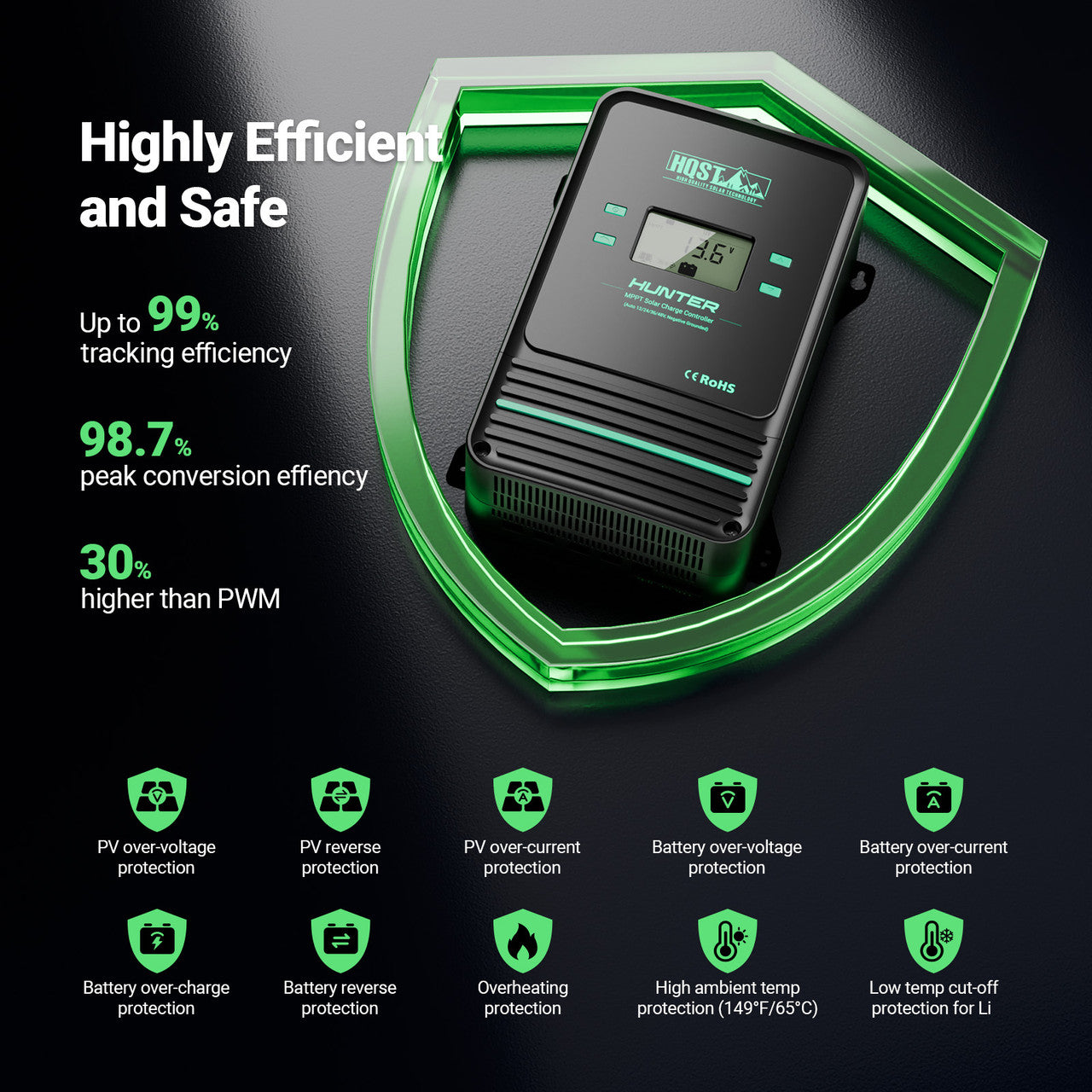

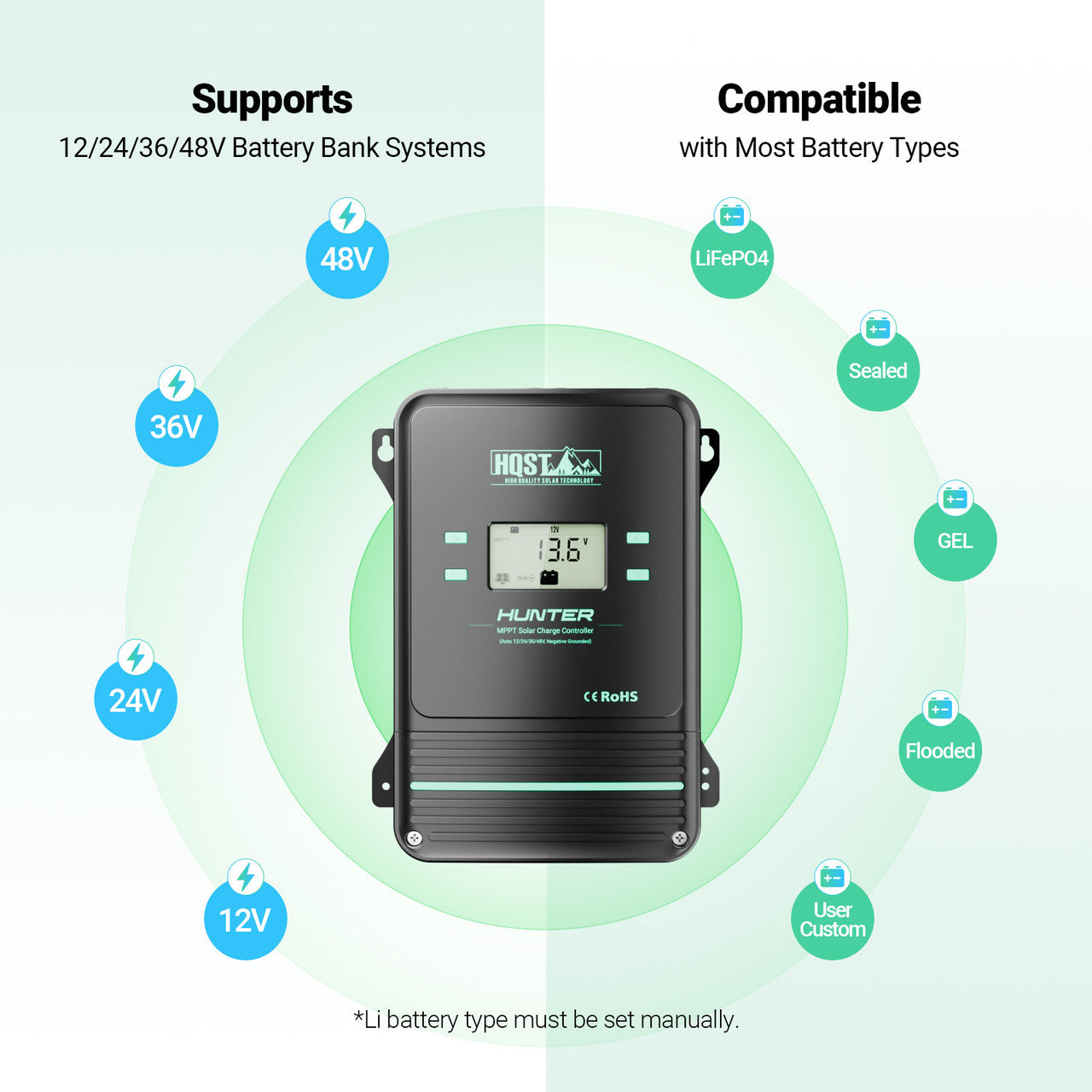

  • 【Improved High-Efficiency Charging】The HQST 100A MPPT charge controller uses advanced MPPT technology, achieving a high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, which is about 30% higher than PWM. This maximizes energy from your solar panels to charge your system. It supports 12V, 24V, 36V, and 48V battery systems and is compatible with lithium iron phosphate (LiFePO4), sealed, AGM, GEL, flooded, and user-customized battery types.

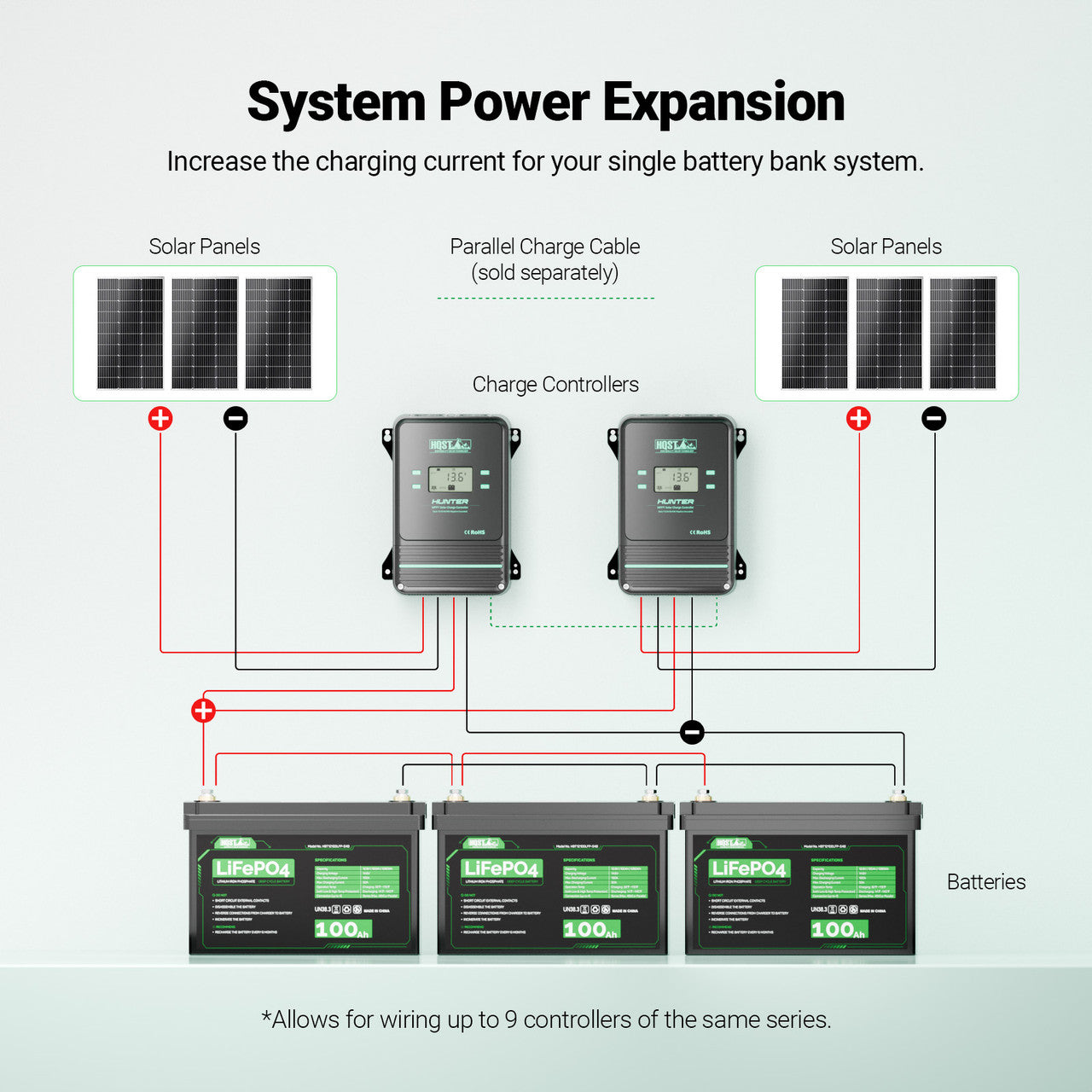

  • 【Parallel Charge Extension Function】To increase the charging current for your single battery bank system, you don’t need to reinstall the entire solar panel system. You can connect up to 9 of our MPPT controllers (M4880F/M48100F models) together using parallel charge cables (not included) to charge the same battery pack, meeting high power charging requirements. Ensure all controllers are set to the same battery voltage.

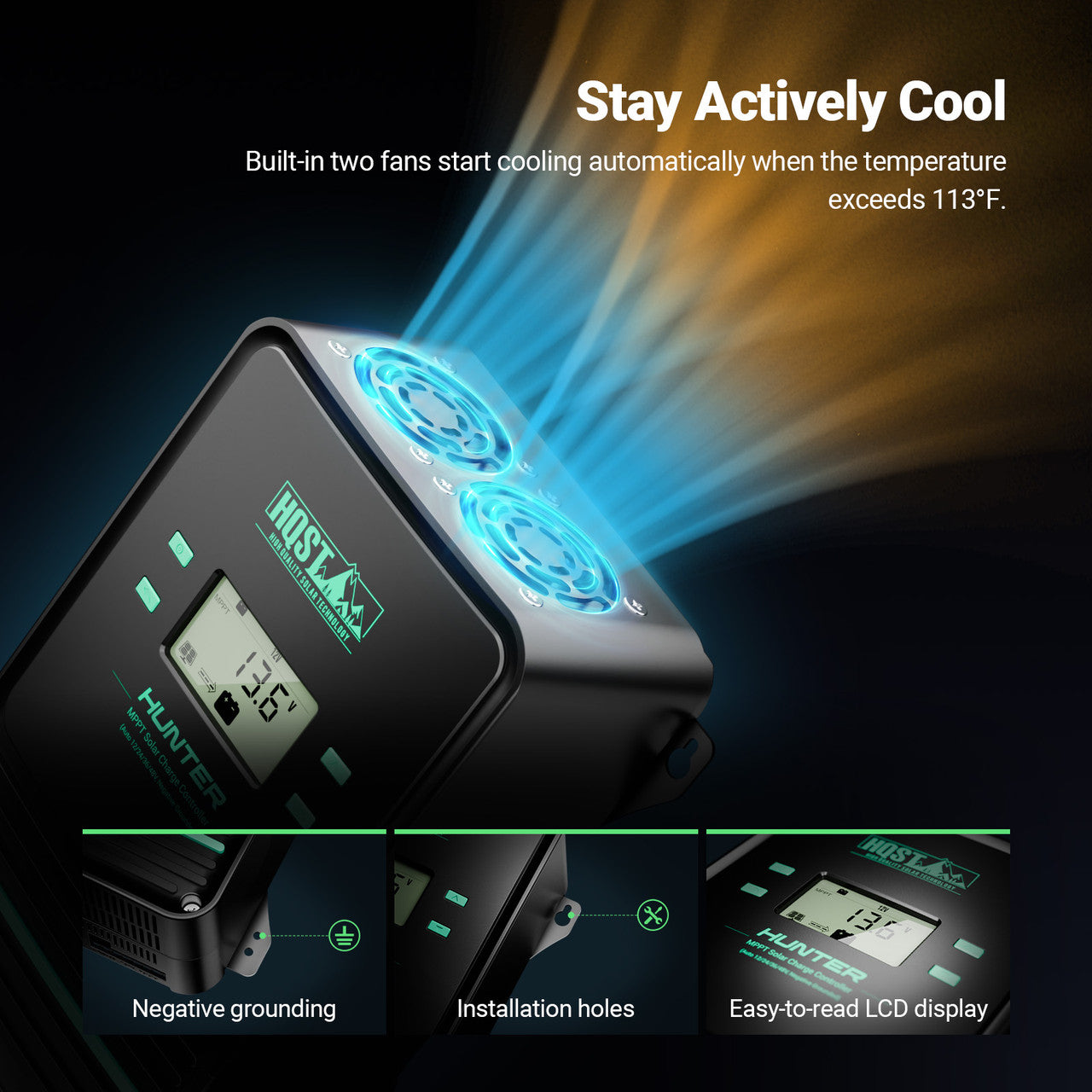

  • 【Active Cooling Fan System & Comprehensive Safety Protection】Two built-in fans start cooling automatically when the charge controller runs at high power or exceeds 113℉, ensuring consistent efficiency. Our negative grounding controller offers 10 protections against overcharging, over-voltage, over-current, overheating, and reverse polarity, maximizing protection against system faults and installation errors.
Quantity：
Enjoy payments with
Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.


Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description
Specs
FAQ
Reviews

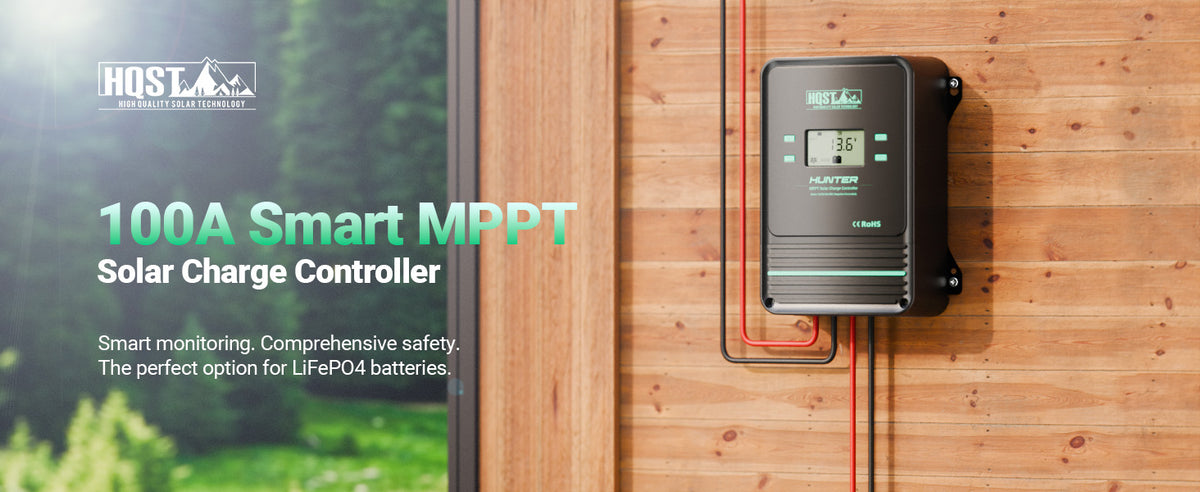

HQST 100 Amp MPPT Solar Charge Controller, 12V/24V/36V/48V Negative Grounding Controller, w/ Smart Bluetooth APP Control, Low-Temp Cut-Off, LCD Display, for Lithium, Sealed, AGM, GEL, Flooded Batteries

Our new100Amp MPPT solar charge controller offers high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, about 30% higher than PWM. With Bluetooth app control, you can monitor all data in real-time. It also features low-temperature cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. Ten protection mechanisms and an active cooling fan system ensure consistent efficiency at all times. Perfect for all off-grid applications, including RVs, cabins, motorhomes, and boats.

Download

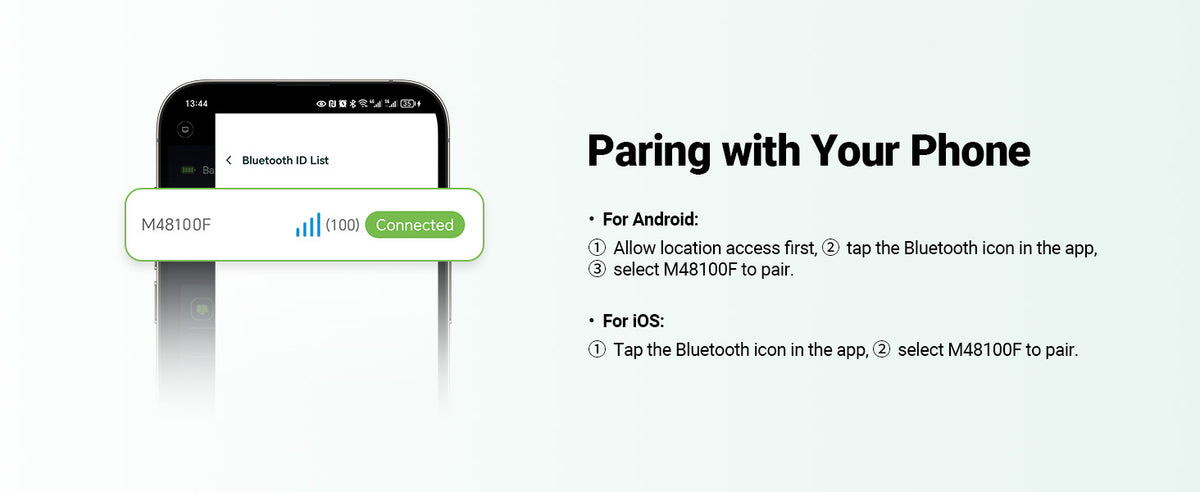

Paring
Functionality

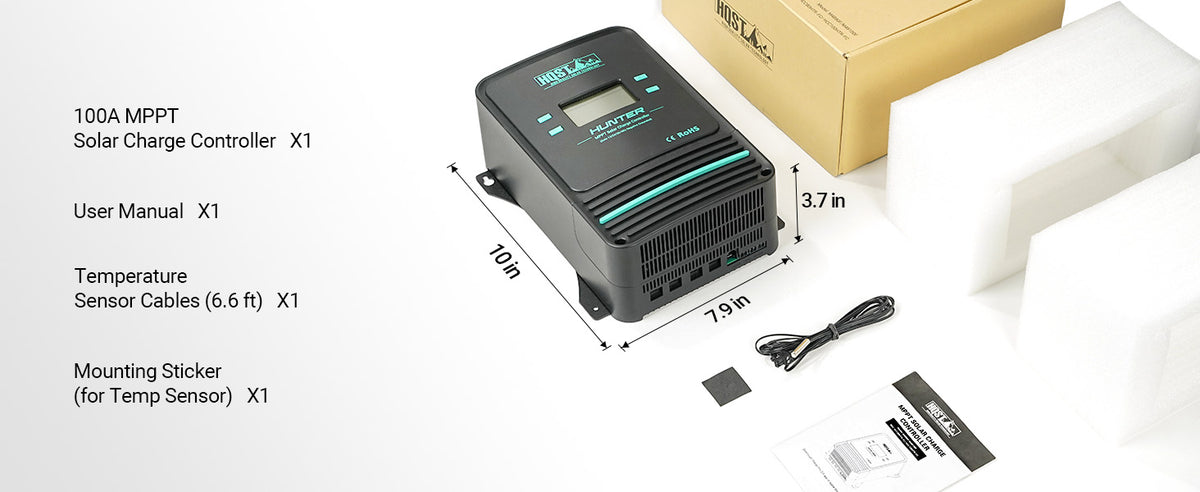

What's in the Box
Rated Solar Charge Current
100A
Solar (PV) Input Voltage
150 Voc Max.
Solar (PV) Input Power
1200W/12V; 2400W/24V; 3600W/36V; 4800W/48V
Battery System Voltage
12V/24V/36V/48V
Battery Types
Auto-detected: Flooded (FLD), GEL, Sealed, AGM Manual Setting: Lithium Iron Phosphate (LiFePO4), User-customized
Self-consumption/No-load Loss
12mA (12V), 10mA (24V), 8mA (36V), 6mA (48V)
System Wiring Grounding
Negative Grounding
Operating Temperature
-13°F～113°F (-25℃~45℃)
Fan-on Temperature
Exceeds 113°F (45℃)
Storage Temperature
-40°F～176°F (-40℃~80℃)
Parallel Charging Function
Support Parallel Connection, Up to 9 Units
Communication Port
RS485 (RJ12)
Wiring Cable
2 AWG (Recommended)
Product Weight
5.7 lbs (2.6 kg)
Product Dimensions
7.9 x 3.7 x 10 in / 200 x 260 x 93 mm (L x W x H)

Does this have a low-temperature shutdown function?

Yes, it does. It features low-temperature charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries (not for sealed), preventing damage to your valuable batteries.

Do I need to be connected to the internet or cellular networks when using the app control?

No, our app control and monitoring is via Bluetooth connection. As long as your phone is within range of the Bluetooth device (10m/33ft), you can access and connect to monitor and adjust settings.

Can its parameters be adjusted without the Bluetooth app?

Yes. You can adjust the parameters using the buttons on the controller. Refer to the user manual for detailed instructions. However, we highly recommend using the Bluetooth app, as it is easier and more convenient for operation and monitoring.

What size wire can be connected to this charge controller?

We recommend using 2 AWG or larger wire. When it comes to cable gauges, the lower the gauge number, the thicker the wire.

Why is my controller flashing the error message E02?

E02 flashes when the controller detects relatively high voltages. When a Li battery is fully charged, its BMS generates a high voltage (about 18V) and then stops charging. This does no harm to your controller or battery.

My controller stops charging when it is nearly at full load (100A).

If this happens, please contact our support team. You can find our contact information in the user manual.
