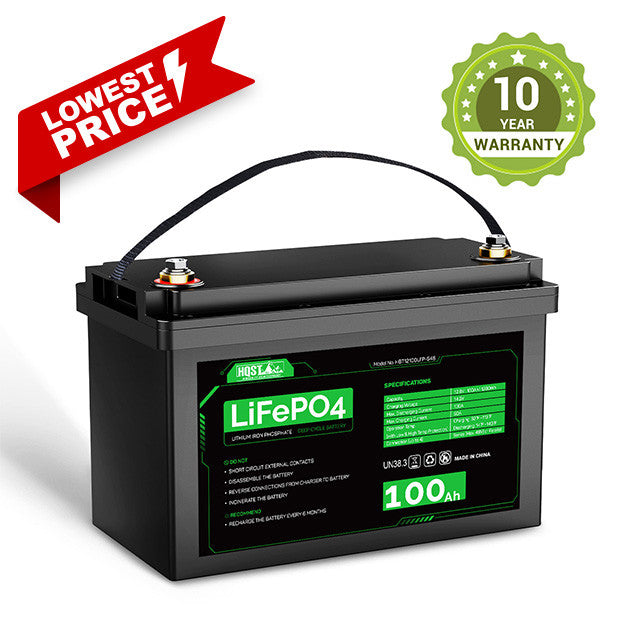

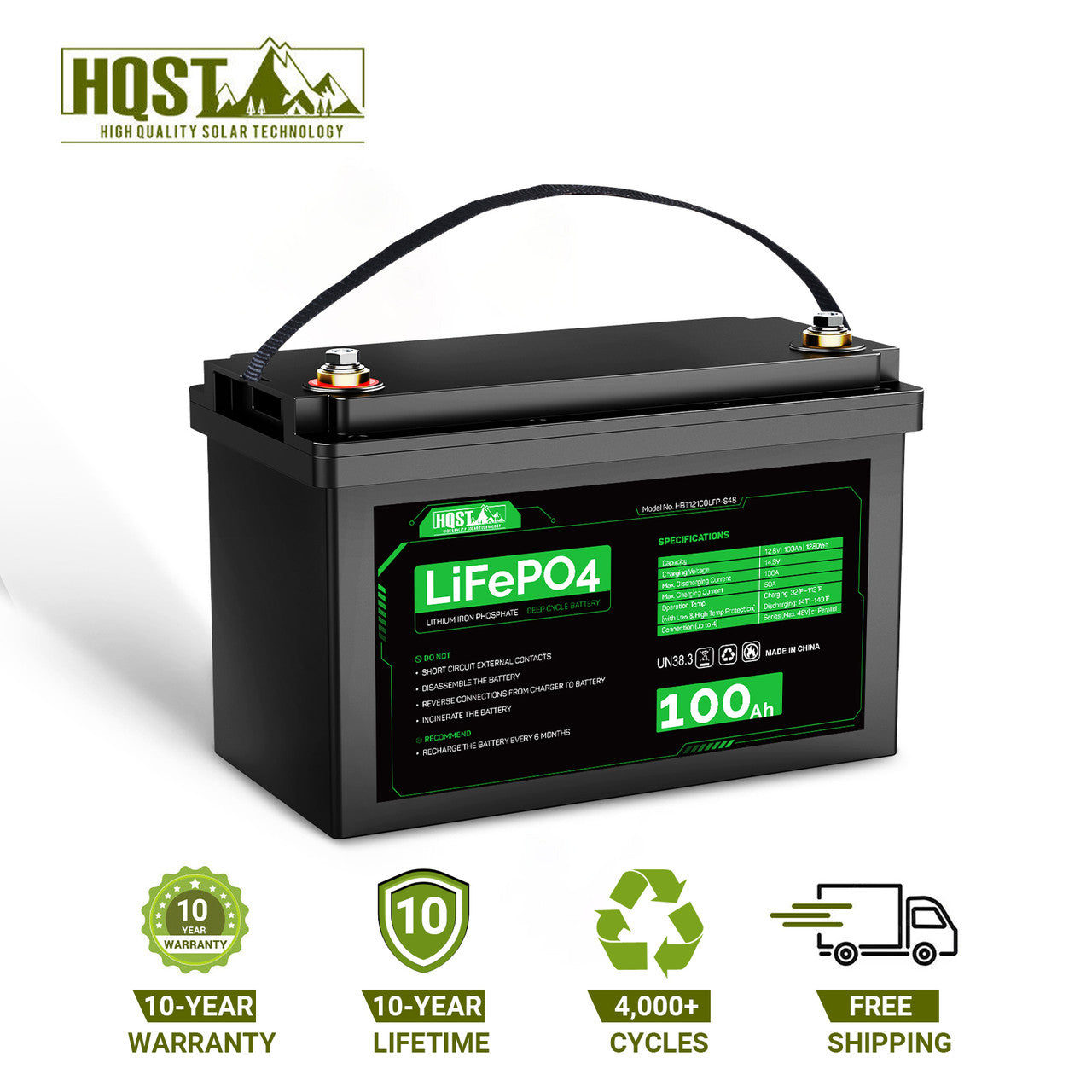

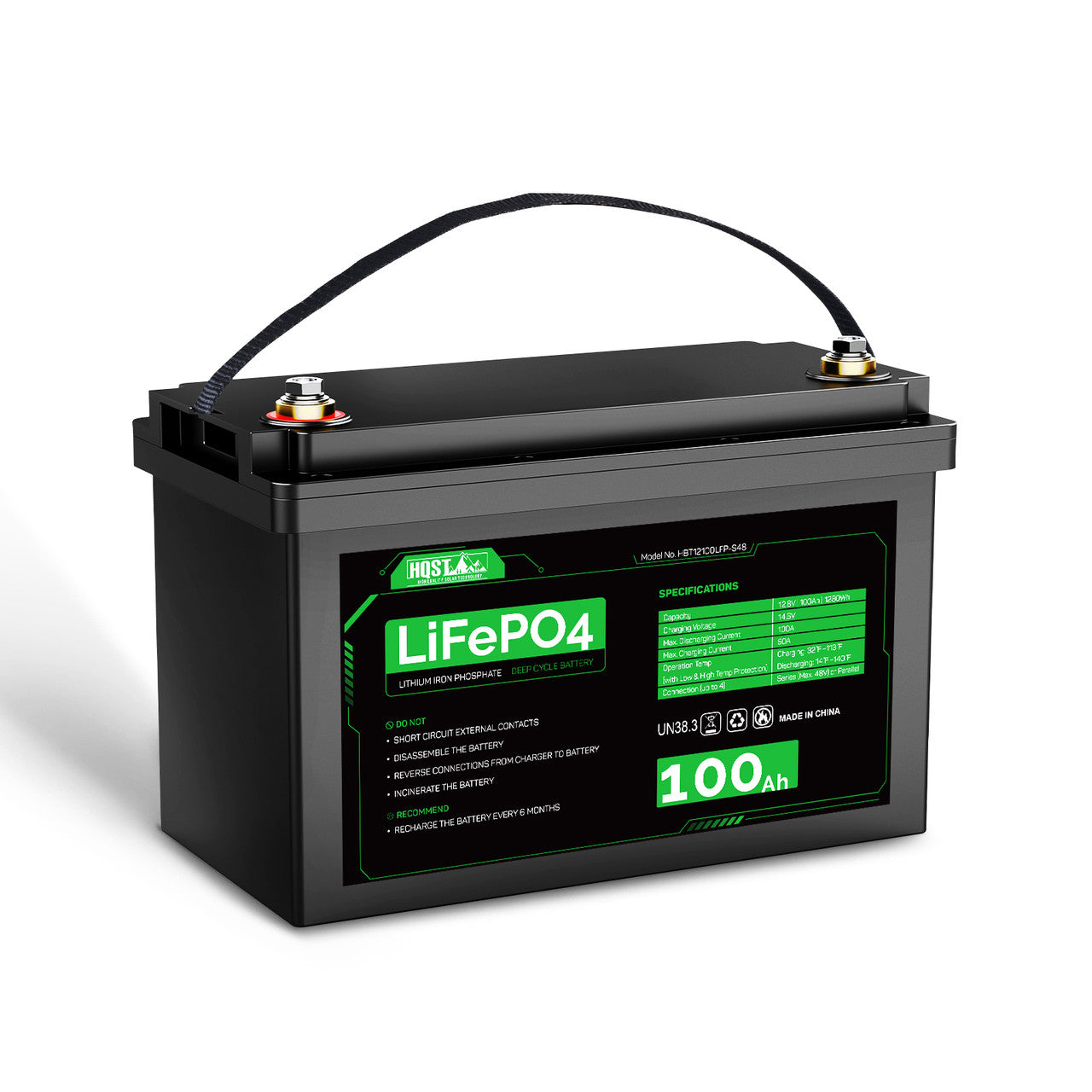

12V 100Ah LiFePO4 Lithium Iron Phosphate Battery

SKU: HBT12100LFP-S48-G3-US
$139.00 $259.99

  • [10-Year Longevity] HQST's 12V lithium batteries come with a reassuring 10-year commitment to both product quality and service life. This marks a significant advancement over lead-acid batteries, which usually last only 1 to 3 years. A perfect option to replace lead-acid batteries and enjoy extended durability.
  • [Low & High Temperature Protection] Equipped with low and high temperature cut-off protection, HQST LiFePO4 battery ensures safety during charging and discharging processes. When temperatures dip below 23℉ or rise above 140℉, the battery's charging is auto suspended to preserve its lifespan. Similarly, if temperatures fall below 5℉ or exceed 158℉, discharging will cease, maintaining optimal performance.

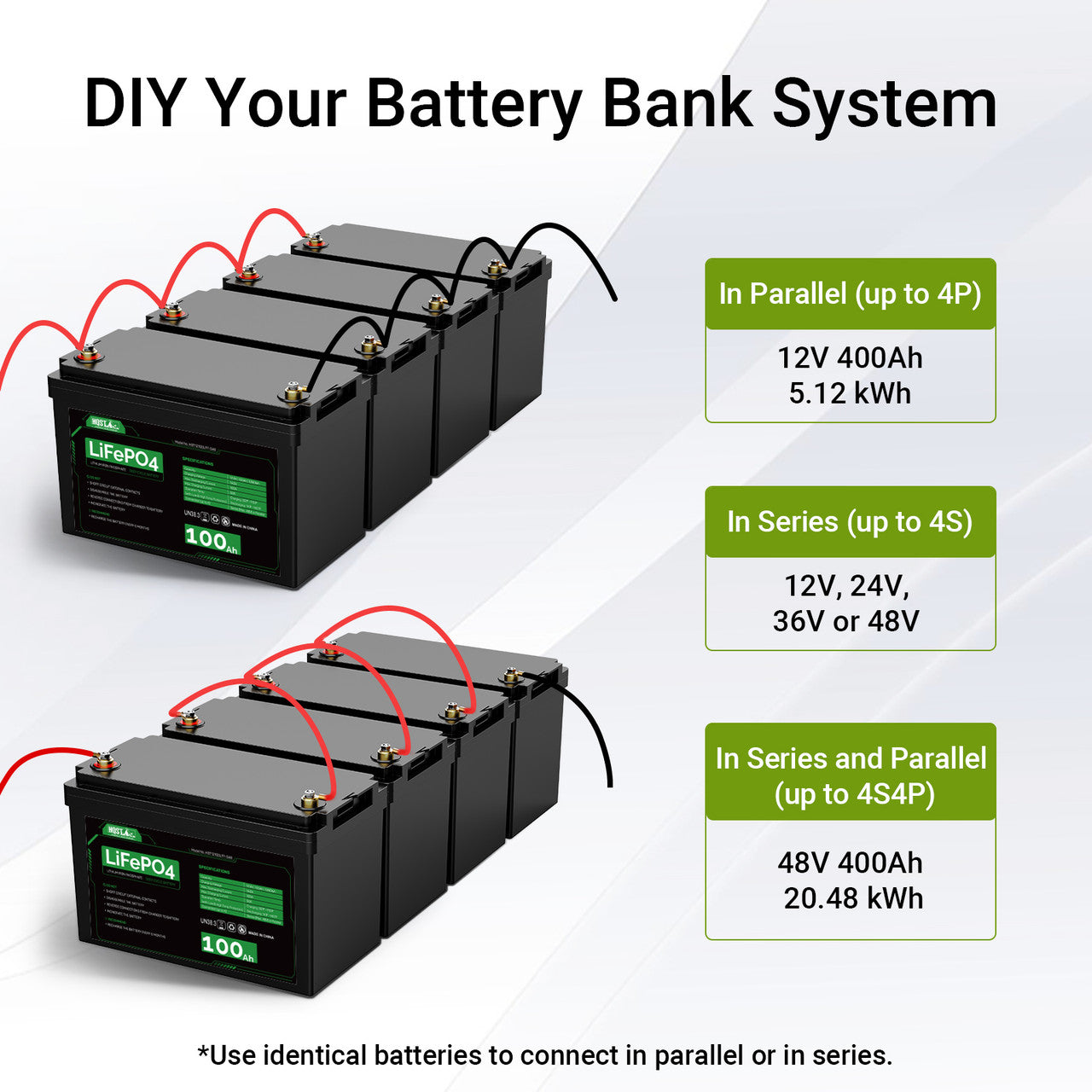

  • [In Series & Parallel] Connections HQST's 12V 100Ah lithium battery supports series and parallel connections. You can create a 12V, 24V, 36V, or 48V battery bank via series wiring, a 12V 200Ah, 300Ah, or 400Ah power system via parallel connections, or even connect up to 16 batteries in series and parallel, building a powerful home backup power system with a 20.48 kWh capacity.

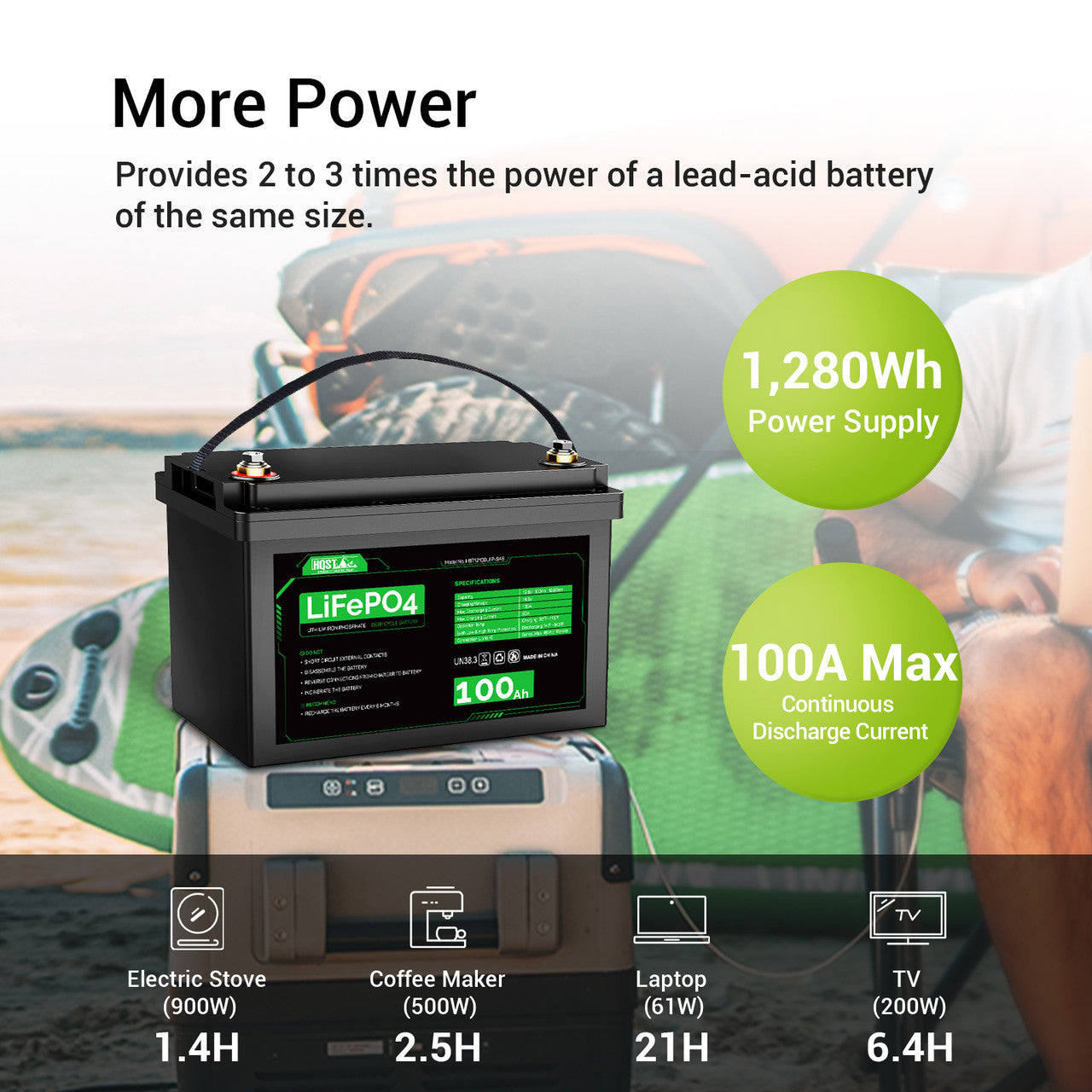

  • [100% Power Output] The HQST 12V 100Ah LiFePO4 battery delivers an impressive power output of 1,280 Wh, 2 to 3 times more potent than conventional sealed lead-acid batteries. With a continuous discharge current of up to 100A, it can power most household appliances.
  • [Durable and Lightweight] Weighing only 25.11 lbs, this 12V LiFePO4 battery is smaller, lighter, and at the same time delivers more power than conventional lead-acid batteries. The improved BMS expertly manages cell balance, over-current, over-charge, over-discharge, temperature extremes, and short circuits, providing enhanced performance and prolonged lifespan.
Option
Quantity：
Enjoy payments with
Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.


Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description
Includes
Specs
FAQ
Reviews

Backed by an industry-leading 10-year warranty and lifetime, the HQST 12 volt 100Ah LiFePO4 battery is the ideal replacement for traditional lead-acid batteries, offering exceptional durability. The optimized Battery Management System (BMS) combines low and high-temperature protection, enhancing charging and discharging safety significantly. It also supports connections of up to 4 batteries in parallel and 4 batteries in series, allowing for expansion to a home battery bank system by configuring up to 16 batteries in series and parallel, resulting in a powerful 20.48 kWh power capacity.
The HQST 12V lithium battery proves perfect for a range of applications including RVs, trolling motors, boats, off-grid cabins, and home backup power storage.

Low Temp Protection

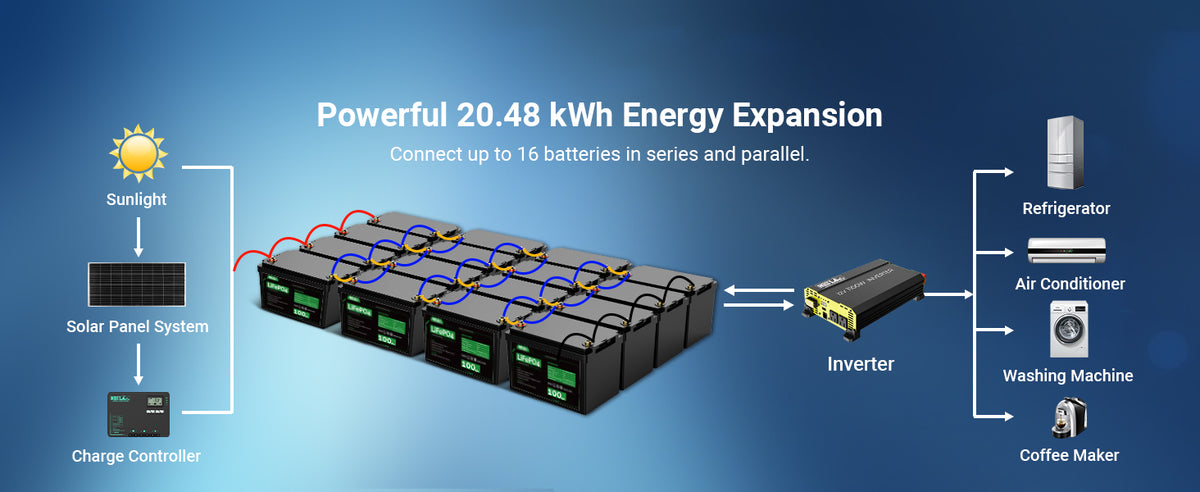

20.48 kWh Power Expansion

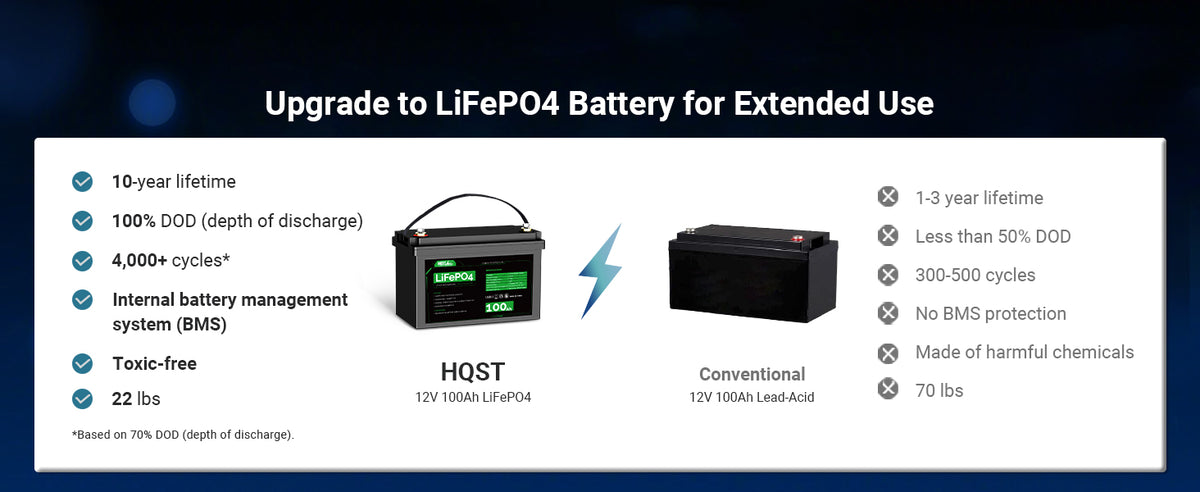

Upgrade to Lithium

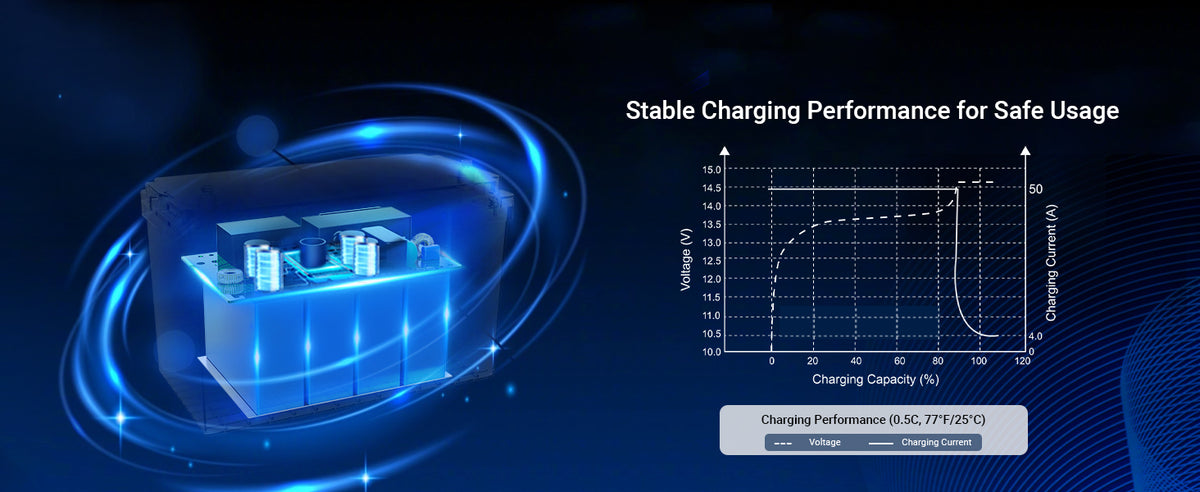

Stable Performance

Robust & Durable

IP65-rated for water and dust resistance, you can trust it to withstand rain or splashes without a worry. Ensures reliability in extreme conditions.

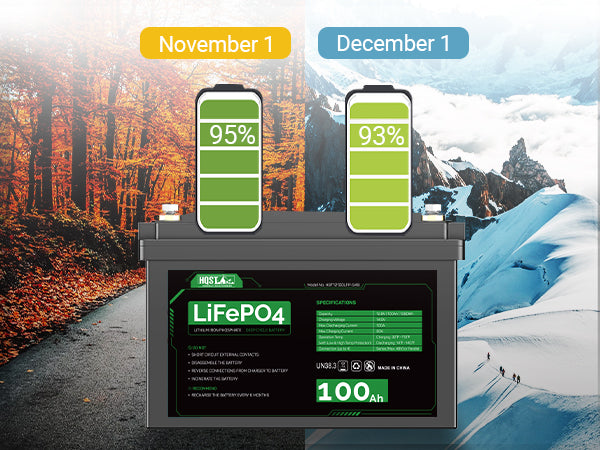

Extended Shelf Life

With a mere 2-3% monthly self-discharge rate (at 77℉/25℃), it significantly outlasts lead-acid batteries, which deplete up to 30% per month.

Enhanced Performance

Supports a wide range of charge and discharge temperatures for seamless usage experience anywhere, anytime.

No More Heavy Lifting

The HQST LiFePO4 battery packs more power in a lighter design. Say goodbye to heavy lifting; it's effortless to carry, install, and transport.

Rvs & Cabins
Boats & Marine
Golf Cart & Wheel Chair
Energy Storage & Backup

12V 100Ah Lithium Iron Phosphate (LiFePO4) Battery with Handheld Strap

x 1

M8 Bolts (A Pair)

x 1

HQST 12V 100Ah Deep Cycle Lithium Iron Phosphate (LiFePO4) Battery

Technical Specifications

Rated Capacity (77°F/25℃)
100Ah
Rated Voltage
12.8 V
Energy
1,280Wh
Cycle Life

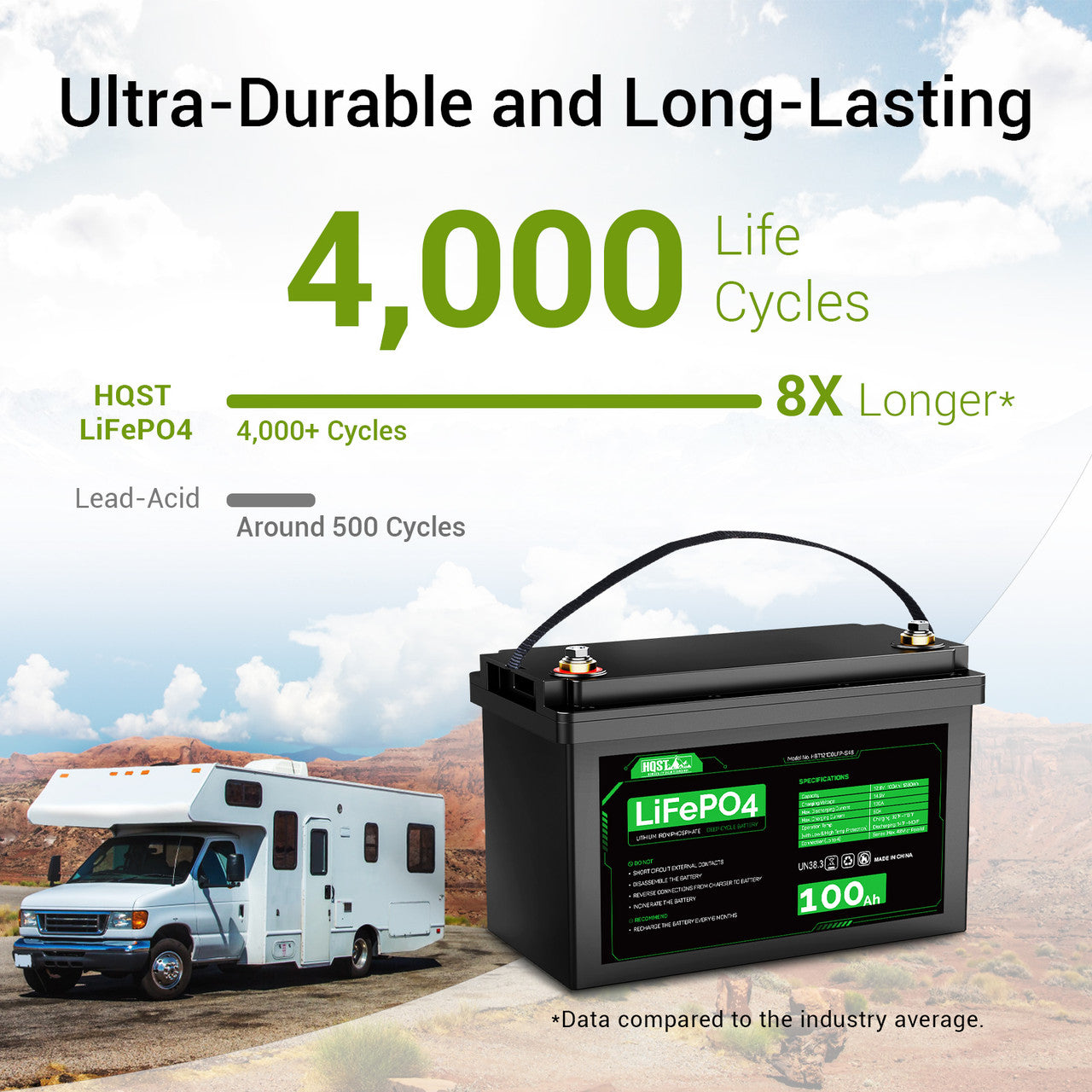

4,000+ cycles at 70% DOD; 3,000+ cycles at 80% DOD
Self-discharge Rate (77°F/25℃)
2% ~ 3%/month
Max. Continuous Discharge Current
100A
Max. Charging Voltage
14.6V
Max Charging Current
Optimal: 20A; Maximum: 50A
Discharge Cut-off Voltage
Lower than 11.1V
Over-discharge Recovery Voltage
12.6V
Internal Resistance
≤10mΩ
Connection Method
In Series (up to 4);In Parallel (up to 4);In Parallel and Series (up to 16 batteries)

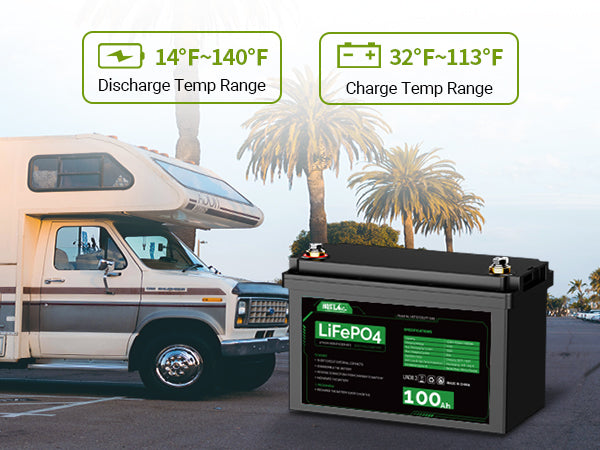

Charging Temperature Range
32℉~113℉/0℃~45℃
Discharging Temperature Range
14℉~140℉/-10℃~60℃
Low Temperature Protection
Charging: 23℉~41℉/0℃±5℃;Discharging: -13℉~5℉/-20℃±5℃
HighTemperature Protection
Charging: 140℉~158℉/65℃±5℃;Discharging: 158℉~176℉/75℃±5℃
Storage Temperature Range
-4℉~113℉/-20℃~45℃ (Store for 1-3 months);-4℉~68℉/-20℃~20℃ (Store for 1 year)
Recommended Operating Temperature
68℉~86℉/25 ± 5℃
Terminal Bolt Size
Tailor-made M8

Controller Setting (for reference)

System Voltage
12V (x N)*
Boost Charge Voltage
14.2V (x N)*
Over-discharge Recover Voltage
12.6V (x N)*
Over-discharge Voltage
11.1V (x N)*
(x N)* : When it comes to a 24V(N=2) or 48V(N=4) system, the voltage should multiply by the number of series batteries.

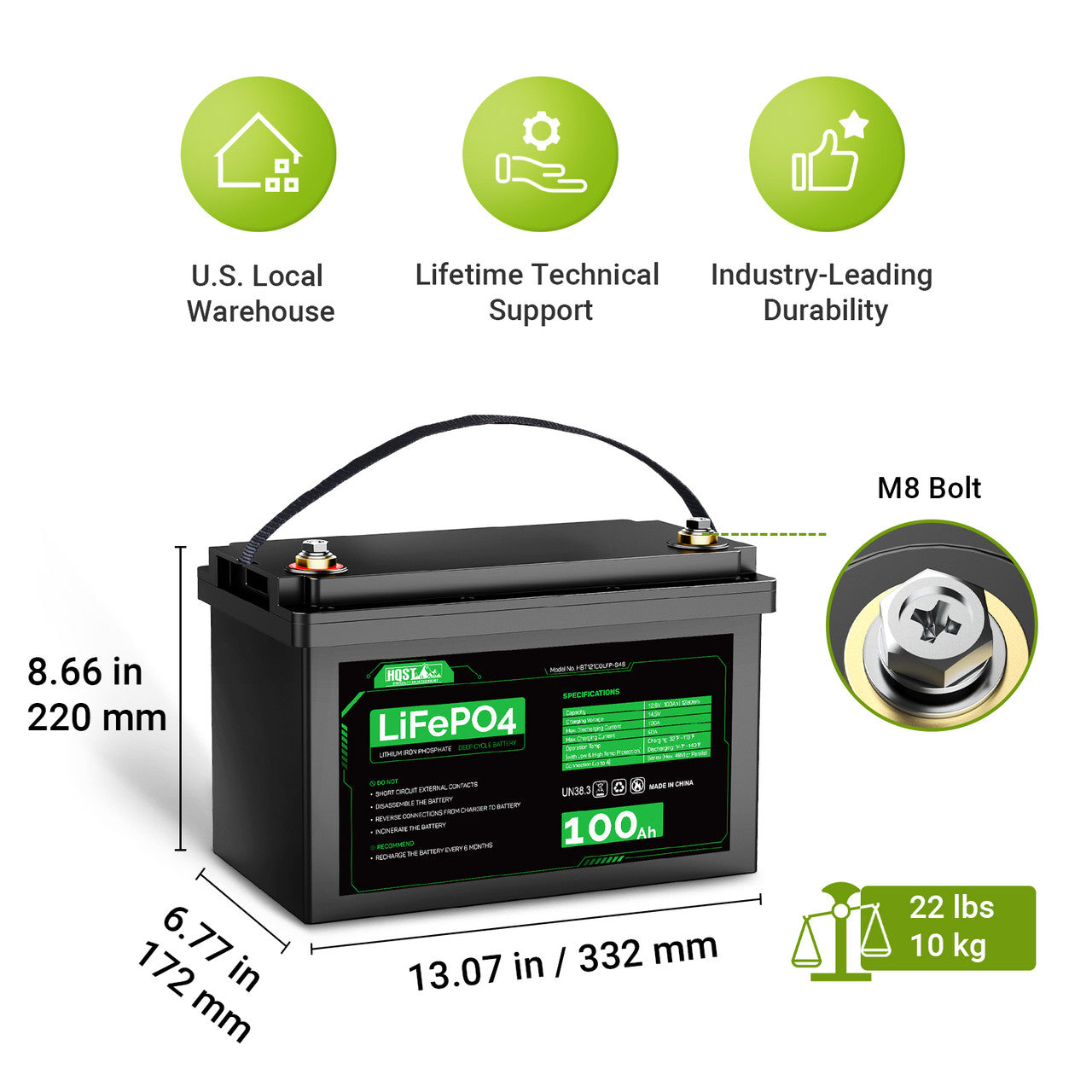

Weight & Dimension

Weight
22 lbs/10 kg
Dimension
13.07 x 8.66 x 6.77 in/332 x 220 x 172 mm (L x H x W) Compatible with the Group 31 battery case

Warranty

warranty
10-year material warranty

How many life cycles does this LiFePO4 battery have?

This HQST Deep Cycle LiFePO4 Battery enables more than 3,000 charge/discharge cycles at 80% DOD (Depth of Discharge), and more than 4,000 cycles at 70% DOD.

Will the battery come with the terminals? And if not, what's the size of the connector terminals?

Yes, it comes with two M8 screw terminals.

Does this battery have low temp and high temp protection?

Yes, this battery has low temperature protection and high temperature protection. When the temp is below 23℉ or over 140℉, the battery will stop being charged to protect its lifespan. When the temp is below 5℉ or over 158℉, it will stop discharging.

Can I run these batteries in series and in parallel?

Yes. These HQST lithium batteries support series and parallel connection. Please note that you need to use identical batteries to connect.
For optimal performance, we kindly advise you to follow the requirements listed below to connect your batteries together:
1. Fully charge all ready-to-connect batteries.
2. All battery interconnect cables should be the same wire gauge (AWG) and length, and come from the same brand. Otherwise, the impedance will be inconsistent, resulting in unbalanced charge and discharge performance.
3. Connect your batteries one by one in series (up to 4 batteries) or in parallel (up to 4 batteries). Secure all cable connections between the cable lugs and terminals.

Does this battery have low voltage protection?

Yes, it does. When the discharge voltage is lower than 11.1V, the battery will shut off automatically.

How to properly store this battery?

To store your battery, keep it at least 30%-50% charged. We recommend that you charge the battery every 6 months when not in use to prevent overdischarge. When storing the battery for 1-3 months, you can place it in an environment with a temperature range of -4℉~113℉/-20℃~45℃; when storing it for 1 year, it is recommended to place it in an environment with a temperature range of -4℉~68℉/-20℃~20℃.
