20A MPPT Solar Charge Controller with Parallel Charging & Bluetooth

Name: 20A MPPT Solar Charge Controller with Parallel Charging & Bluetooth
Brand: HQST
SKU: HCC-20MPPTN-US
Price: 79.99 USD
Availability: InStock

SKU: HCC-20MPPTN-US

$79.99 ~~$119.99~~

Enjoy payments with

Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.

Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description

OVERVIEW

Important Notice:

Regarding the low-temperature protection feature for Li-ion batteries, it is ONLY available in the 60 Amp version. The 20 Amp and 40 Amp versions do NOT include this feature.
All three MPPT charge controllers support parallel charging and can be controlled via the Bluetooth app.

HQST MPPT Charge Controller applied Advanced Maximum Power Point Tracking (MPPT) technology to help regulate the power from your solar panel to battery with efficiency no less than 99.5%. This 20 Amp MPPT solar regulator adopts high quality components with maximum conversion efficiency of 98%. The MPPT battery charging can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.

Key Features

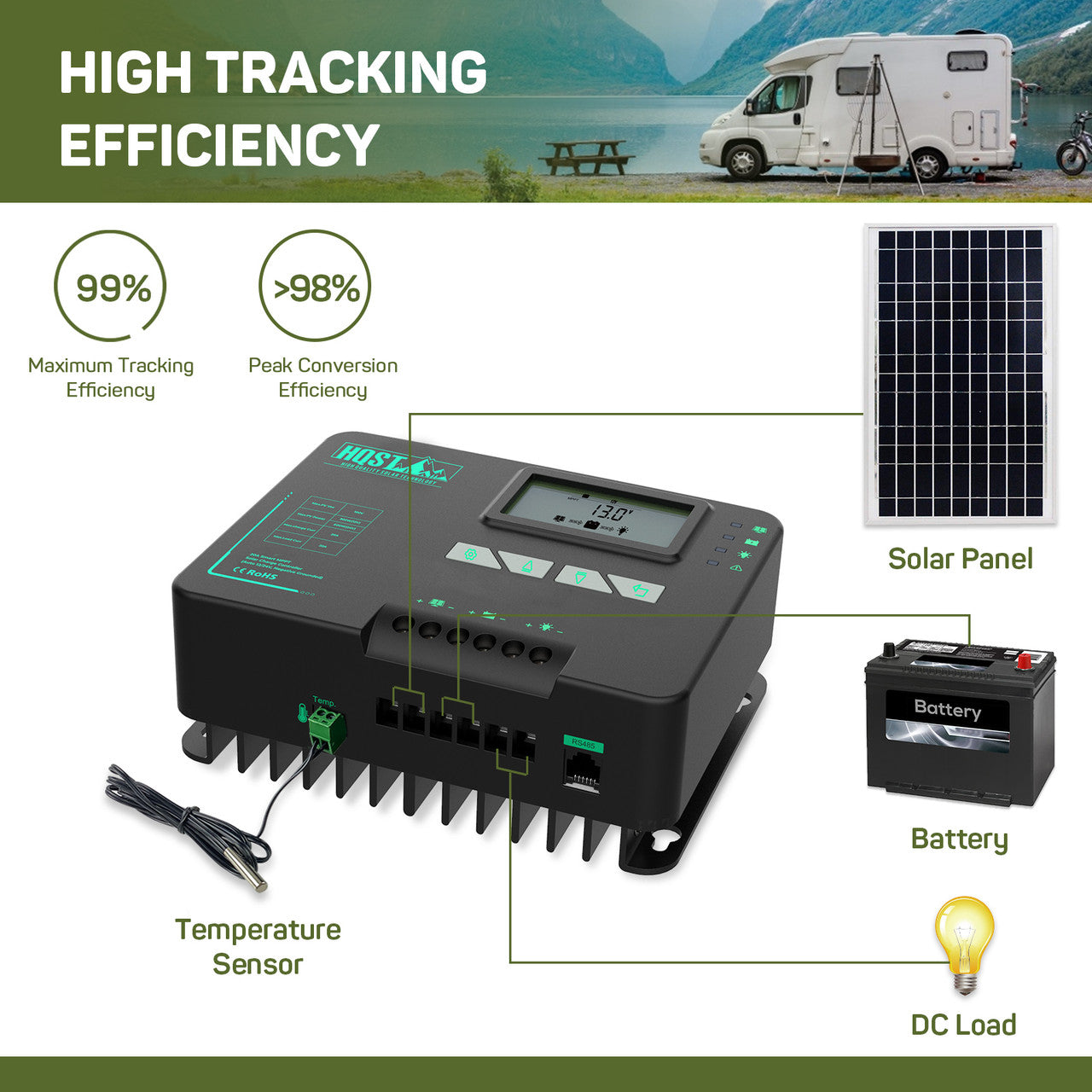

HIGH TRACKING EFFICIENCY

HQST 12V 20 amp Solar charge controller adopts advanced MPPT technology that ensures fast and stable track of the maximum power point, high tracking efficiency of up to 99%, and peak conversion efficiency of 98%. Maximizing the energy from solar panels to charge your system. It auto-detects 12V or 24V DC system voltages. The max load output current is 20A. If it exceeds the 20 amp DC load (240 watts), the overvoltage protection will turn off the output.

PARALELL CHARGE FUNCTION

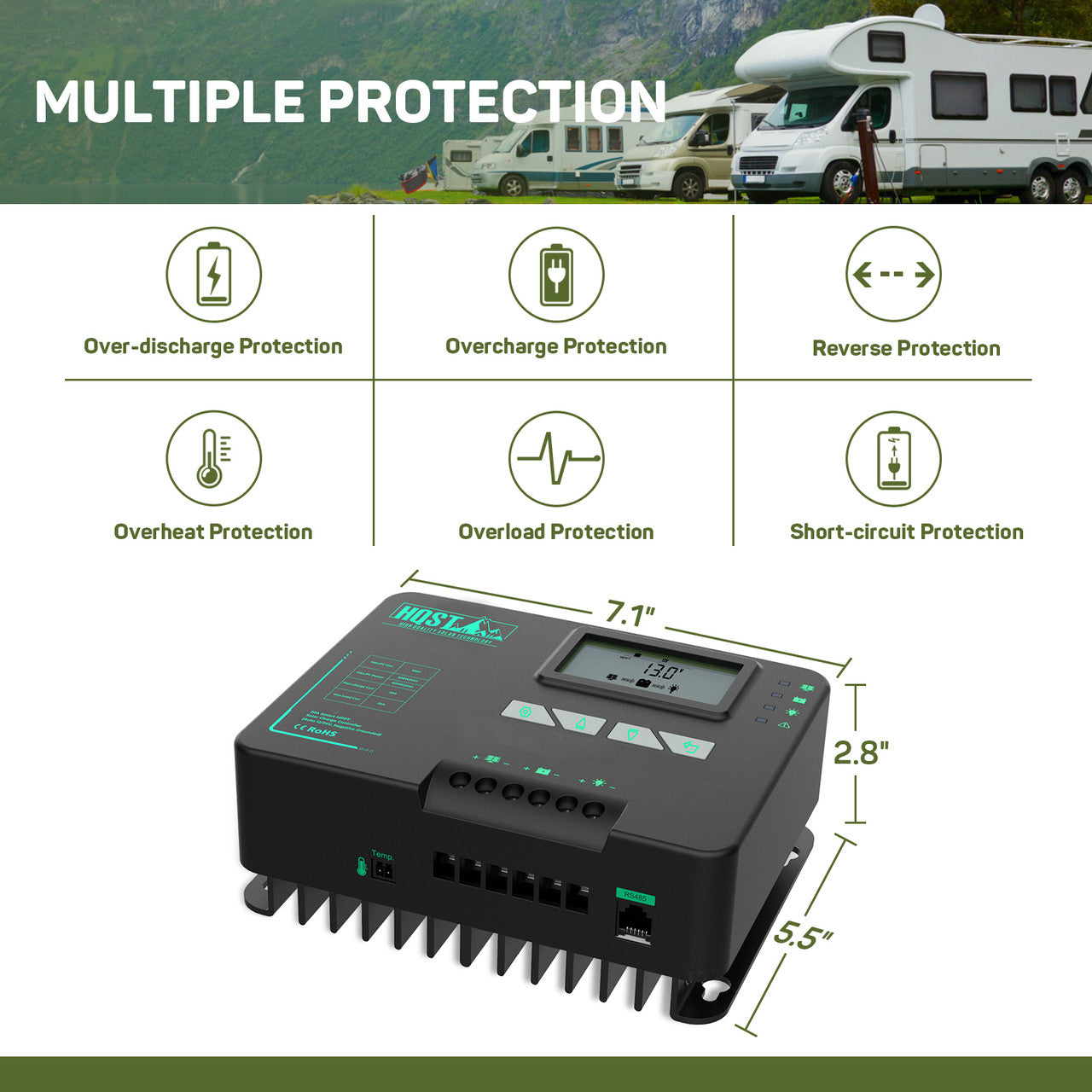

2 HQST MPPT controllers of the same series(M2420N/M2440N/M4860N) can work together to charge the same battery with the parallel charge cable (not included), to meet high power charging requirements and 2 controllers should set the same battery pack voltage. Our negative grounded controller offers overcharging/over-discharging/overload/overheat/short circuit/reverse protection. The maximum degree avoids the damage due to system fault or installation error.

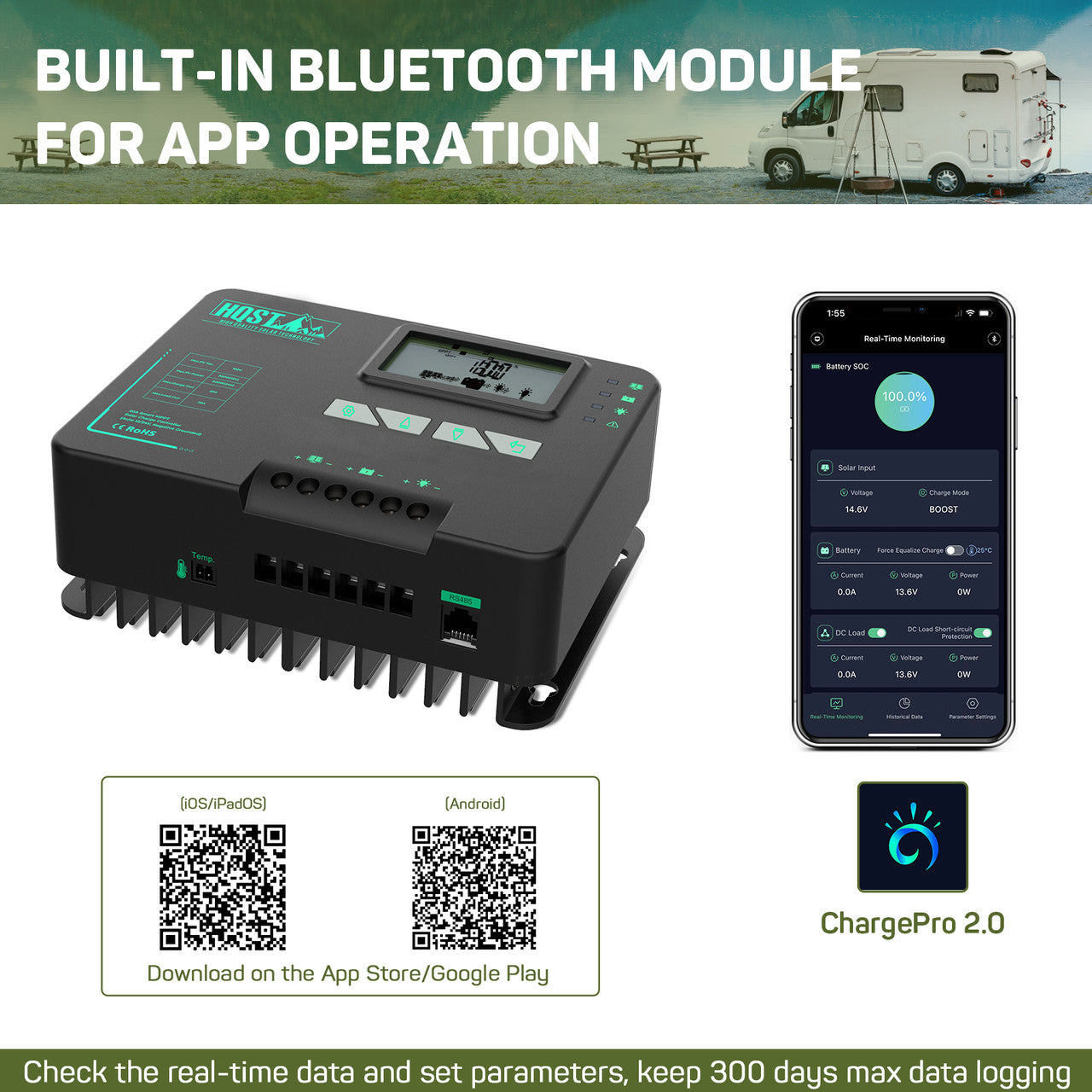

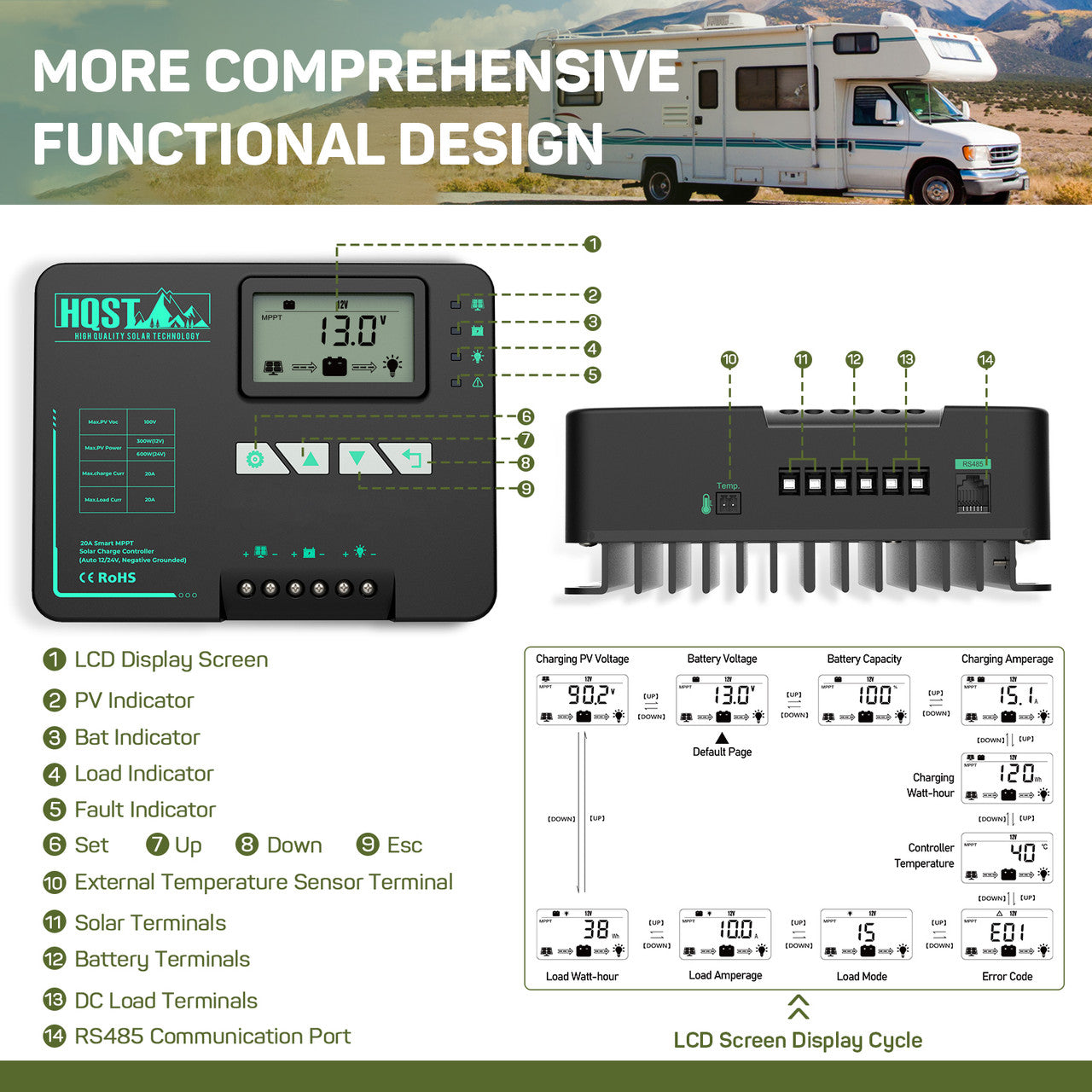

LCD SCREEN DISPLAY & REMOTE MONITORING

20A solar controller is equipped with an LCD screen and LED fault indicators, which can not only check device operating data and status but quickly determine system faults and modify controller parameters. Built-in Bluetooth module, you can download the "ChargePro 2.0" (new version) or the "PVChargePro" (old version) app for remote monitoring that keeps 300 days of historical data.

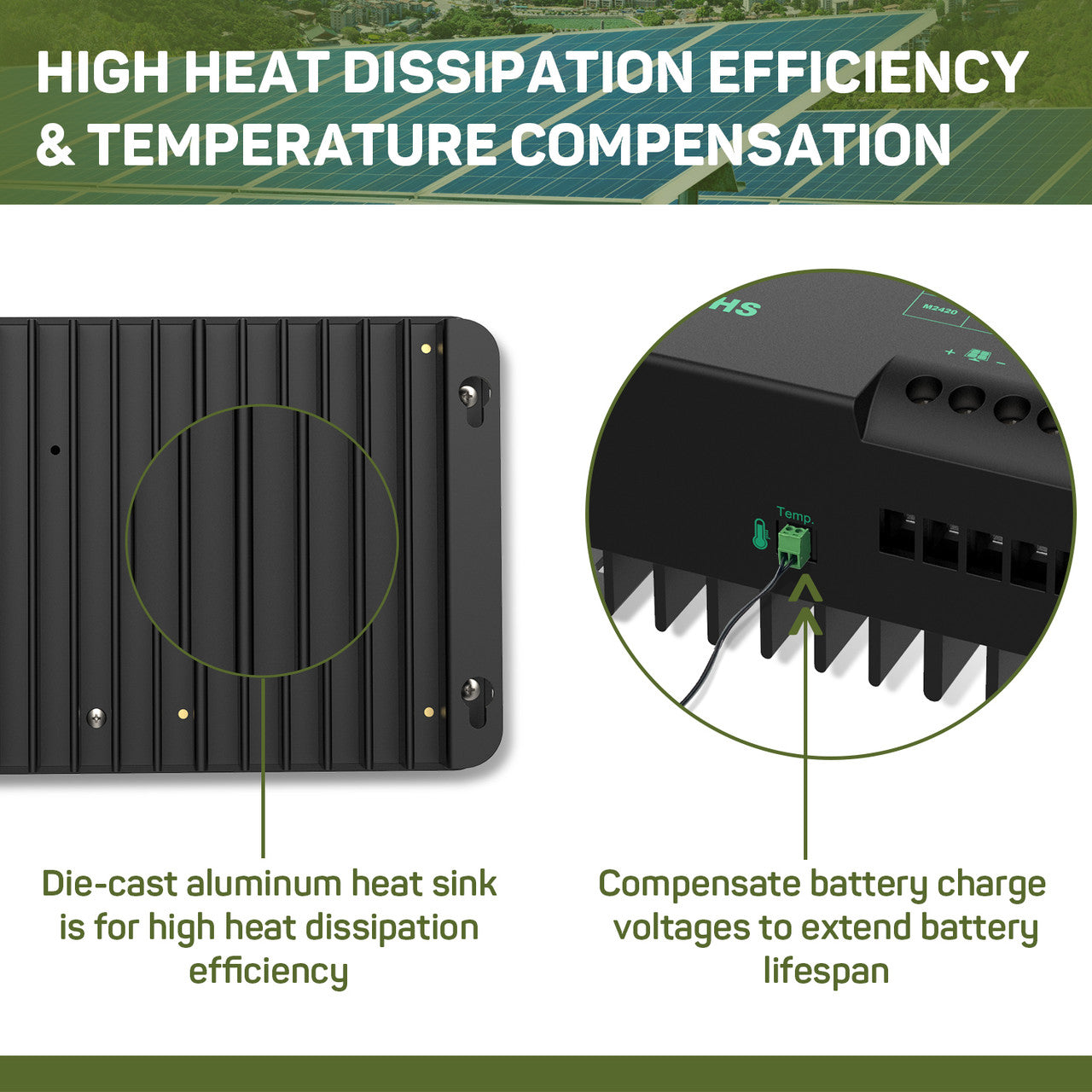

HIGHER HEAT DISSIPATION EFFICIENCY & FULL-LOAD WORKING

Die-cast aluminum heat sink makes the heat dissipation efficiency higher, which can minimize the power loss from heat. Filling inside the controller with gel is for better PCBA cooling conduction and prevents water and other damages, extending the controller service life. With the premium IC and better PCBA, this controller can work under full load even in high temperature environment.

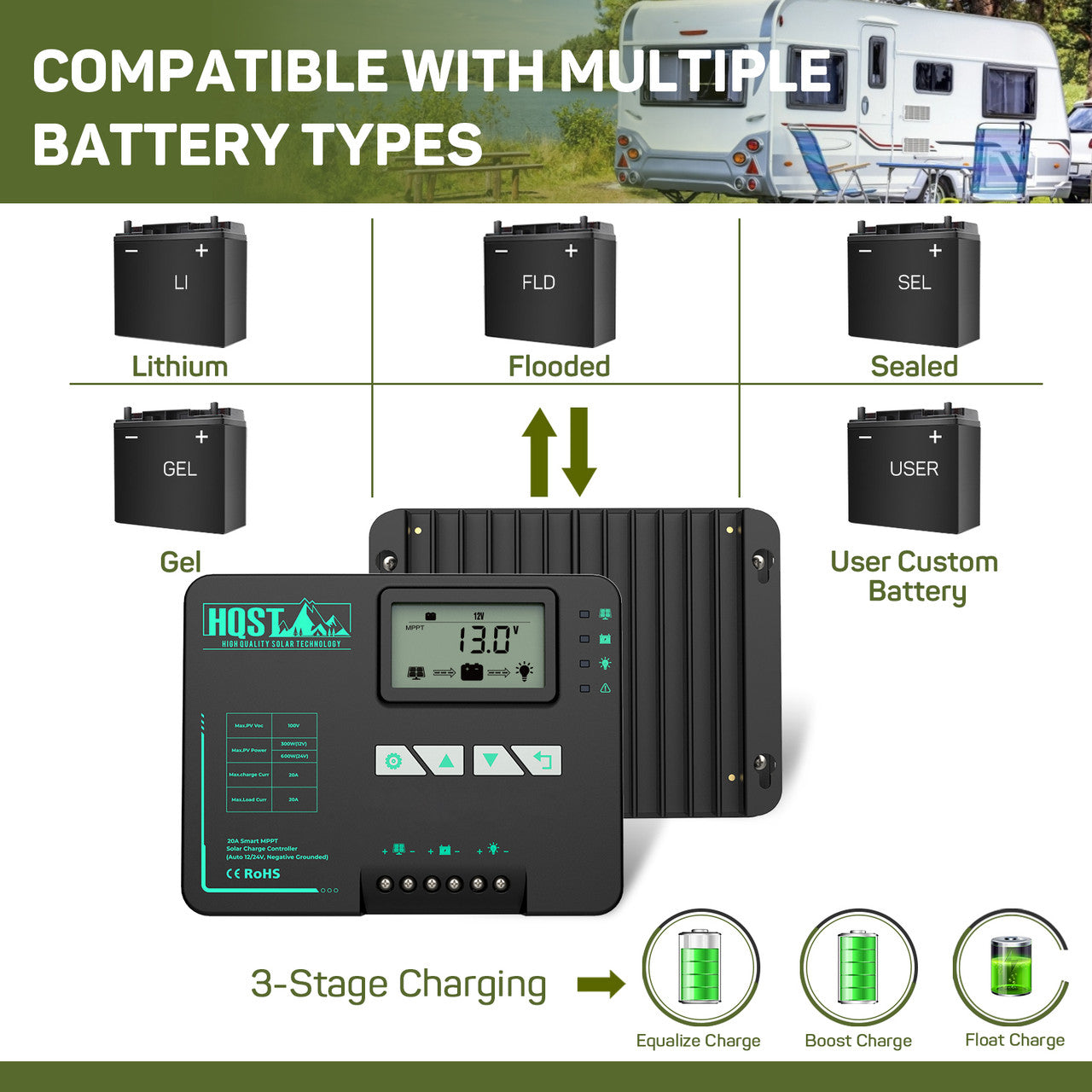

COMPATIBLE WITH MULTIPLE BATTERY TYPES

The mppt solar charge controller is compatible with Flooded, AGM, Gel, and Lithium batteries. User mode allows the buyer to set their charging parameters. 3-Stage Charging: boost, float, and equalization.

20A MPPT Solar Charge Controller with Bluetooth LCD Display

Package Includes

1 x 20A MPPT Solar Charger Controller

1 x 3.3FT 26AWG Temperature Sensor

HQST 20Amp MPPT Solar Charge Controller

Battery voltage: 12/24V
Max PV Input Voltage: 100V(25℃)；
Charge current: 20A
Max. PV input power: 300w/12v; 600w/24v
Self-consumption: 12mA/12V; 10mA/24V
Operating Temperature: -95℉ ~ 113℉
Weight: 2.71 lbs
Dimensions: 7.1 x 5.5 x 2.8 in
Terminals: 10 AWG

Warranty Information

1-year material warranty
