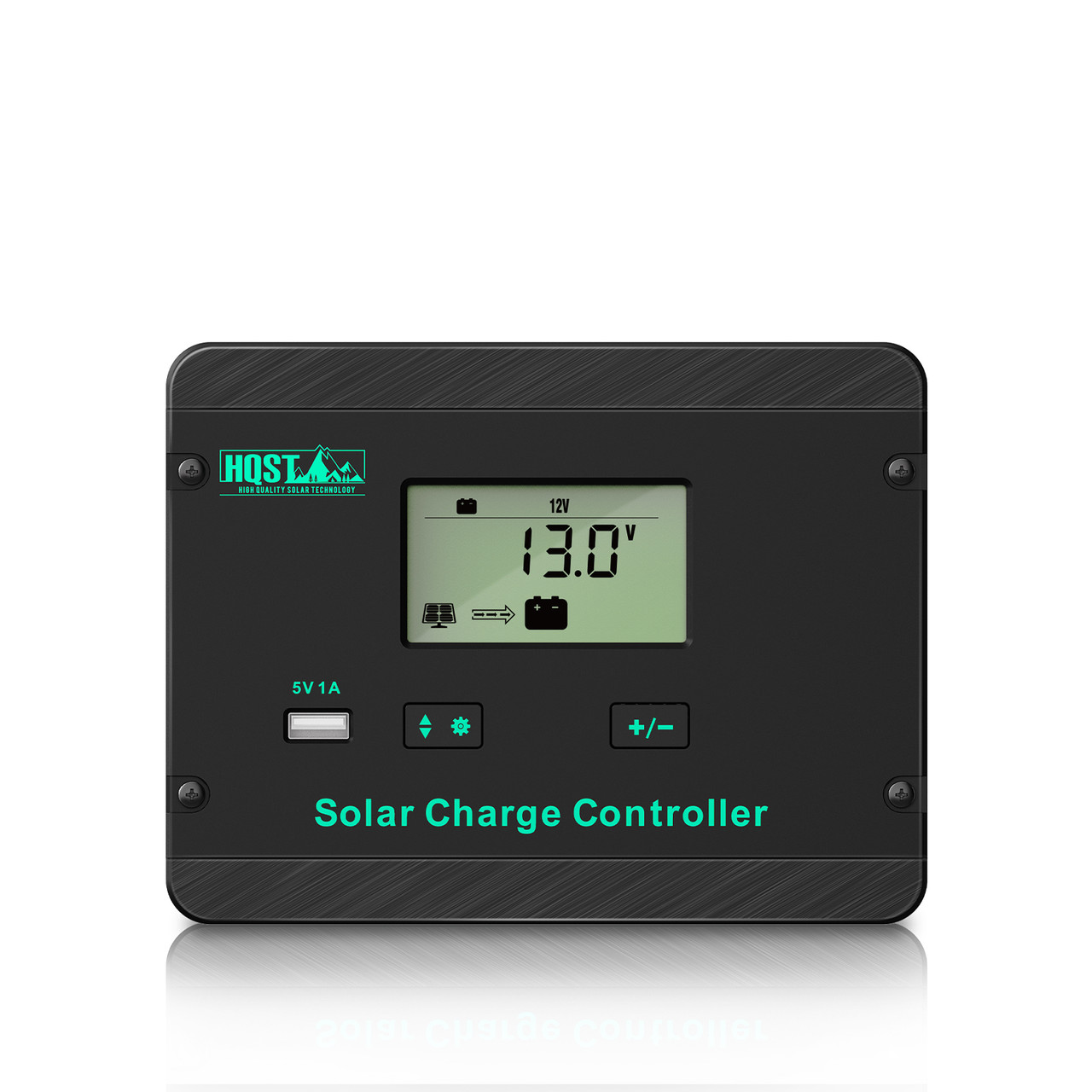

30A 12V/24V PWM Flush Mount Solar Charge Controller - Negative Ground

Name: 30A 12V/24V PWM Flush Mount Solar Charge Controller - Negative Ground
Brand: HQST
SKU: HCC30HAP-FM-US
Price: 21.99 USD
Availability: InStock

SKU: HCC30HAP-FM-US

$21.99 ~~$59.99~~

Enjoy payments with

Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.

Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description

OVERVIEW

For those committed to off-grid living, this HQST 30 Amp Flush Mount Solar Charge Controller allows you to keep your battery powered via solar panels wherever you happen to be - traveling by RV or truck or maintaining a convenient and reliable solar-powered solution for your cabin or home. The flush mount design provides clean and tidy surface installation. Negative grounding and multiple charging protections ensure safe usage.

Key Features

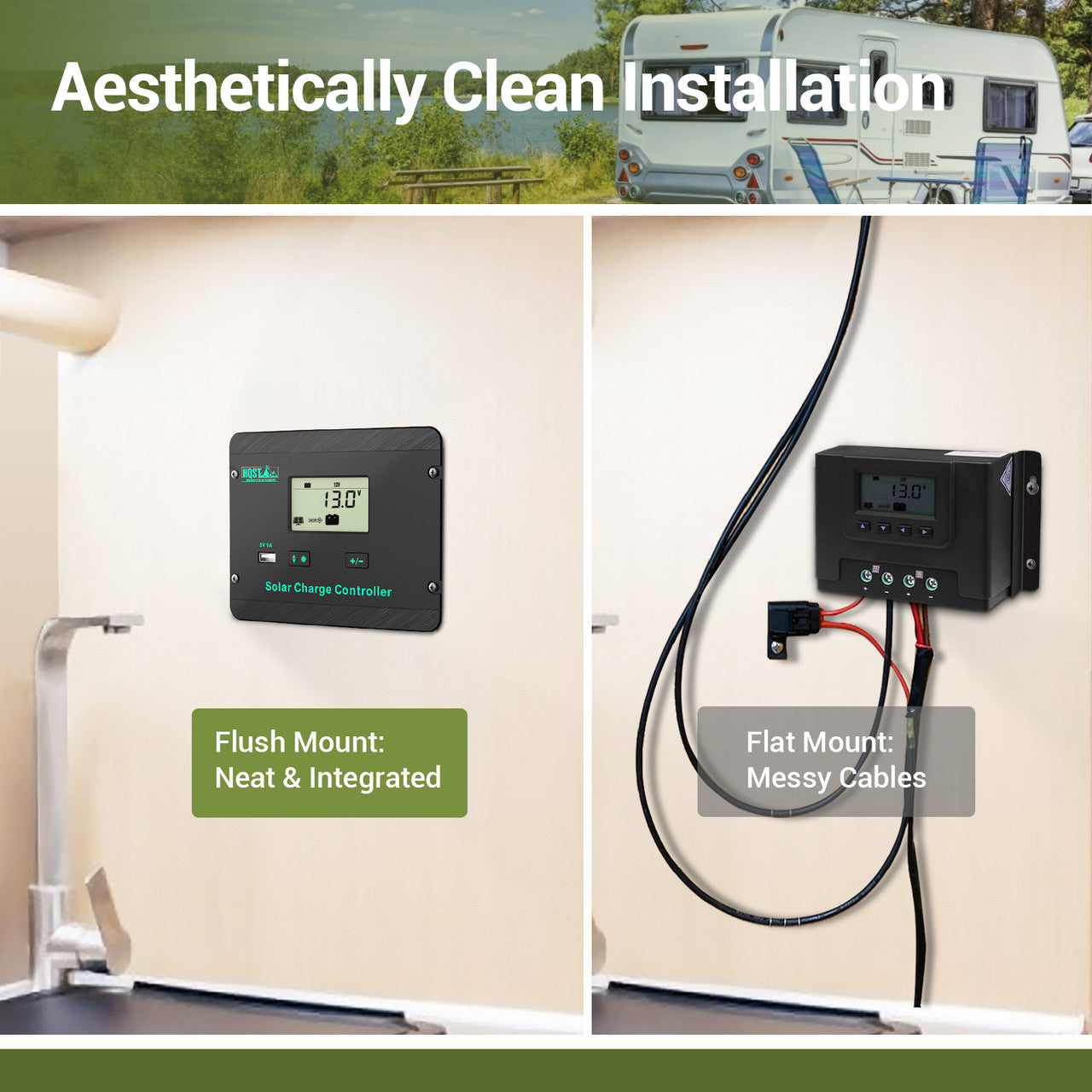

Aesthetically Clean Installation

This HQST 30A PWM solar charge controller with flush mount capabilities is designed to be seamlessly mounted onto a flat wall surface, producing an aesthetically clean, and integrated look.

Negative Ground, Safe Charging

This is a commonly used negative-ground controller, suitable for most vehicle and solar off-grid systems. Equipped with multiple protections, including over-discharge, over-voltage, over-current, reverse current, short-circuit, and reverse polarity, this 30A PWM solar controller prevents damage from installation mistakes or system faults.

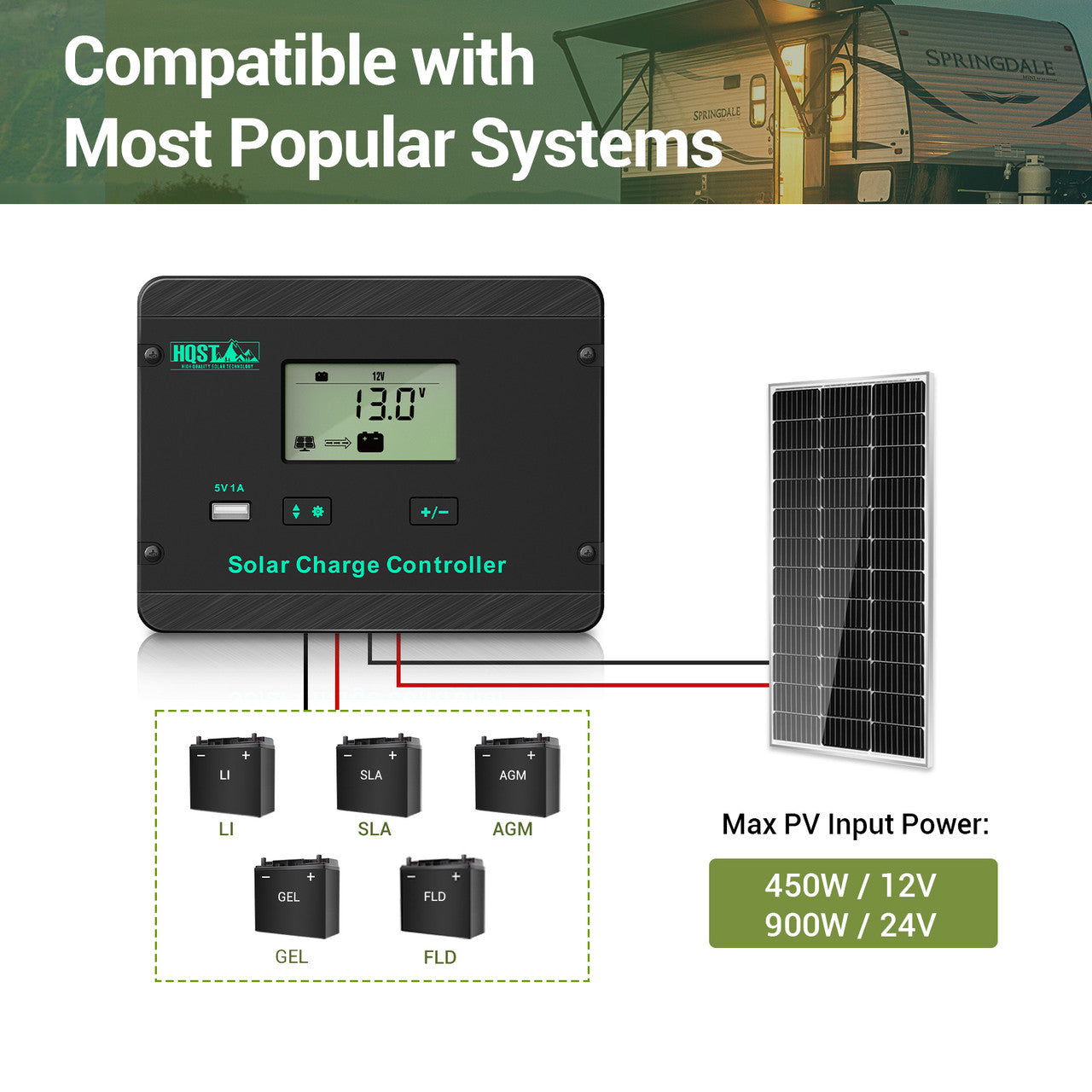

Compatible with Most Systems

Automatic battery recognition for 12V and 24V AGM, GEL, Flooded, and Sealed Lead-Acid batteries. Lithium batteries can be set manually. Supporting 12V (up to 450W) and 24V (up to 900W) solar systems, this solar controller can be widely applied on motorhomes, sheds, boats, water pumps, and more.

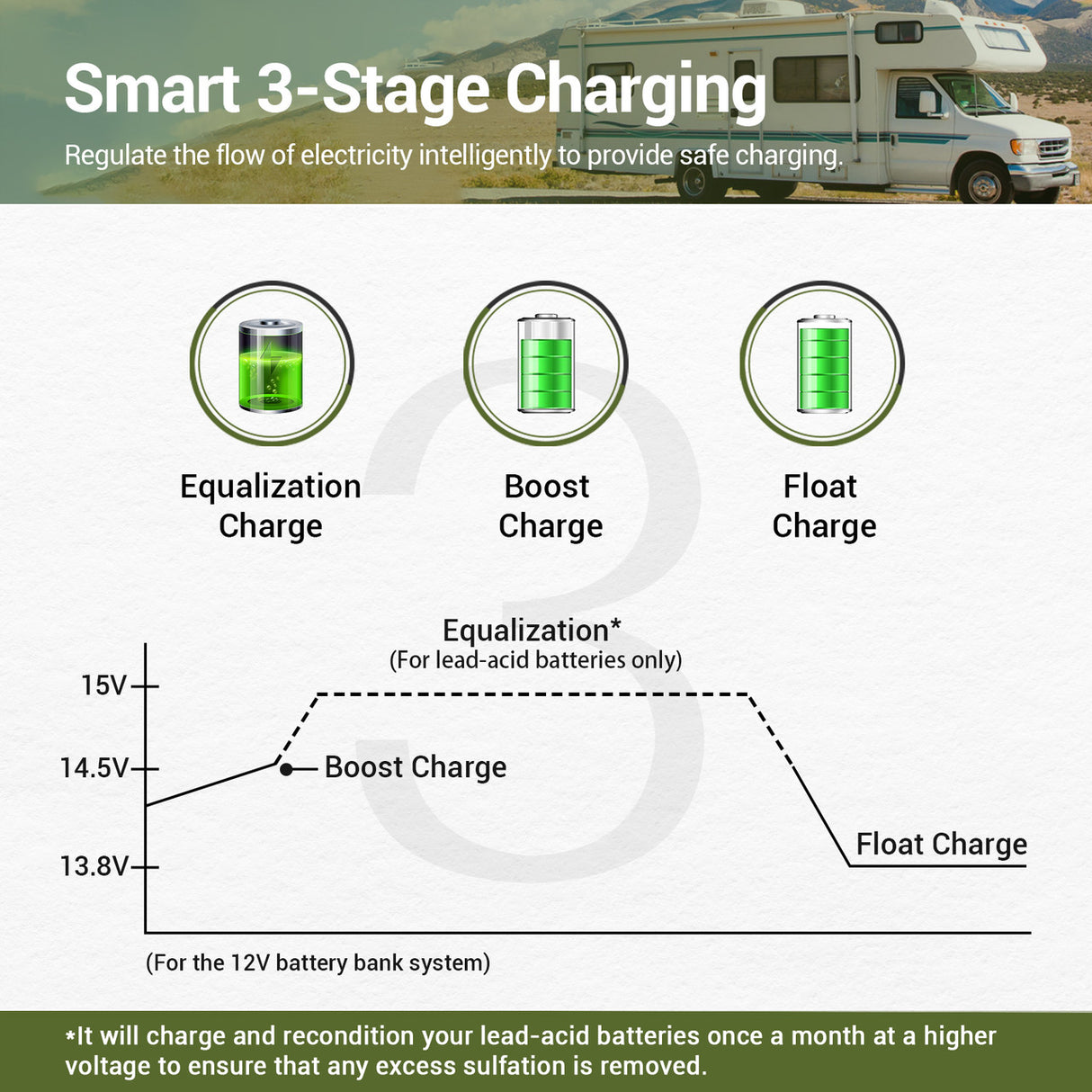

Smart PWM Charging

Utilizes the three-stage charging (Boost, Float, Equalization) algorithm to regulate the flow of electricity to achieve optimal battery (lead-acid) performance and longevity. Two-stage charging (Boost and Float) for lithium batteries.

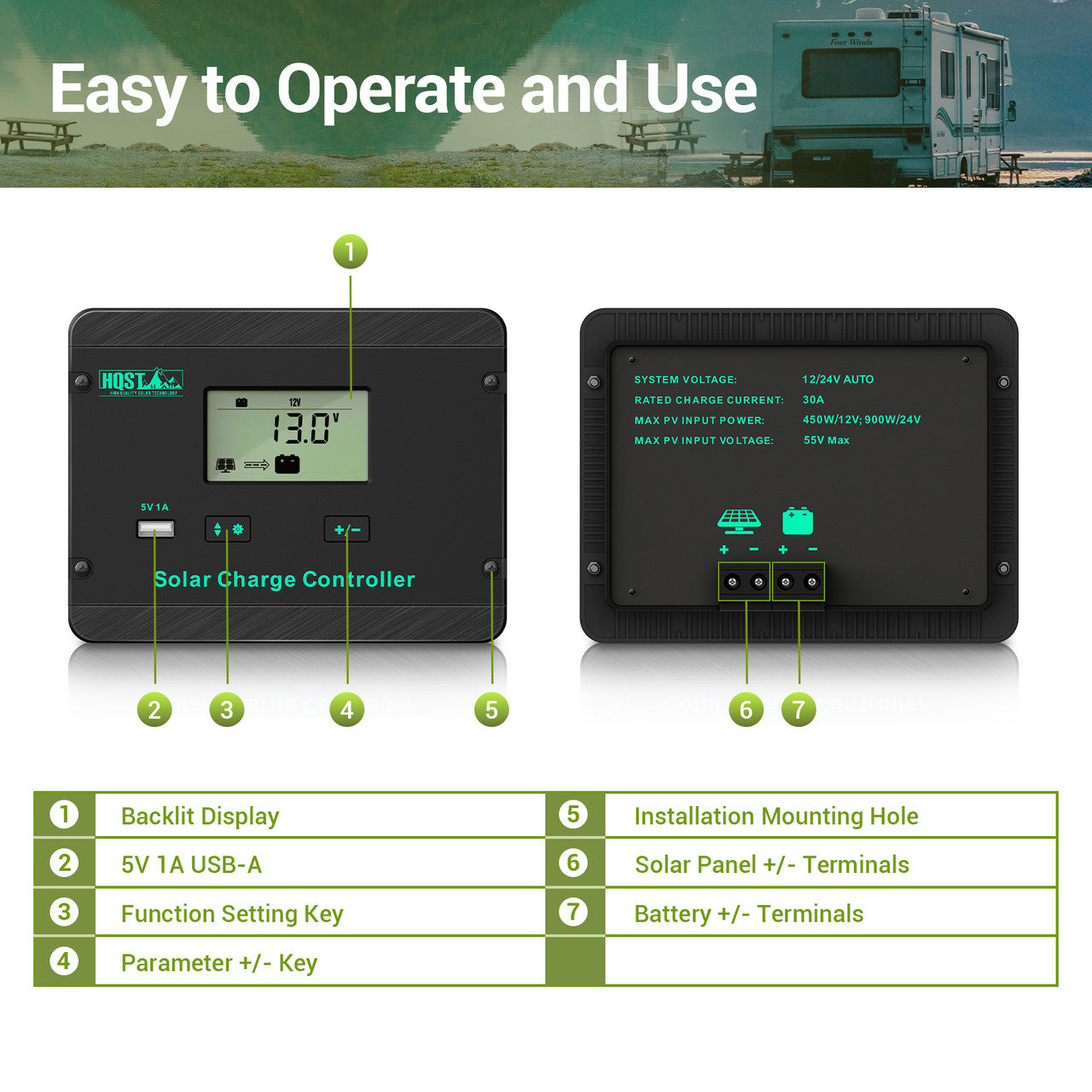

Easy to Use

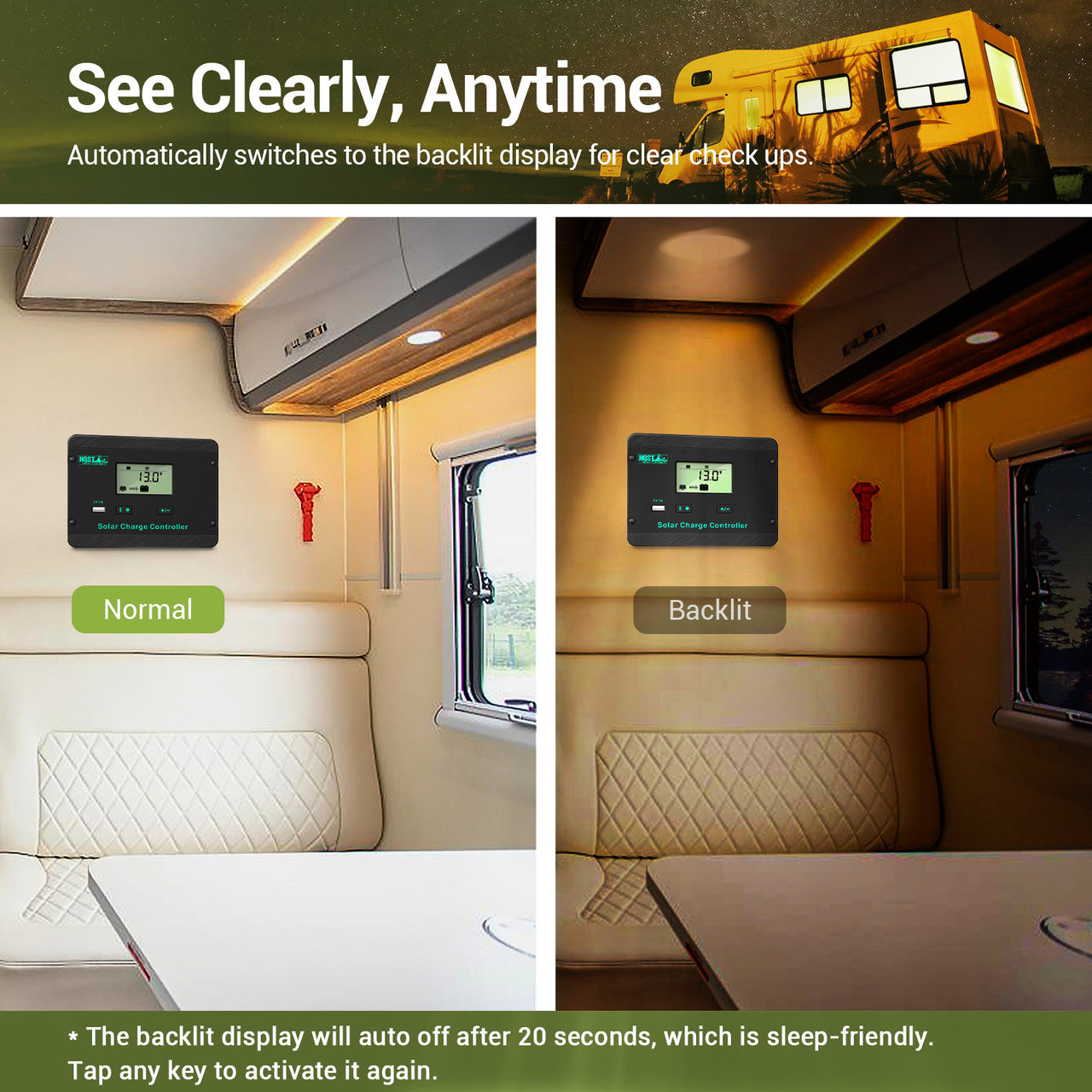

The backlit display allows you to see key information clearly, even in a dark environment. The USB-A port supports charging current up to 5V/1A for your mobile device, like a mini fan or smartphone. The compact design is ideal for areas with limited space.

30A Negative Ground Pem Solar Charge Controller

Package Includes

1 x 30A PWM Flush Charge Controller

4 x M4 12mm Bolts

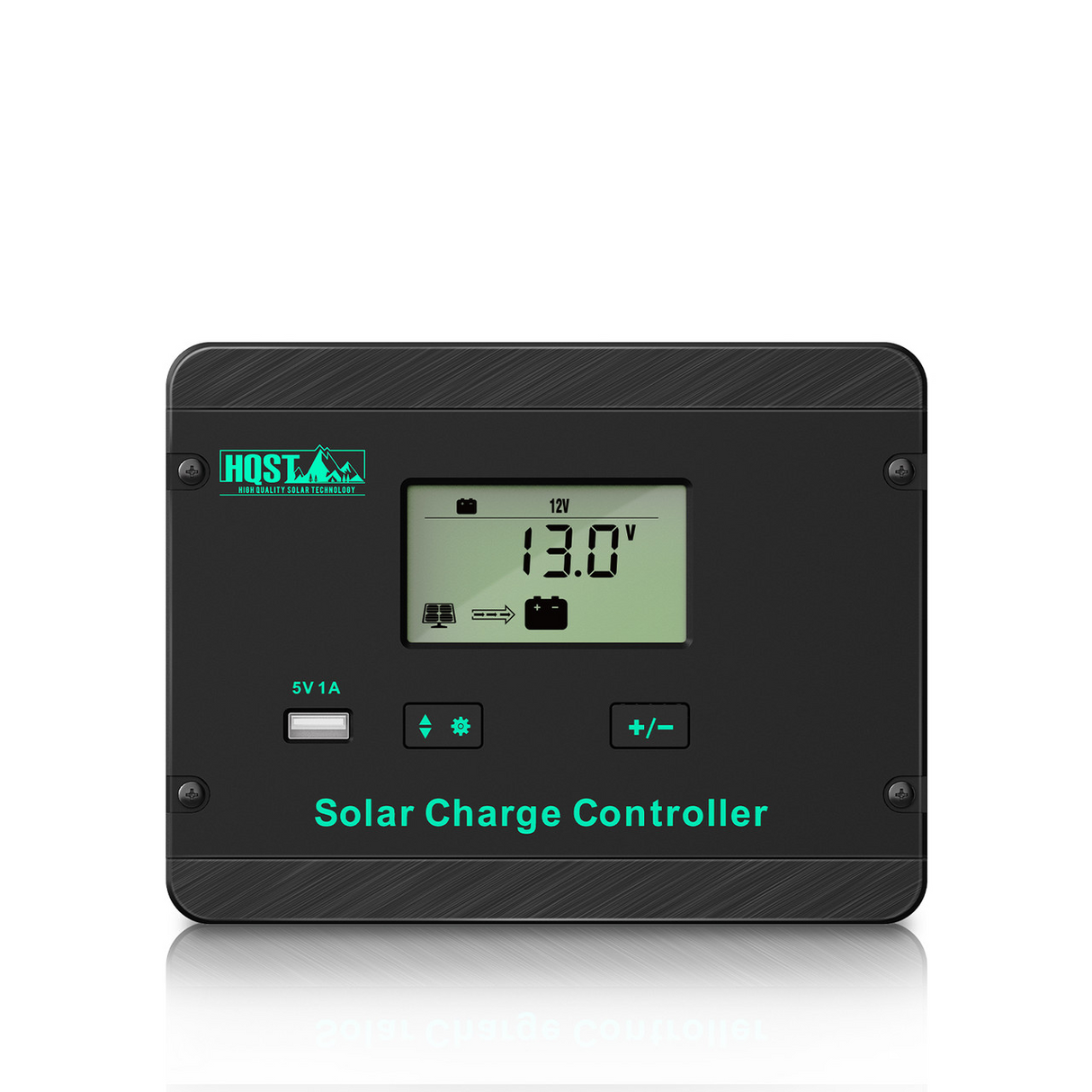

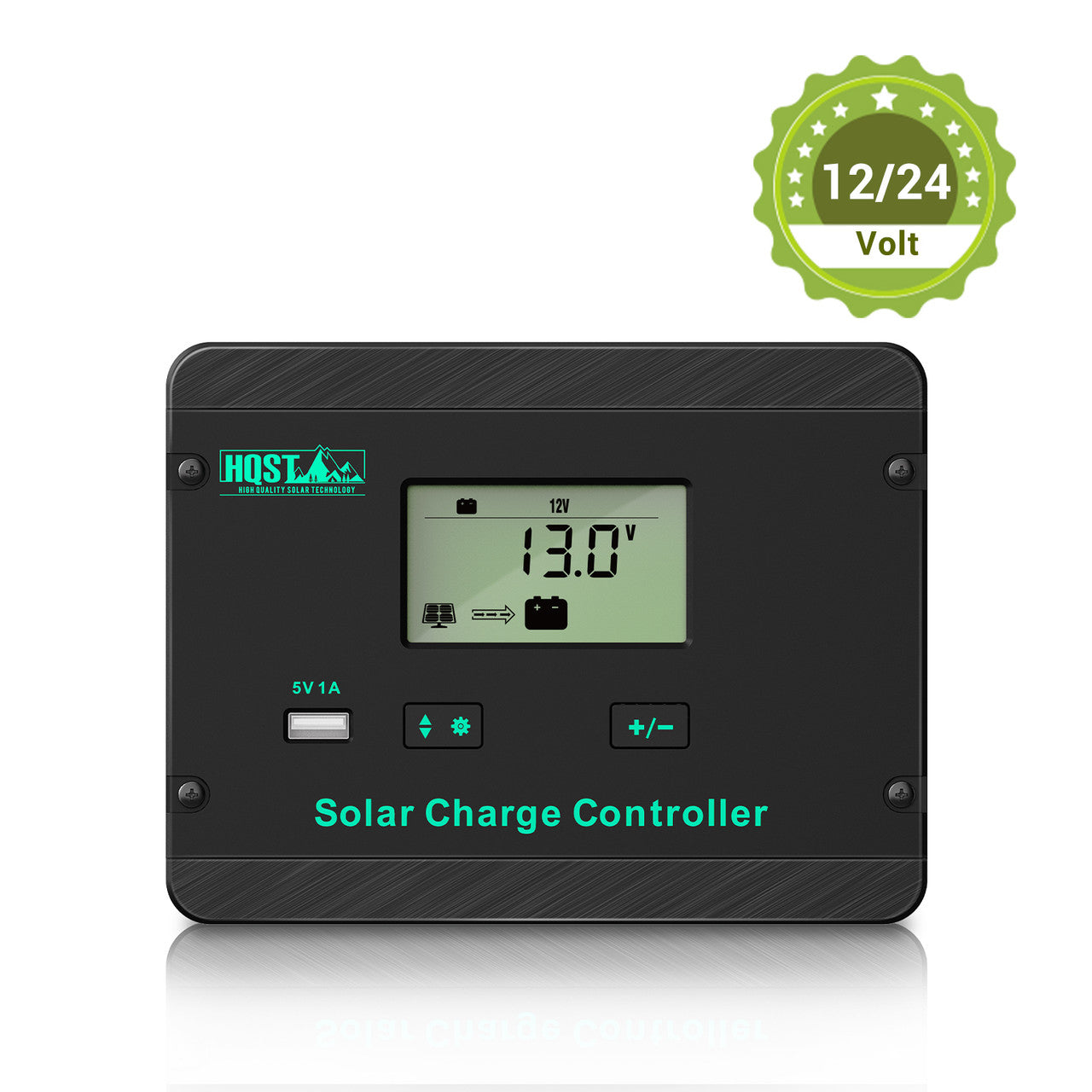

HQST 30A PWM Flush Solar Charge Controller

HQST 30A PWM Flush Solar Charge Controller
Electrical Parameters
Rated System Voltage: 12V/24V DC	Rated Charge Current: 30A
Max PV Input Power: 12V/450W max, 24V/900W max	Max PV Input Power: 55V max
Equalization Voltage: Sealed: 14.6V (12V), 29.2V (24V); Gel: None; Flooded: 14.8 V (12V), 29.6V (24V)	Boost Voltage: Sealed: 14.4 V (12V), 28.8V (24V); Gel: 14.2 V (12V), 28.4V (24V); Flooded: 14.6 V (12V), 29.2V (24V); Lithium: 14.2V (12V), 28.4V (24V)
Ground Type: Negative	USB-A Output: 5V/1A max
Mechanical Specifications

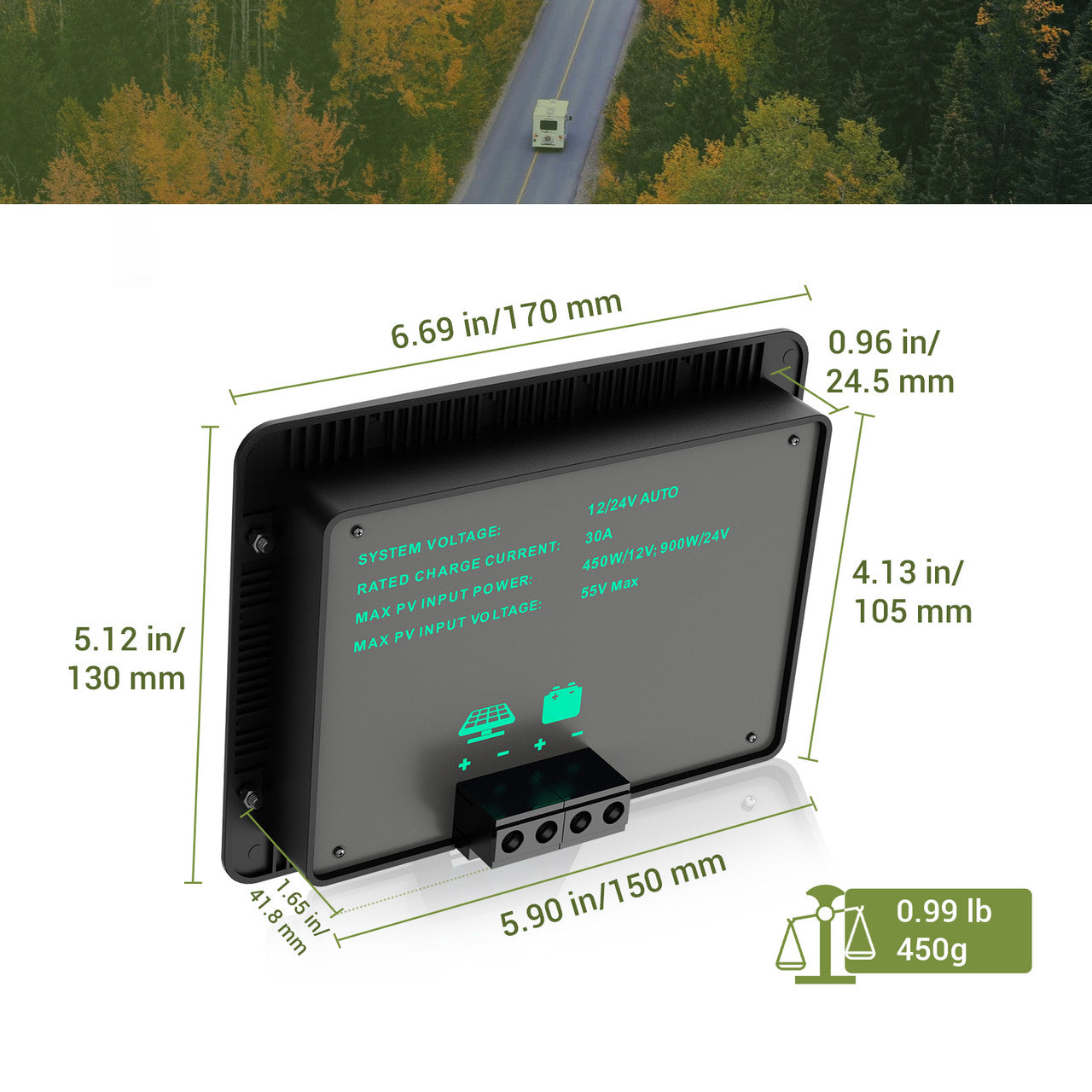

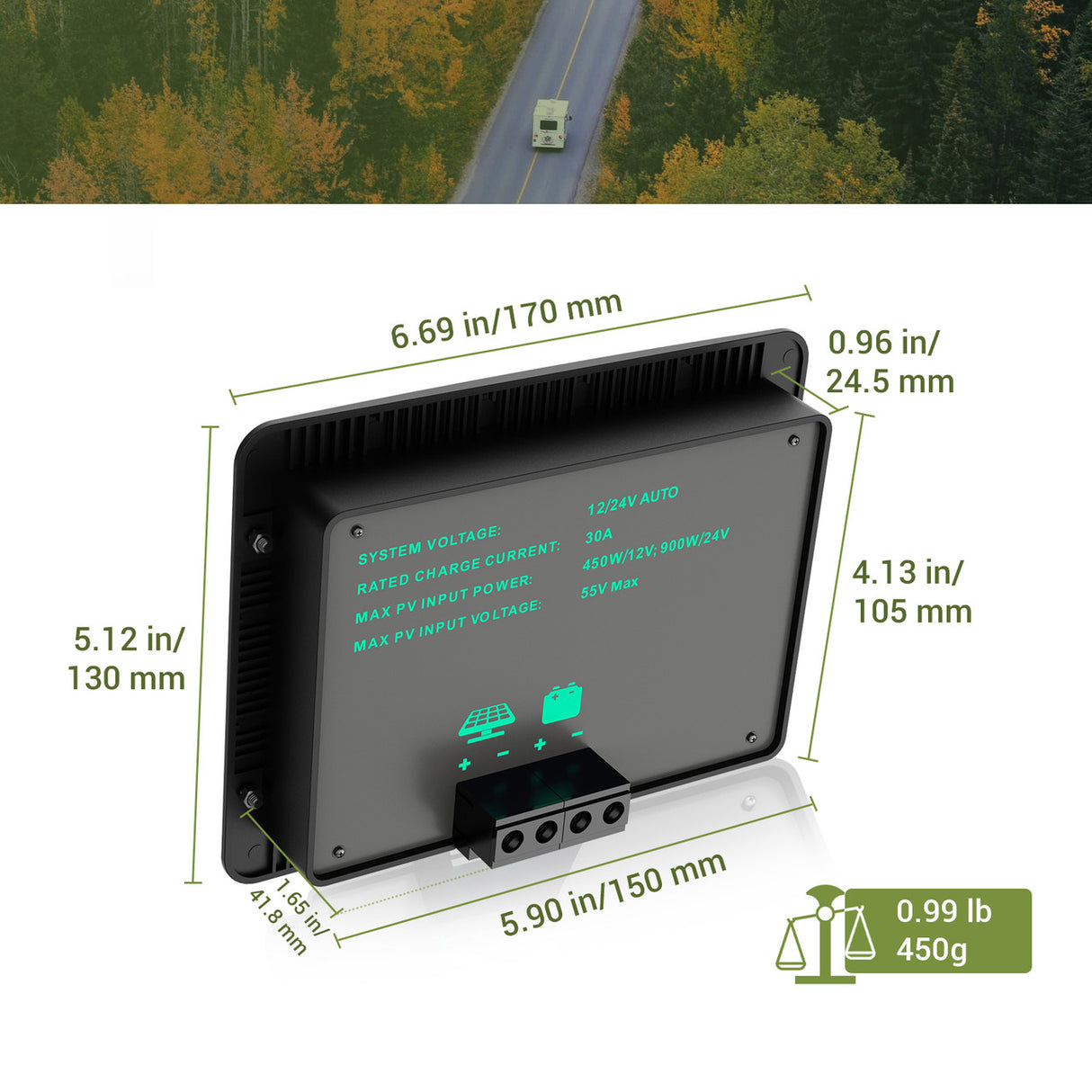

Dimensions: 6.69 x 5.12 x 1.89 in/170 x 130 x 48 mm	Weight: 0.99 lb/0.45 kg
Terminals Size: 8 AWG to 14 AWG
Environmental Data
Protection Level: IP32	Operating Temperature: -31°F to 113°F (-35°C to 45°C)
Certifications
CE: YES	RoHS: YES

Warranty Information

1-year material warranty

1. What is the ground type of this charge controllers?

Negative ground controller. A negative-ground controller is more common and can fit most vehicle systems. When in use, you can connect a cable to the negative terminal of any device in the wiring system.

2. Will this work with sealed lead-acid (SLA) batteries and lithium batteries?

Yes, it works. This solar charge controller supports LiFePO4, Gel, Flooded, AGM, and SLA (Sealed Lead-Acid) batteries.

3. Can I use this with solar panel only? No battery backup?

No, you can't. The controller's purpose is to safely control the charging voltage and amperage delivered to the storage battery bank. The controller is powered by the battery, not the solar panel(s).

4.Why do I need a solar charge controller? What are PWM charge controllers?

A solar charge controller is a regulator for your solar battery that prevents it from overcharging. Batteries are rated for voltage capacity, and exceeding that voltage can lead to permanent battery damage and loss of functionality over time. Solar charge controllers act as a gate to your battery storage system, making sure damage doesn’t occur from overloading it.

PWM (Pulse Width Modulation) Charge Controllers work by slowly reducing the amount of power going into your battery as it approaches capacity. When your battery is full, PWM controllers maintain a state of "trickle", which means they supply a tiny amount of power constantly to keep the battery topped off. PWM controllers are more suited for small DIY solar systems with a couple of low voltage panels and a small battery.

5. Will this charge controller work for a 36V lead acid battery bank or 48V lithium battery?

No, it only supports 12V and 24V batteries.

6. Does this 30A PWM charge controller have a built-in 30A fuse for the rated 30A load output?

No, it doesn't. We recommend adding an external fuse between the charge controller and battery bank for safe system operation. To determine the fuse size needed between the charge controller and battery bank, you can match the amperage rating on the charge controller. For instance, if you're going to install this 30A charge controller, we recommend using a 30A fuse.

7. How many watts can this 30 Amp charge controller handle?

The maximum input solar power for a 12V battery system is 450W while for a 24V system it's 900W.

8. When does the USB port have power? Only when the solar panel is outputting power or will it pull power from the battery?

The USB port pull power from the battery.
