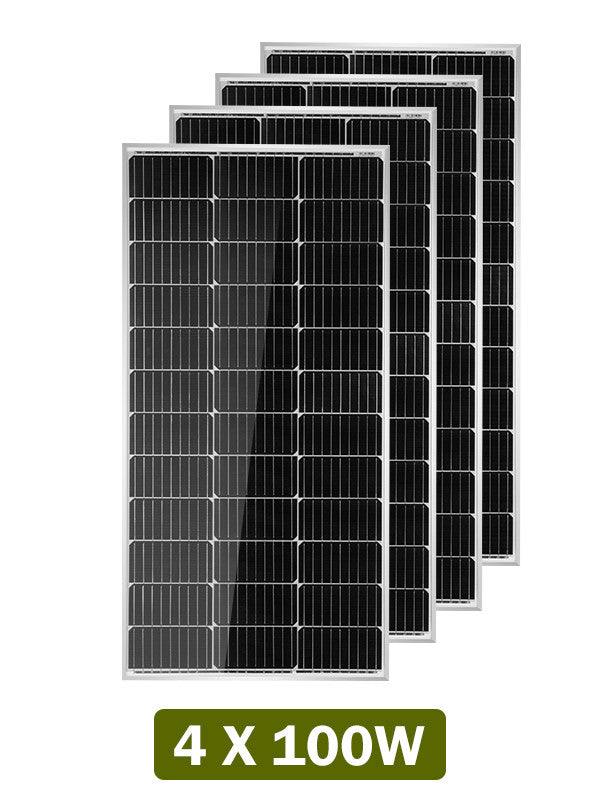

400 Watt 12 Volt 9BB Cell Waterproof Monocrystalline Solar Panel（4 pack 100w ）

Name: 400 Watt 12 Volt 9BB Cell Waterproof Monocrystalline Solar Panel（4 pack 100w ）
Brand: HQST
SKU: HSP100D-36x4
Price: 219.99 USD
Availability: InStock

SKU: HSP100D-36x4

$219.99 ~~$259.99~~

Enjoy payments with

Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.

Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description

OVERVIEW

Adopting the industry-leading 9 busbars technology, this HQST 100W monocrystalline solar panel provides higher efficiency and longer service life. Grade A+ 166mm large mono solar cells offer 22-23% high efficiency and then generate more current. It's time to upgrade your conventional 5-busbar solar panels to these 9-busbar panels for better performance, reduced risk of cracks, and lower working temperatures.

Key Features

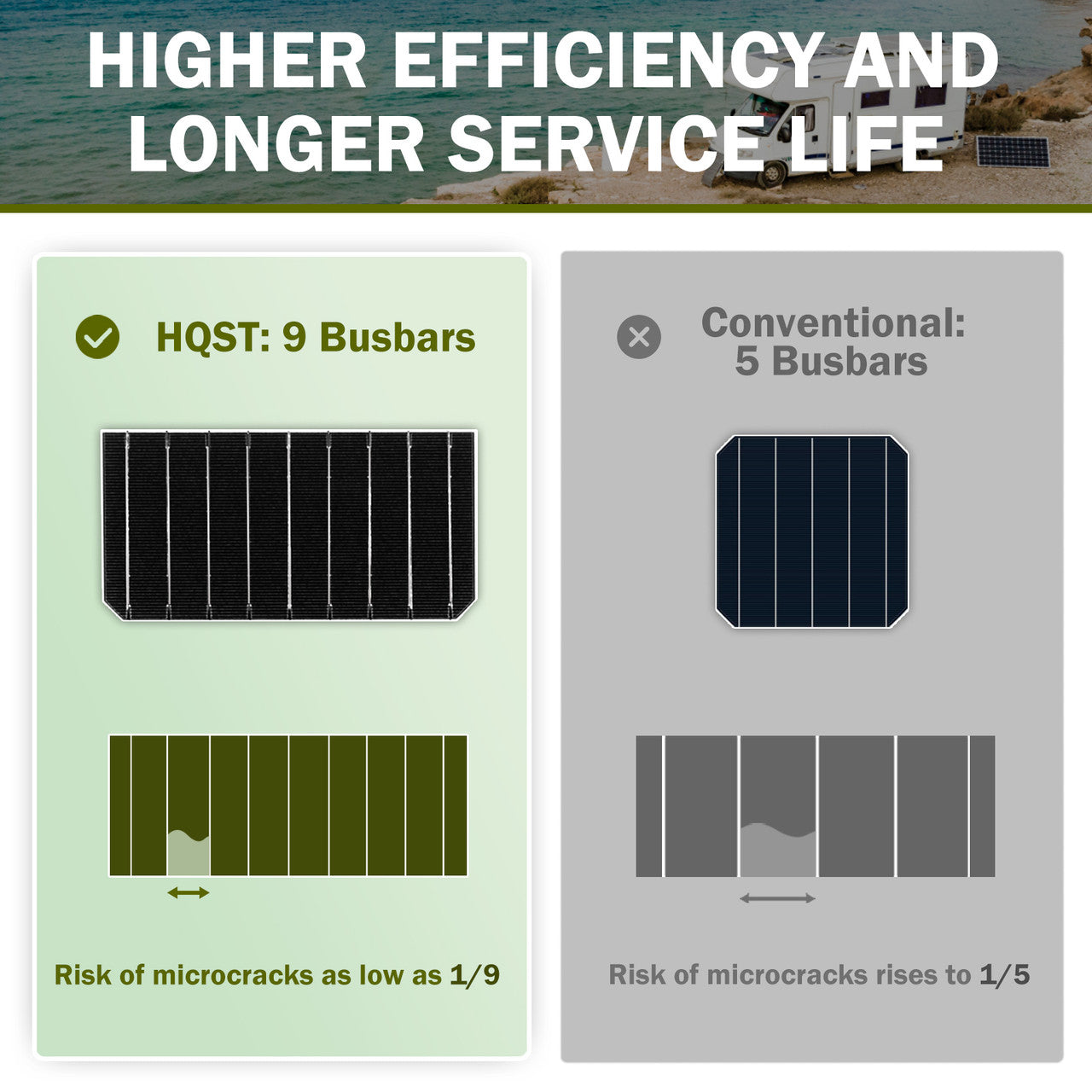

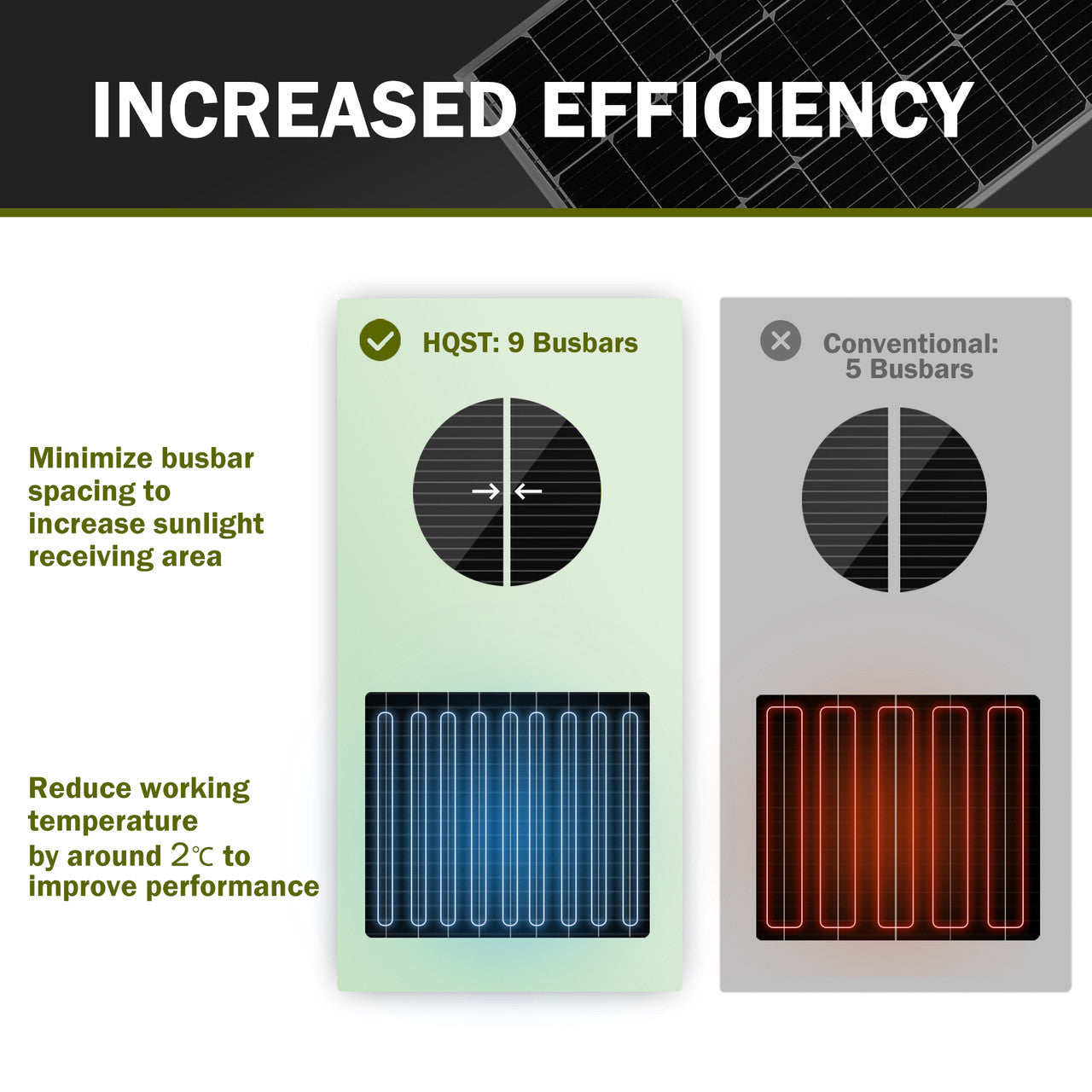

9 Busbars for Better Performance

The industry-leading 9 busbars technology reduces the risk of microcracks and provides longer service life than a conventional 5-busbar design. It can also reduce the working temperature by around 2℃ to improve the module's performance.

Higher Efficiency, More Power Output

Grade A+ 166mm large monocrystalline solar cells offer a 22-23% conversion rate, which is higher than most conventional solar panels. The solar panel provides up to 500Wh of electricity per day in 5 hours of direct sunlight.

Better Low-Light Performance

The bypass diodes minimize power drops caused by shade, eliminate hot spots, and ensure excellent performance in low-light environments. Even when some of the solar cells break accidentally, bypass diodes keep this 100W solar panel working normally.

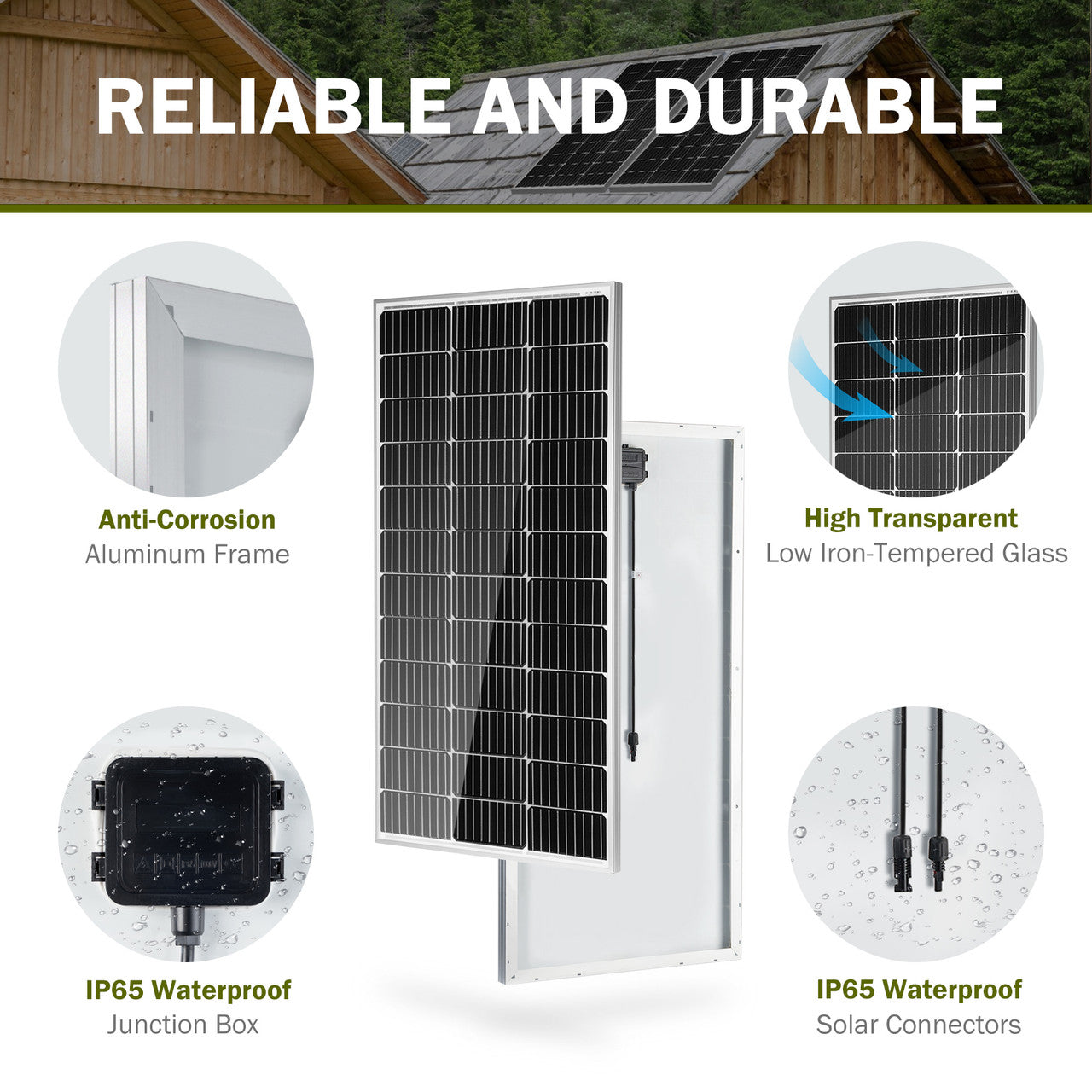

Built to Last

The IP65 rated junction box and solar connectors allow you to have no worries about water splashes and rain. Corrosion-resistant aluminum frame provides extended outdoor use that ensures the panel can last for decades. The 5400 Pa of heavy snow load and 2400 Pa of high wind provide excellent durability in a harsh environment.

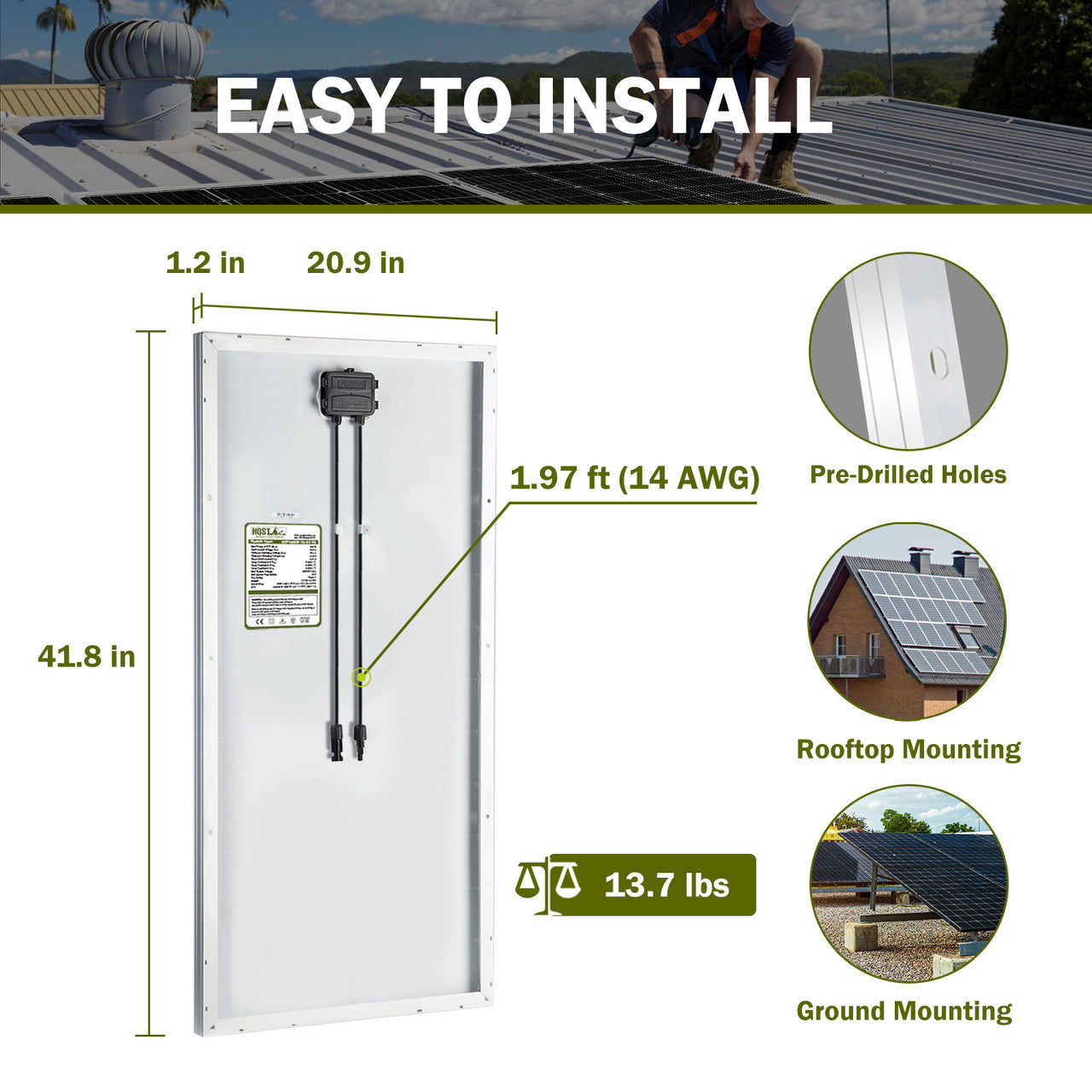

Ready for Installation

This solar panel comes with pre-drilled holes for fast and secure installation. Compatible with HQST Z Brackets and Tilt Mount Brackets. Ideal for RVs, vans, motorhomes, rooftops, cabins, yachts, boats, and more.

100 Watt 12 Volt 9BB Cell Waterproof Monocrystalline Solar Panel

Package Includes

One (1) 100W Mono Solar Panel

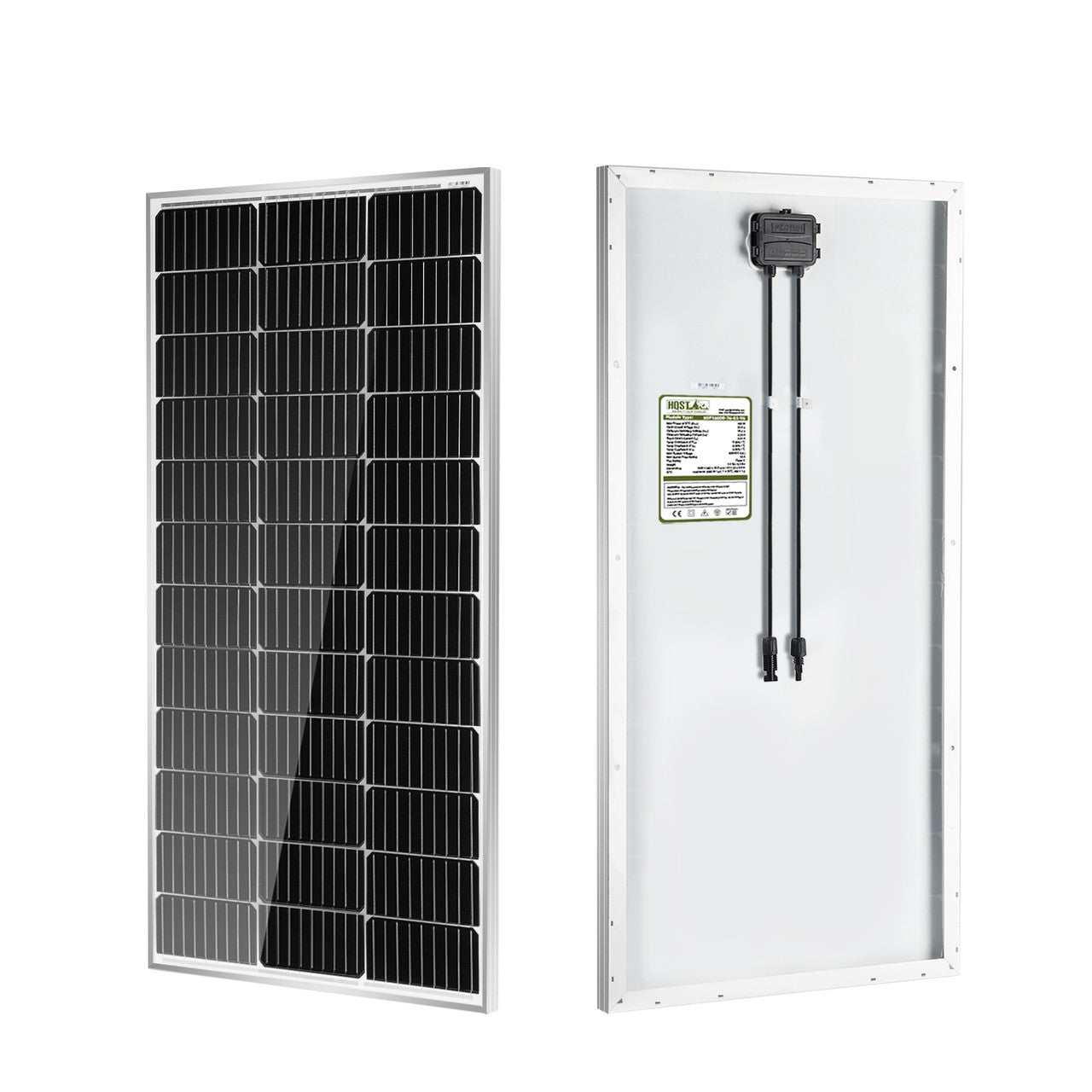

HQST 100 Watt 12 Volt Monocrystalline Solar Panel

Max Power at STC ( P max ): 100W
Cell Efficiency: 22-23%
Open-Circuit Voltage ( Voc ): 24.3V
Optimum Operating Voltage ( Vmp ): 20.4V
Optimum Operating Current ( Imp ): 4.91A
Short-Circuit Current ( Isc ): 5.21A
Operating Temperature: -40°F to 194°F
Maximum Series Fuse Rating: 15A
Max System Voltage: 600VDC ( UL )
Weight: 13.7 lbs
Dimensions: 41.8 x 20.9 x 1.2 in

Warranty Information

25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty

1. How many kWh a day does this solar panel produce?

If your solar panels are exposed to 5 hours of direct sunlight per day, it can provide an average of 400-500 Watt-hours (0.4 kWh-0.5 kWh) of electricity (depending on sun availability).

2. Do these panels have pre-drilled holes on the back?

Yes, they have. The pre-drilled holes help you to install the solar panel quickly and securely.

3. Can this solar panel be adapted to a 12V Marine Battery or 48V Lithium Battery?

Yes, it can. The optimum operating voltage of this 100W solar panel is 20.4 V. So it's suitable to use for charging your 12V Marine Battery. As for a 48V Lithium Battery, you need to connect at least three solar panels in series. Please note that you need to connect the solar panel(s) to a Charge Controller supporting a 12V or 48V system.

4. How should I connect solar panels to my electrical circuit (series vs parallel)?

Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. We recommend connecting solar panels with the same open-circuit voltage.

Connecting solar panels in series, the voltage (V) adds up, but the current (A) remains the same.

While connecting solar panels in parallel, the current (A) adds up, but the voltage (V) remains the same.

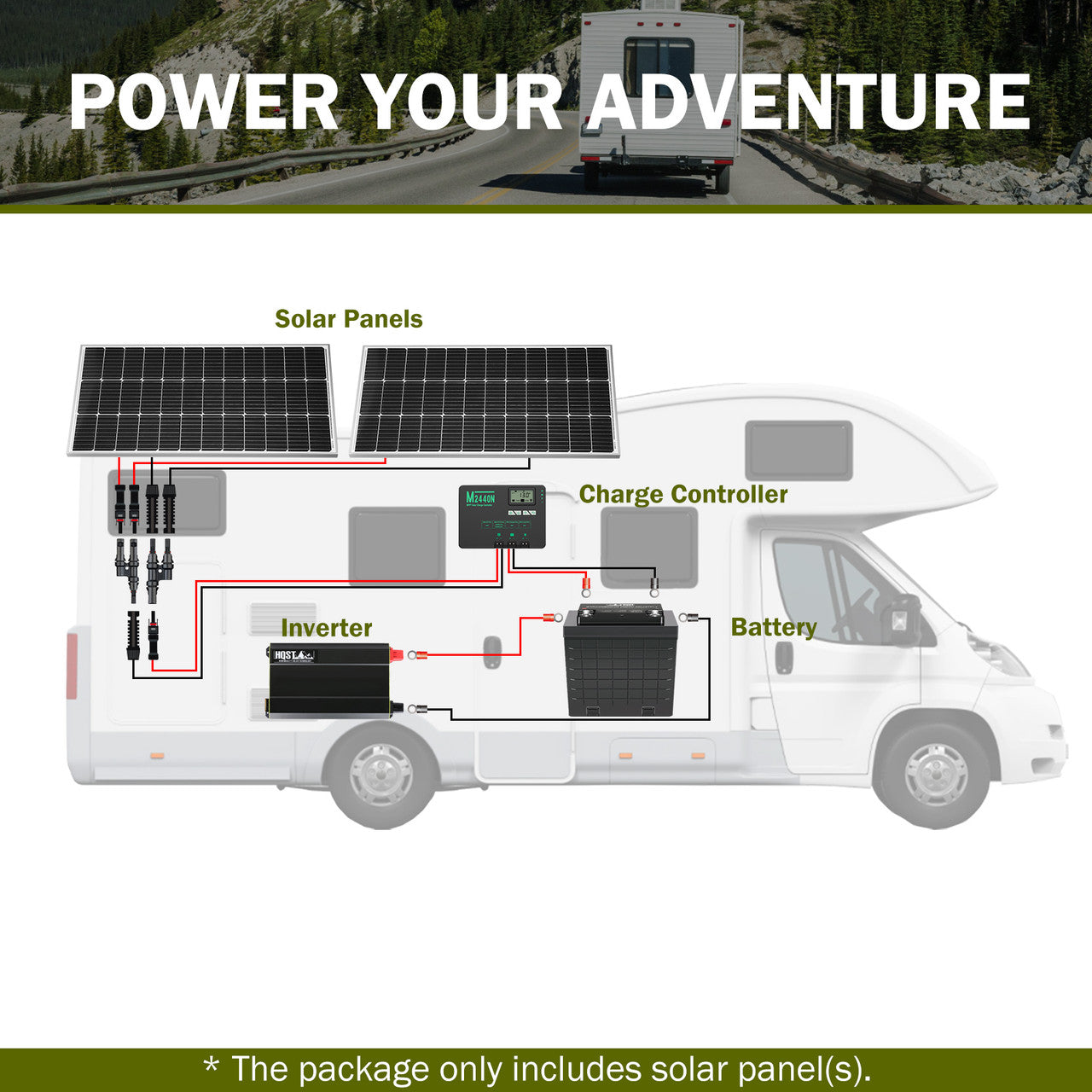

5. What do I need to have to complete my off-grid solar power system?

"Here’s a list of all the equipment required for a functioning off-grid solar system: Solar Panels, Solar Charge Controller, Inverter(s), Battery, Mounting and Racking System, Wiring Cables, and Fuses."

If you have further questions, please feel free to contact us .
