400W 12V/24V 9BB Monocrystalline Solar Panel Kit with 30A PWM Charge Controller

Name: 400W 12V/24V 9BB Monocrystalline Solar Panel Kit with 30A PWM Charge Controller
Brand: HQST
SKU: HKIT400DST-A30D4-US
Price: 249.99 USD
Availability: InStock

SKU: HKIT400DST-A30D4-US

$249.99 ~~$699.99~~

Enjoy payments with

Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.

Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description

OVERVIEW

This HQST solar panel kit will produce an average of 2 kWh of electricity per day (depending on sun availability). The HQST RV solar panel kit comes with most of the equipment required for an off-grid installation, including four 100 watt 9BB cell monocrystalline solar panels, 30A PWM solar charge controller, solar adaptor cables, tray cables, mounting Z brackets, and solar Y branch connectors, offering an easy one-stop purchase for you.

Built with sturdy materials, this solar kit will provide a reliable power supply system for all RVs, vans, cabins, boats, rooftops, solar power plants, and backup power systems.

Key Features

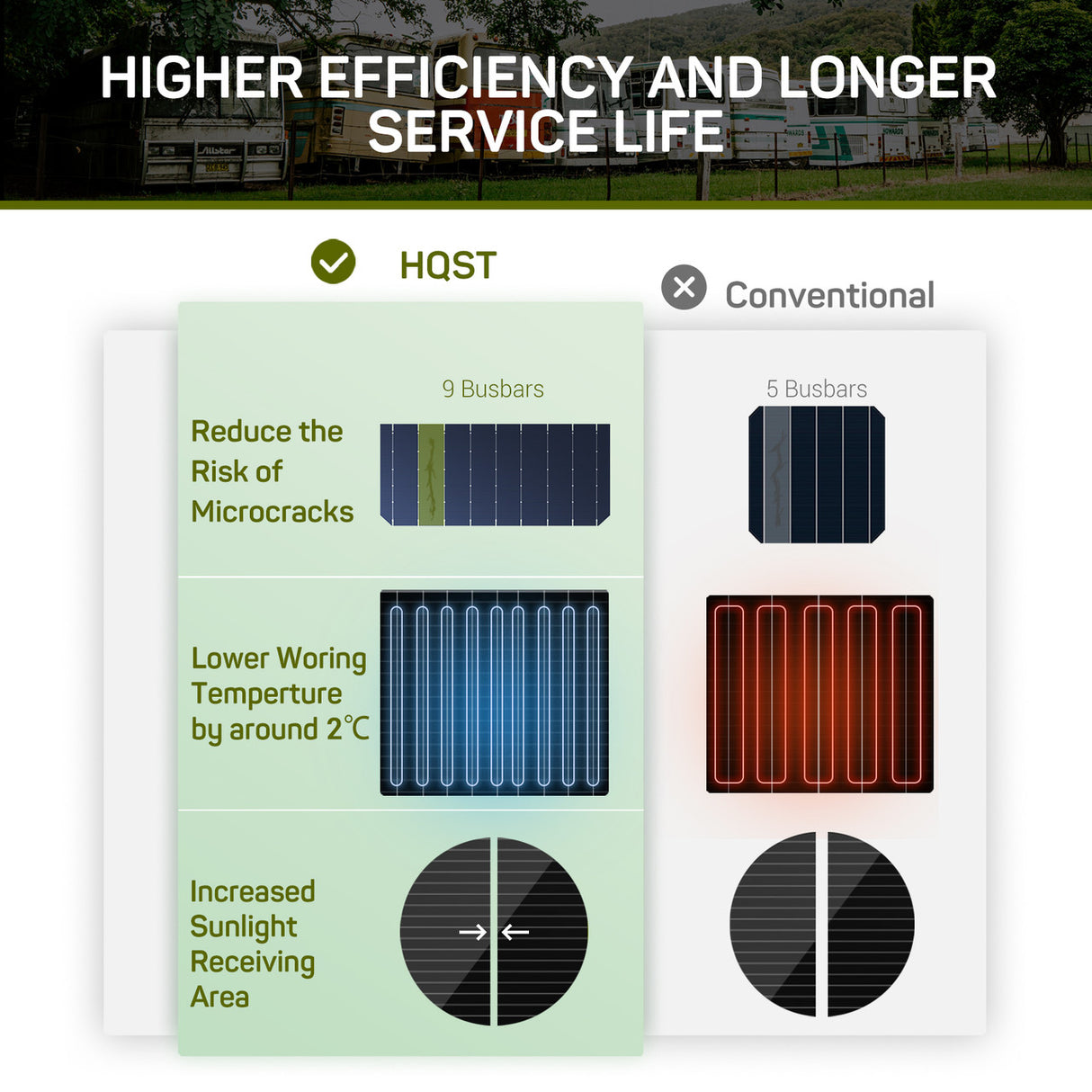

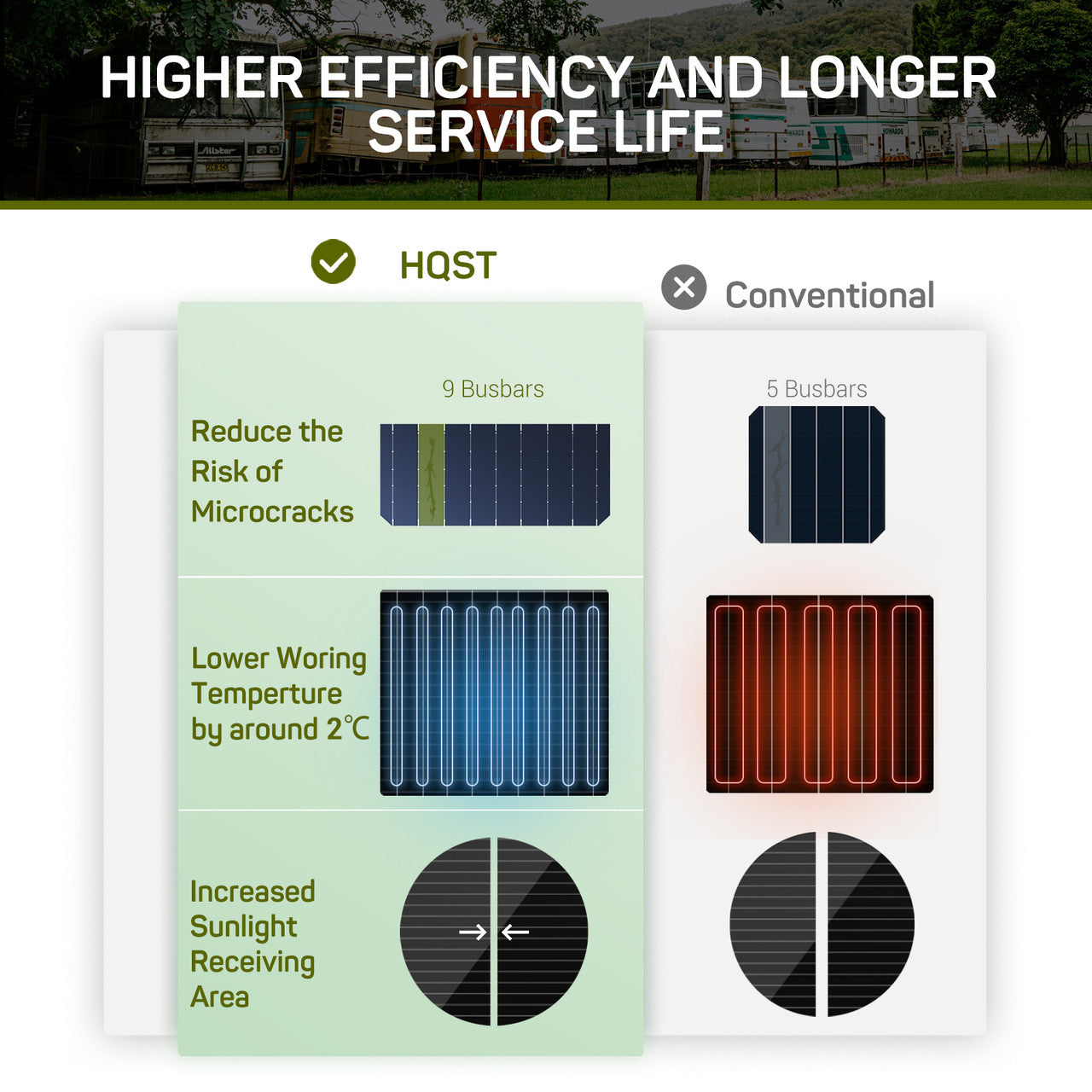

【9BB Cells for Better Performance】Built with industry-leading 9-busbar technology, our solar panel can reduce the risk of microcracks and provide longer service life than a conventional 5-busbar design. 9BB cells can also reduce working temperature by around 2℃ to improve the solar panel kit's performance.

【Higher Efficiency, More Power Output】Grade A+ 166mm large monocrystalline cells offer a 21.5% conversion rate, and four 100 watt solar panels produce an average of 2 kWh of electricity per day (depending on sun availability). By bypassing the shaded cells with poor performance, the bypass diode minimizes the power drop caused by the shadow to ensure excellent performance in a low-light environment.

【Complete 12V Solar System Protection】The 30A PWM solar charge controller provides multiple protections, including reverse polarity, battery overcharging, battery over-discharging, over-temperature, short-circuiting, and reverse current, to safeguard your off-grid system. Compatible with 12 and 24 volt lithium iron phosphate and lead-acid batteries.

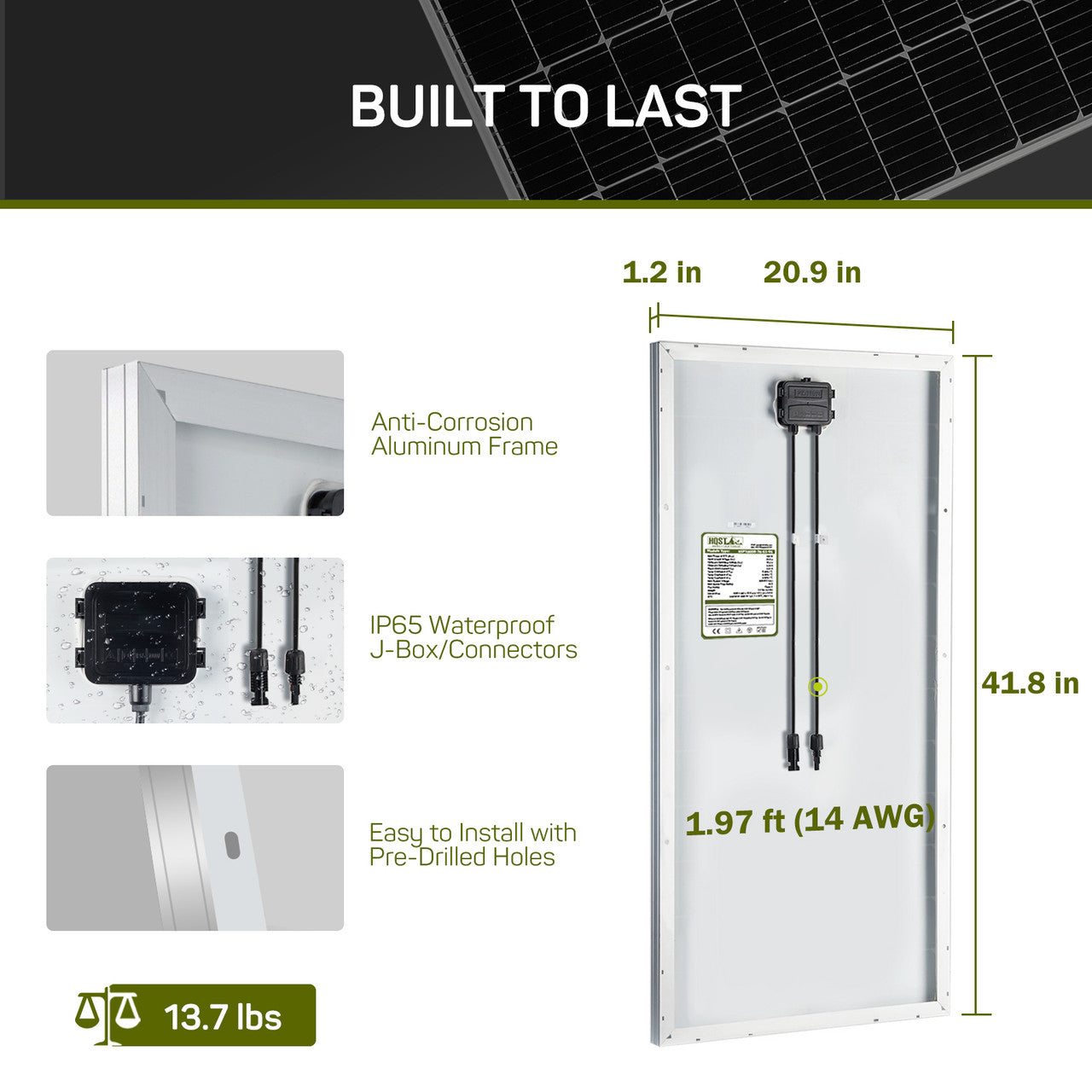

【Built to Last】The solar panel is engineered with corrosion-resistant aluminum frame and multiple layer sheets that can ensure decades of outdoor durability. The IP65 rated junction box and solar connectors allow you to have no worries about water splashes and rain. Tray cables and adaptor cables are all UV-resistant.

【All Wiring Accessories, Ready for Installation】This solar system kit comes with all the wiring accessories you need to install an off-grid system, including four 100 watt solar panels, 30A charge controller, solar adaptor cables, tray cables, mounting Z brackets, and solar Y branch connectors. It's a one-stop shop for building a solar power system for your RV, van, cabin, and boat.

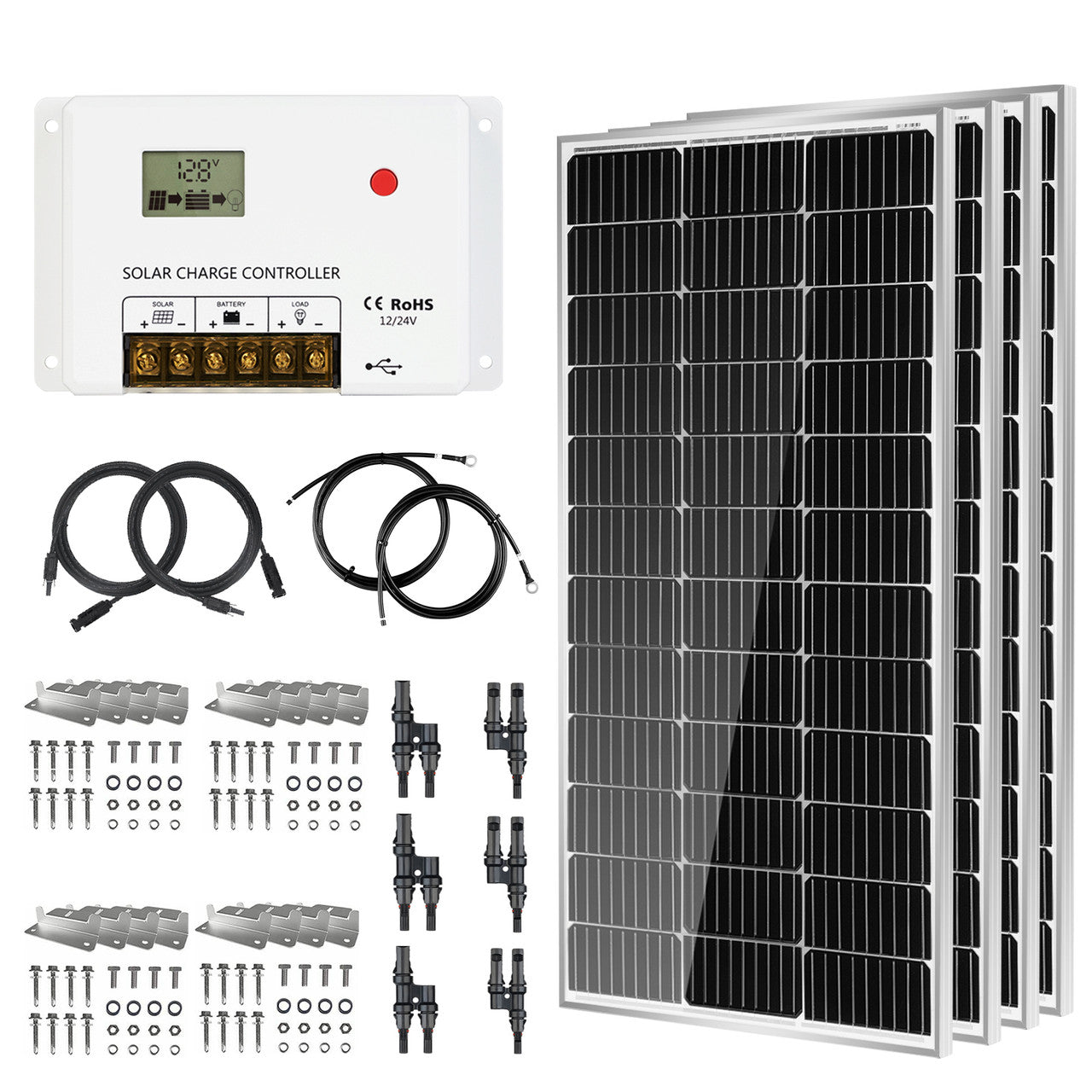

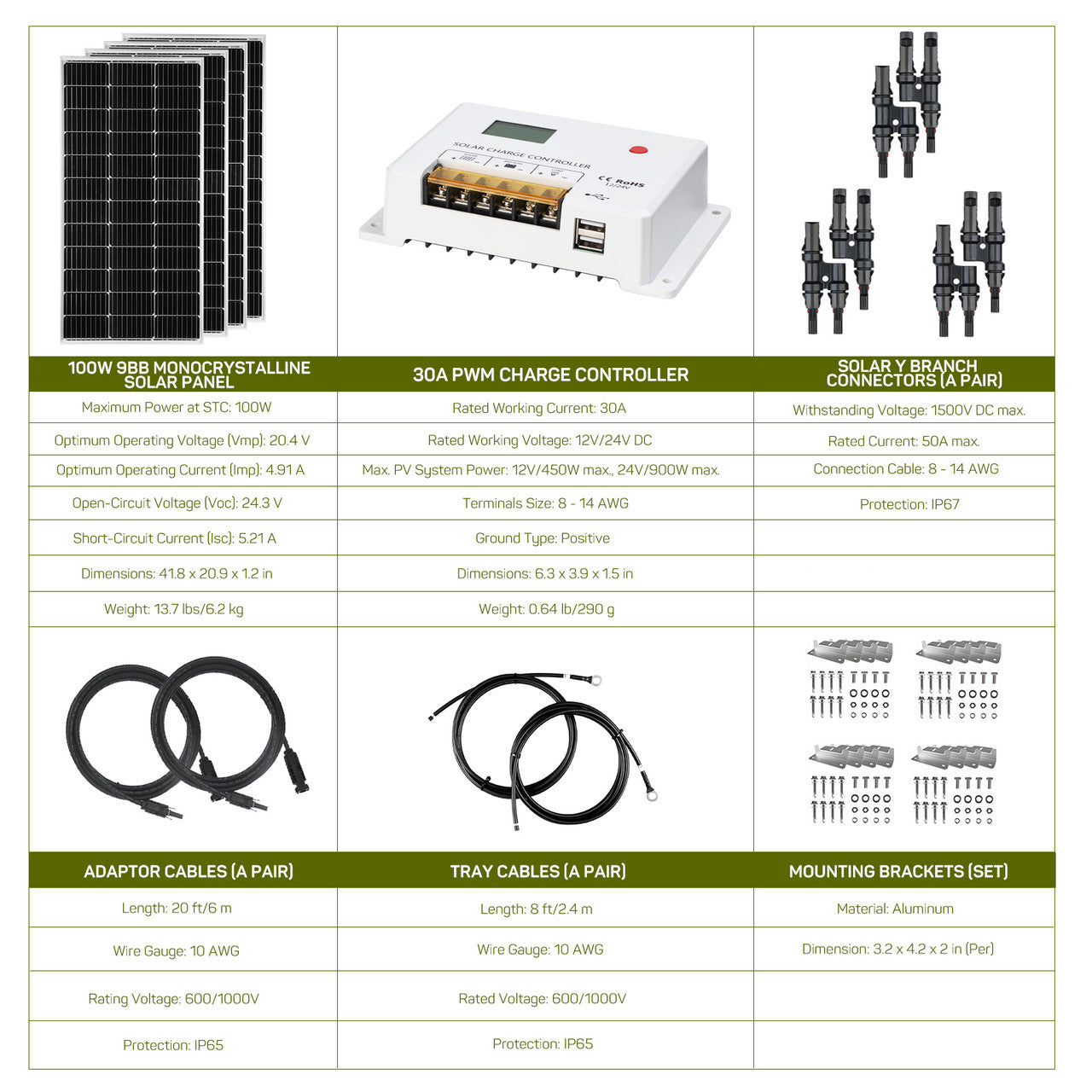

Package Includes

Four (4) 100 Watt 9BB Monocrystalline Solar Panels

One (1) 12V/24V 30 Amp PWM Solar Charge Controller w/ LCD Display

One (1) Pair of 20FT 10AWG Solar Panel to Charge Controller Connector Cables

One (1) Pair of 8FT 10AWG Charge Controller to Battery Connector Cables

Four (4) Sets of Solar Panel Mounting Z Brackets

Three (3) Pairs of Solar Branch Connectors MMF+FFM

100 Watt 9BB Solar Panel

Max Power at STC: 100W
Open Circuit Voltage: 24.3V
Short Circuit Current: 5.21 A
Optimum Operating Voltage (Vmp): 20.4V
Optimum Operating Current (Imp): 4.91A
Maximum System Voltage: 600 VDC UL
Weight: 13.7 lbs (6.2 kg)
Dimensions: 41.8 x 20.9 x 1.2 in (1062 x 530 x 30 mm)

30A PWM Charge Controller

nominal voltage: 12/24V Auto Recognition
Rated Charge Current: 30A
Battery Working Voltage: 8V - 32V
USB Output: 5V/2A
Max. PV input power: 450w/12v; 900w/24v
Dimensions: 6.3 x 3.9 x 1.5 in / 159 x 100 x 39 mm
Weight: 0.64 lb / 290 g
Operating Temperature: -31°F to 140°F

Warranty Information

Solar Panel :
25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty

Accessories:
1-year material and workmanship warranty

1.How many kWh a day does this solar panel kit produce?

When four solar panels of this kit are exposed to 5 hours of direct sunlight per day, it can provide an average of 2 kWh of electricity (depending on sun availability).

2. How should I connect solar panels to my electrical circuit (series vs parallel)?

Solar panels can be connected in series or in parallel to meet your electrical circuit size and power demand. We recommend connecting solar panels with the same open-circuit voltage.
Connecting solar panels in series, the voltage (V) adds up, but the current (A) remains the same.
While connecting solar panels in parallel, the current (A) adds up, but the voltage (V) remains the same.

3. What type of battery bank system will this solar kit support?

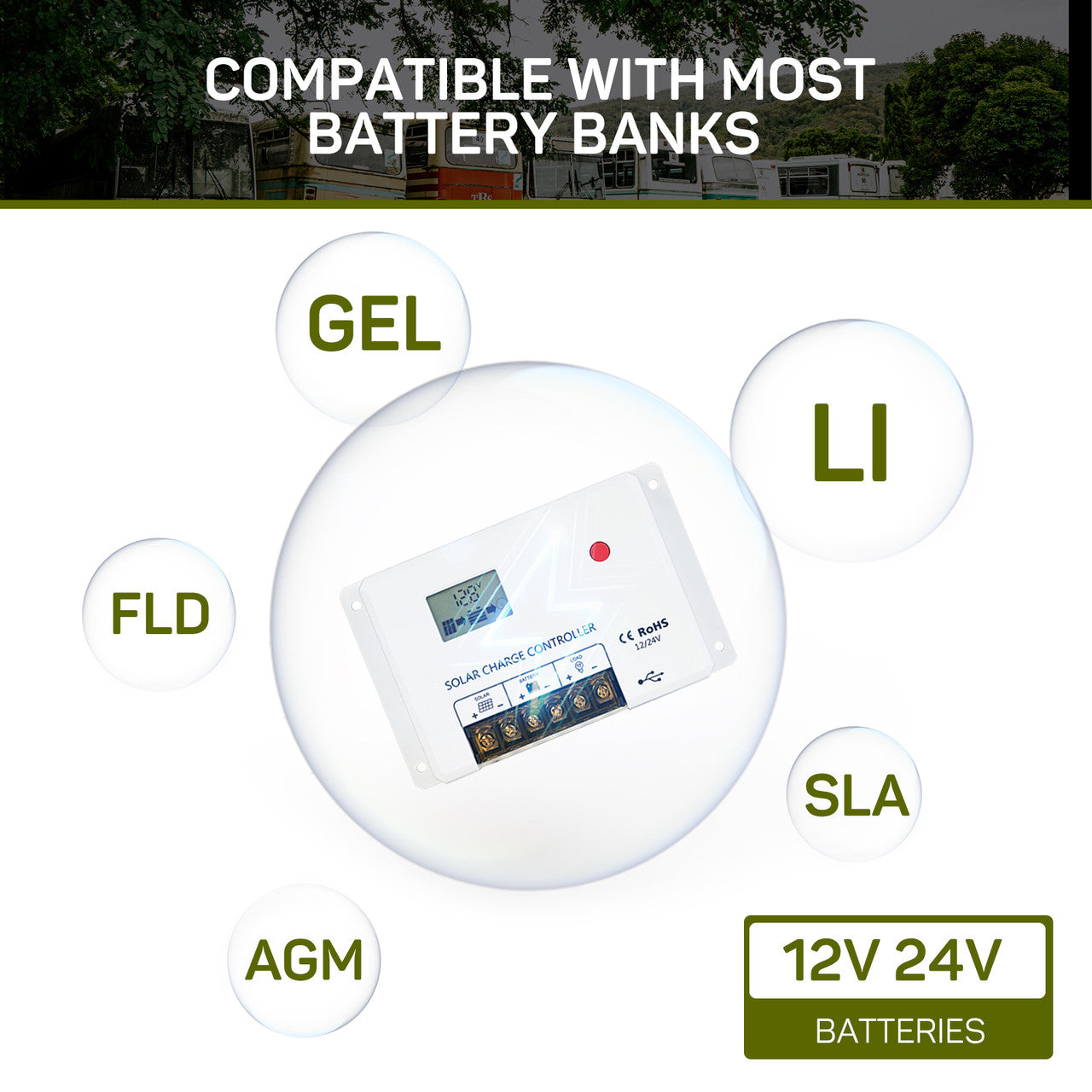

This solar power kit comes with a 30A PWM solar charge controller, which supports 12V and 24V lithium iron phosphate and lead-acid (Flooded, GEL, AGM) battery banks. Does not support 36V or 48V battery banks.

4. How many items are included in this solar panel kit?

Our HQST solar kit includes 4x 100 watt solar panels, 1x 30A PWM solar charge controller, 1x pair of 20 ft 10 AWG solar panel to charge controller connector cables, 1x pair of 8 ft 10 AWG charge controller to battery connector cables, 4x sets of solar panel mounting Z brackets, and 3x pairs of solar Y branch connectors.

If you have further questions, please feel free to contact us .
