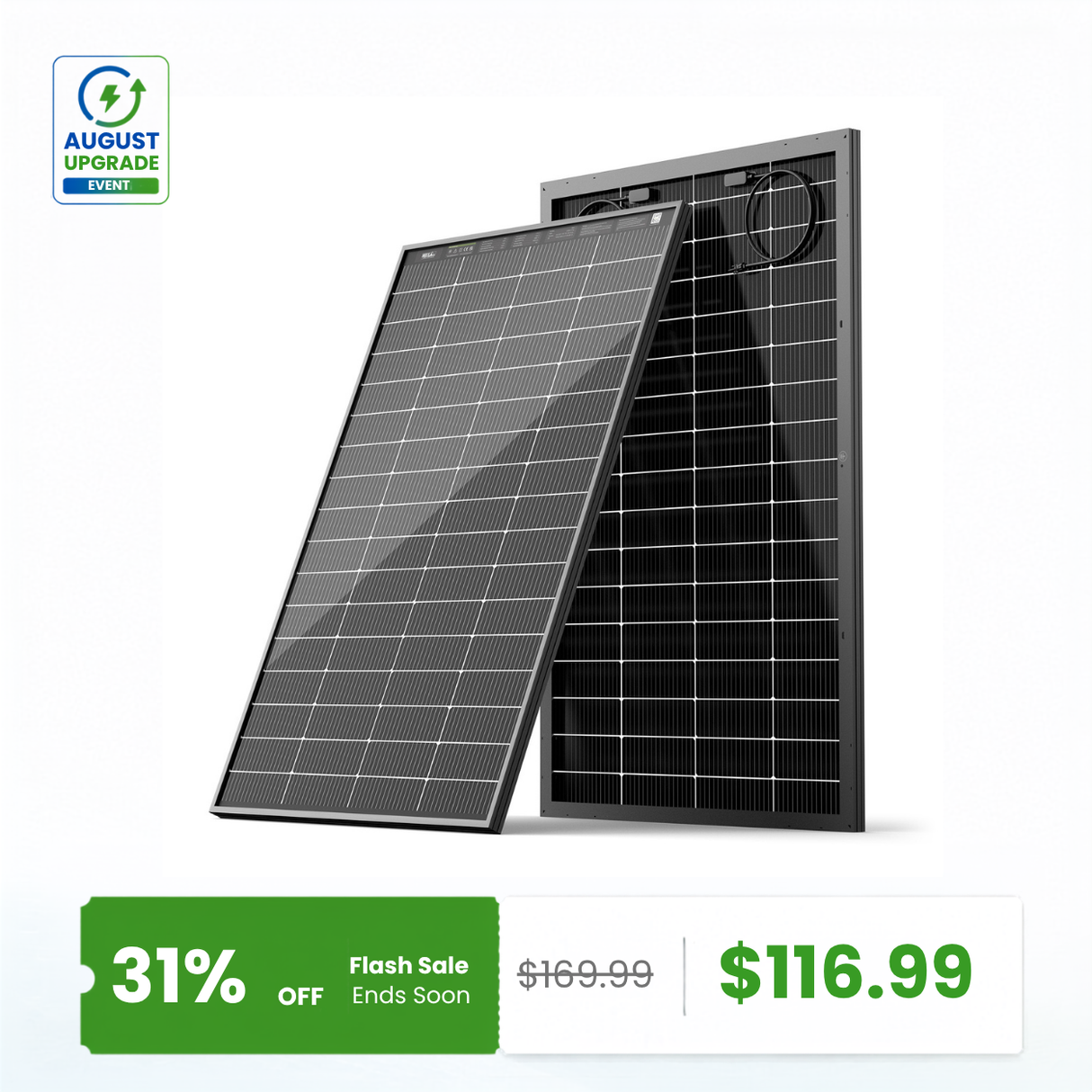

（Back Order 15/9）Bifacial 200 Watt N-Type 16BB Monocrystalline Solar Panel with All-Black Design

SKU: HSP200D-68ATB-G1-US
$119.99 $139.99

  • True N-Type cells, 25% efficiency, 30-year lifespan.
  • Bifacial tech, up to 12% extra power output.
  • Grade A+ 16BB cells, EL-tested, no microcracks.
  • Low temp coefficient -0.29%/°C, less power loss in heat.
  • 6% smaller & 5% lighter, easier installation.
  • 200W high power, fewer mounts & cables, lower cost.
  • IP68 waterproof, UL94 V-0 flame retardant, 2400 Pa wind & 5400 Pa snow load.
QTY
Quantity：
Enjoy payments with
Return & refund policy

Shipping Policy

HQST Solar offers free shipping for select products on domestic orders made within the contiguous 48 states. For some reason,orders require approximately 2-3 business days to process and 3-5 business days to reach their destination. Expedited shipping is also available, however, not all products are eligible for it. Upon shipment, a tracking number will be provided for you.

Shipping is possible for orders to Alaska, Hawaii, and Puerto Rico, however, there are surcharges involved. Similarly, we are able to ship internationally as well depending on the location. For more accurate cost estimates and to determine if shipping is available in your area, please contact us at sales@myhqsolar.com.

Please note, we are unable able to deliver products or expedite orders for PO Box addresses. We also cannot reroute a shipment after it has left our warehouse. Confirm the shipping address clearly before placing an order, if the replacement is caused by the wrong shipping address, please pay the replacement shipping cost.

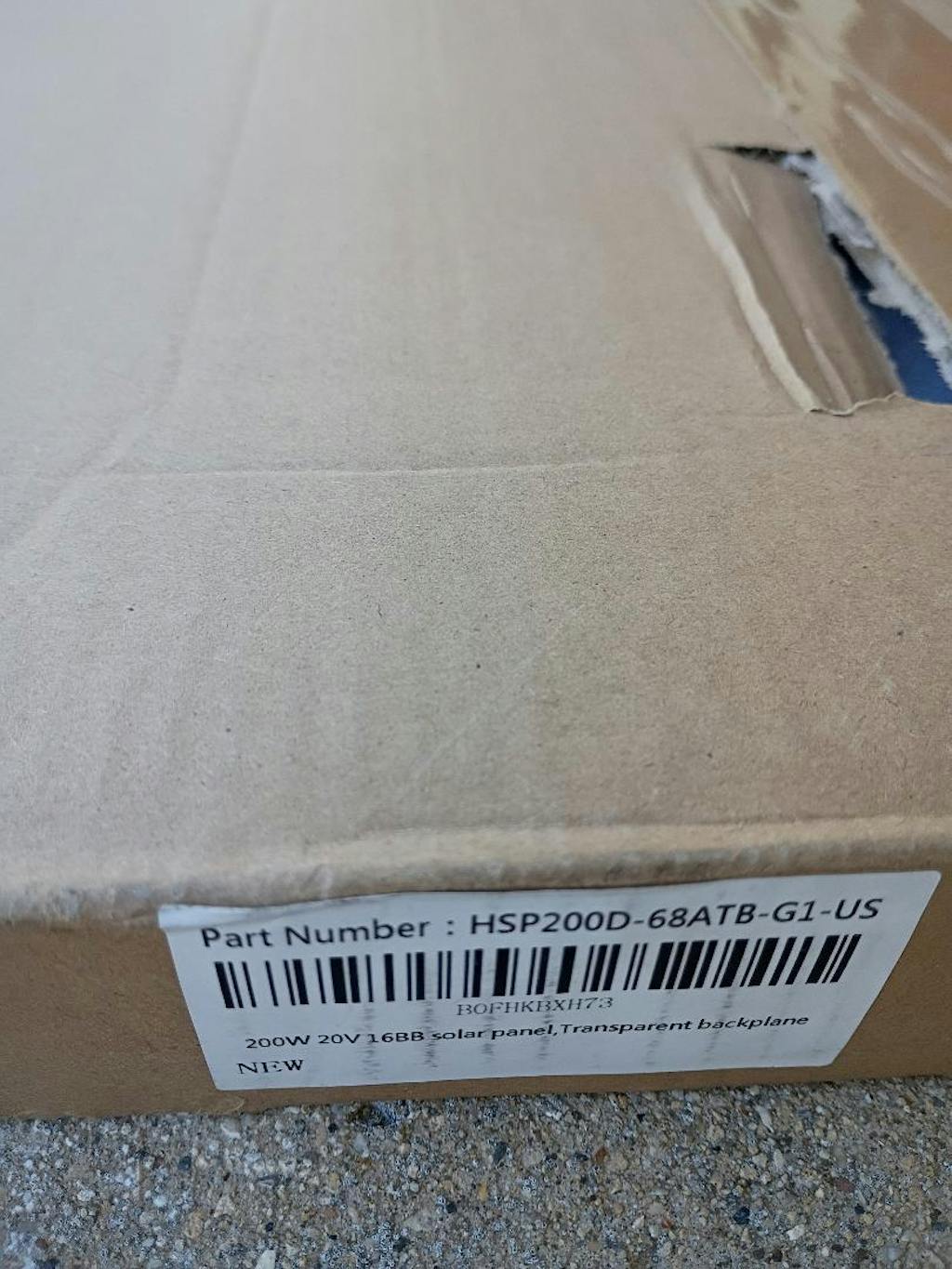

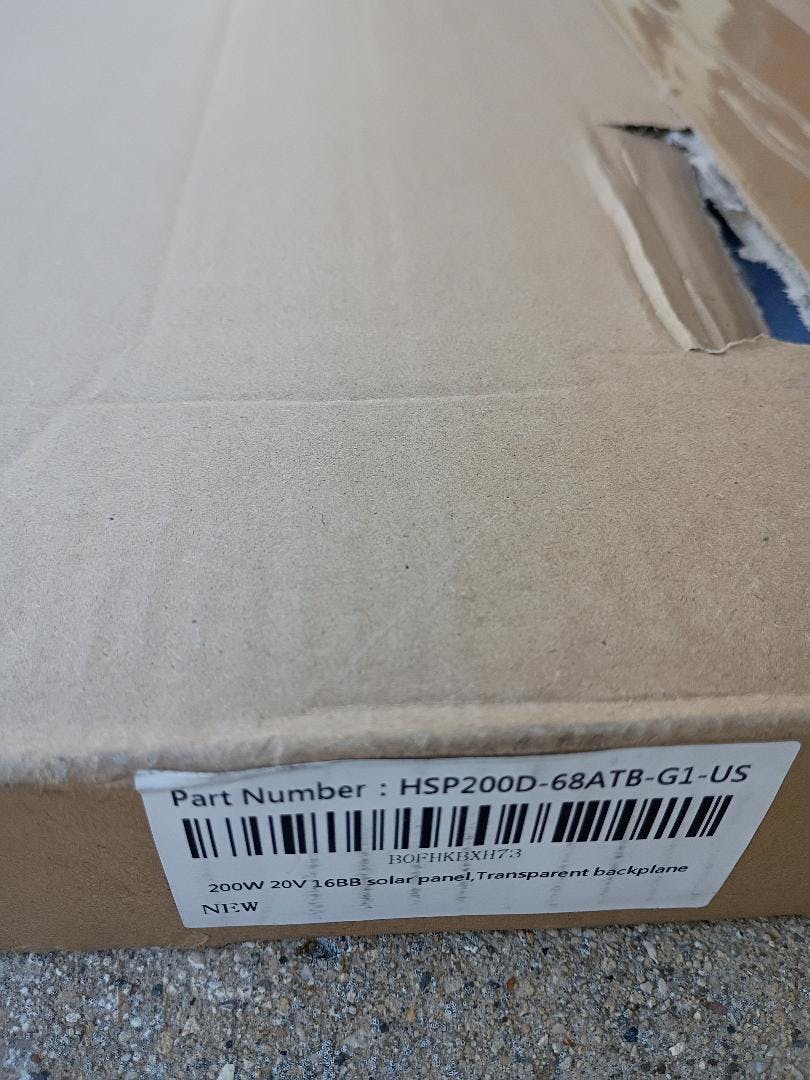

If your order arrives with noticeable damage, please note it with the delivery company right away, and then contact us so that we can take action accordingly. If you later discover missing items or defective units, contact us directly within 30 days at sales@myhqsolar.comfor assistance.


Return Policy

If you decide to return your purchase, HQST Solar will allow for a refund for new, undamaged, and unmodified products within 30 days of receiving the order. Returns submitted for a refund may be subject to shipping costs.

HQST Solar will pay for shipping in the following situations: carrier damage, a defective product, a product does not match advertising, receiving an incorrect product, or a product was an extra item that was not ordered. For any other reasons, customers are responsible for shipping fees.

Replacement Policy

If there is any issue with your product(s), please contact us at sales@myhqsolar.com.

A representative will assist you in troubleshooting your product(s) and if any damage occurred due to the manufacturing or our shipping process, you will be eligible for a refund or replacement. In the event a replacement is necessary, we will arrange for return shipping of the old part. Once the part has been received and inspected, we will ship out the replacement. If damage occurs due to improper handling during the setup or installation whether done professionally or by the customer, then the product is no longer eligible for replacement or refund.

Any replacements due to shipping errors or damages in shipment will be sent out via standard shipping. Replacement parts cannot be expedited.

For further inquiries, please contact sales@myhqsolar.com.

Description
Specs
FAQ
Reviews

HQST Bifacial 200 Watt N-Type 16BB Monocrystalline Solar Panel with All-Black Design

Technical

Max Power at STC
200 W
Open Circuit Voltage
24.48 V
Short Circuit Current
9.96 A
Optimum Operating Voltage
21.08 A
Optimum Operating Current
9.49 A
Cell Efficiency
Up to 25%
Maximum System Voltage
600 VDC UL
Maximum Series Fuse Rating
20 A
Cell Type
Monocrystalline
Front Glass
Low Iron-Tempered Glass
Frame
Anti-Corrosion Aluminium Alloy
Connectors
MC4 Solar Connectors
Fire Rating
Class C
Waterproof Rating
IP68

Dimensions and Weight

Dimensions
30.1 x 50.2 x 1.18 in/765 x 1275 x 30 mm
Weight
22.27 lbs/10.1 kg

Material and Workmanship Warranty

Warranty
5 Year

How can I increase the energy output of my solar panels?

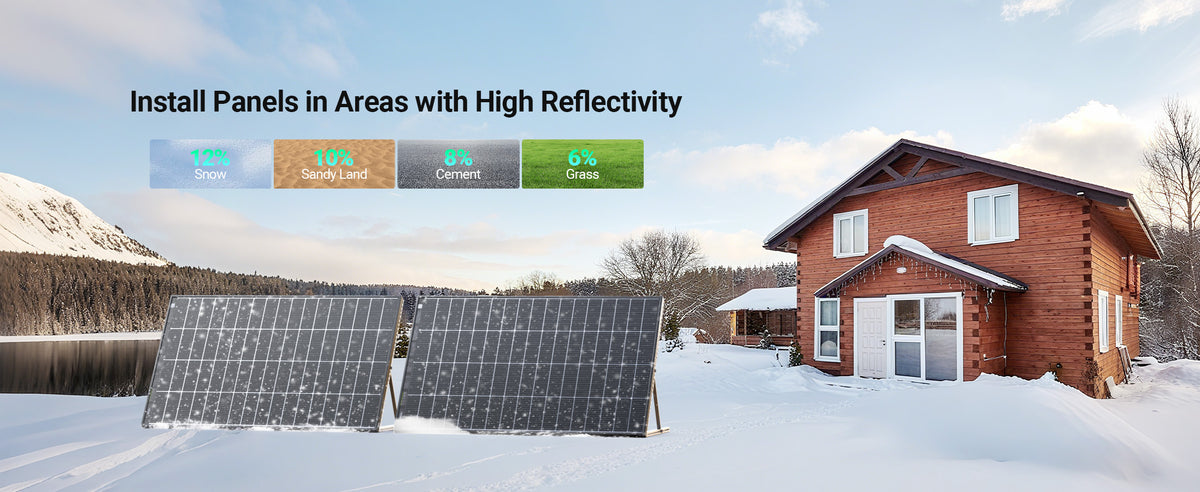

For this bifacial solar panel, we recommend installing it on reflective surfaces or mounting it above the ground to capture more sunlight from the rear. For optimal performance, position the panels at an angle between 20° and 45° in highly reflective areas such as snow, concrete, sand, grass, or white surfaces.

How should I connect solar panels to my electrical circuit (series vs. parallel)?

Solar panels can be connected in either series or parallel, depending on your electrical circuit size and power needs. It’s best to connect panels with the same open-circuit voltage.When connected in series, the voltage (V) increases, while the current (A) stays the same.On the other hand, connecting panels in parallel increases the current (A), while the voltage (V) remains constant.

Do these panels have pre-drilled holes on the back?

Yes, they do. There are four pre-drilled holes to make installing the solar panel quick and secure.

Can this solar panel be used with a 12V marine battery or a 48V lithium battery?

Yes, it can. The optimal operating voltage of this 200W solar panel is 21.08V, making it suitable for charging a 12V marine battery. For a 48V lithium battery, you’ll need to connect at least three solar panels in series.Please ensure that you connect the solar panel(s) to a charge controller that supports either a 12V or 48V system.

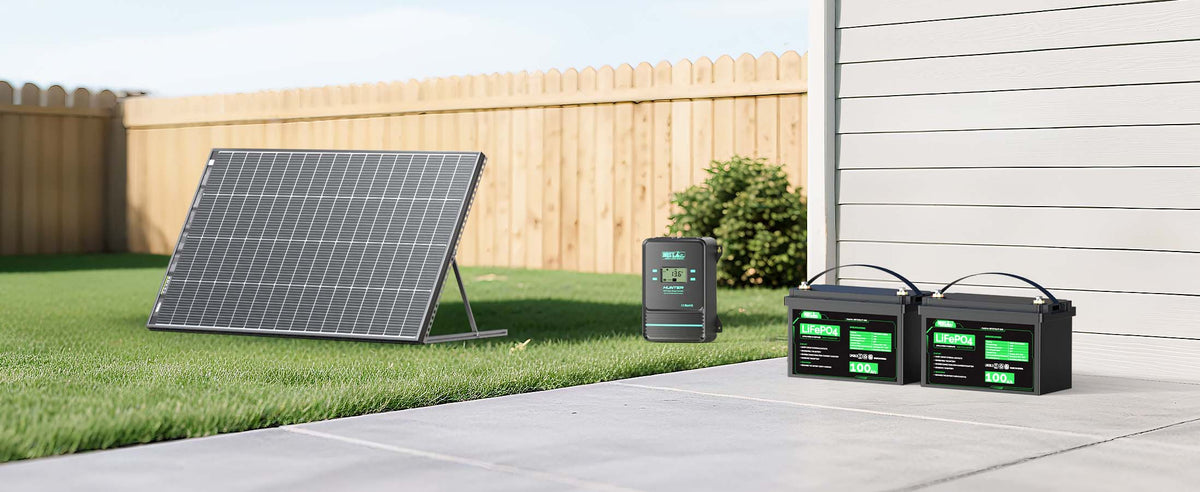

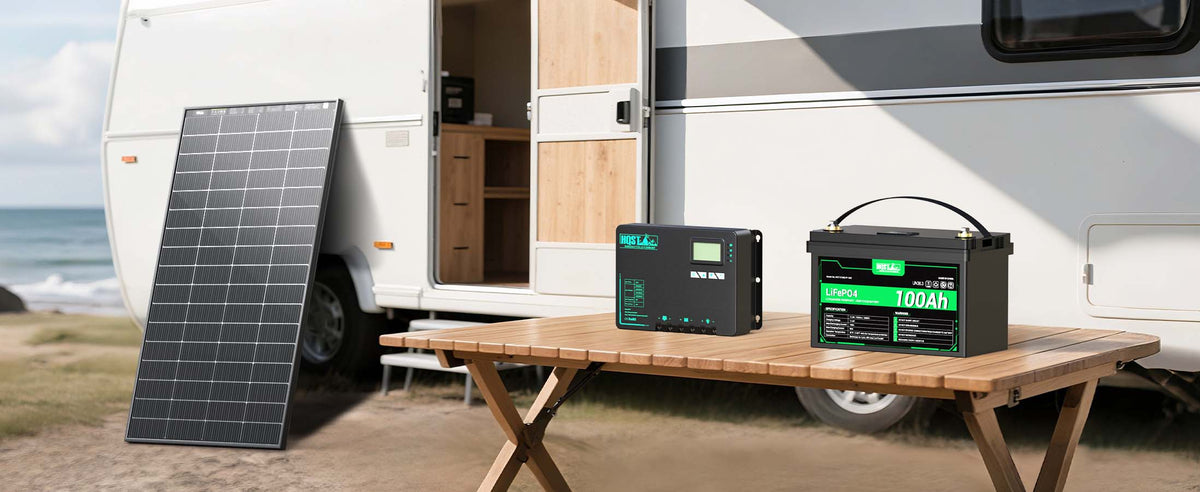

What do I need to have to complete my off-grid solar power system?

Here’s a list of all the equipment required for a functioning off-grid solar system:Solar Panels, Solar Charge Controller, Inverter(s), Battery, Mounting and Racking System, Wiring Cables, and Fuses.
