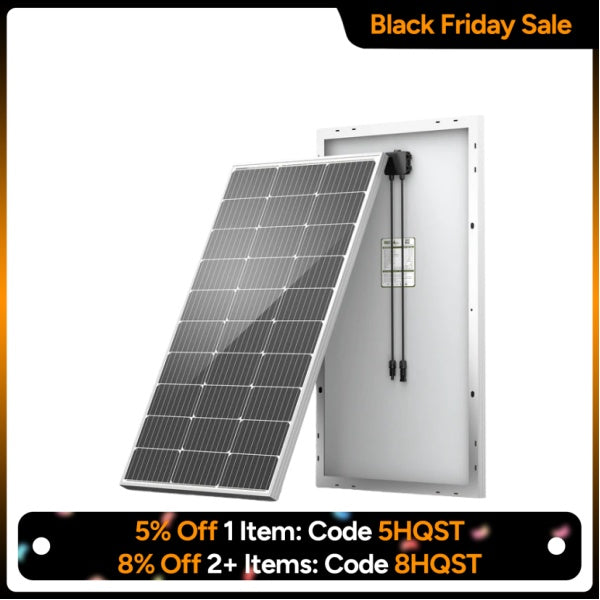

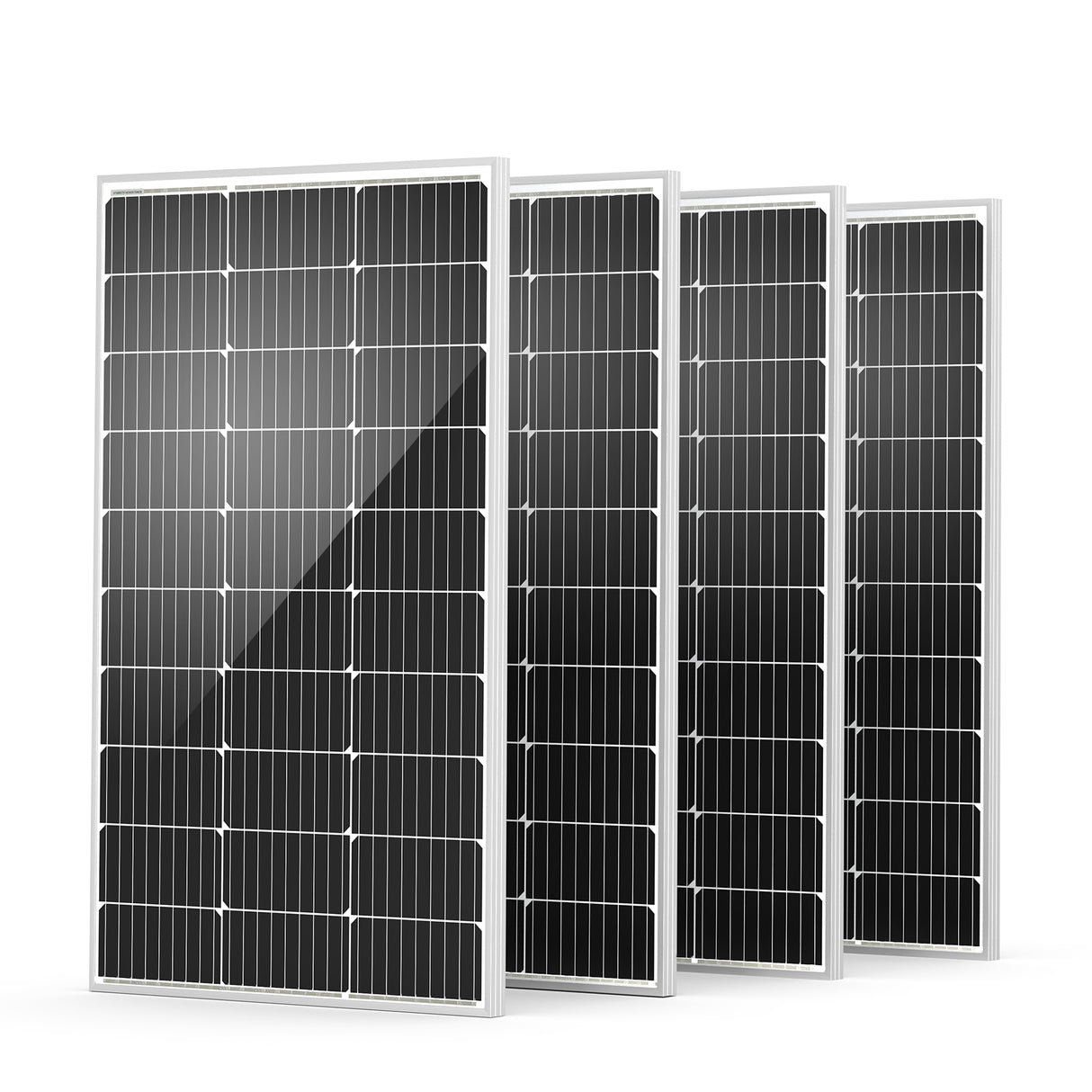

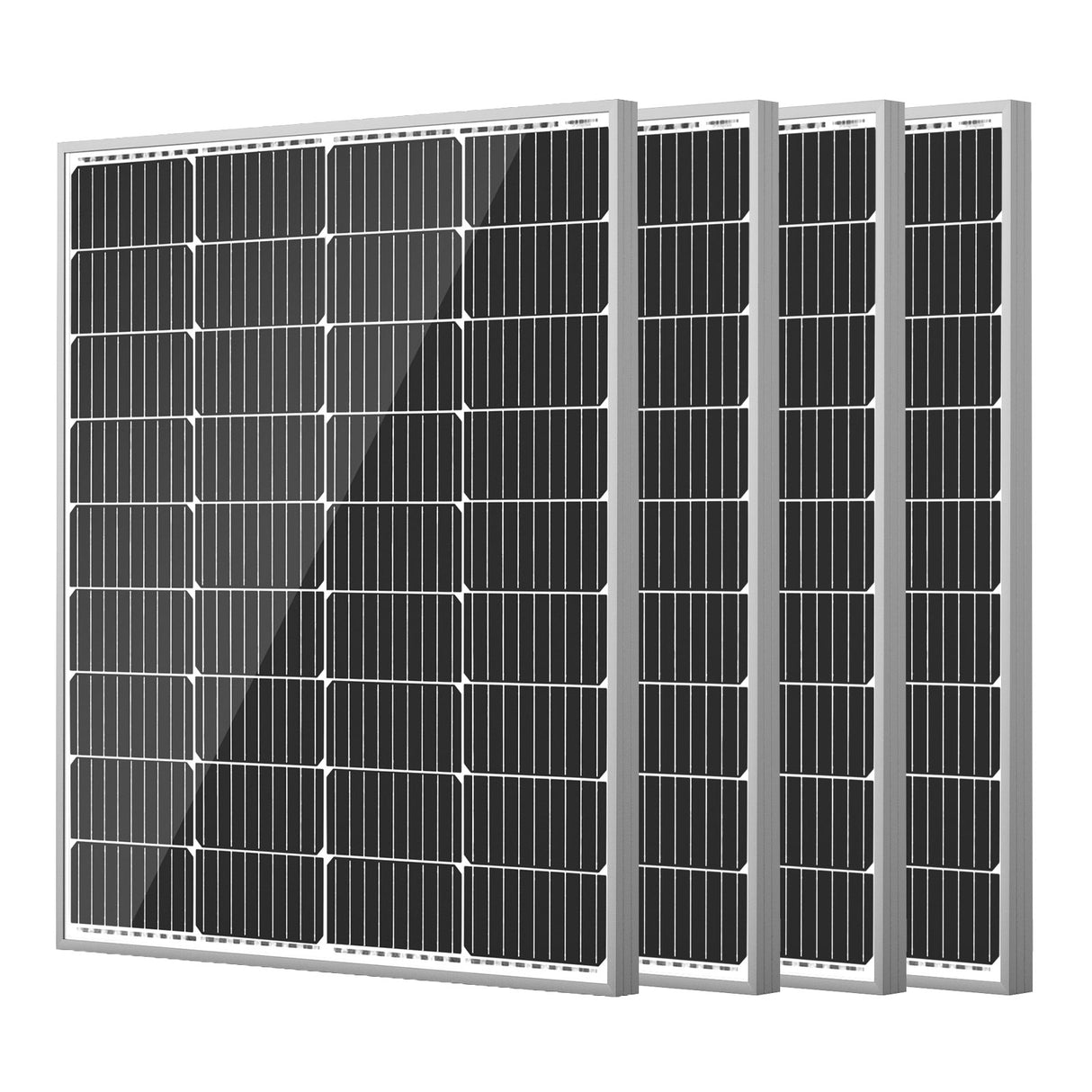

400 Watt (4 packs) 12 Volt 9BB Cell Monocrystalline Solar Panel

SKU:

HSP100D-36Bx4-US

$439.99 $219.99

Width:

20.90 (in)

Height:

41.80 (in)

Depth:

1.20 (in)

Description
Specification

OVERVIEW

By adopting the leading 9 busbars technology, the HQST 100W monocrystalline solar panel offers higher efficiency and a longer service life. Featuring Grade A+ 166mm large mono solar cells, it achieves an impressive 22-23% efficiency, generating more current. Upgrade from conventional 5-busbar solar panels to enjoy improved performance, reduced crack risks, and lower operating temperatures. Elevate your solar power game with these advanced 9-busbar panels.

Key Features

Enhanced Performance with 9 Busbars

Experience superior performance with the leading 9 busbars technology. This advanced design minimizes the risk of microcracks, ensuring a longer service life compared to conventional 5-busbar designs. Also, it effectively lowers the module's working temperature by approximately 2℃, further optimizing its overall performance.

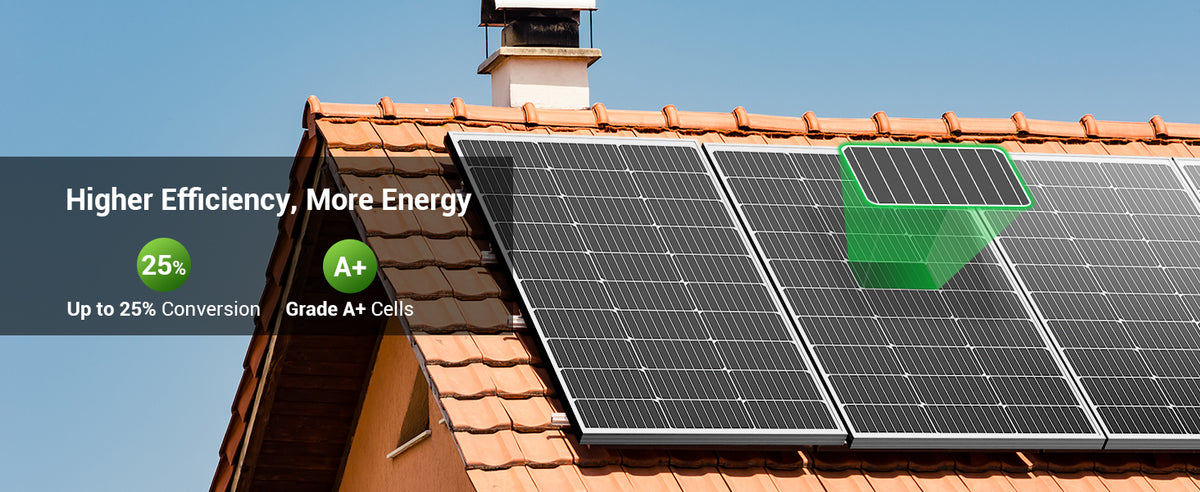

Higher Efficiency, More Power Output

With Grade A+ 166mm large monocrystalline solar cells, this panel achieves a remarkable 22-23% conversion rate, outperforming conventional options. It generates up to 500Wh of electricity per day with 5 hours of direct sunlight. Unleash the potential of solar energy with our high-performance panel.

Optimal Performance in Low-Light Conditions

Equipped with bypass diodes, this 100W solar panel ensures optimal performance in low-light conditions. Minimizing power drops caused by shade and eliminating hot spots, it ensures consistent output.

Robust and Weather-resistant

Designed with an IP65 rated junction box and solar connectors, this panel is built to endure water splashes and rain. Its corrosion-resistant aluminum frame ensures long-lasting outdoor use, lasting for decades. Withstanding heavy snow loads up to 5400 Pa and high winds up to 2400 Pa, it ensures exceptional durability in harsh environments.

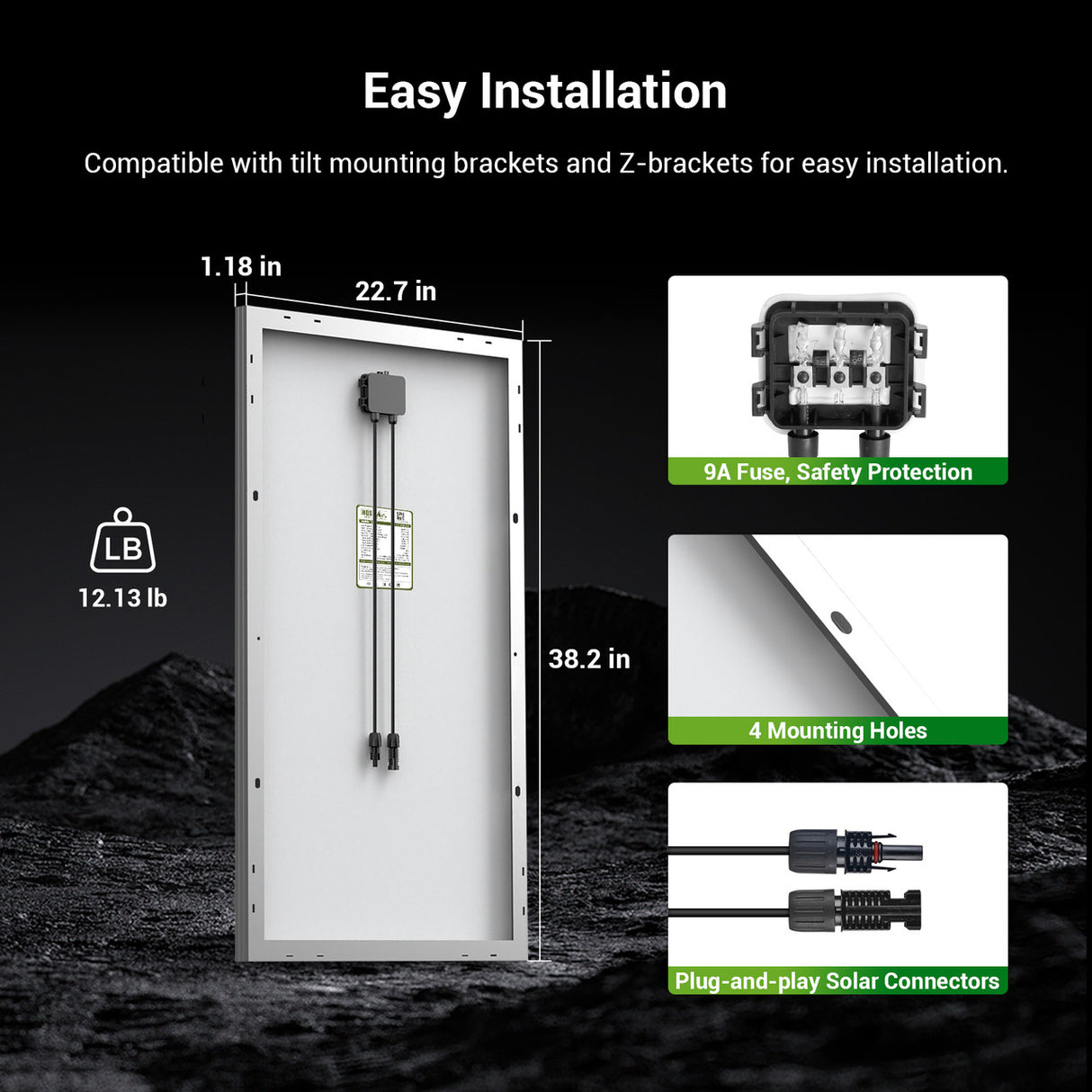

Easy Installation, Versatile Application

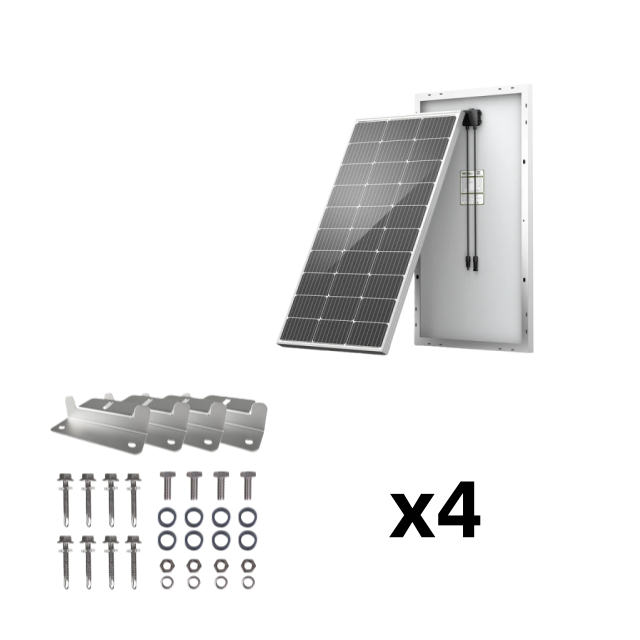

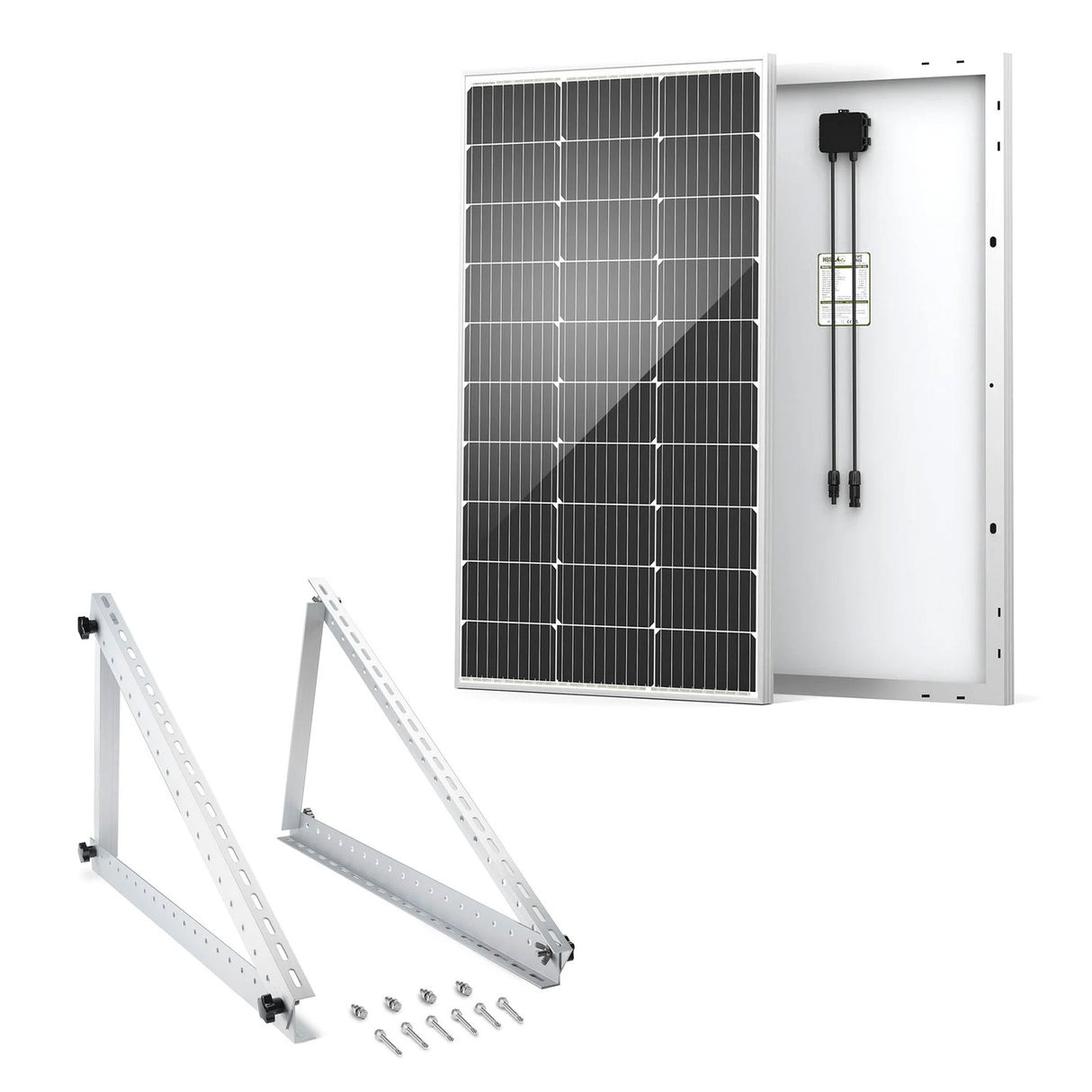

Effortlessly install this solar panel with pre-drilled holes, ensuring a fast and secure setup. It is compatible with HQST Z Brackets and Tilt Mount Brackets, offering flexibility in installation options. Perfect for a wide range of applications including RVs, vans, motorhomes, rooftops, cabins, yachts, boats, and more.

100 Watt 12 Volt Monoscrystalline Solar Panel (Compact Design)

Package Includes

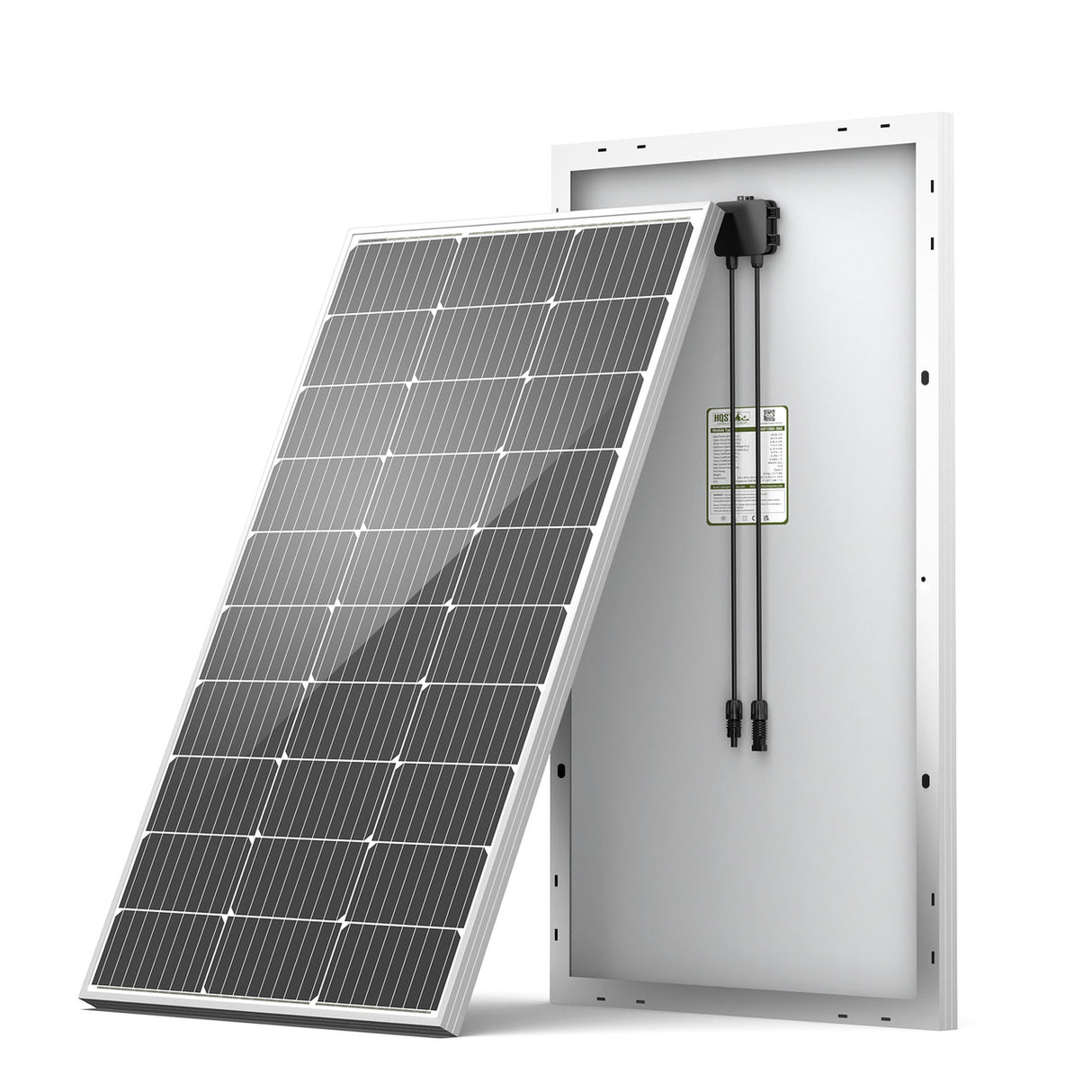

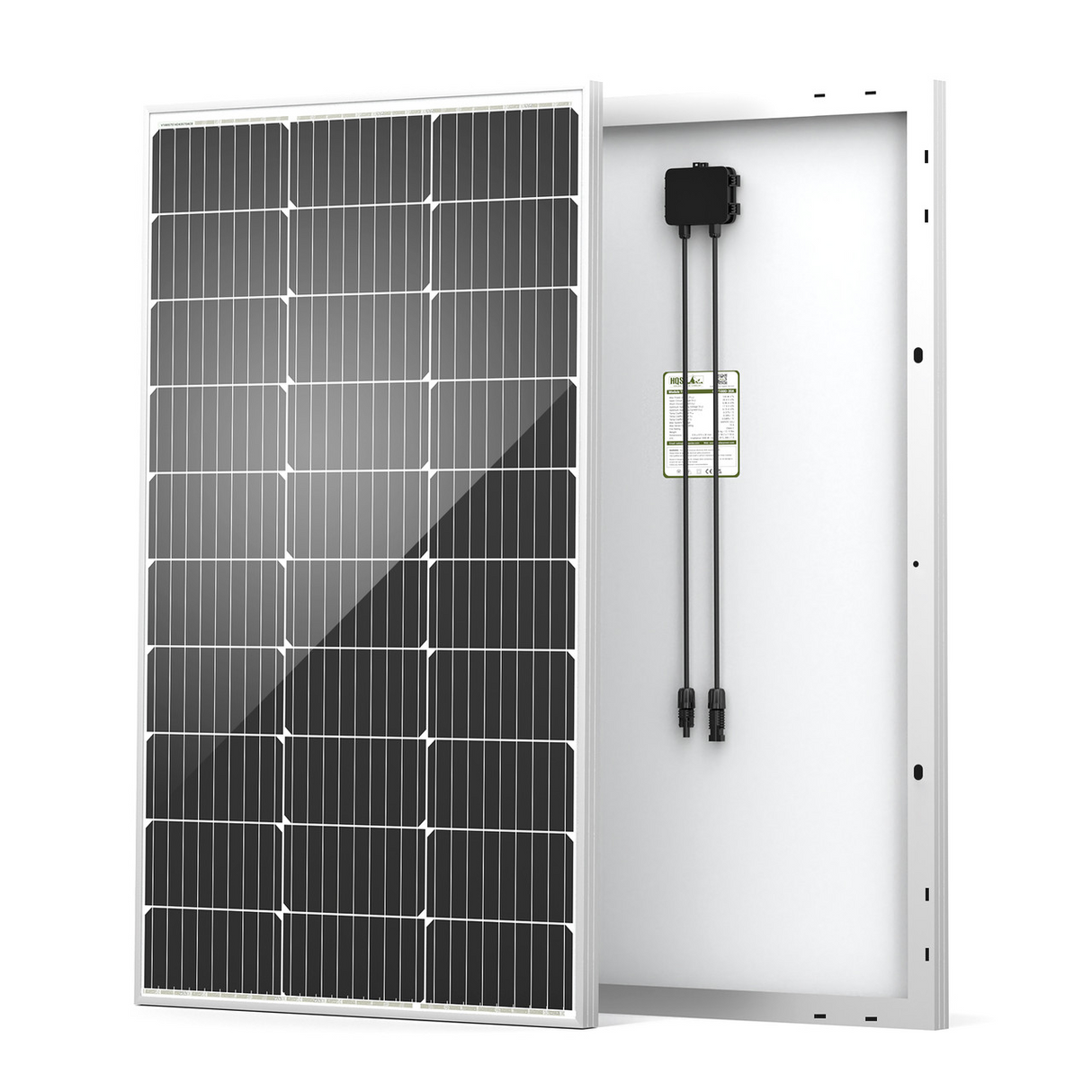

100 Watt 12 Volt 9BB Cell Monocrystalline Solar Panel

Maximum Power at STC: 100W
Optimum Operating Voltage (Vmp): 20.4 V
Optimum Operating Current (Imp): 4.91 A
Operating Temperature: -40°F to 194°F
Maximum System Voltage: 600V DC (UL)
Weight: 13.7 lbs / 6.2 kg
Cell Efficiency: 22-23%
Open-Circuit Voltage (Voc): 24.3 V
Short-Circuit Current (Isc): 5.21 A
Maximum Series Fuse Rating: 15A
Dimensions: 41.8 x 20.9 x 1.2 in (1062 x 530 x 30 mm)

Warranty Information

25-year power output warranty: 10 year/90% efficiency rate, 25-year/80% efficiency rate
5-year material and workmanship warranty
