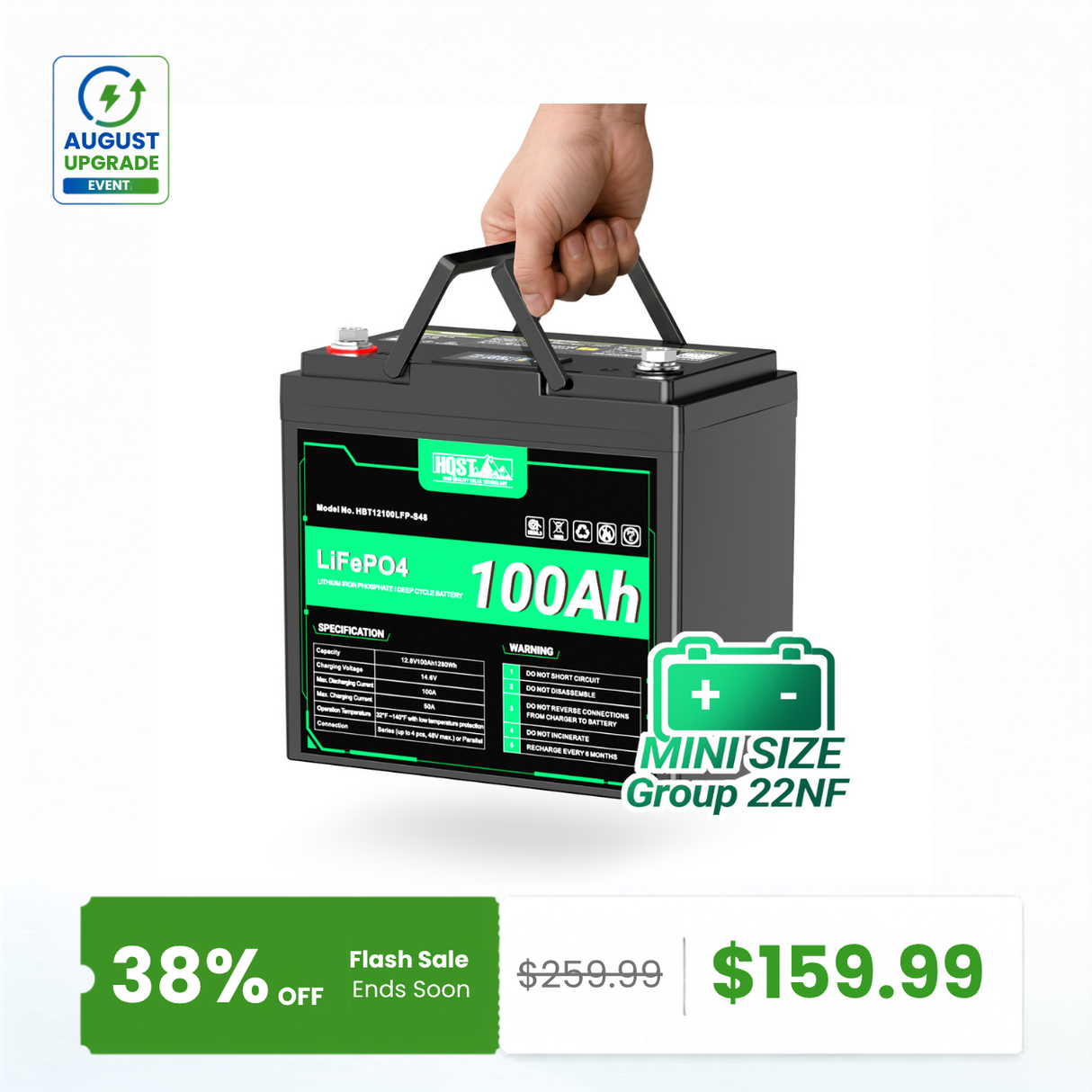

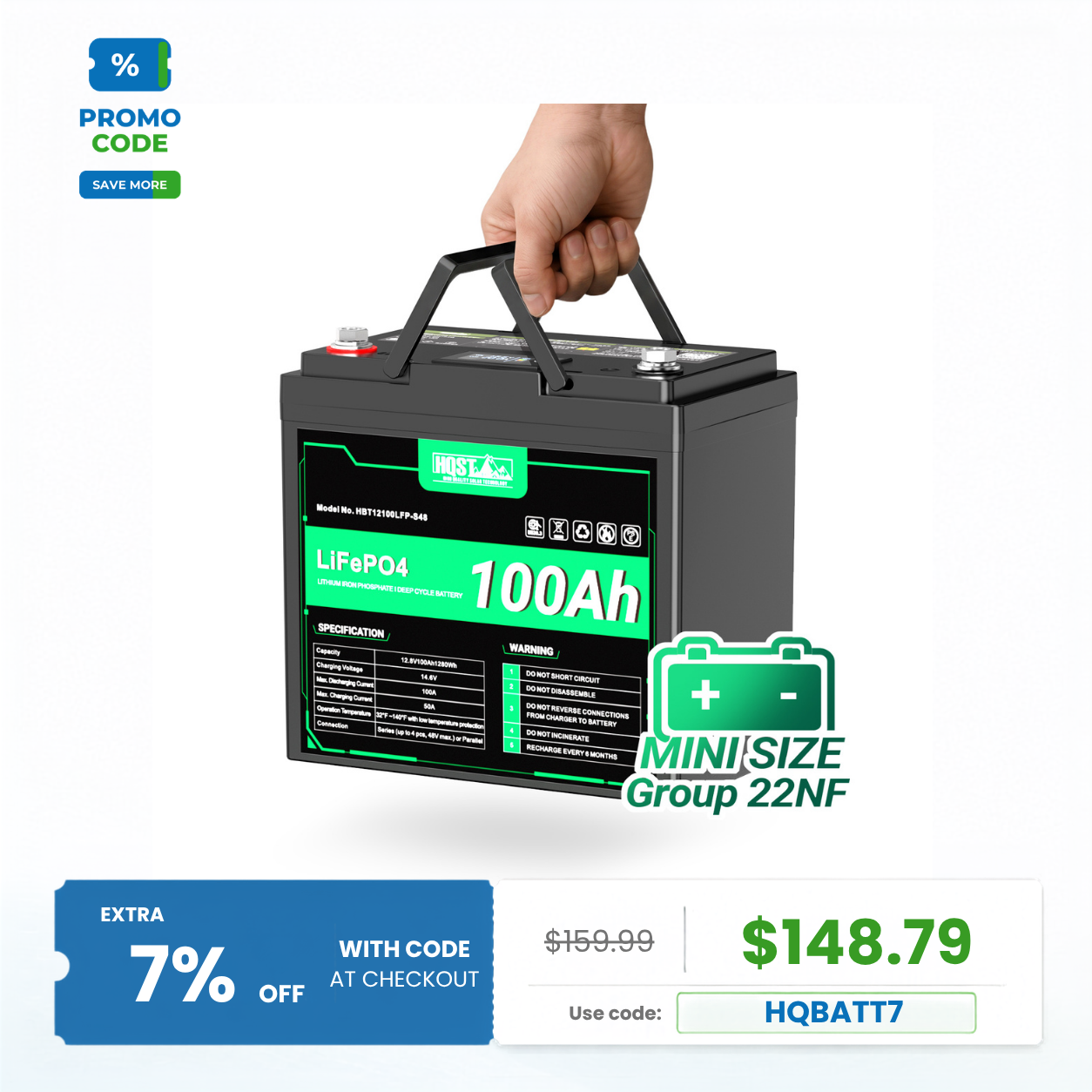

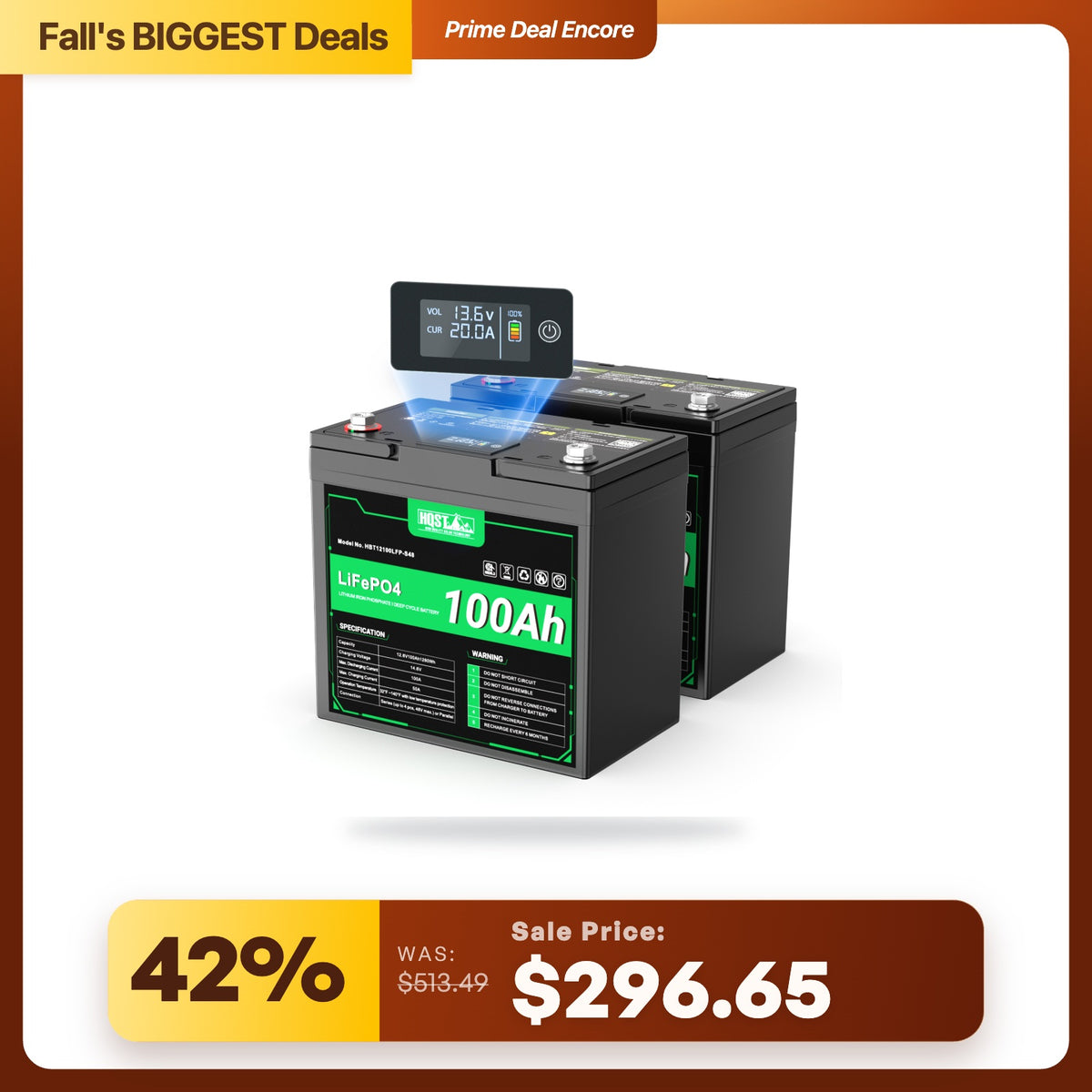

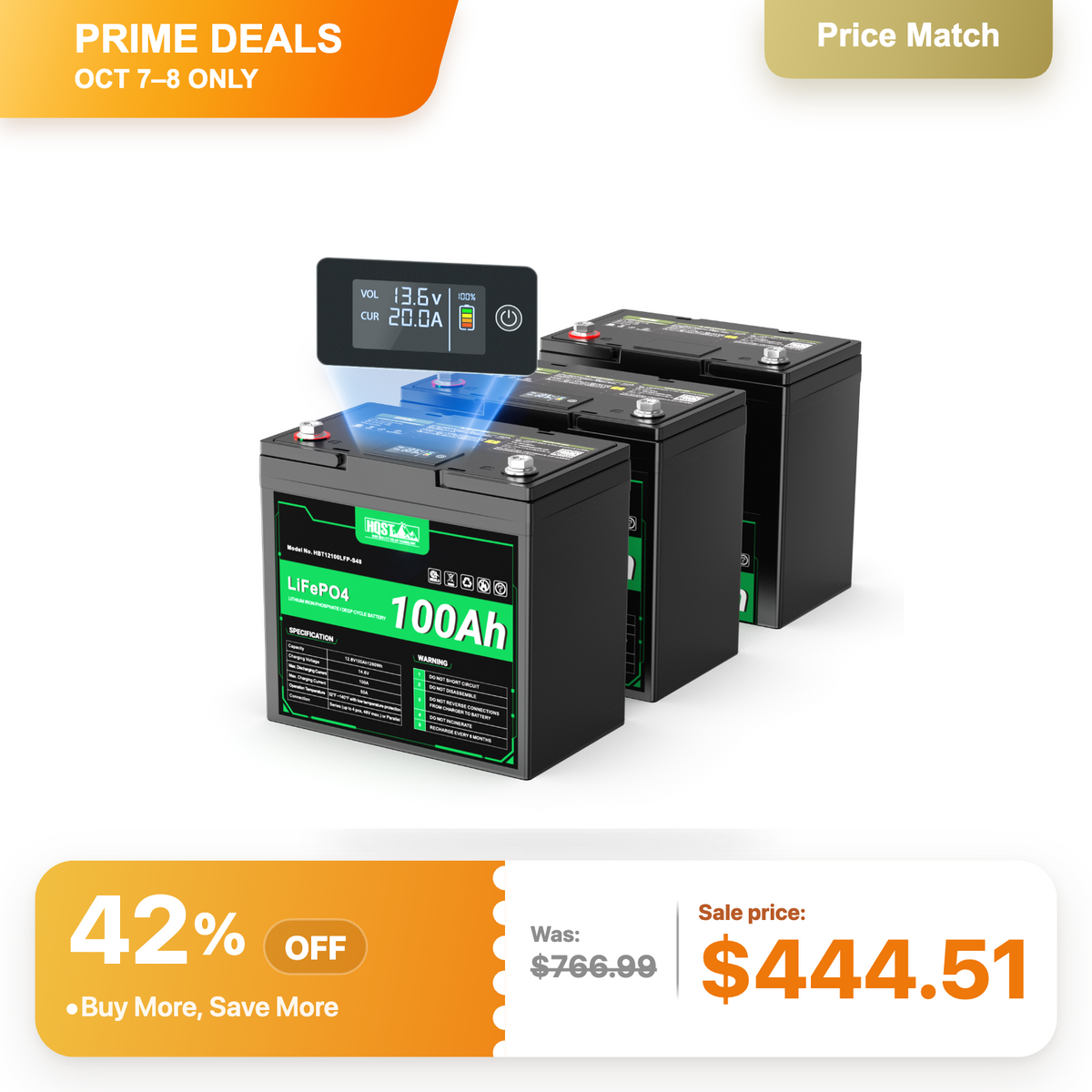

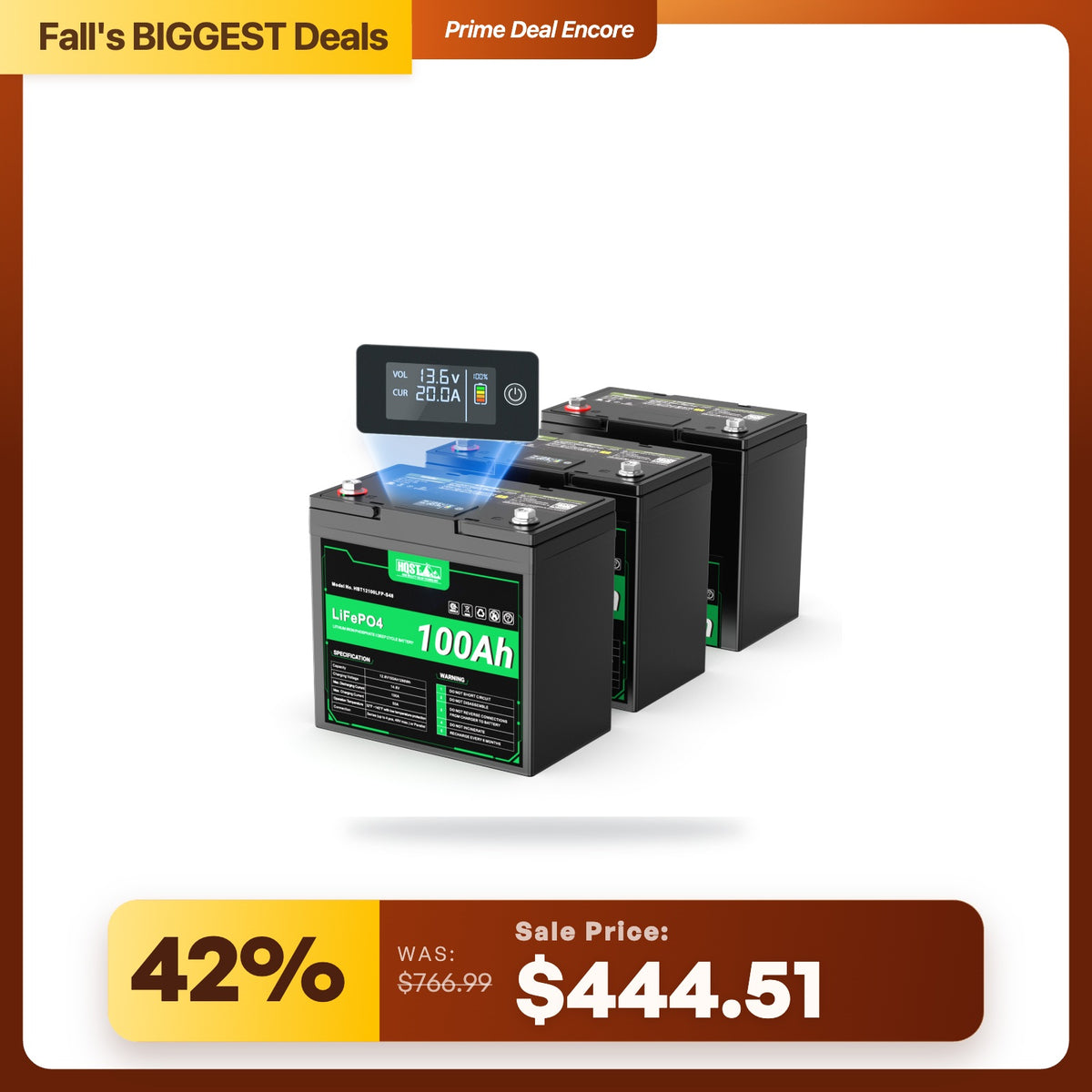

Pre-Order: HQST 12V 100Ah LiFePO4 Battery, Mini Size Group 22NF with LED Meter, 10+ Years Life

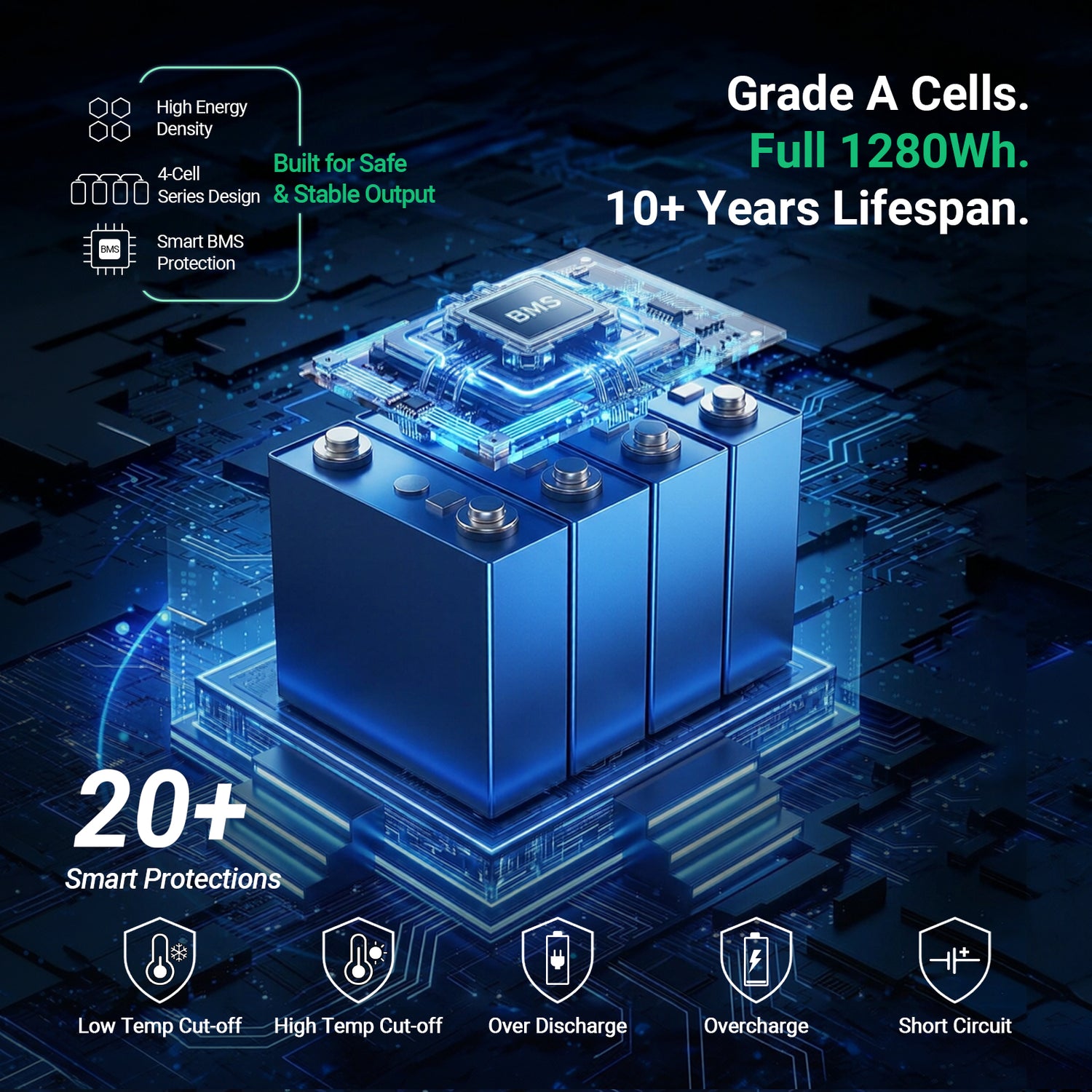

- [Upgrade to a Stronger LiFePO₄ Battery, 10+ Years Life] Built with Grade A LiFePO₄ cells and an advanced 20+ protection BMS, including low/high temperature protection, this battery delivers safe, stable power with 8000+ cycles at 70% DOD, an IP65-rated enclosure, and a 10+ year lifespan—far longer than traditional lead-acid batteries.

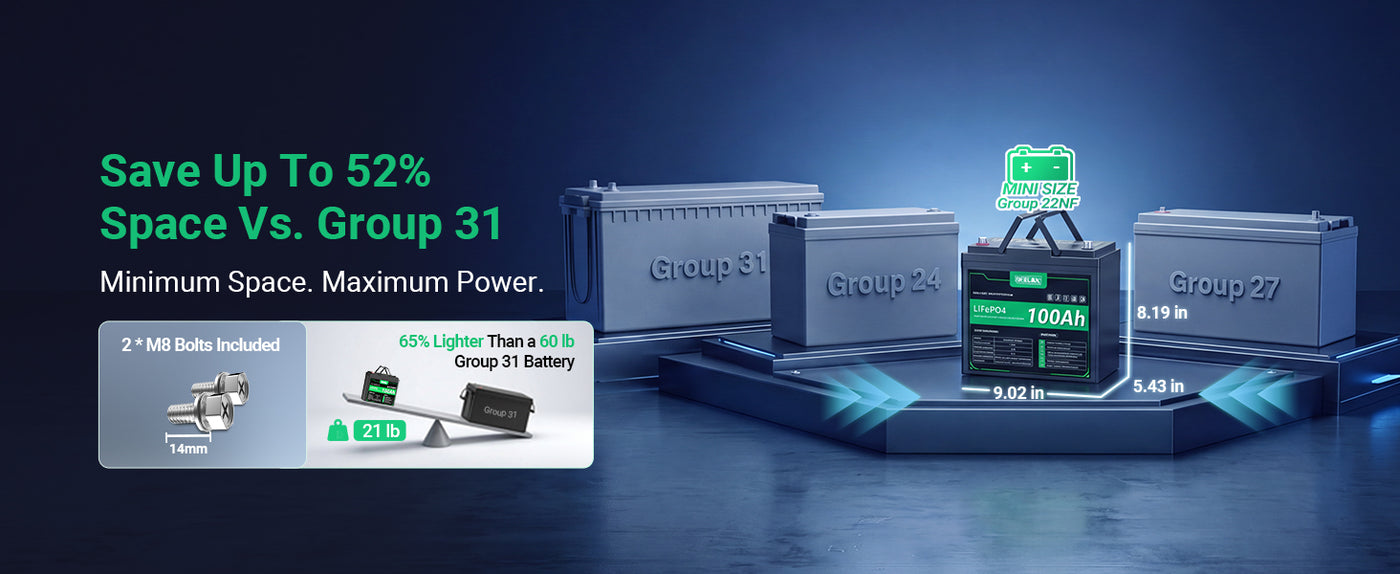

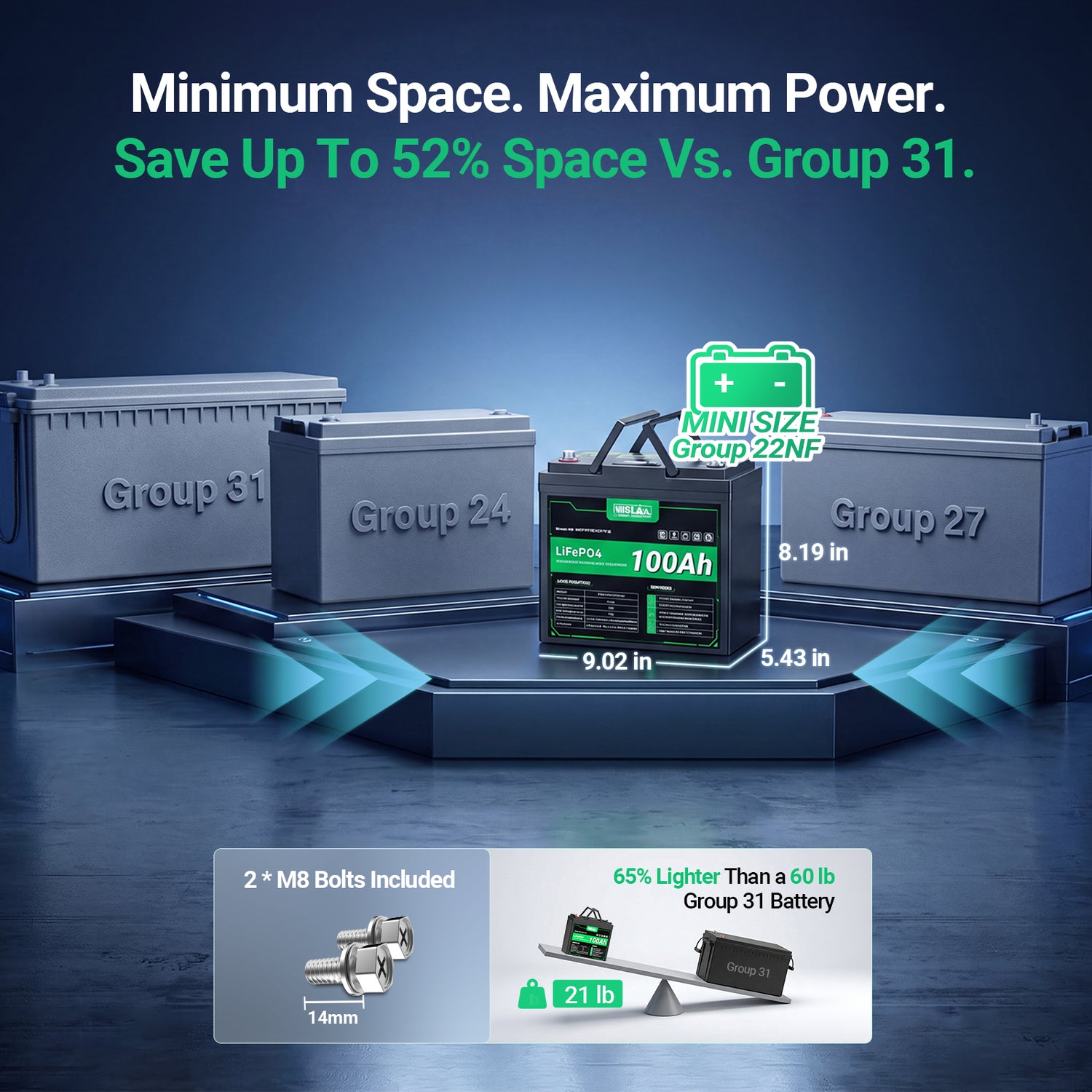

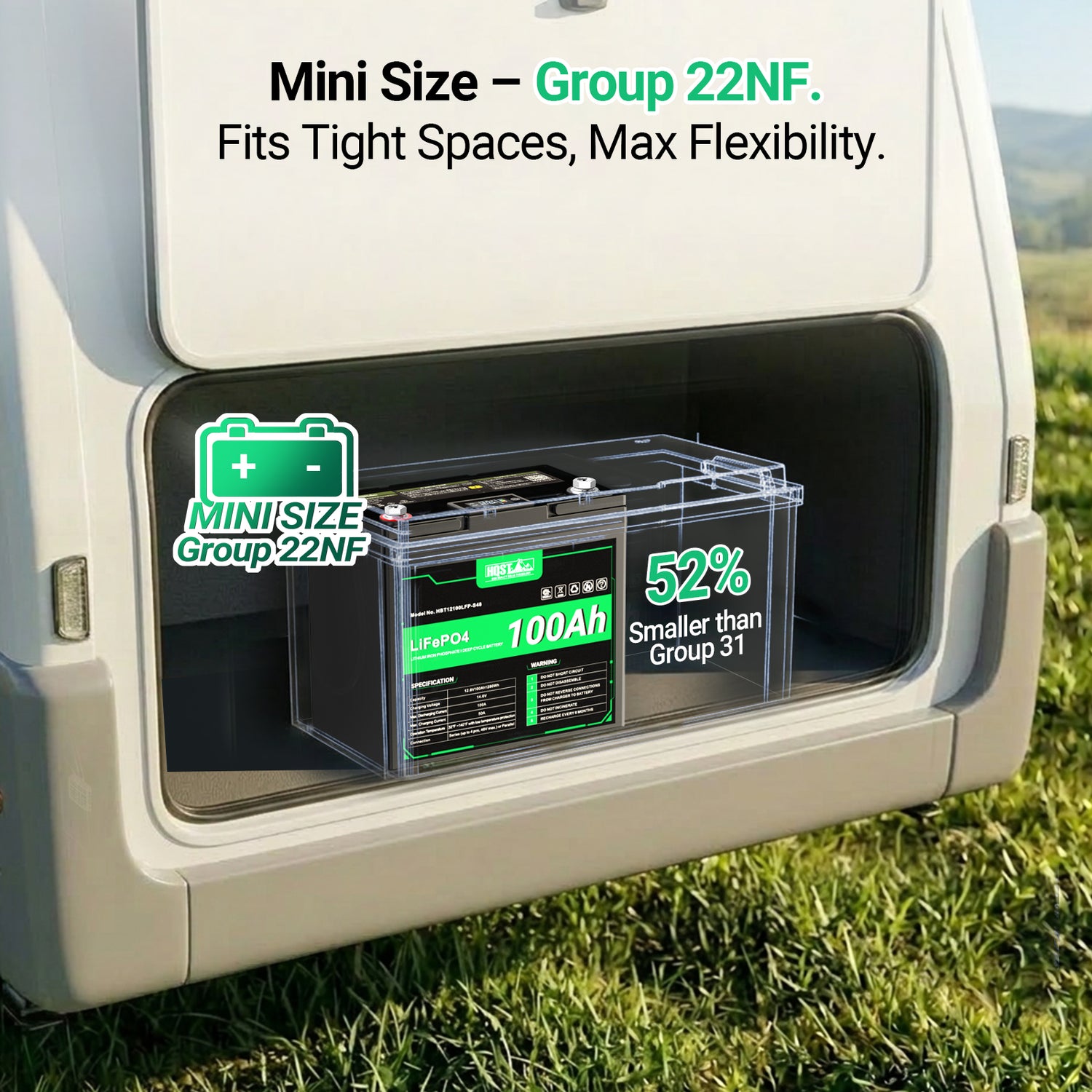

- [Mini Size. Full 1280Wh] Get the full 1280Wh you expect from a 12V 100Ah battery in a compact Group 22NF design. Up to 52% smaller than Group 31 and weighing only 21 lb, it fits tight spaces where larger batteries can't while offering maximum installation flexibility.

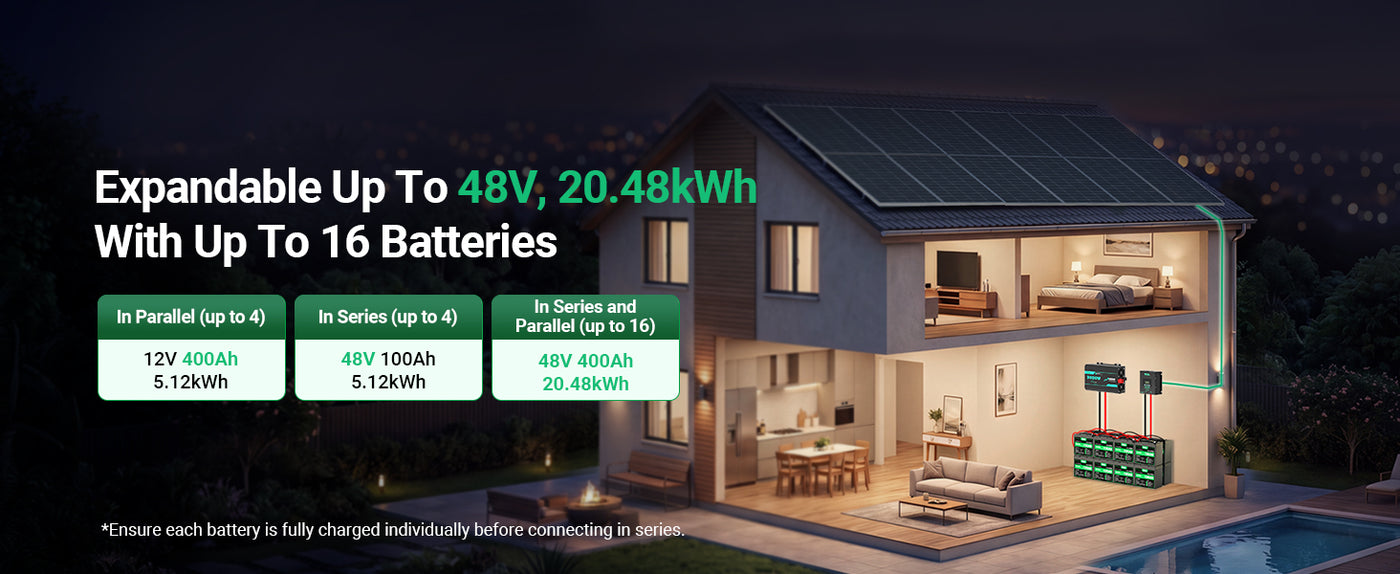

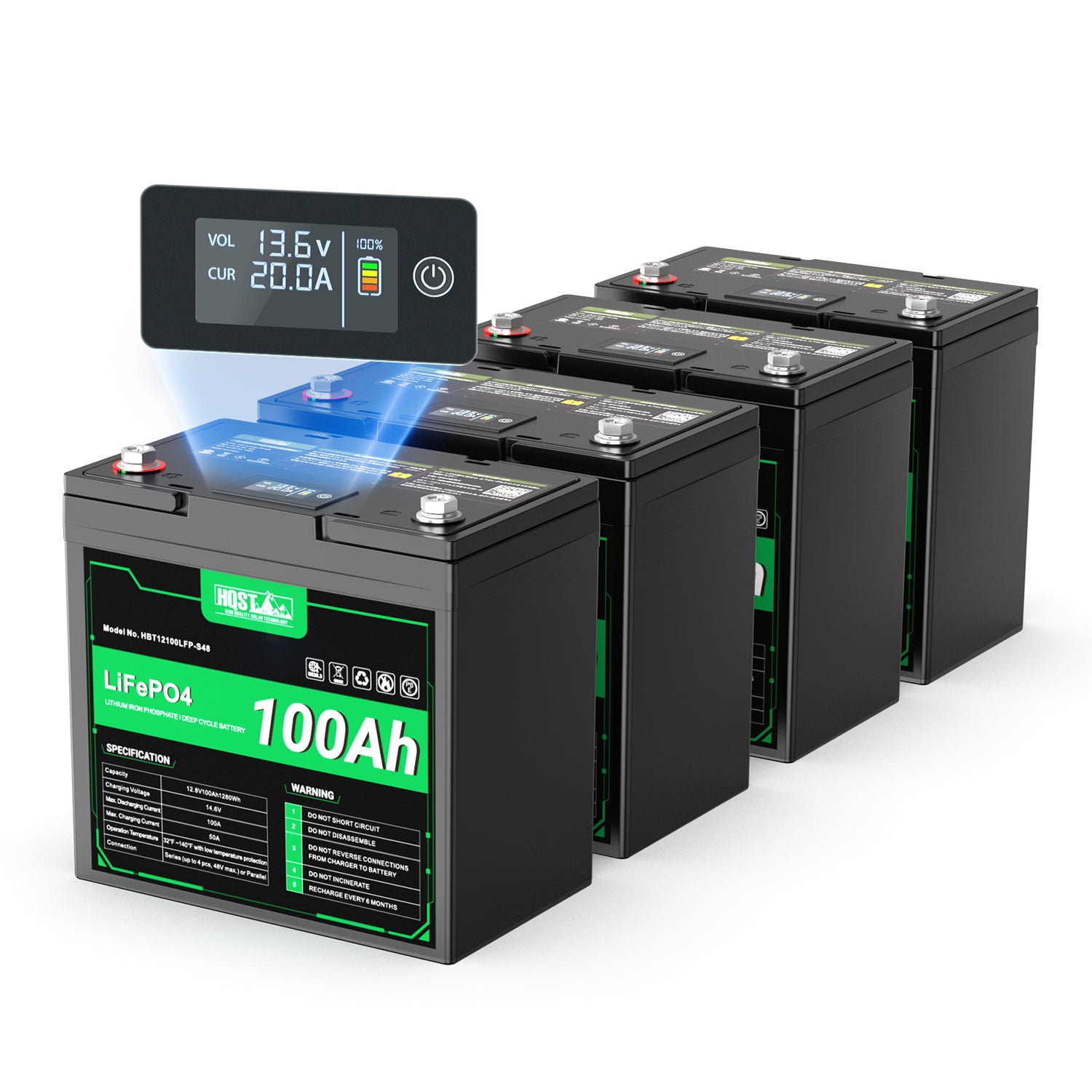

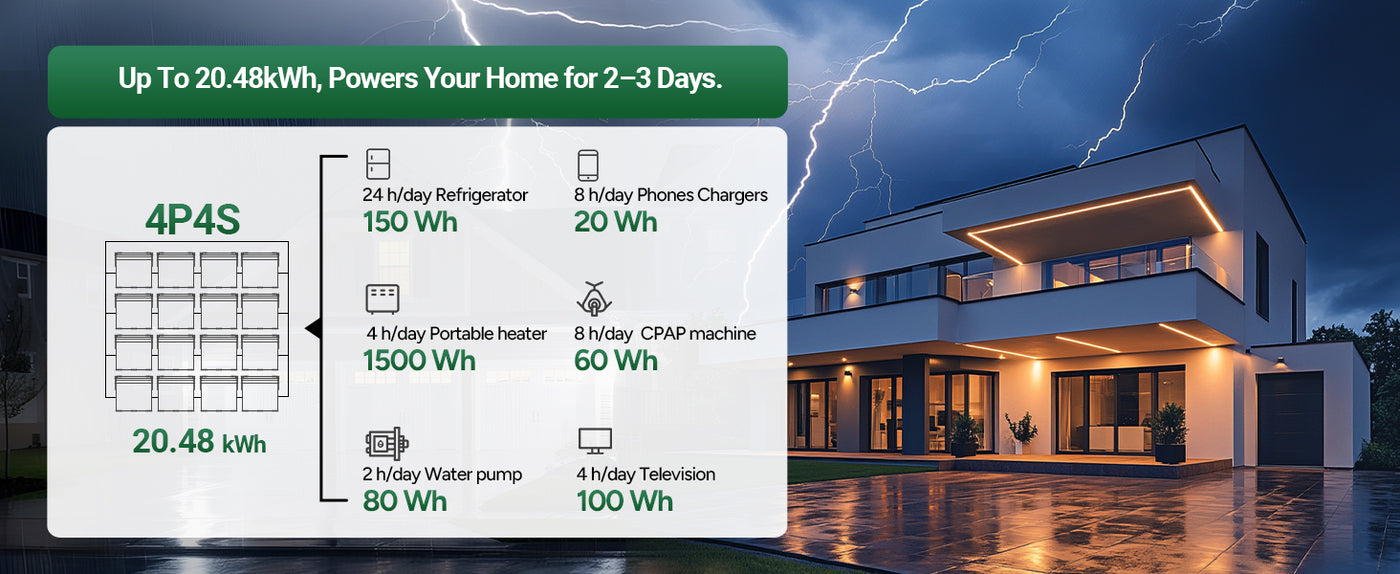

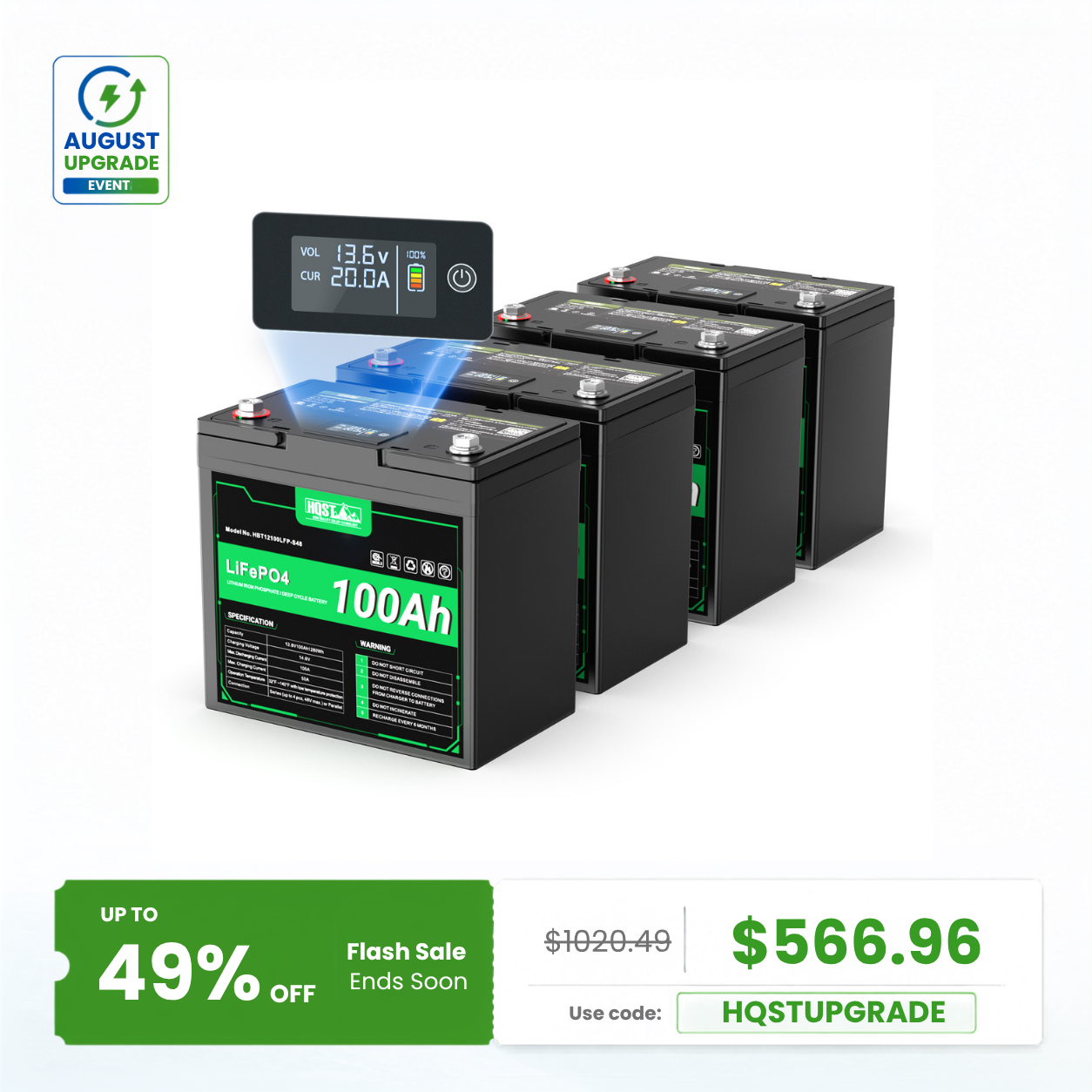

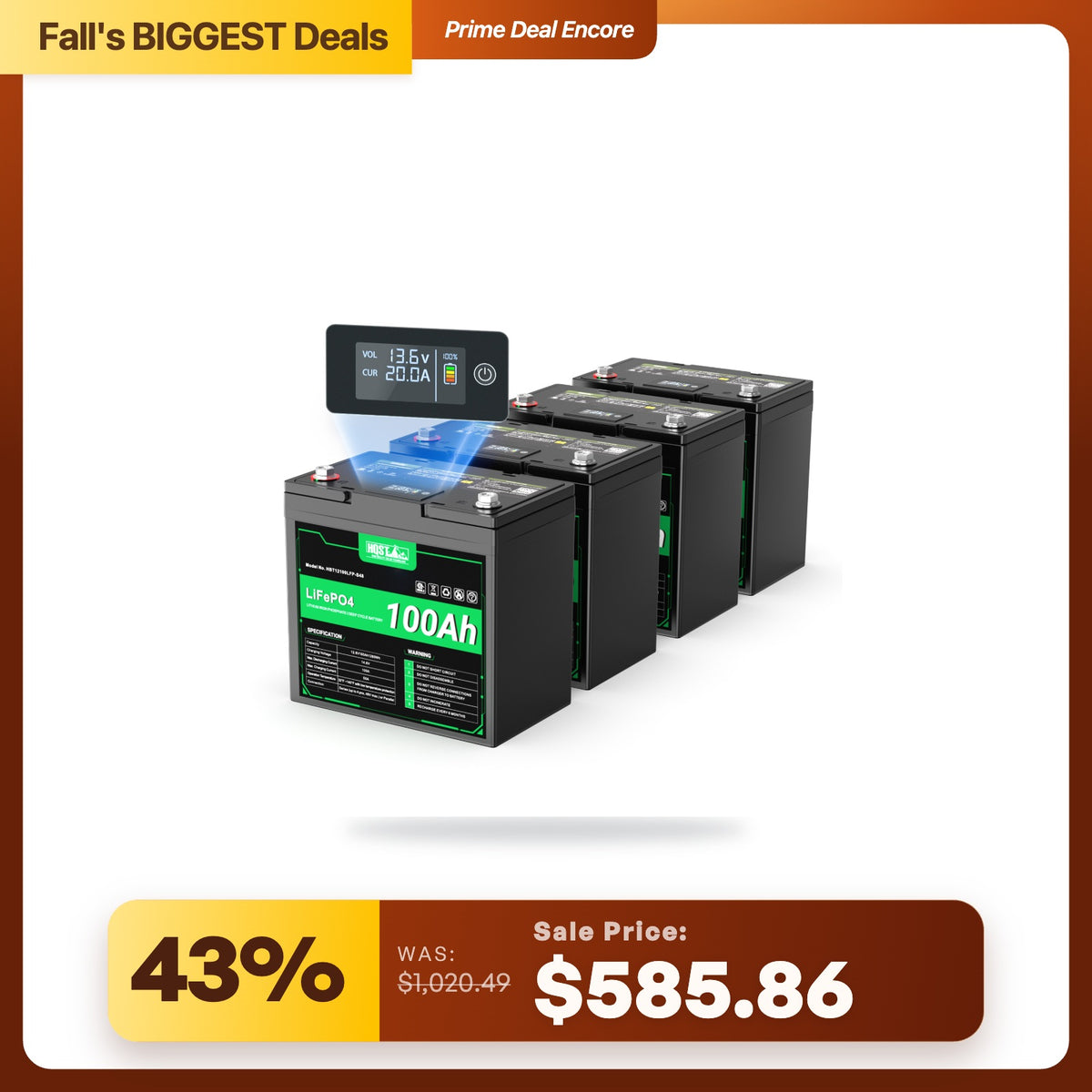

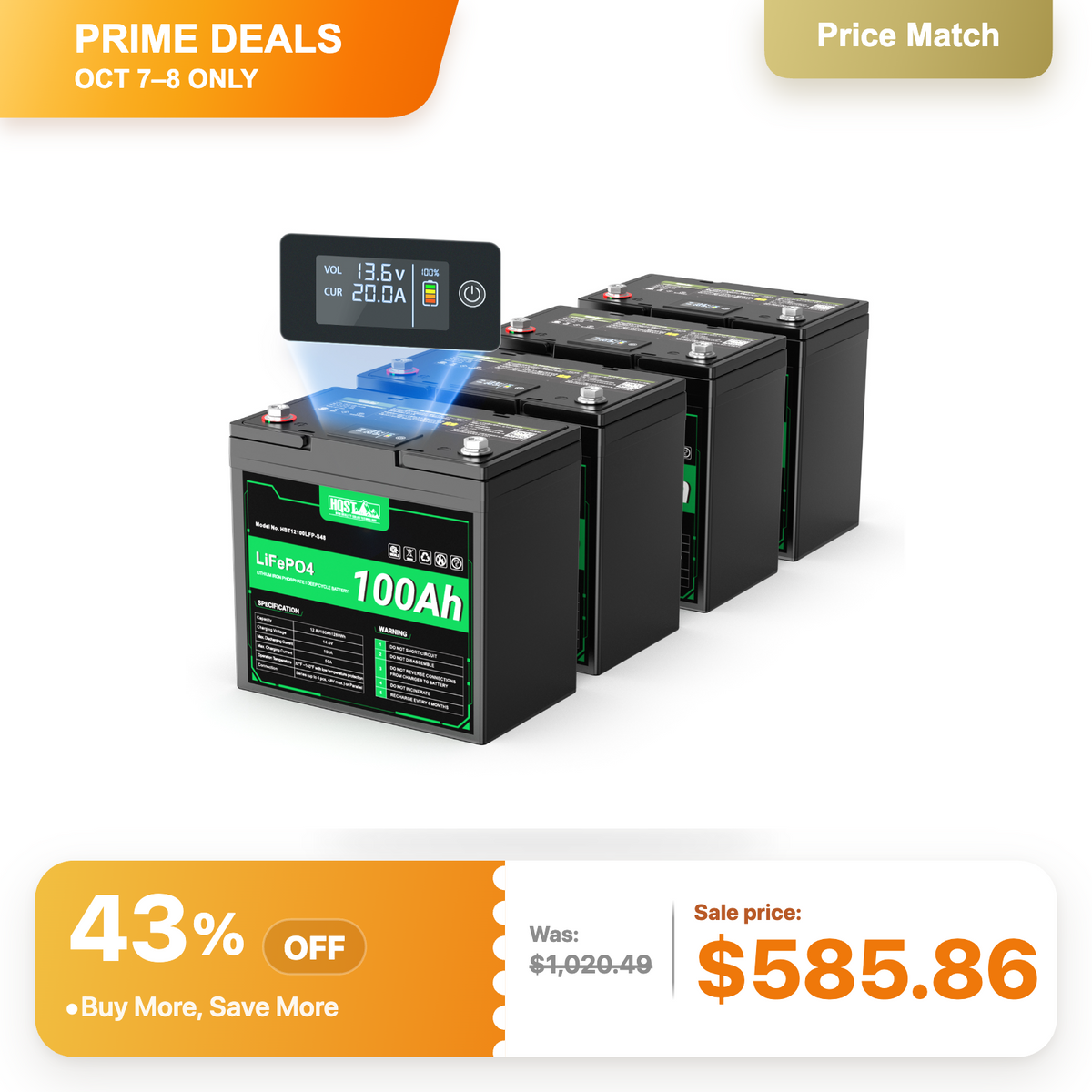

- [Expandable Up to 48V, 20.48kWh] Supports both series and parallel connections (4S4P) to build 24V, 36V, or 48V battery systems, or expand capacity to 12V 200Ah, 300Ah, or 400Ah. Connect up to 16 batteries for a powerful 20.48kWh energy storage system—ideal for RVs, solar systems, off-grid cabins, and home backup power.
- [Full 1280Wh, 100% Usable Power] Unlike lead-acid batteries that typically provide only 50% usable capacity, this LiFePO₄ battery delivers the full 1280Wh with a 100A continuous discharge current. Recommended charging current is 20A (50A max). Recharge using a compatible LiFePO₄ charger, solar panels with a compatible charge controller, or a DC-DC charger.

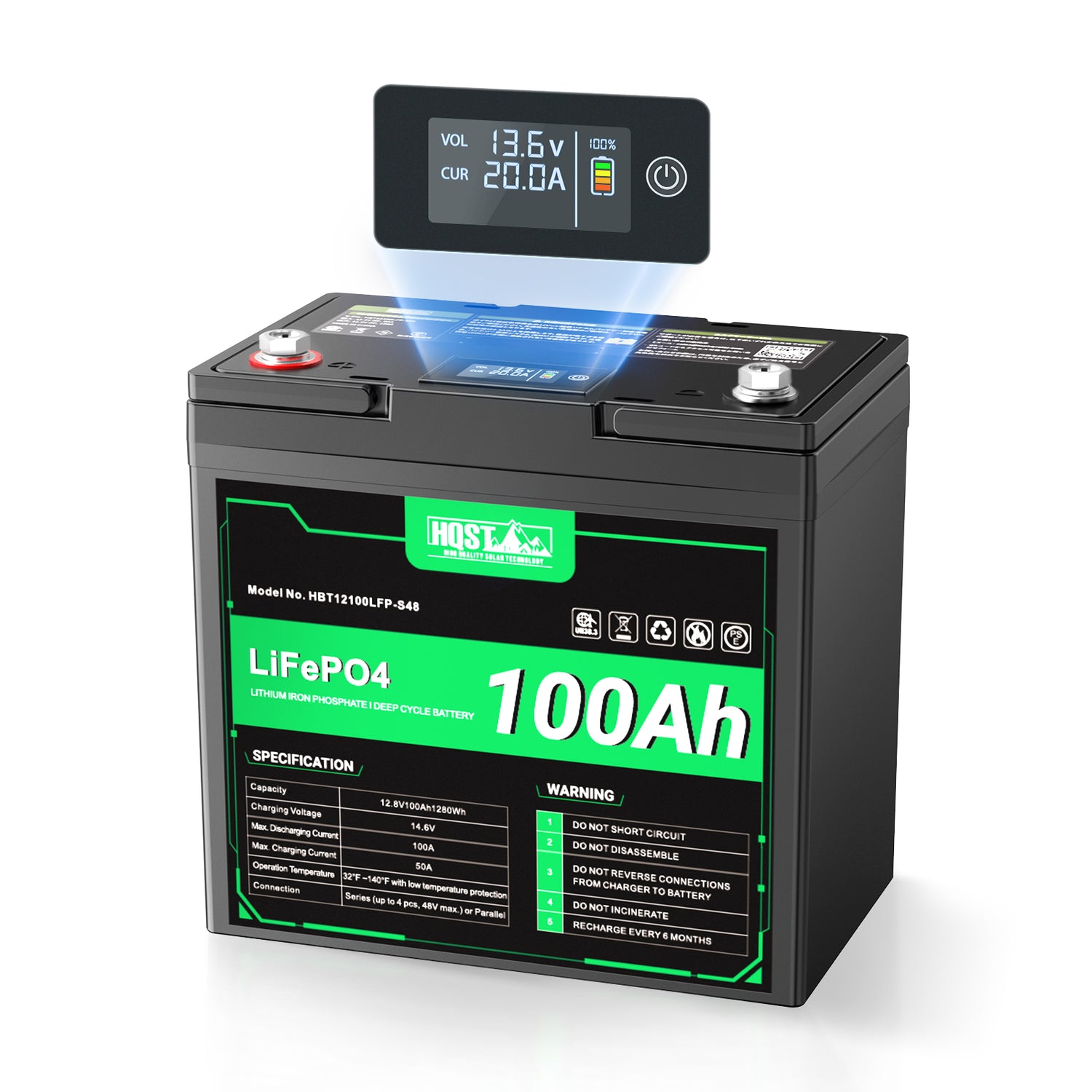

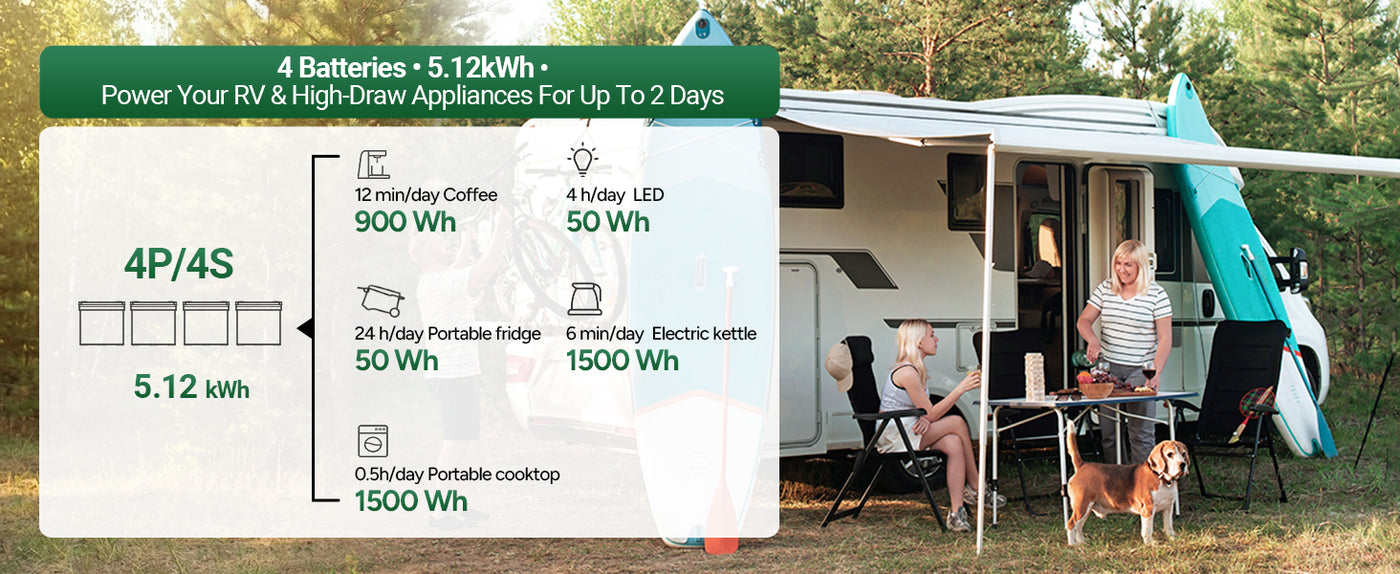

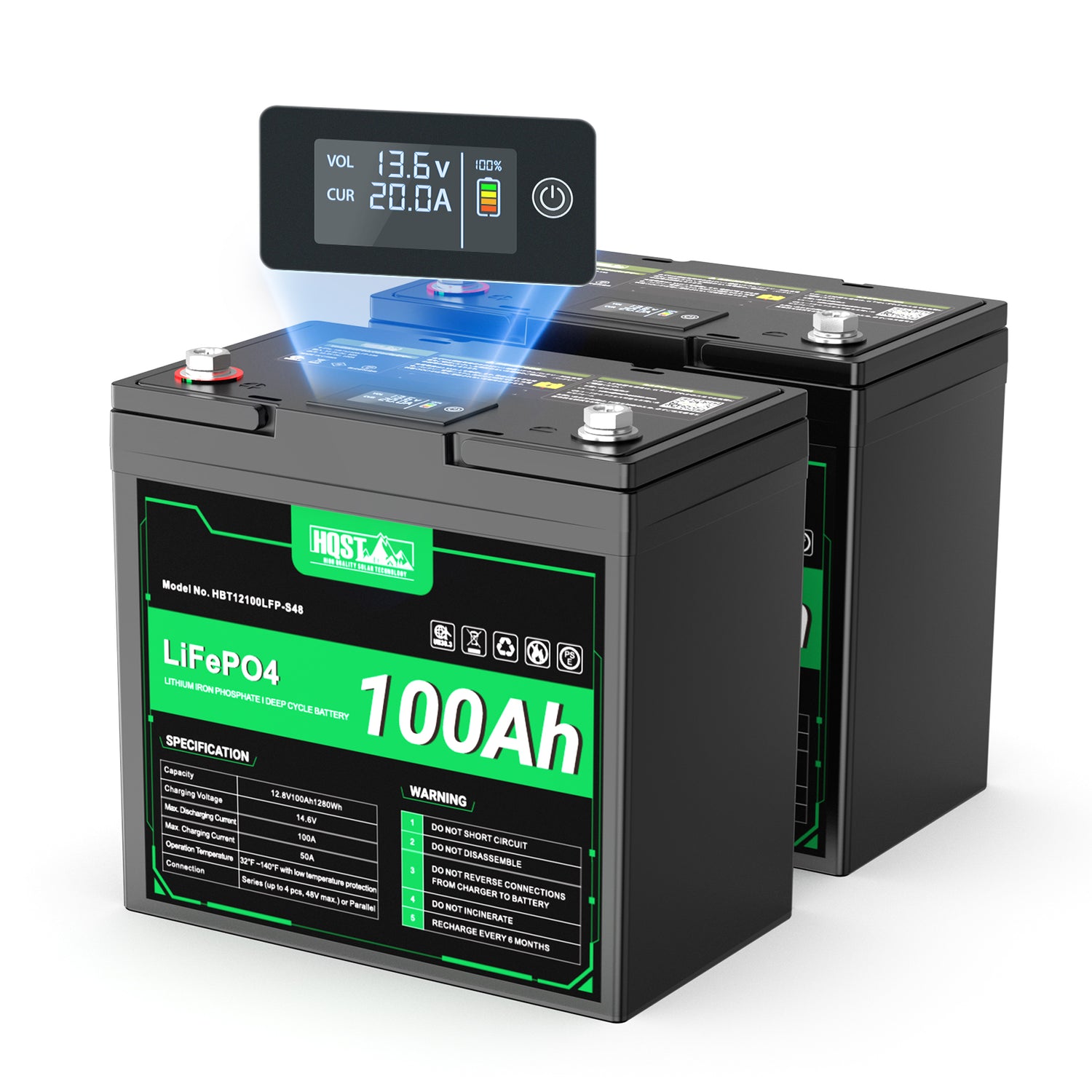

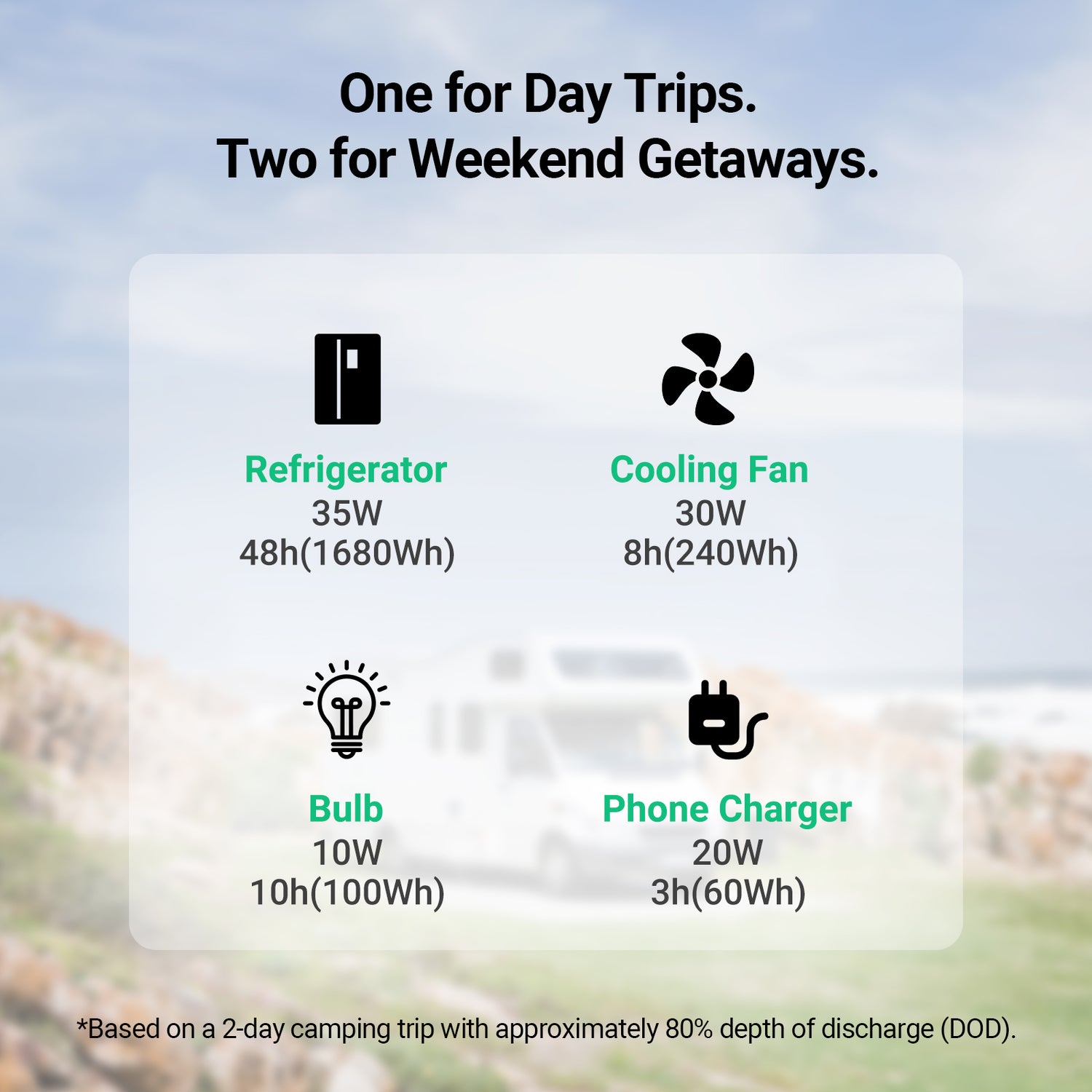

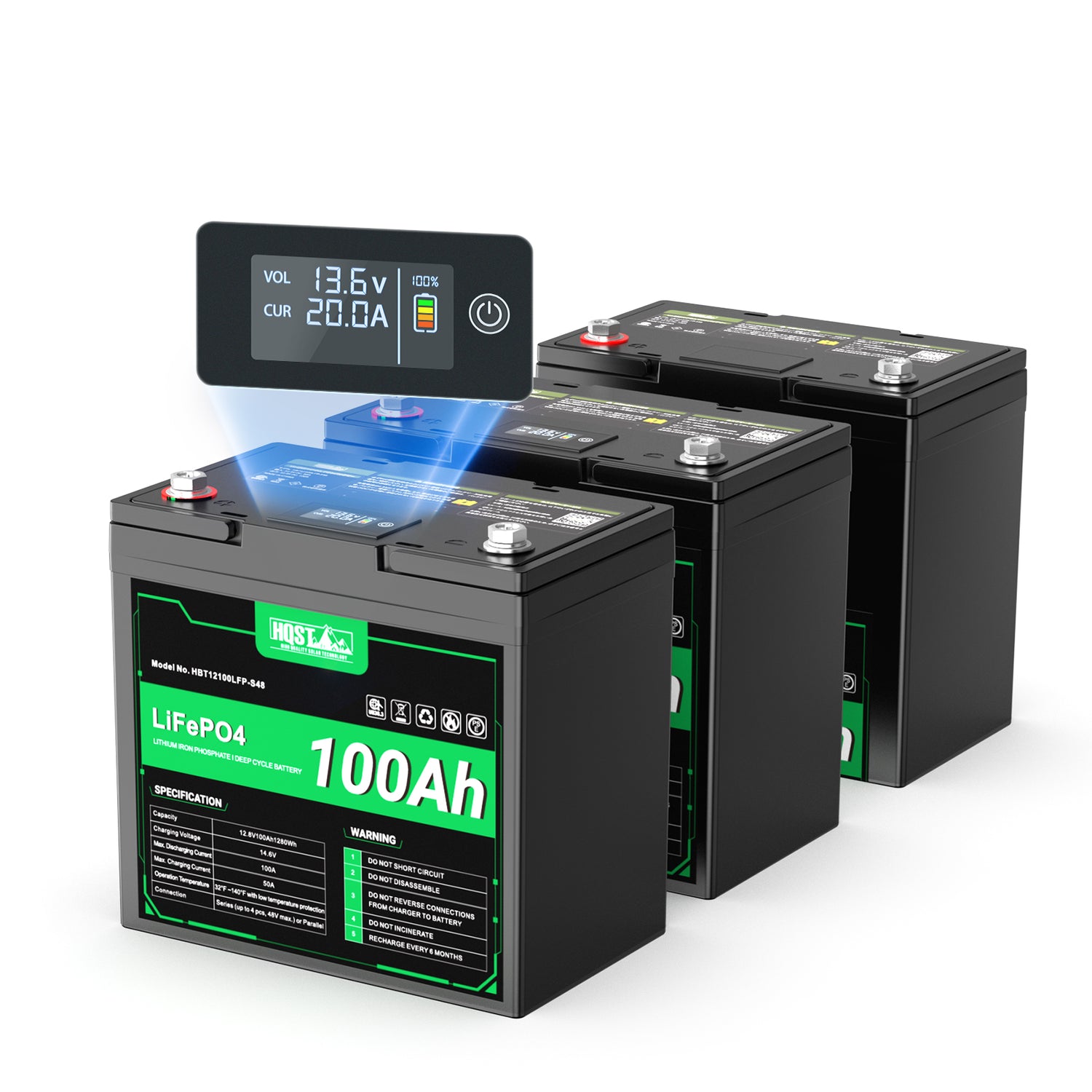

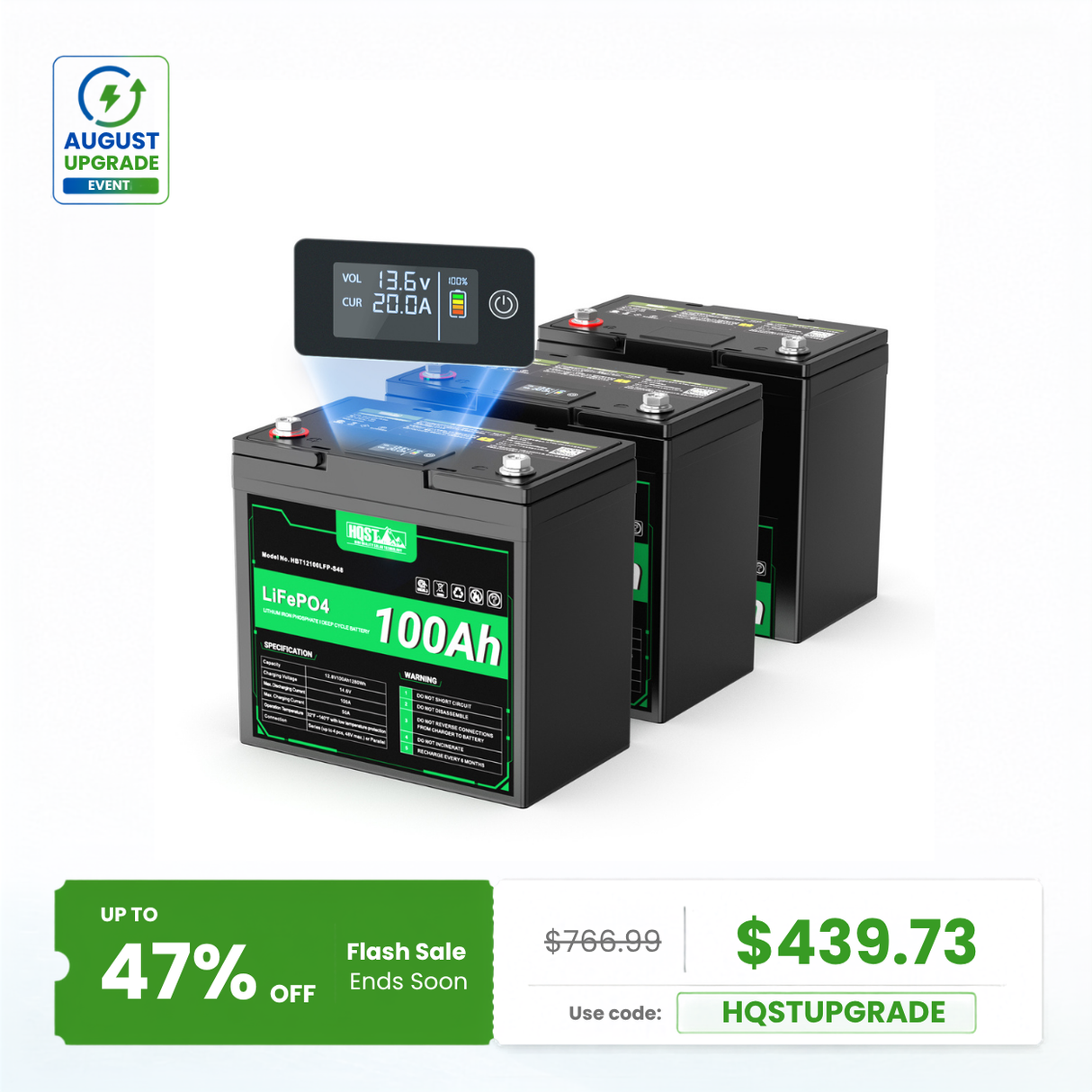

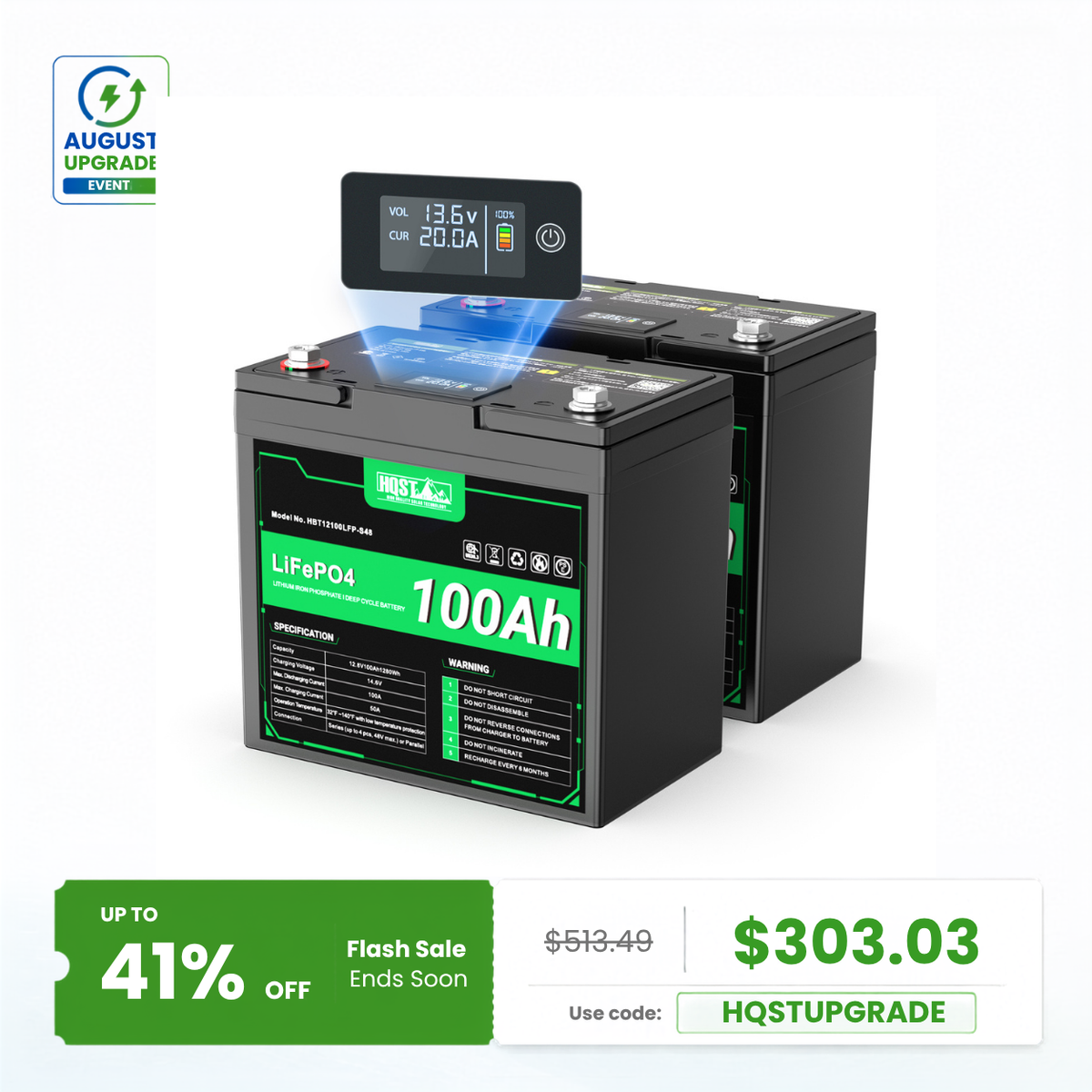

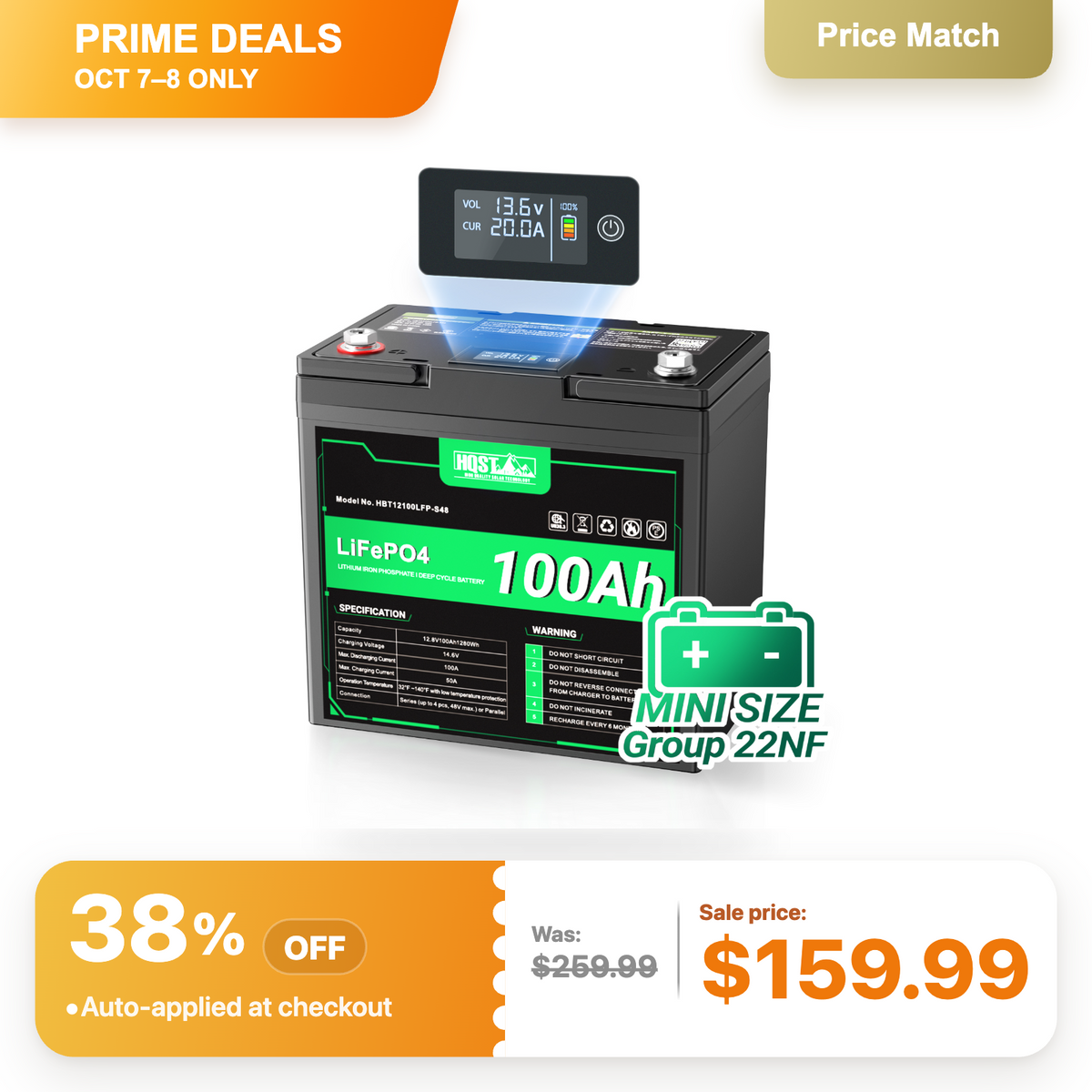

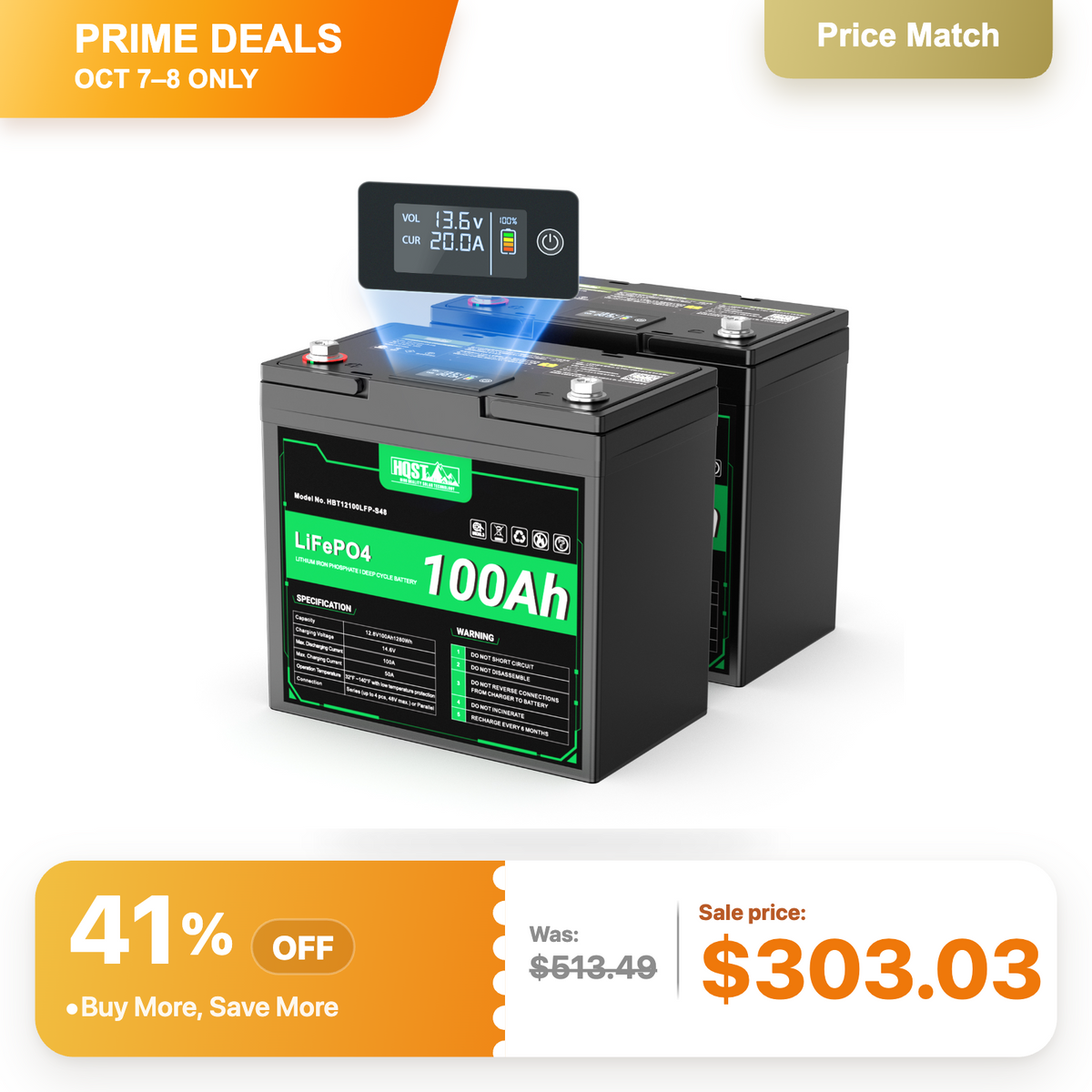

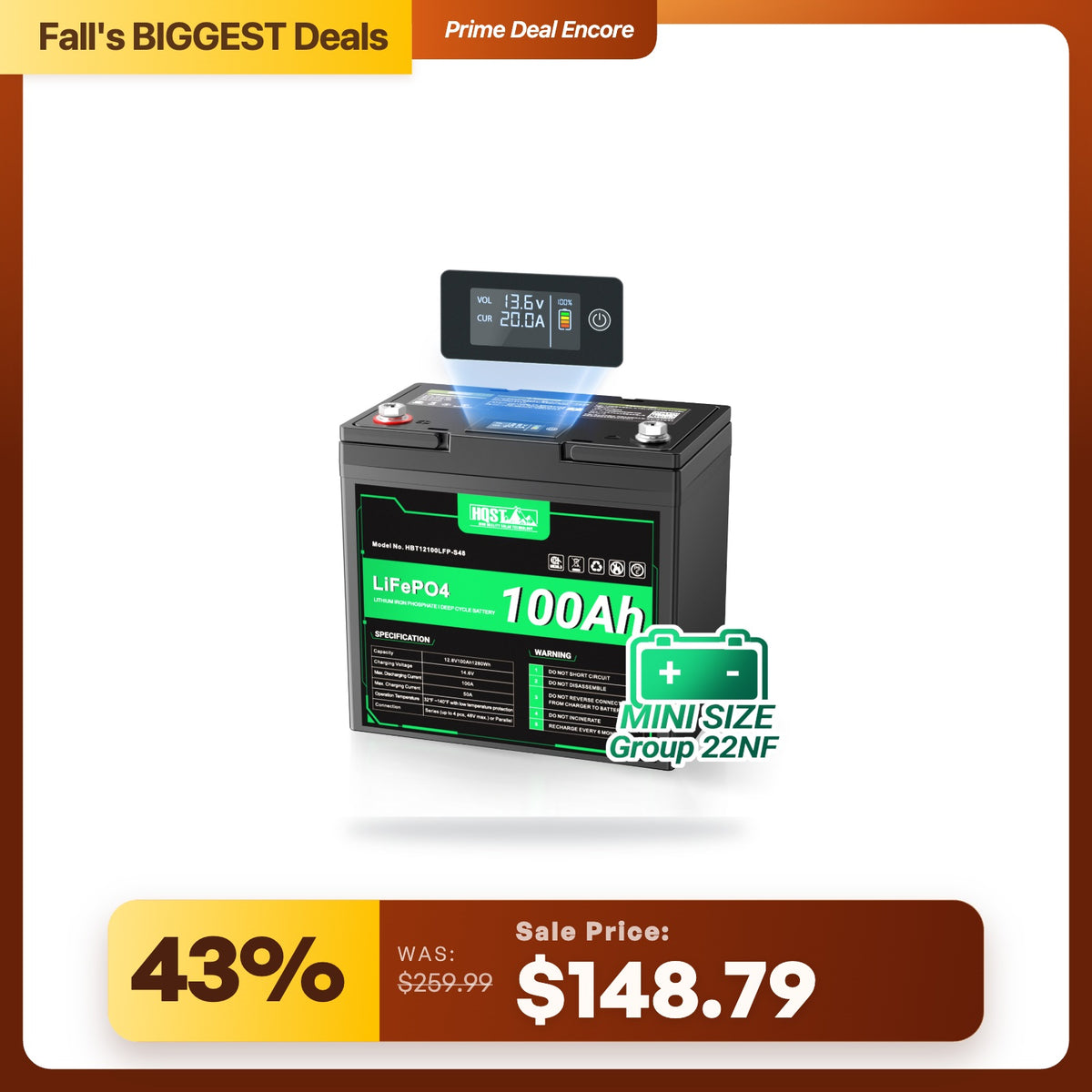

- [One for Day Trips. Two for Weekend Getaways] A single battery delivers reliable power for portable fridges, lights, fans, fish finders, and device charging. The integrated real-time LED display lets you easily check remaining capacity, voltage, and charging/discharging current before hitting the road or heading back to camp. Add a second battery to extend your adventure even further.
Pre-Order: HQST 12V 100Ah LiFePO4 Battery, Mini Size Group 22NF with LED Meter, 10+ Years Life - 1 pack is backordered and will ship as soon as it is back in stock.
Best Sellers
Specifications
Package Includeds
Warranty
Frequently Asked Questions
Why Isn’t the LED Display Accurate?
Why Isn’t the LED Display Accurate?
If the LED display isn’t showing the correct readings, you can try calibrating it by following these steps:
1. Discharge the battery completely to 0%.
2. Use a compatible LiFePO4 battery charger or solar charge controller to fully charge the battery.
If the issue persists, please contact us at sales@myhqsolar.com for further assistance.
What are the charging voltage and charging current for this battery?
What are the charging voltage and charging current for this battery?
The max. charging voltage is 14.6V and the max. charging current is 50A. For optimal charging performance, we highly recommend adjusting the voltage to 14.2V-14.6V and using a 20A charger.
Does this 12V 100Ah battery offer low-temperature protection?
Does this 12V 100Ah battery offer low-temperature protection?
Yes. This battery features both low- and high-temperature protection. Charging automatically stops at 23–41°F (-5–5°C), while discharging stops at -13–5°F (-25–-15°C) in extreme cold. It also provides high-temperature protection, stopping charging at 140–158°F (60–70°C) and discharging at 158–176°F (70–80°C) to help protect the battery in hot conditions.
Does this battery have low voltage cut-off protection?
Does this battery have low voltage cut-off protection?
Yes, it does. When the discharge voltage is lower than 10V, the battery will shut off automatically.
Can I use my lead acid battery charger to charge the lithium battery?
Can I use my lead acid battery charger to charge the lithium battery?
We recommend using a lithium battery compatible AC to DC charger to charge LiFePO4 batteries, or else cause unreversible lifespan damage to the batteries. You can also charge these batteries using compatible solar charge controllers and solar panels.
Will the battery come with the terminals? And if not, what's the size of the connector terminals?
Will the battery come with the terminals? And if not, what's the size of the connector terminals?
Yes, it comes with two M8 screw terminals.
Can I charge the battery directly using a solar panel?
Can I charge the battery directly using a solar panel?
No, you should not connect the solar panel directly to the battery. When charging this battery with a solar panel, make sure to use a solar charge controller (either PWM or MPPT) between the panel and the battery. Directly connecting the panel to the battery could result in unstable solar power, which may damage your devices.
