28in Adjustable Solar Panel Mounting Bracket
28in Adjustable Solar Panel Mounting Bracket is backordered and will ship as soon as it is back in stock.
Get more flexibility from your solar setup with the 28in Adjustable Solar Panel Mounting Bracket. Its 0°–90° adjustable tilt allows you to position your solar panel at a more effective angle for changing sunlight conditions.
Built for reliable flat-surface installation, this bracket is compatible with one solar panel up to 220W in a horizontal orientation or up to 50W in a vertical orientation. With a load-bearing capacity of up to 100 lbs / 45 kg and included mounting hardware, it provides a sturdy, convenient solution for off-grid and mobile solar applications.
Key Features

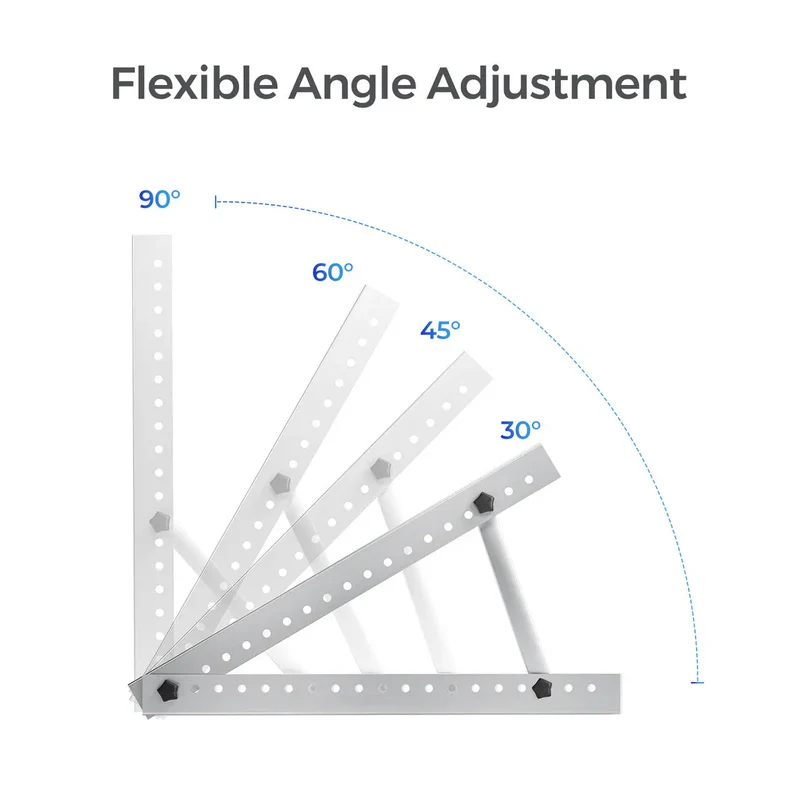

- Adjustable from 0° to 90° to help maximize solar exposure
- Compatible with one solar panel up to 220W for horizontal installation
- Supports vertical installation for solar panels up to 50W
- Heavy-duty design with up to 100 lbs / 45 kg load-bearing capacity

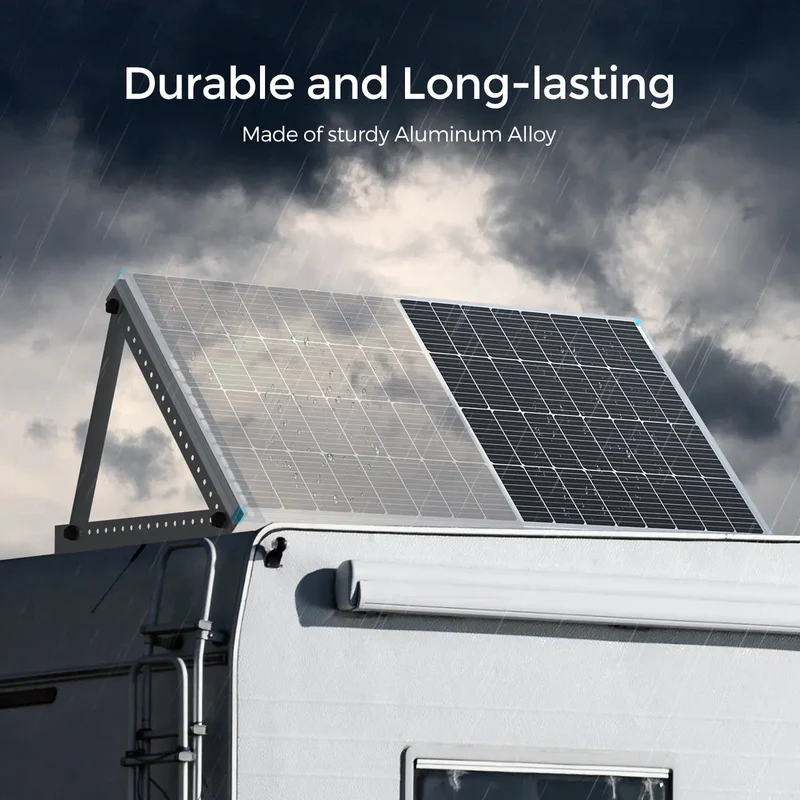

- Ideal for RVs, boats, cabins, sheds, garages, and other flat surfaces

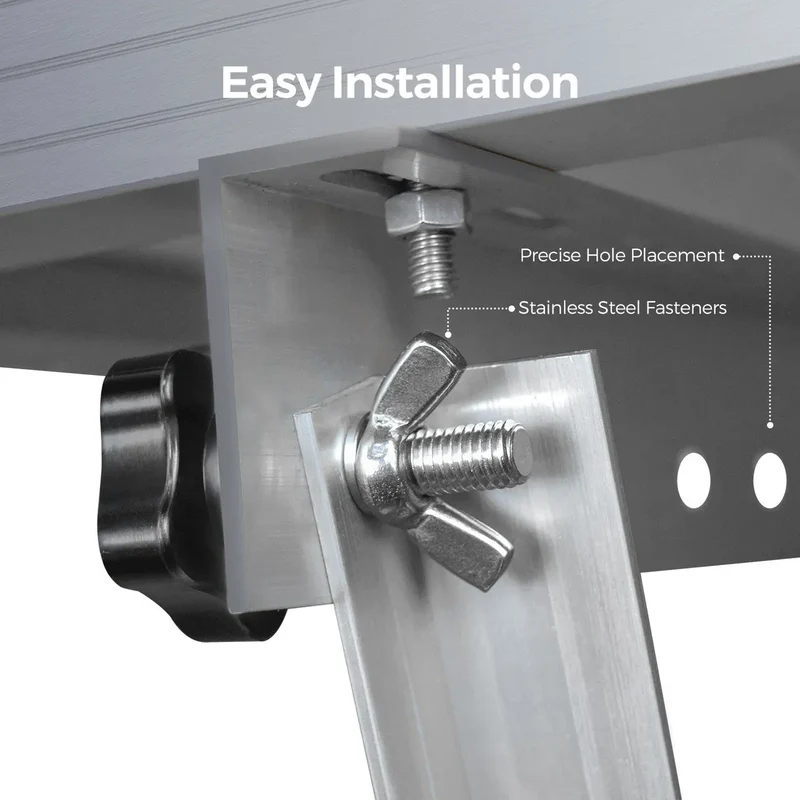

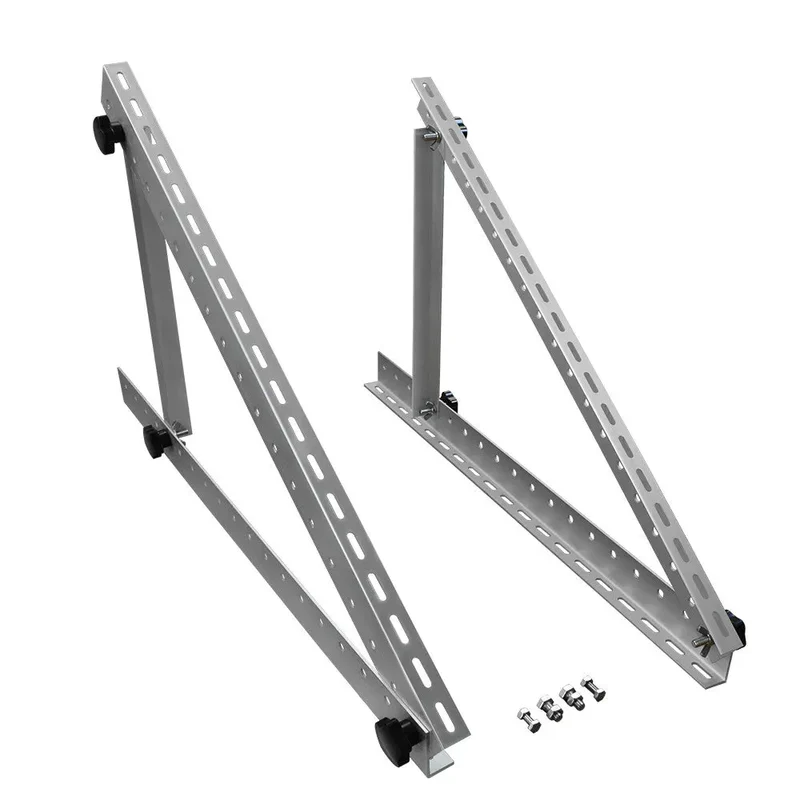

- Includes mounting rails, support legs, and installation hardware for easy setup
Specifications

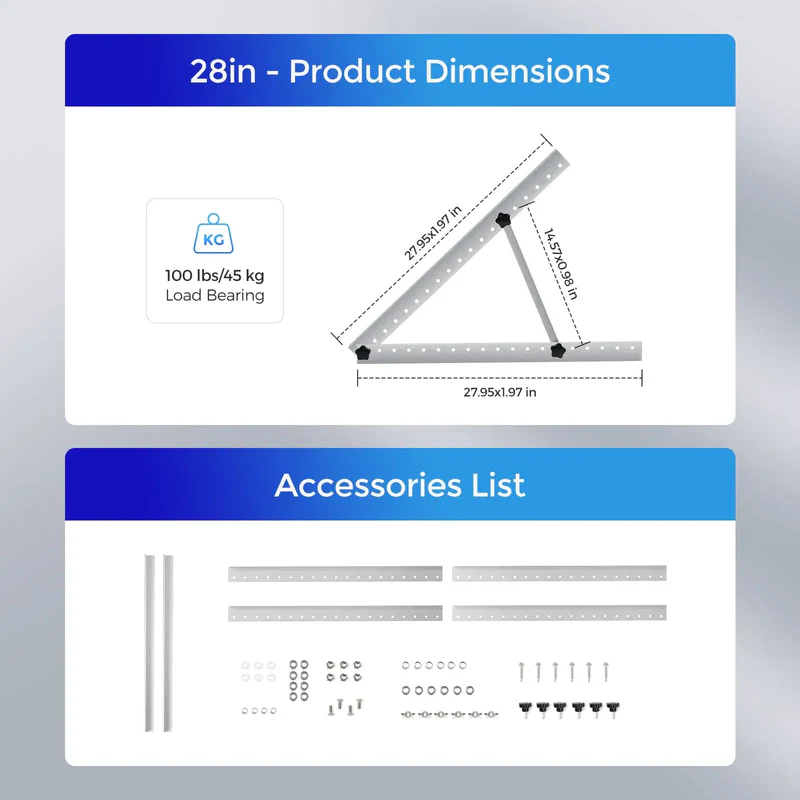

- Bracket Length: 27.95 in
- Rail Width: 1.97 in
- Adjustable Support Length: 14.57–40.98 in
- Tilt Range: 0°–90°
- Load Capacity: 100 lbs / 45 kg

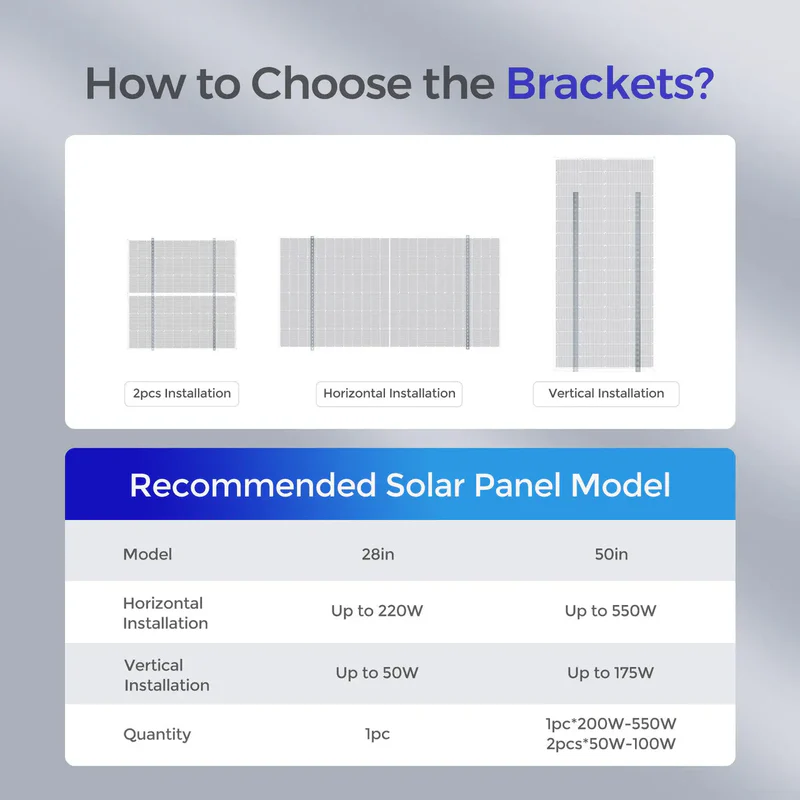

- Recommended Panel Capacity: Up to 220W horizontal; up to 50W vertical
- Quantity: 1 bracket set
