Solar Panel to Charge Controller Adaptor Kit
SKU:
HQST-AK-20FT-10-US
$35.99
$39.99
Unit price
/
Unavailable
10% off
Save
$4.00
Solar Panel to Charge Controller Adaptor Kit - 20FT / 10AWG is backordered and will ship as soon as it is back in stock.
Free Shipping on Orders over $99.99
30-Day Return & Refund Service
5%OFF Coupon fir New Subscriber
Lifetime Customer Support
Show More Benefits
Show Less
Payment Methods
Solar Panel to Charge Controller Adaptor Kit
$35.99
$39.99
Unit price
/
Unavailable
Description

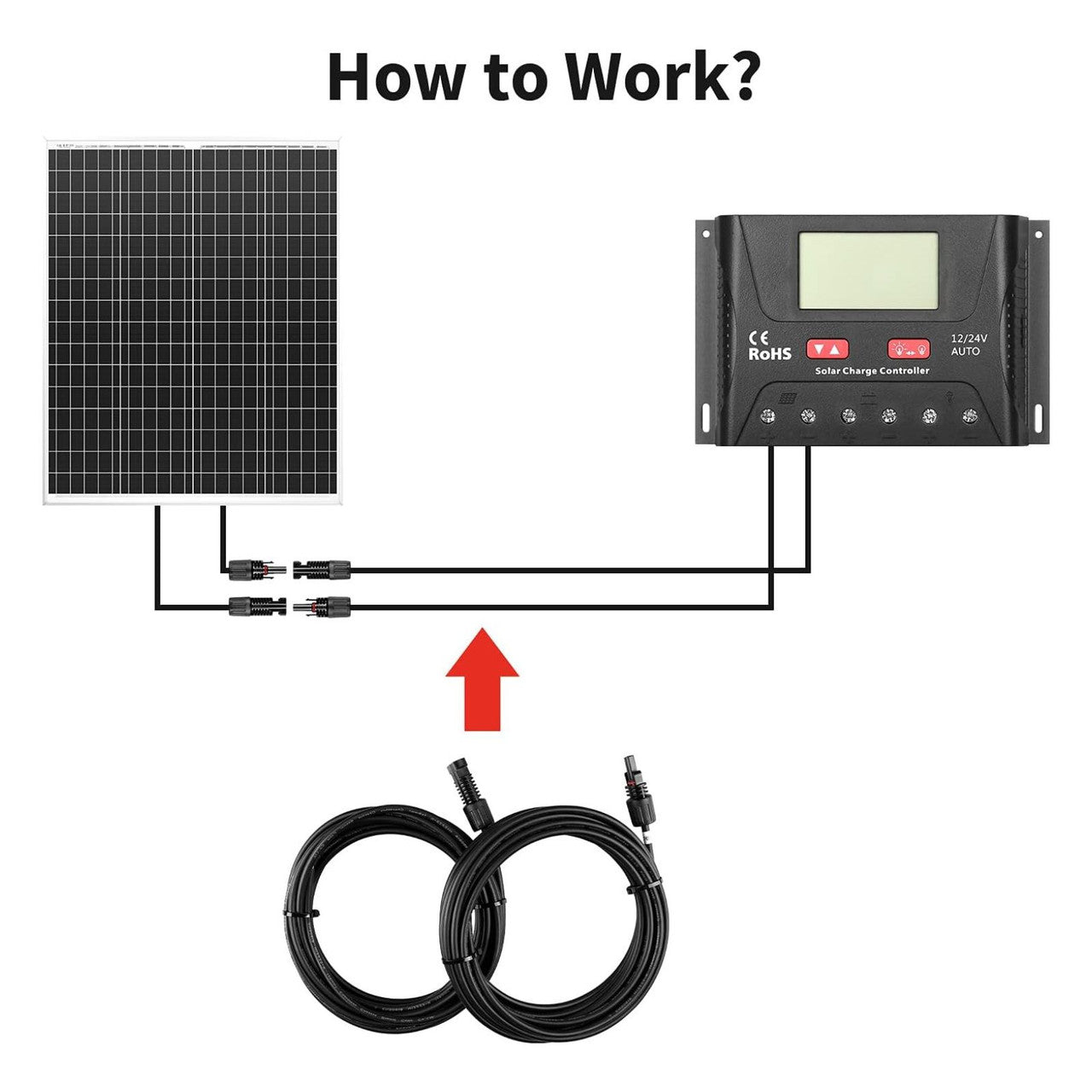

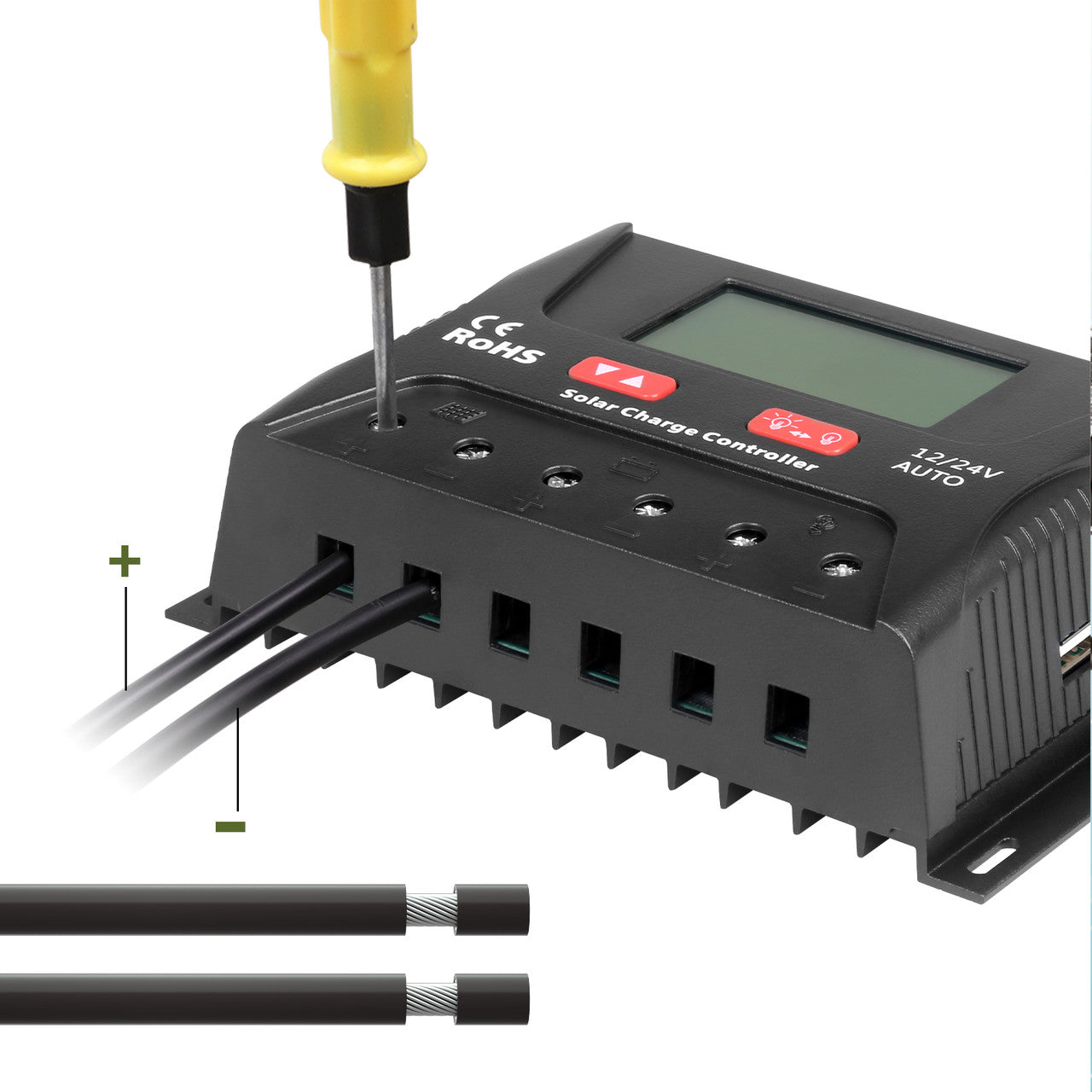

Adaptor Cable is a set of two wires made for connecting your panel to your charge controller. Specialized with connectors on one end for effortless connection to your panel and exposed wire on the other end to lead directly into your charge controller.
Key Features

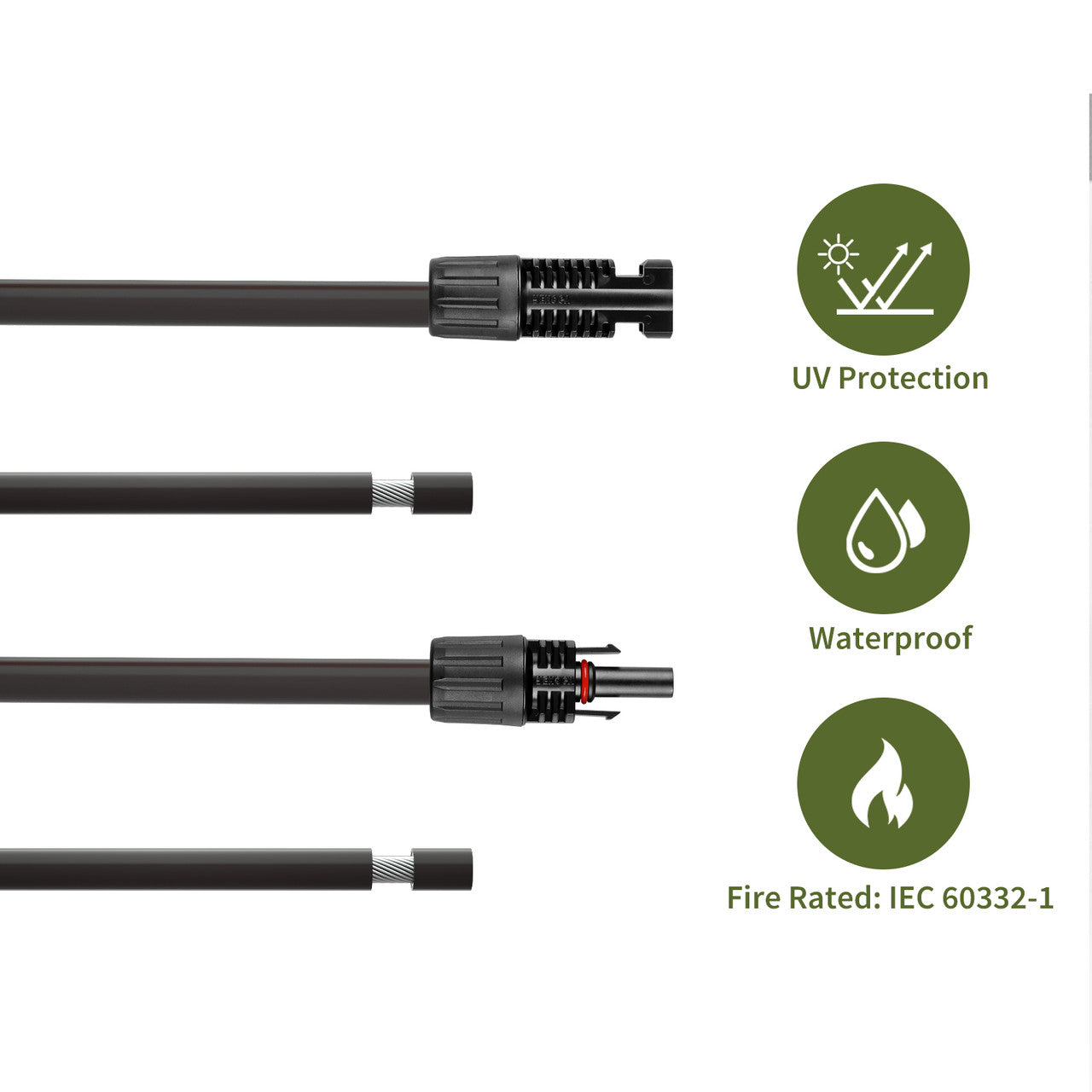

- Hard plastic connectors at each end
- Female and male connectors
- Black wire sunlight resistant cable

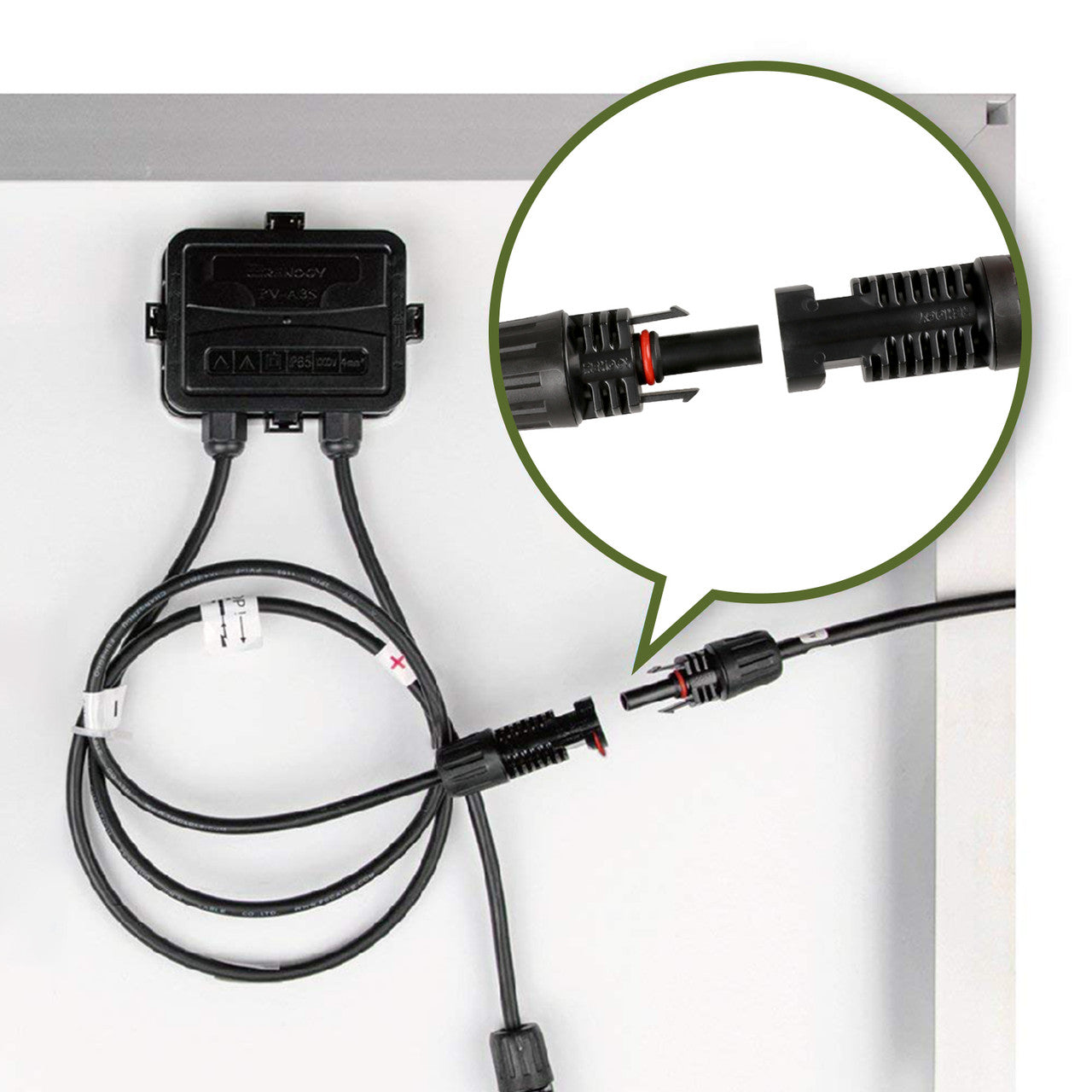

- Extends and locks built-in cables
- TUV tested cable

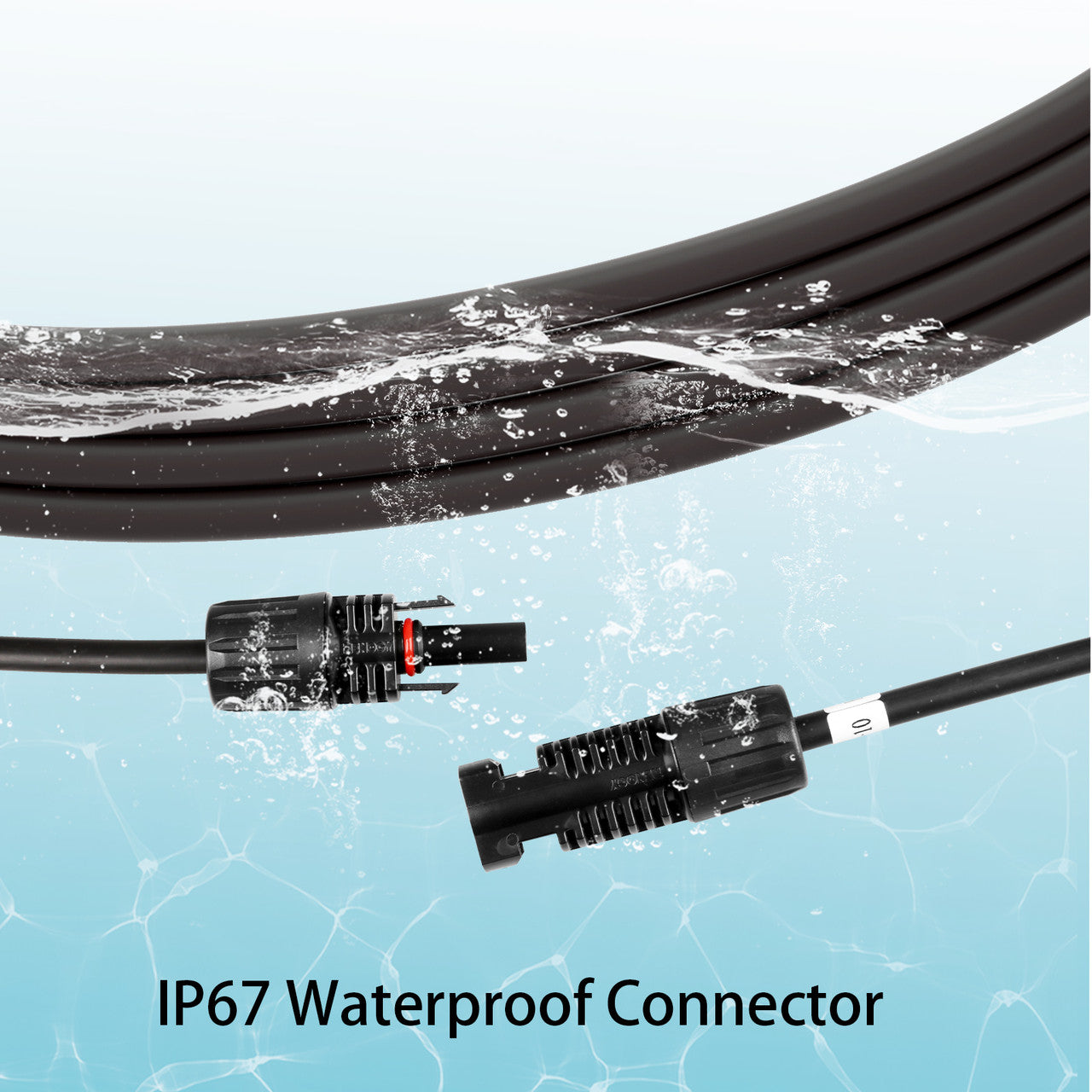

- UV resistant and waterproof
Applications
Package Includes

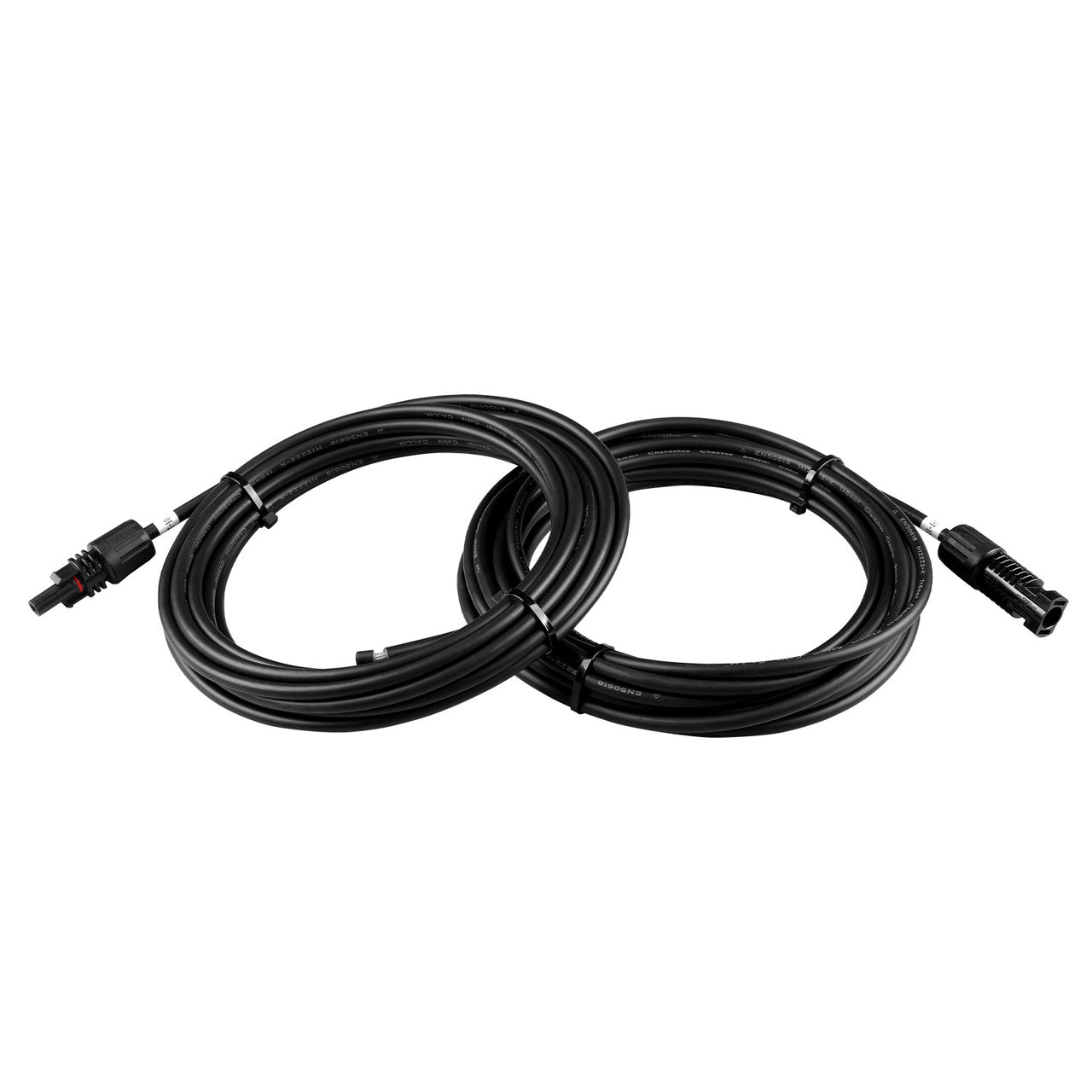

- One (1) Pair of HQST Solar Adaptor Cable
Specifications
| HQST 10AWG Solar Adaptor Cable | |
|---|---|
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
| IP 65 Protection | Normal Cross Sectional Area of the Conductor (mm 2): 6.0 |
| Diameter of Wires in Conductor (mm): 3.02±0.08 | Min. Wall Thickness of Insulation (mm): 0.85 |
| Min. Wall Thickness of Sheath (mm): 1.08 | Number of Wires in Conductor: 84 |
| HQST 12AWG Solar Adaptor Cable | |
|---|---|
| Rating Voltage: 600/1000V | Temperature: -40°F to +185°F |
| IP 65 Protection | Normal Cross Sectional Area of the Conductor (mm 2): 4.0 |
| Diameter of Wires in Conductor (mm): 3.02±0.08 | Min. Wall Thickness of Insulation (mm): 0.78 |
| Min. Wall Thickness of Sheath (mm): 0.97 | Number of Wires in Conductor: 56 |
Warranty Information
| Solar Panels: |
Accessories: |

|
|
