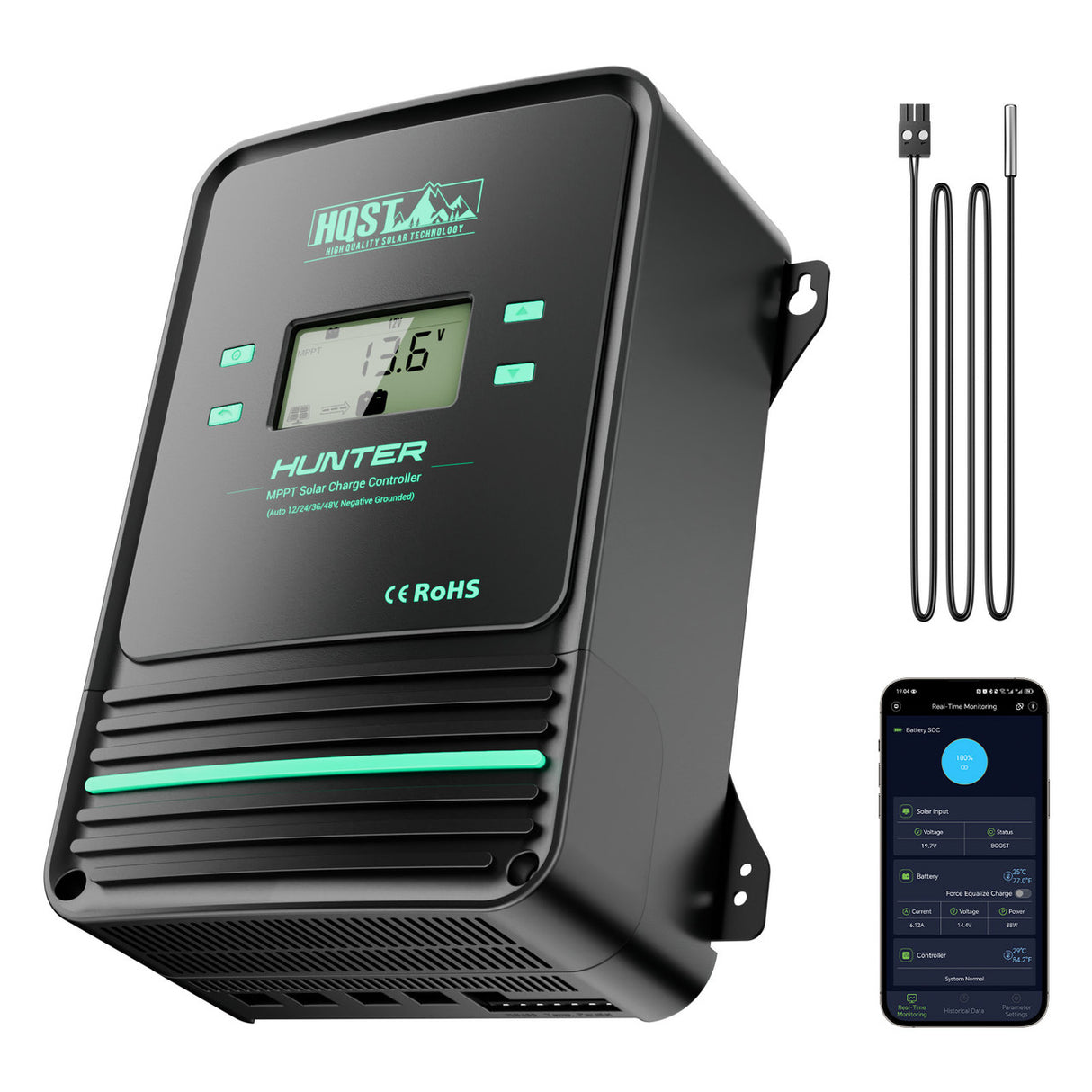

100A MPPT Solar Charge Controller with Smart APP Control, LiFePO4 Battery Low Temp Protection, and Parallel Charging

SKU:
HCC100HTR-FC-G1-US
Availability:
5% Off 1 Item: Code 5HQST; 10% Off 2+ Items: Code 10HQST
$399.99 $199.99
Current Stock:

OVERVIEW

HQST 100 Amp MPPT Solar Charge Controller, 12V/24V/36V/48V Negative Grounding Controller, w/ Smart Bluetooth APP Control, Low-Temp Cut-Off, LCD Display, for Lithium, Sealed, AGM, GEL, Flooded Batteries

Our new 80 Amp MPPT solar charge controller offers high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, about 30% higher than PWM. With Bluetooth app control, you can monitor all data in real-time. It also features low-temperature cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. Ten protection mechanisms and an active cooling fan system ensure consistent efficiency at all times. Perfect for all off-grid applications, including RVs, cabins, motorhomes, and boats.

Key Features

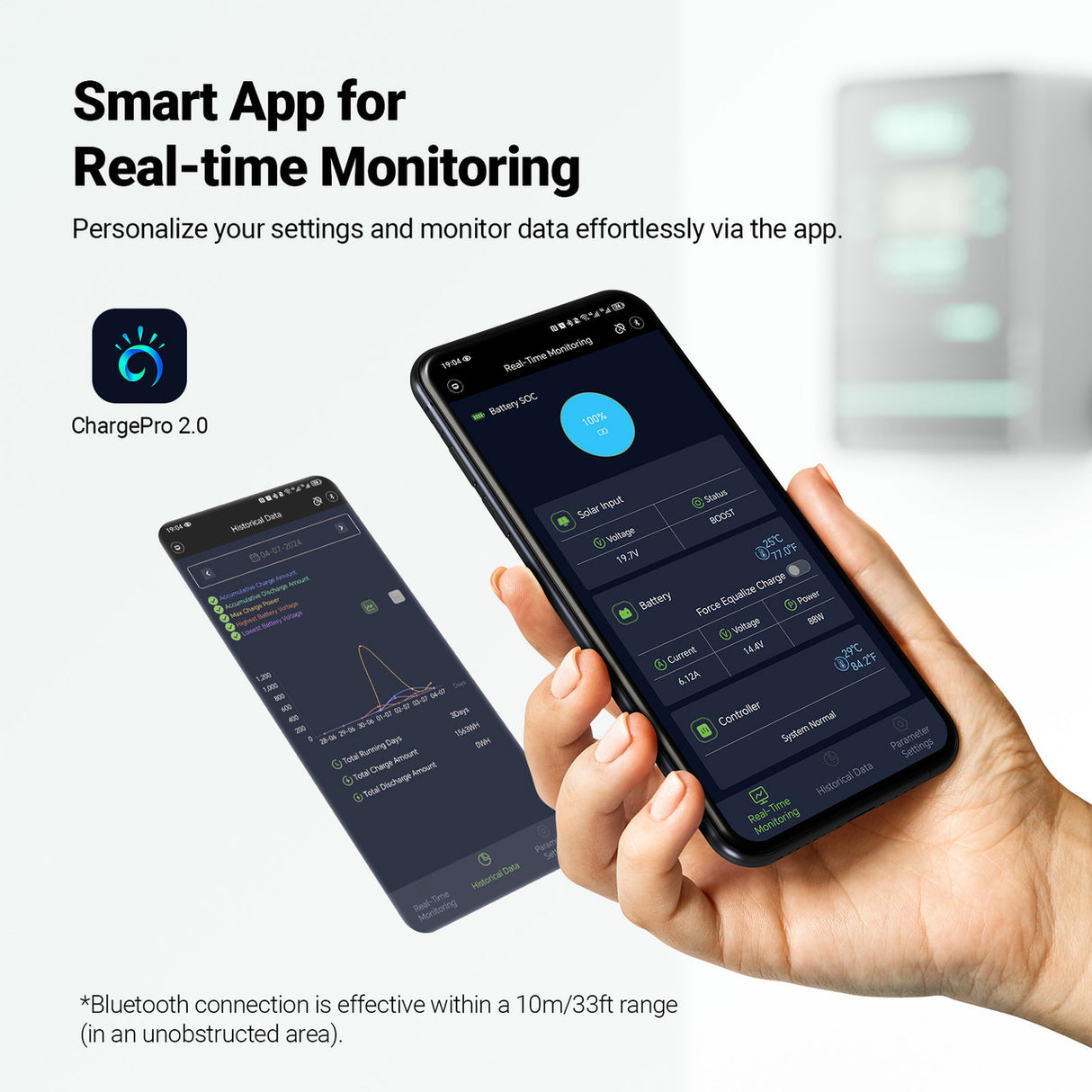

Bluetooth APP Control & LCD Display
With a built-in Bluetooth module, you can download the ""ChargePro 2.0"" (new version) or ""PVChargePro"" (old version) app for real-time monitoring, which stores 300 days of historical data. The LCD screen and buttons on the machine allow you to check device operating data and modify controller parameters. Note: Bluetooth connection is effective within a 10m/33ft range (in an unobstructed area).

Read More

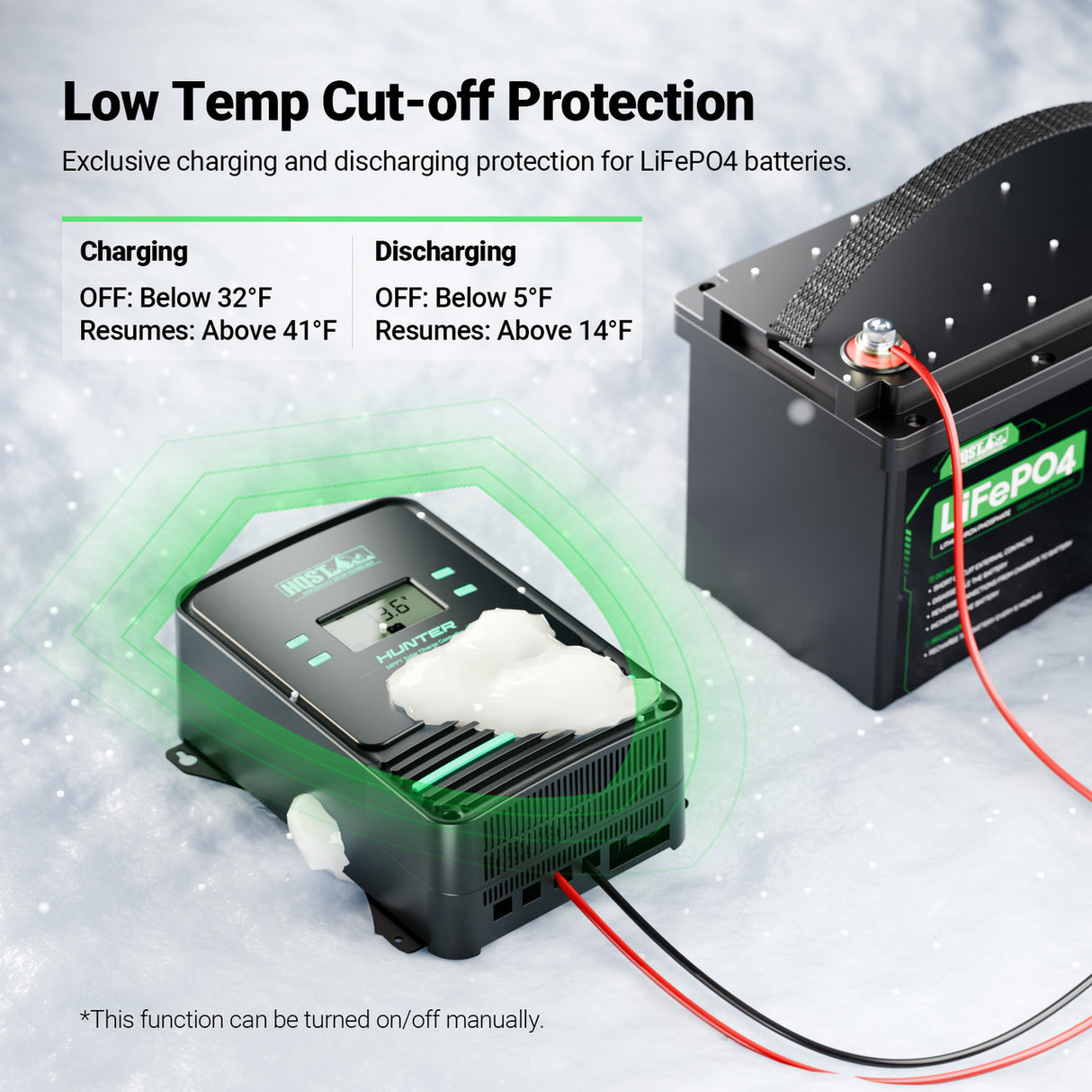

Low-Temp Cut-Off Protection for LiFePO4
This HQST 100A MPPT solar charge controller features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage to your valuable batteries. You can manually switch on and off this function. This controller can also activate dormant LiFePO4 batteries that have turned off due to over-discharging.

Read More

Improved High-Efficiency Charging

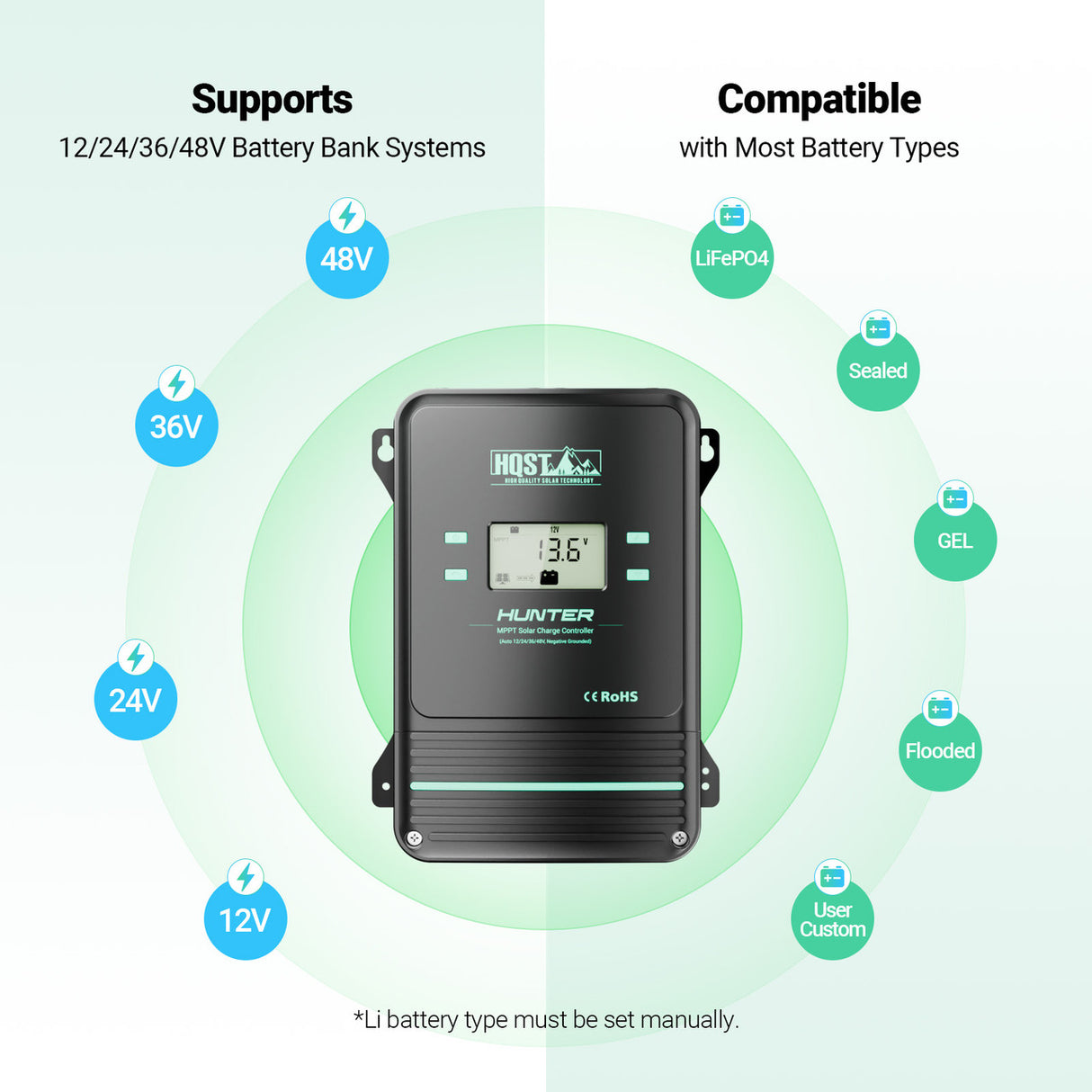

The HQST 100A MPPT charge controller uses advanced MPPT technology, achieving a high tracking efficiency of up to 99% and a peak conversion efficiency of 98.7%, which is about 30% higher than PWM. This maximizes energy from your solar panels to charge your system. It supports 12V, 24V, 36V, and 48V battery systems and is compatible with lithium iron phosphate (LiFePO4), sealed, AGM, GEL, flooded, and user-customized battery types.

Read More

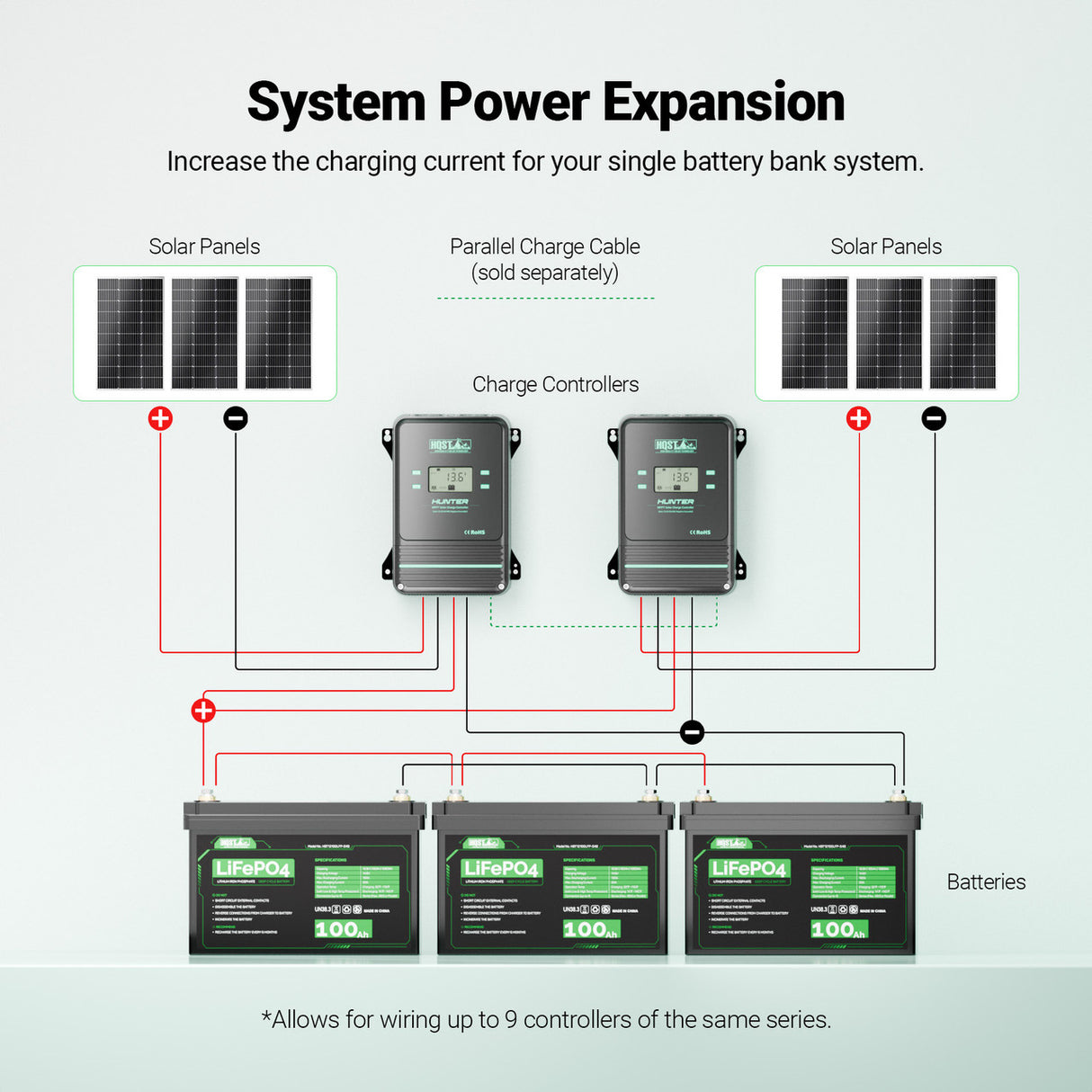

Parallel Charge Extension Function
To increase the charging current for your single battery bank system, you don’t need to reinstall the entire solar panel system. You can connect up to 9 of our MPPT controllers (M4880F/M48100F models) together using parallel charge cables (not included) to charge the same battery pack, meeting high power charging requirements. Ensure all controllers are set to the same battery voltage.

Read More

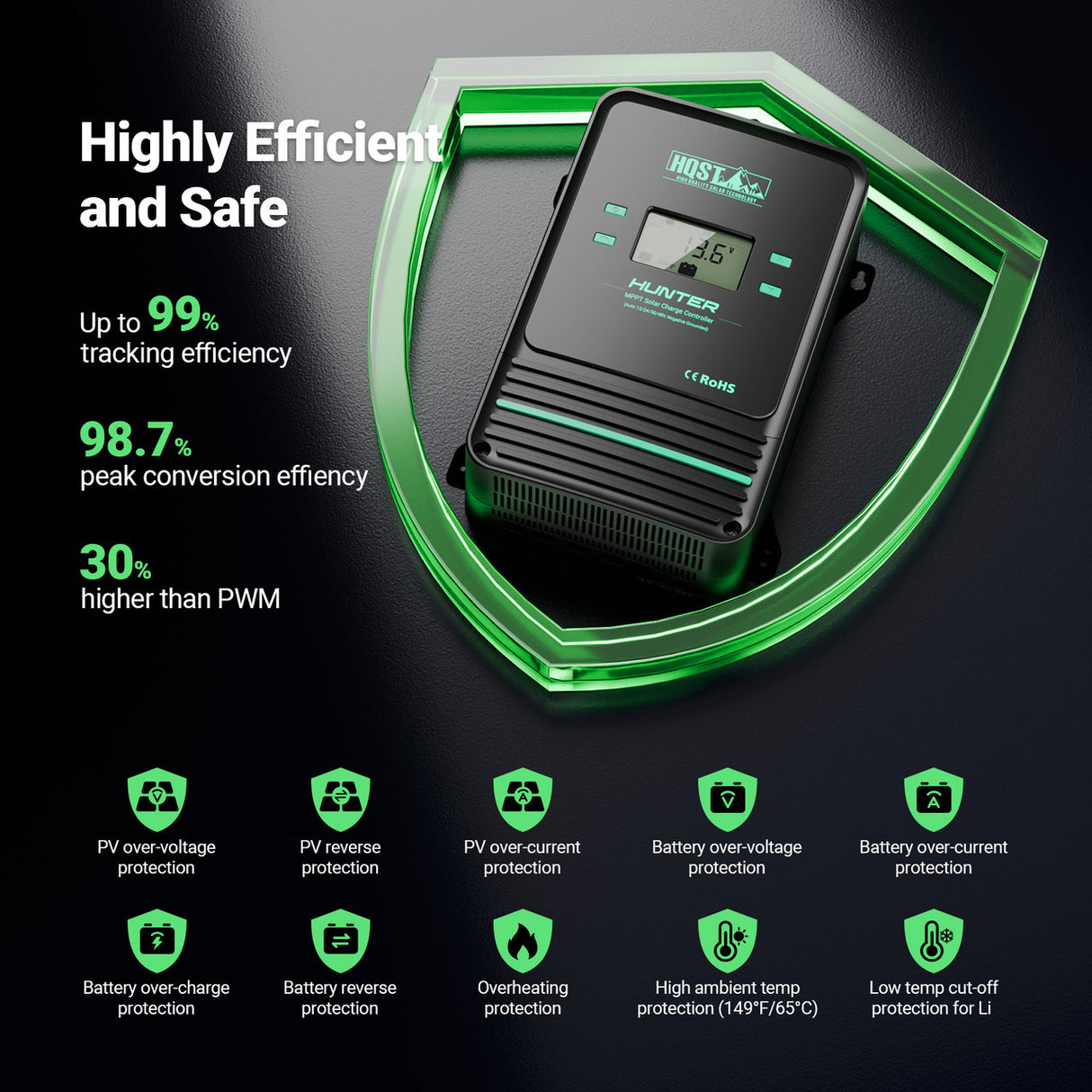

Active Cooling Fan System & Comprehensive Safety Protection

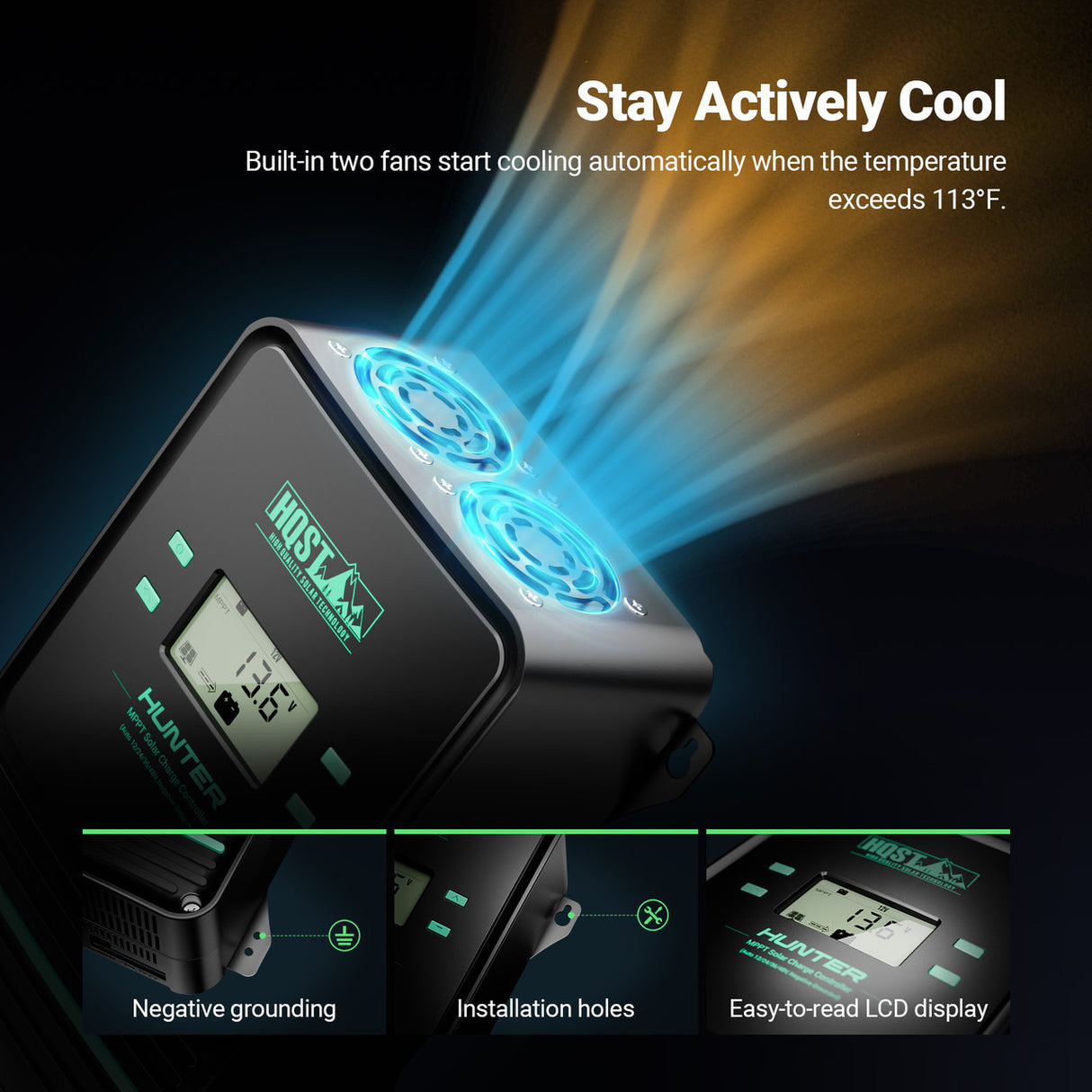

Two built-in fans start cooling automatically when the charge controller runs at high power or exceeds 113℉, ensuring consistent efficiency. Our negative grounding controller offers 10 protections against overcharging, over-voltage, over-current, overheating, and reverse polarity, maximizing protection against system faults and installation errors.

Read More

80A Smart MPPT Solar Charge Controller

Choose Your Dr.Prepare LiFePO4 Battery



Energy

Rated Capacity

Max. Continuous Output Power

Recommend Charge Current

Max. Charge Current

Max. Cont Discharge Current

Max. Charging Voltage

Discharge Cut-off Voltage

Low Temp Cut-off Protection

Dimensions

Weight

12V 100Ah LiFePO4

1,280 Wh

100Ah / 1,280 Wh

1,280 Wh

20A

50A

100A

14.6V

Lower than 11.1V

Yes

L13.07 x H8.66 x W6.77 in

22 lbs/10 kg

12V 100Ah LiFePO4 w/Meter

1,280 Wh

100Ah / 1,280 Wh

1,280 Wh

20A

50A

100A

14.6V

Lower than 11.1V

Yes

L13.07 x H8.66 x W6.77 in

22 lbs/10 kg

12V 100Ah Mini LiFePO4

1,280 Wh

100Ah / 1,280 Wh

1,280 Wh

20A

100A

100A

14.6V

Lower than 11.1V

Yes

L 10 x W 5 x H 7.8 in

22 lbs/10 kg

12V 20Ah LiFePO4

256Wh

20Ah / 256Wh

256Wh

10A

20A

20A

14.6V

Lower than 11.1V

/

L 7 x W 3 x H 6.5 in

5.95 lbs/2.7 kg

12V 8Ah LiFePO4

102.4Wh

8Ah / 102.4Wh

102.4Wh

4A

8A

8A

14.6V

Lower than 11.1V

/

L5.9 x W2.6 x H3.7 in

2.2 lbs/1kg

Package Includes

One (1) 100A MPPT Solar Charge Controller

100A Smart MPPT Solar Charge Controller

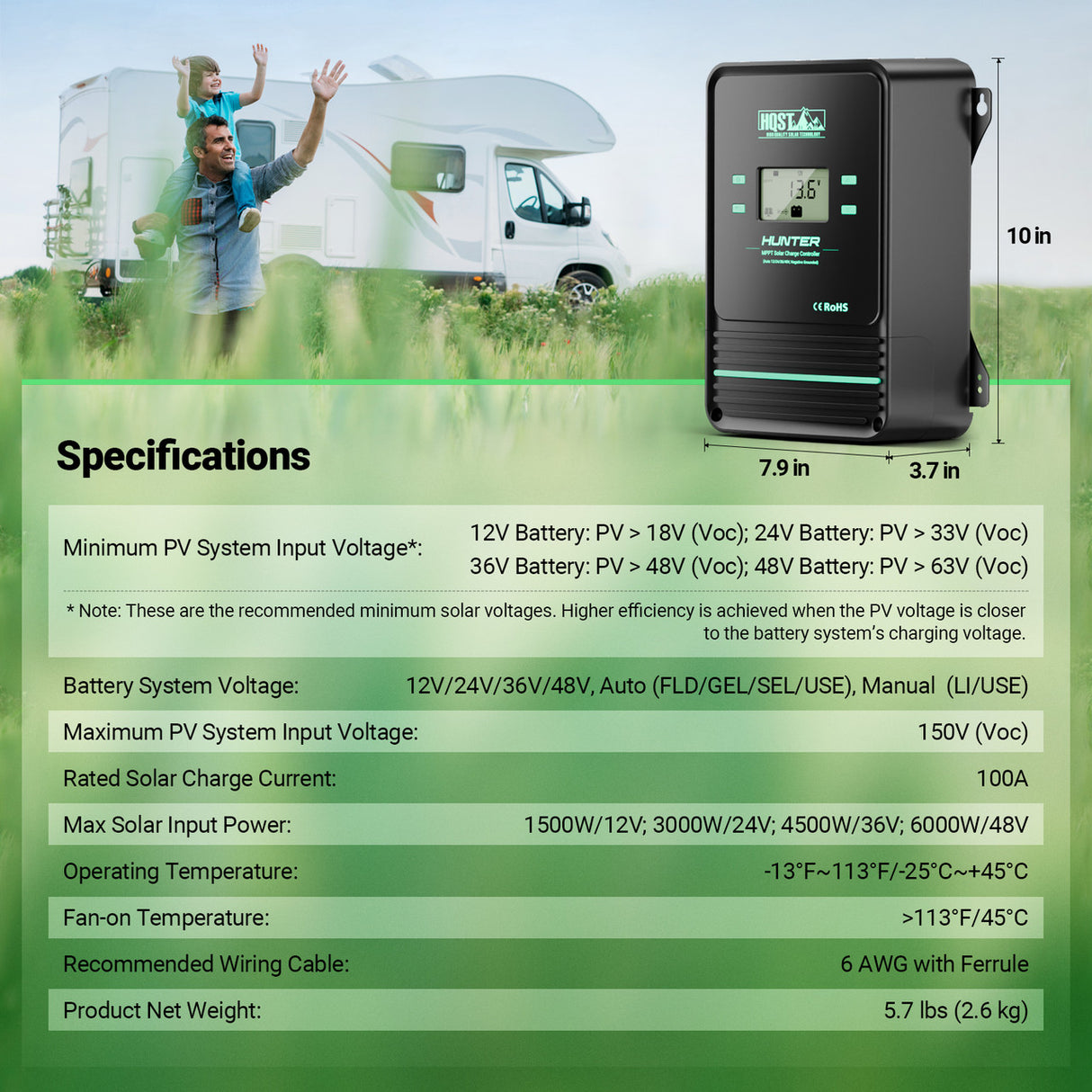

Specifications
Model: HCC100HTR-FC Rated Solar Charge Current: 100A
Solar (PV) Input Voltage:150 Voc Max. Solar (PV) Input Power: 1500W/12V; 3000W/24V; 4500W/36V; 6000W/48V
Battery System Voltage:12V/24V/36V/48V Battery Types:Auto-detected: Flooded (FLD), GEL, Sealed, AGM Manual Setting: Lithium Iron Phosphate (LiFePO4), User-customized
Tracking Efficiency: 99% Peak Conversion Efficiency:98.7%
Self-consumption/No-load Loss :12mA (12V), 10mA (24V), 8mA (36V), 6mA (48V) System Wiring Grounding: Negative Grounding
Operating Temperature: -13°F~113°F (-25℃~45℃) Fan-on Temperature:Exceeds 113°F (45℃)
Storage Temperature: -40°F~176°F (-40℃~80℃) Operating Altitude: Below S3000 Meters
IP Protection: IP32 Parallel Charging Function:Support Parallel Connection, Up to 9 Units
Communication Port:RS485 (RJ12) Protections:PV over-voltage protection, PV reverse protection, PV over-current protection, Battery over-voltage protection, Battery over-charge protection, Battery reverse protection, Battery over-current protection, Overheating protection, High ambient temp protection (149°F/65℃), Low temp cut-off protection for Li batteries
Wiring Cable:2 AWG (Recommended) Product Weight:5.7 lbs (2.6 kg)
Product Dimensions:7.9 x 3.7 x 10 in / 200 x 260 x 93 mm (L x W x H) Package Weight:6.6 lbs (3 kg)
Package Dimensions:12.12 x 10.07 x 5.55 in / 308 x 256 x 141 mm
Package Includeds
100A MPPT Solar Charge Controller: X 1 User Manual: X 1
Temperature Sensor Cable (6.6 ft) :X 1 Mounting Stickers (for Temp Sensor): X 1

Warranty Information

  • Material and Workmanship Warranty:1-year material warranty

1.Does this have a low-temperature shutdown function?


Yes, it does. It features low-temperature charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries (not for sealed), preventing damage to your valuable batteries.

2. Do I need to be connected to the internet or cellular networks when using the app control?


No, our app control and monitoring is via Bluetooth connection. As long as your phone is within range of the Bluetooth device (10m/33ft), you can access and connect to monitor and adjust settings.

3. Can its parameters be adjusted without the Bluetooth app?


Yes. You can adjust the parameters using the buttons on the controller. Refer to the user manual for detailed instructions. However, we highly recommend using the Bluetooth app, as it is easier and more convenient for operation and monitoring.

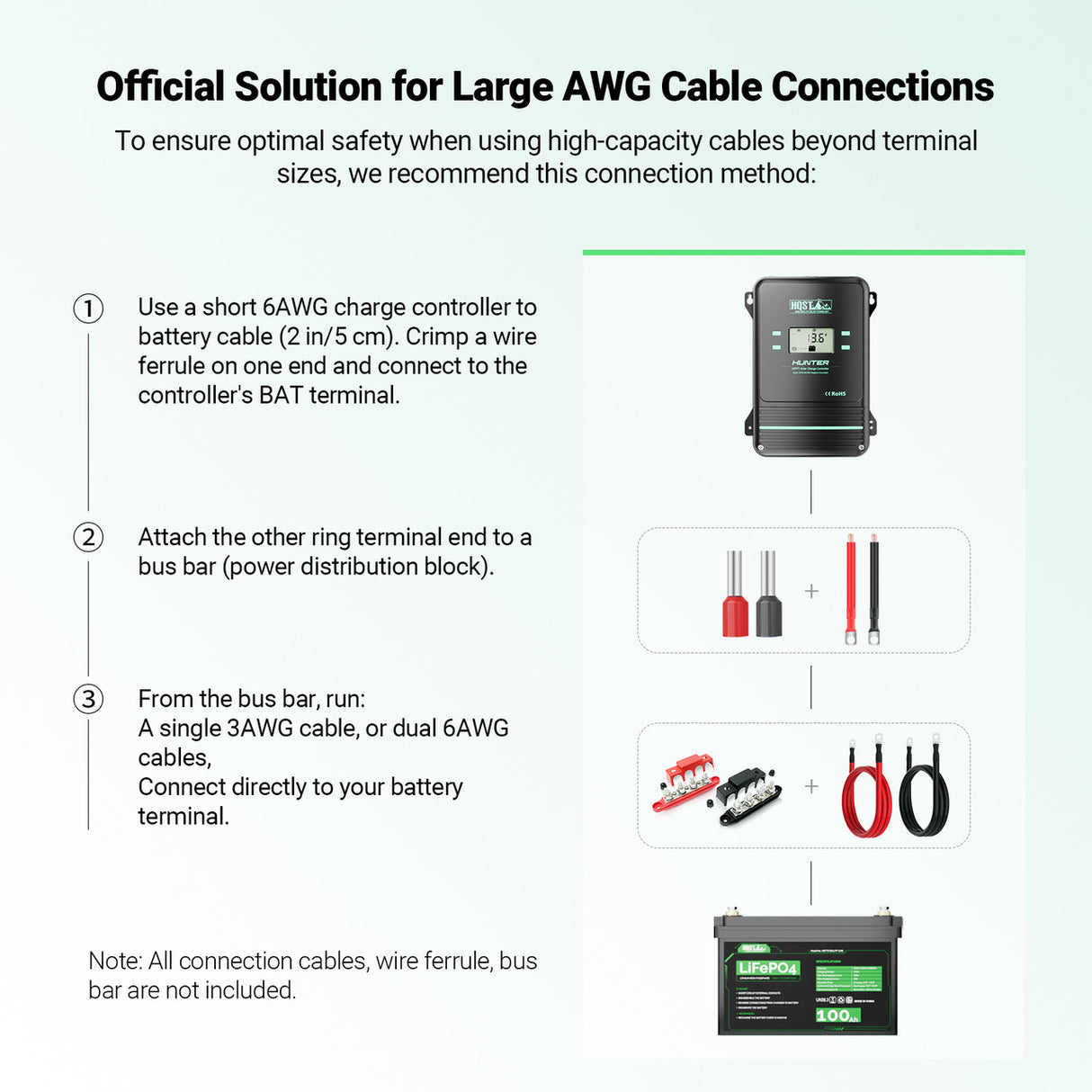

4. What size wire can be connected to this charge controller?


We recommend using 2 AWG or larger wire. When it comes to cable gauges, the lower the gauge number, the thicker the wire.

5. Why is my controller flashing the error message E02?


E02 flashes when the controller detects relatively high voltages. When a Li battery is fully charged, its BMS generates a high voltage (about 18V) and then stops charging. This does no harm to your controller or battery.

6. My controller stops charging when it is nearly at full load (100A).


If this happens, please contact our support team. You can find our contact information in the user manual.
