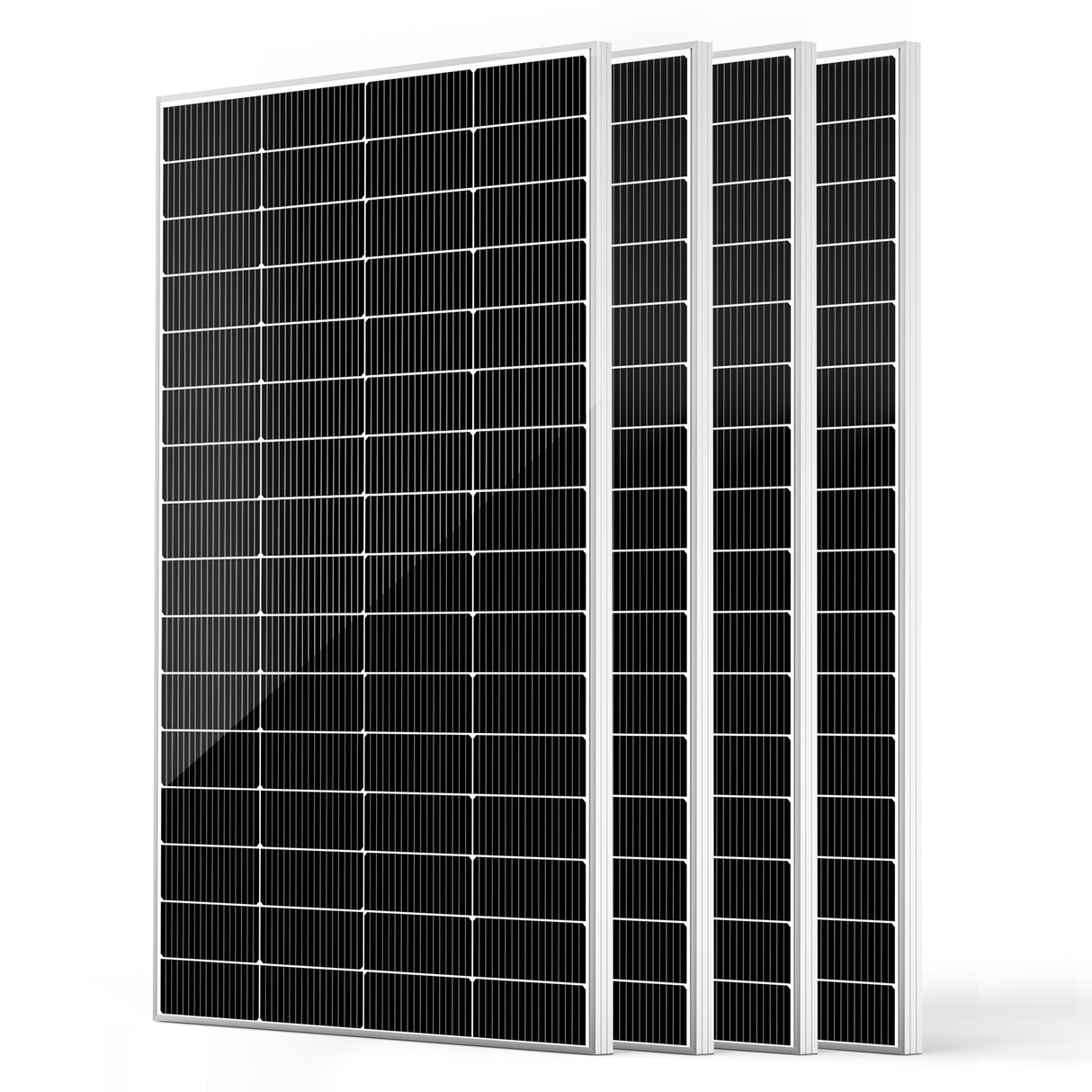

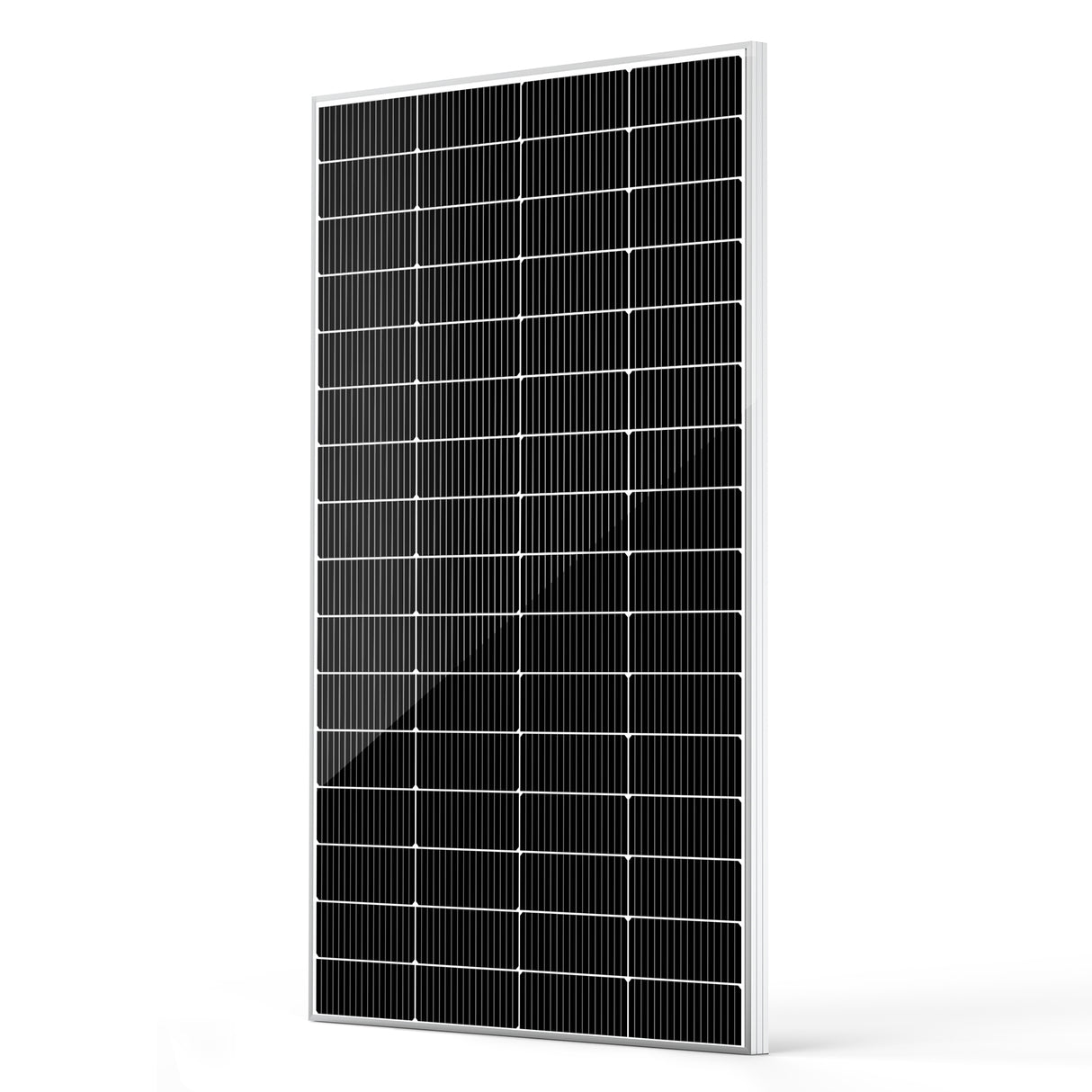

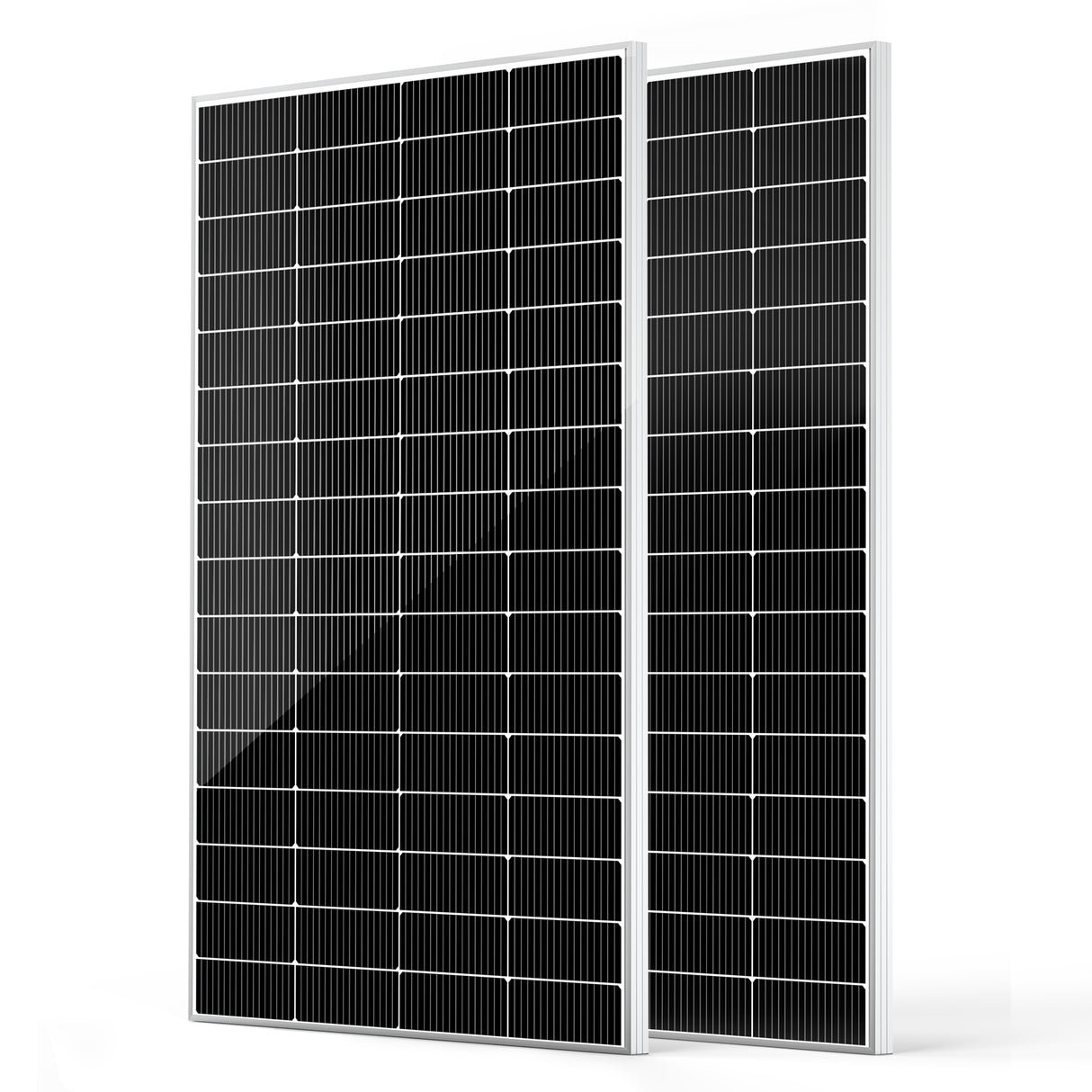

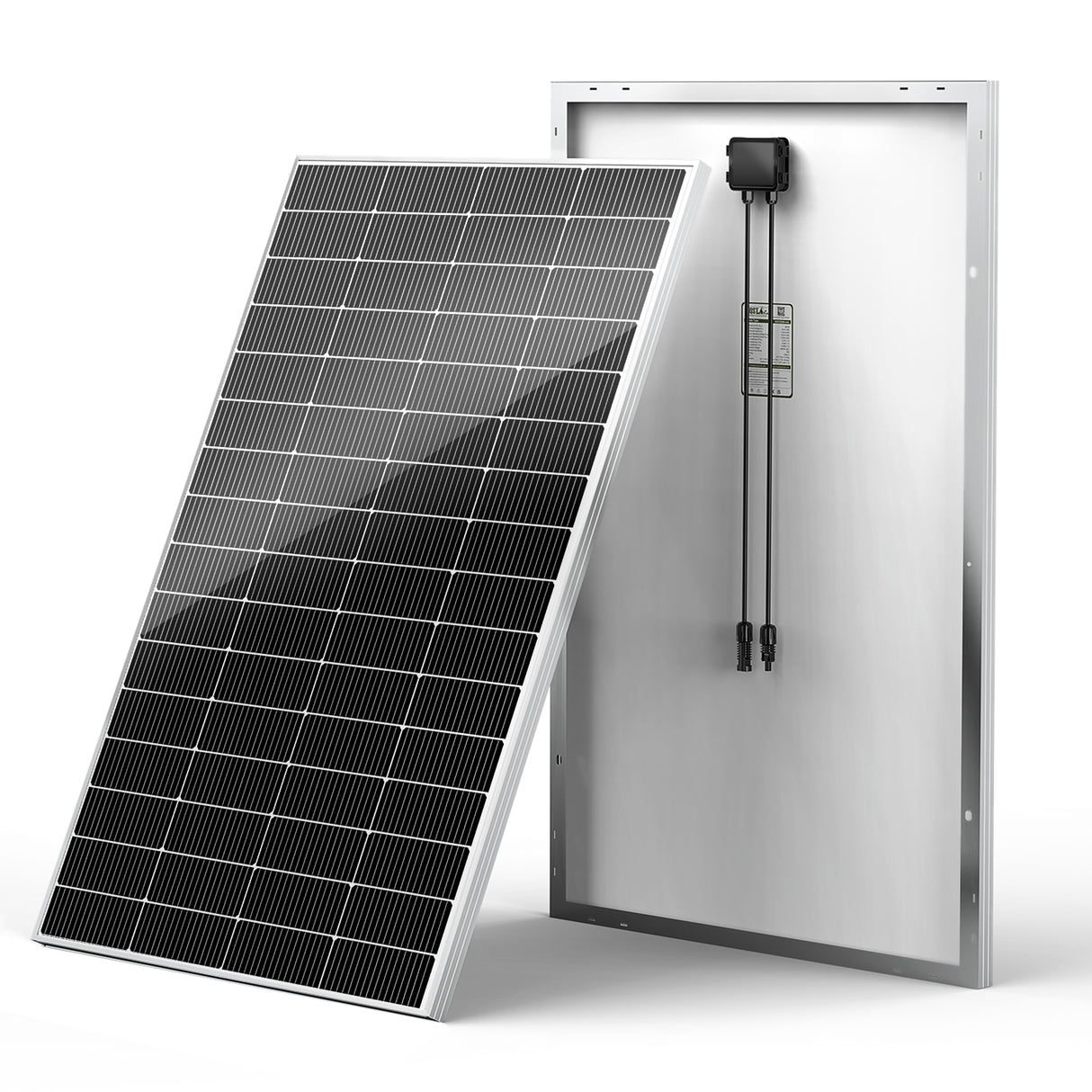

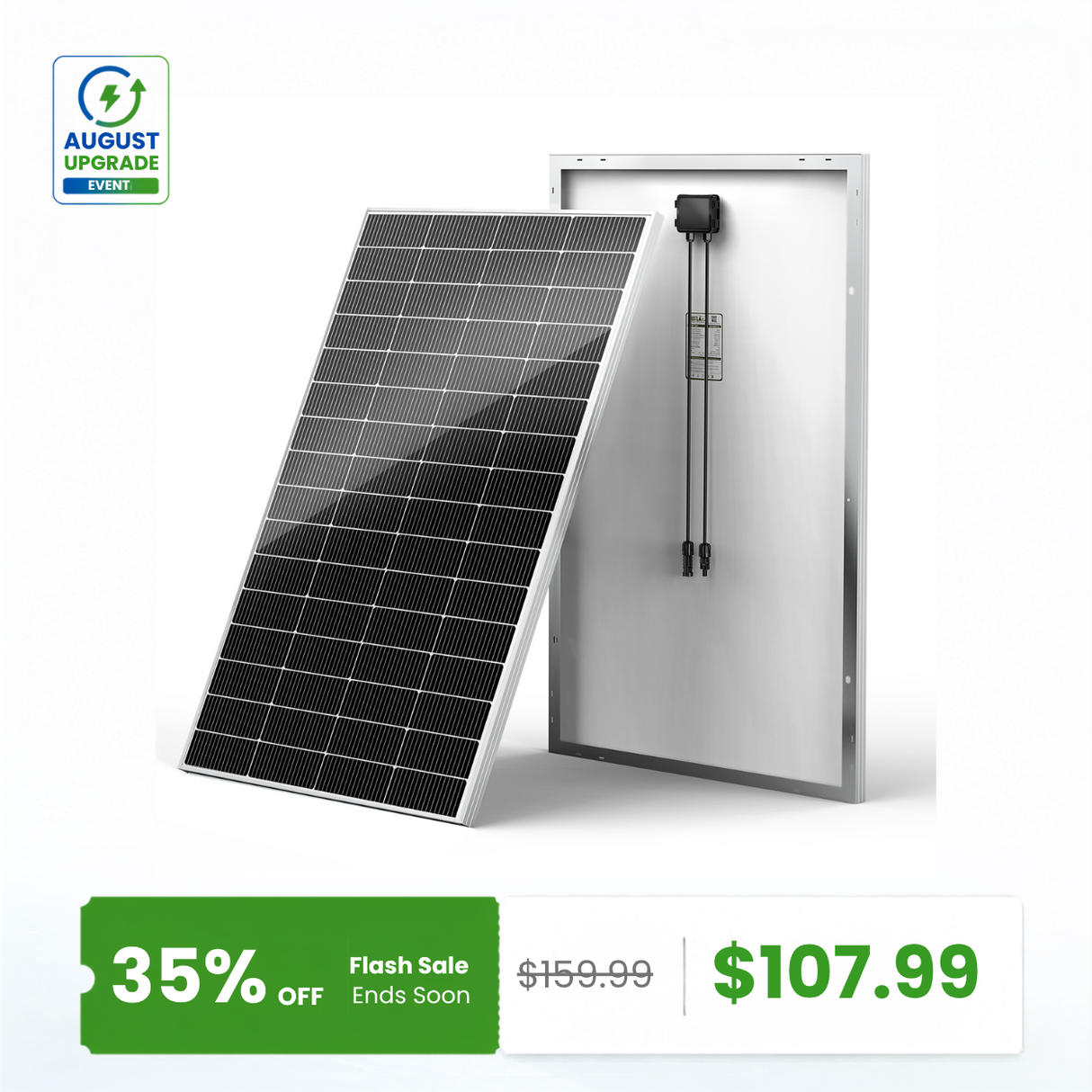

HQST 200W Compact N-Type Solar Panel | 25.4% Efficiency, 14.5% Lighter

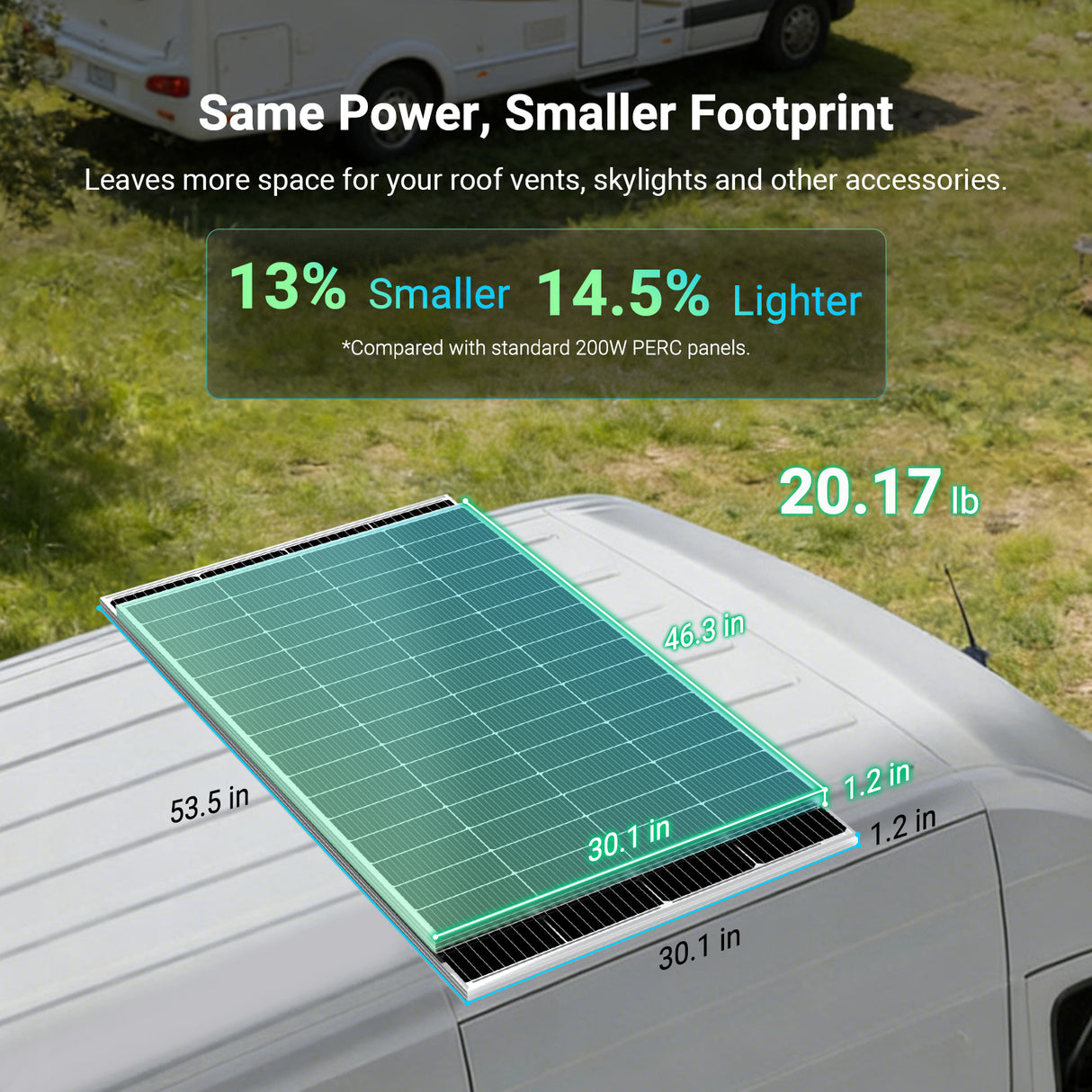

- Compact & Lightweight Design : Measuring 30.1 × 46.3 × 1.2 inches and weighing just 20.17 lbs — 13% smaller than a standard 200W PERC panel and 14.5% lighter than comparable models. Saves precious space on your van, RV, or tight rooftop.

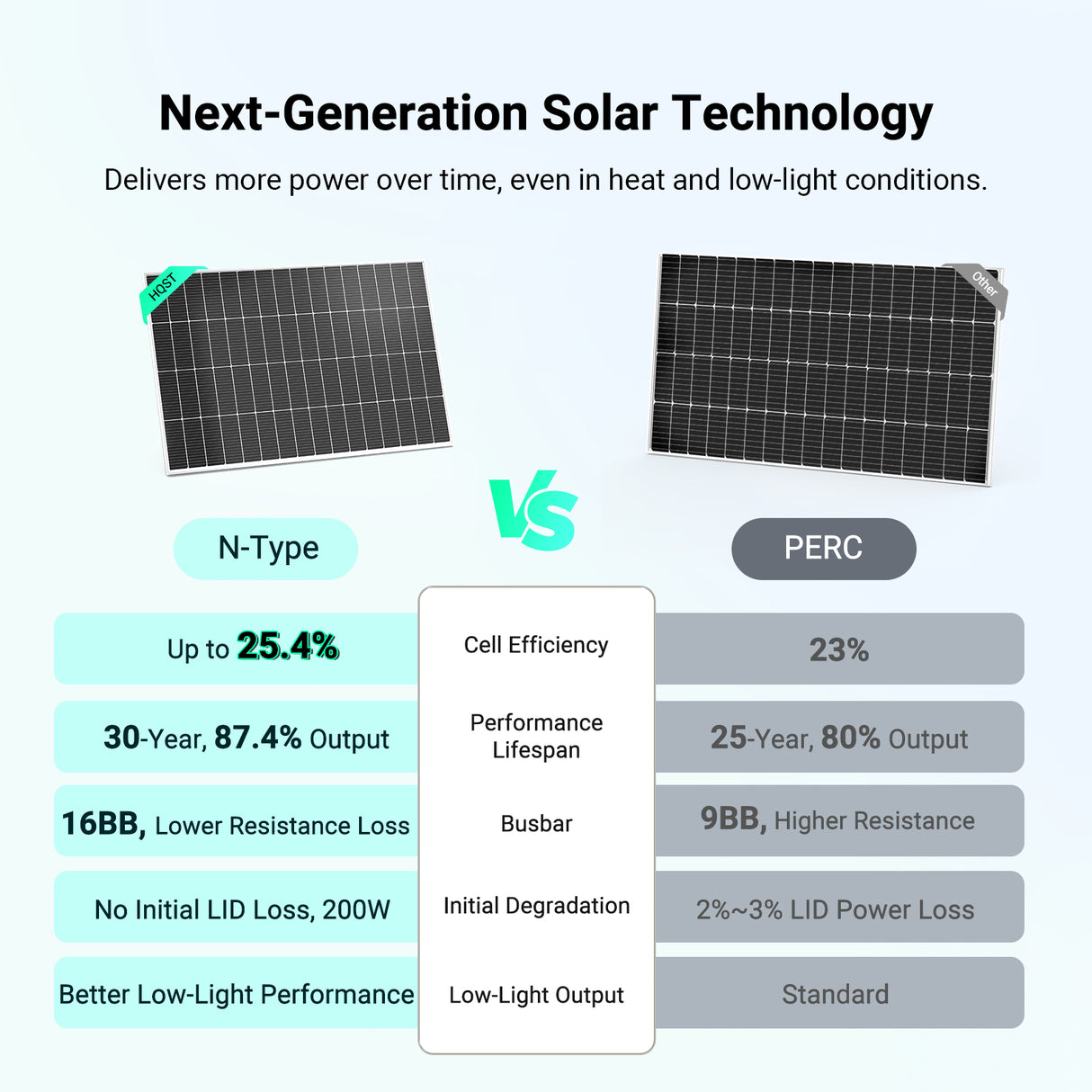

- Next-Gen N-Type Cells : Delivers up to 25.4% efficiency (vs. 23% from PERC panels) — generating more power per square inch even on cloudy or hot days.

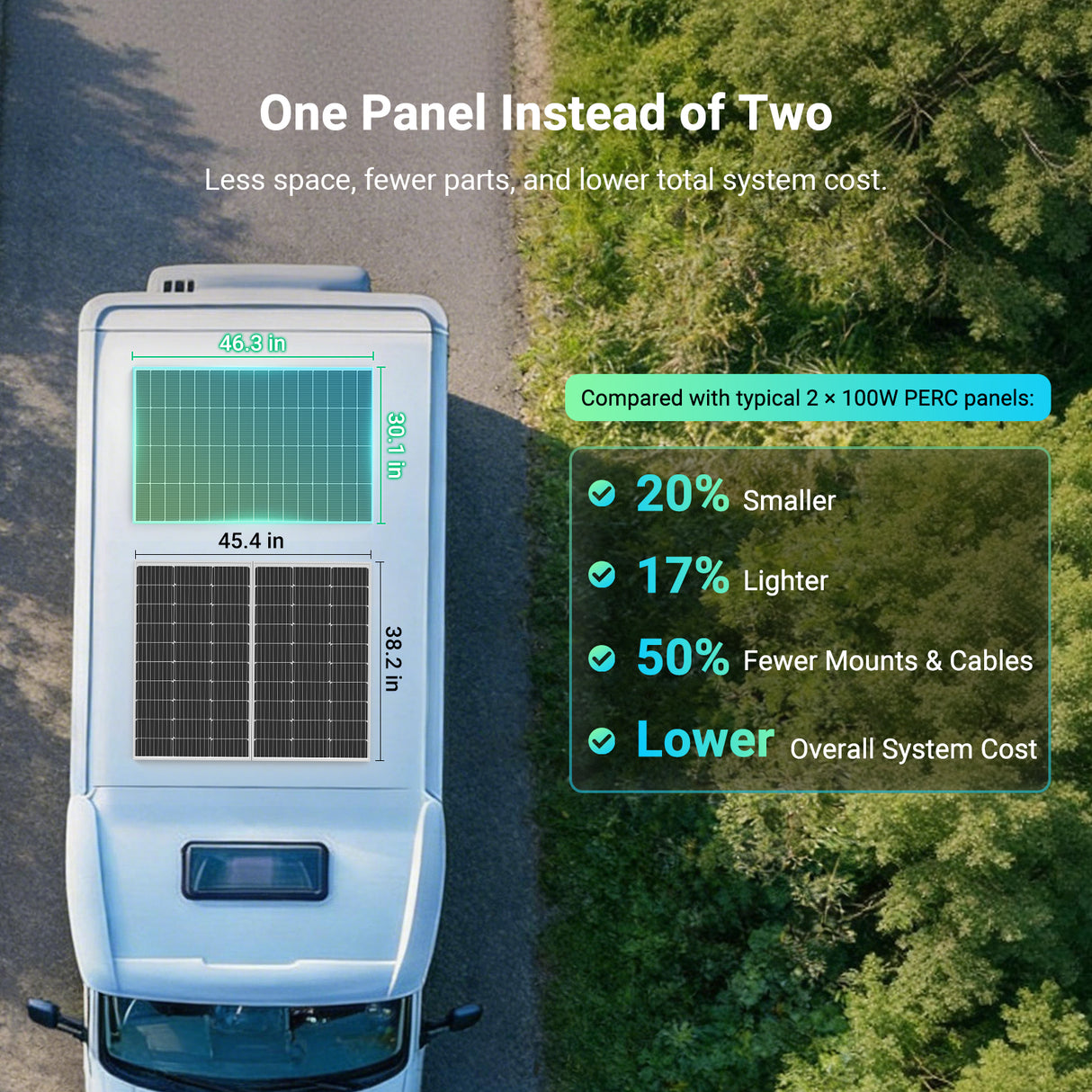

- True 200W Output : One panel does the job of two 100W units — saving you money on mounts, cables, and installation labor.

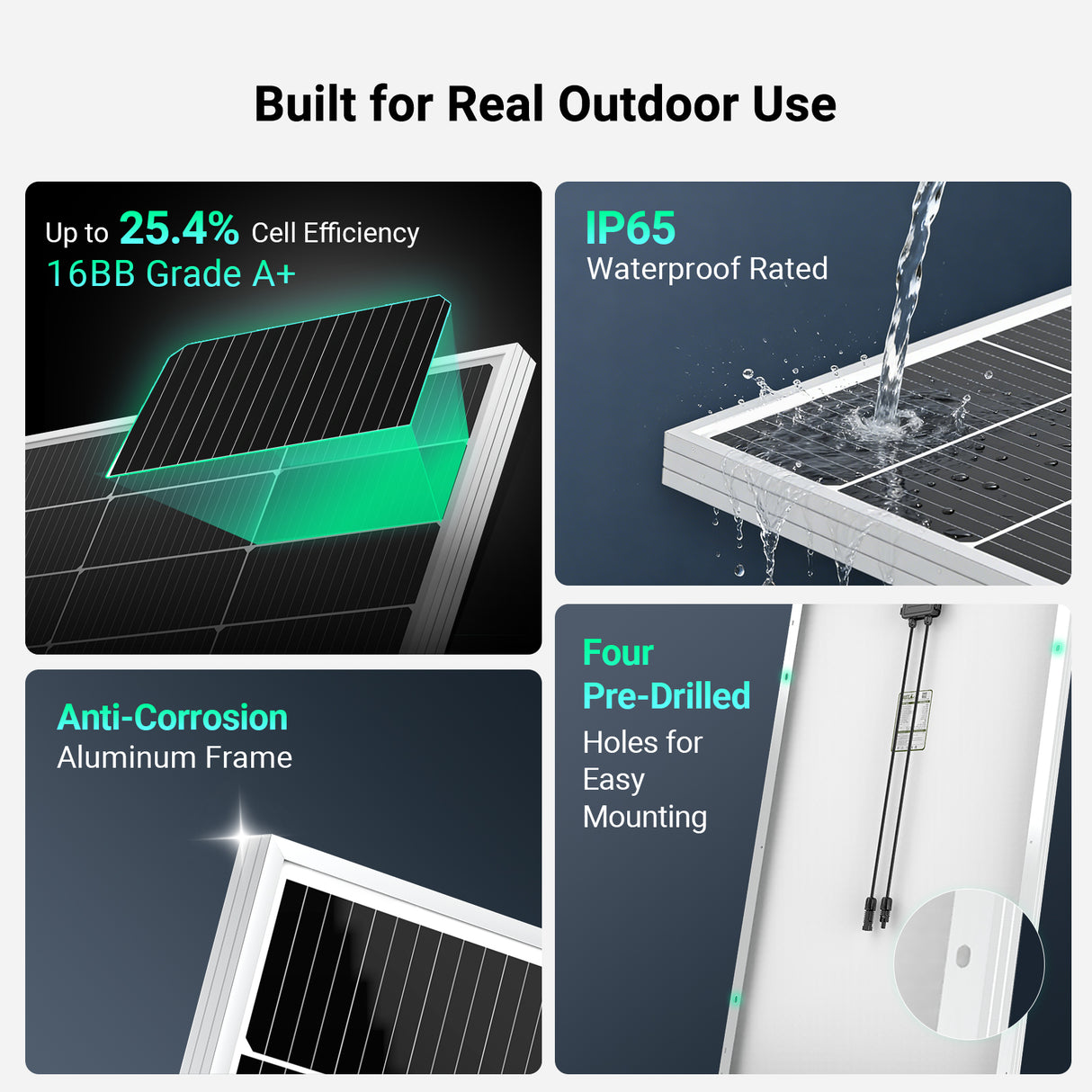

- Grade A+ 16BB Cells : 100% EL-tested with zero micro-cracks. Stable, reliable power for decades off-grid.

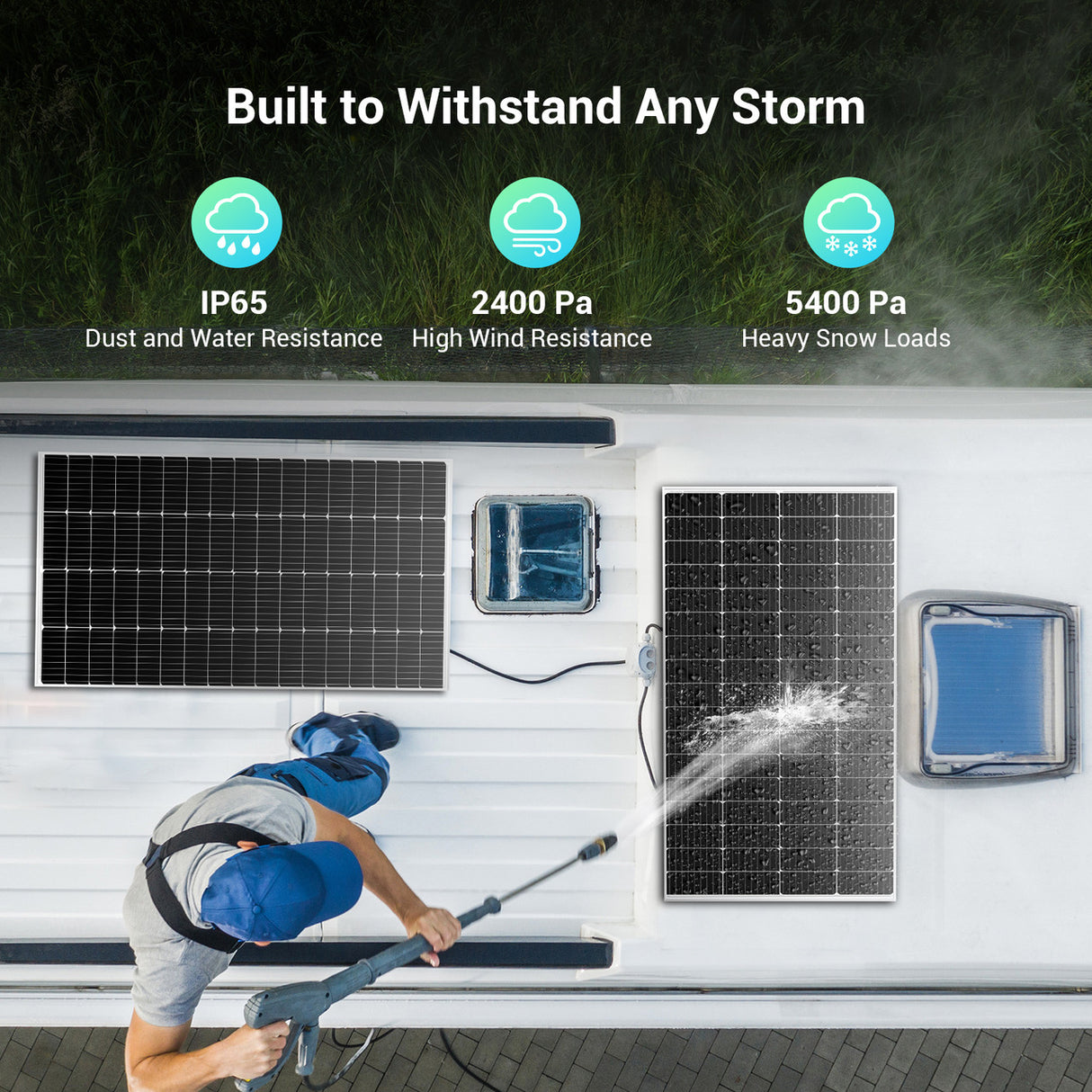

- Built to Last : IP65-rated for dust and water resistance. Anti-corrosion aluminum frame withstands 2400 Pa wind pressure and 5400 Pa snow loads — ready for decades off-grid.

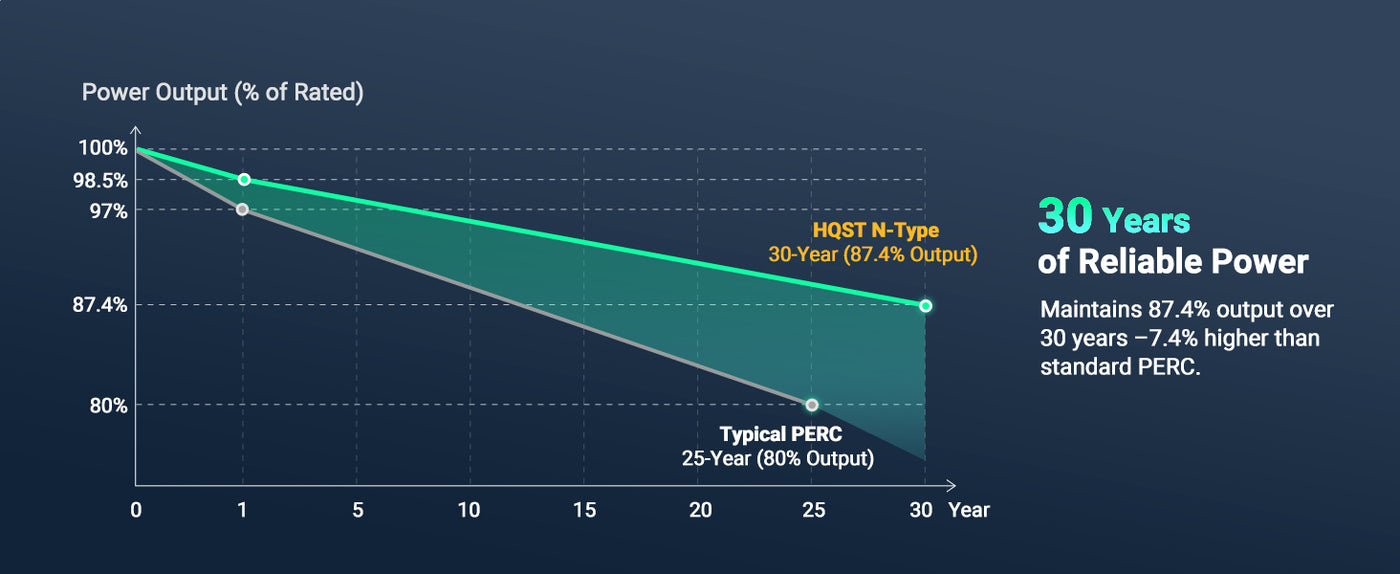

- Long-Term Value : Retains 87.4% power output after 30 years — a durable investment for sustainable off-grid living.

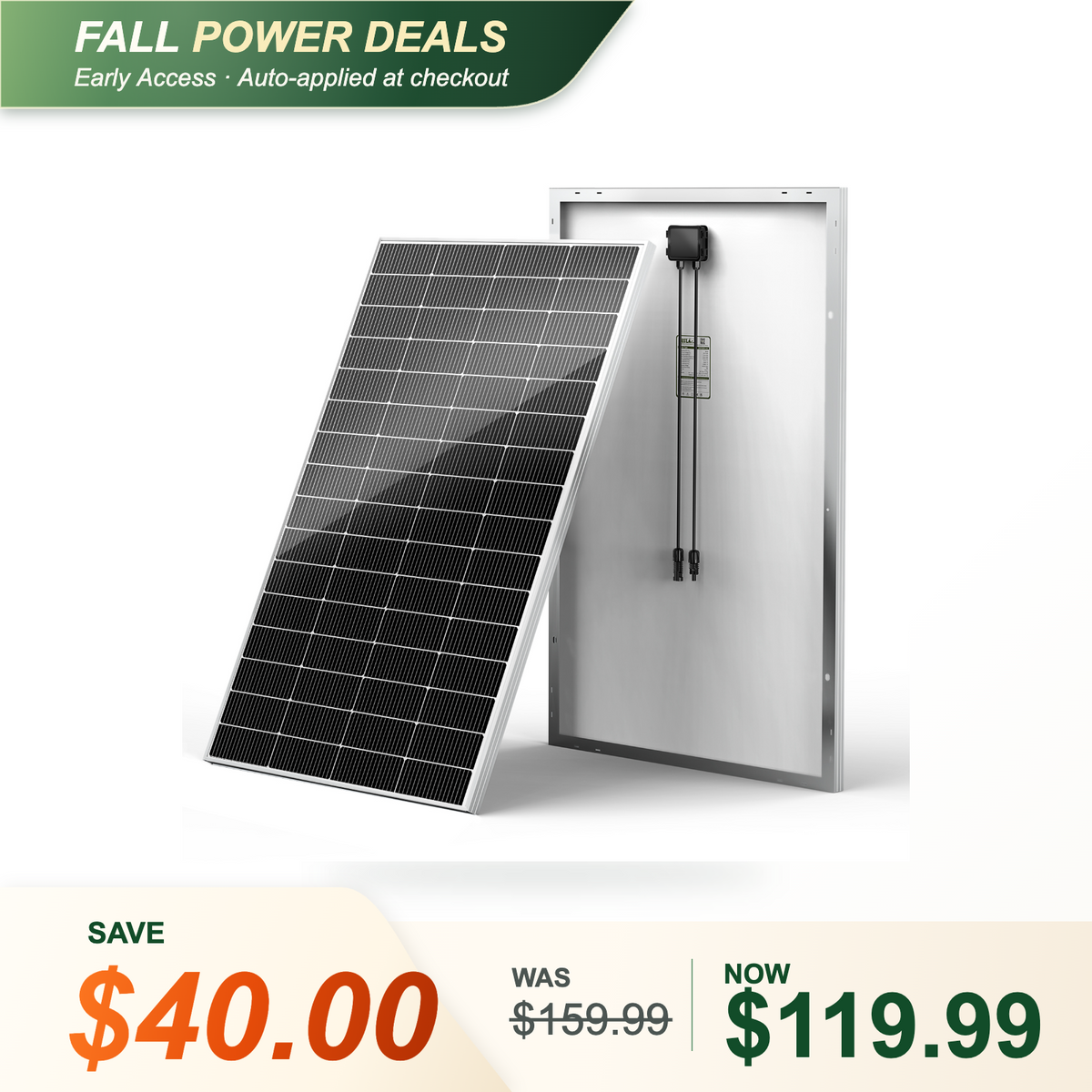

HQST 200W Compact N-Type Solar Panel | 25.4% Efficiency, 14.5% Lighter - 1 Piece - $119.99 is backordered and will ship as soon as it is back in stock.
HQST 200W Compact N-Type 16BB Solar Panel
Technical
Dimensions and Weight and Warranty
Frequently Asked Questions
Why is the actual output sometimes lower than 200W?
Why is the actual output sometimes lower than 200W?
The 200W rating is based on Standard Test Conditions (STC) — ideal sunlight and temperature. In real-world use, factors like sun angle, high temperatures, shading, wiring losses, and device efficiency can reduce output. Power below 200W is normal and does not indicate a defect.
How do I connect two panels in series?
How do I connect two panels in series?
Simple Series Connection Steps:
1. Connect the panels – Attach the positive (+) cable from Panel 1 to the negative (-) cable from Panel 2.
2. Use the remaining leads – The unused positive from Panel 2 and negative from Panel 1 become your system output cables.
3. Connect to your solar generator – Plug these output cables into the generator’s solar input port.
Why series connection works:

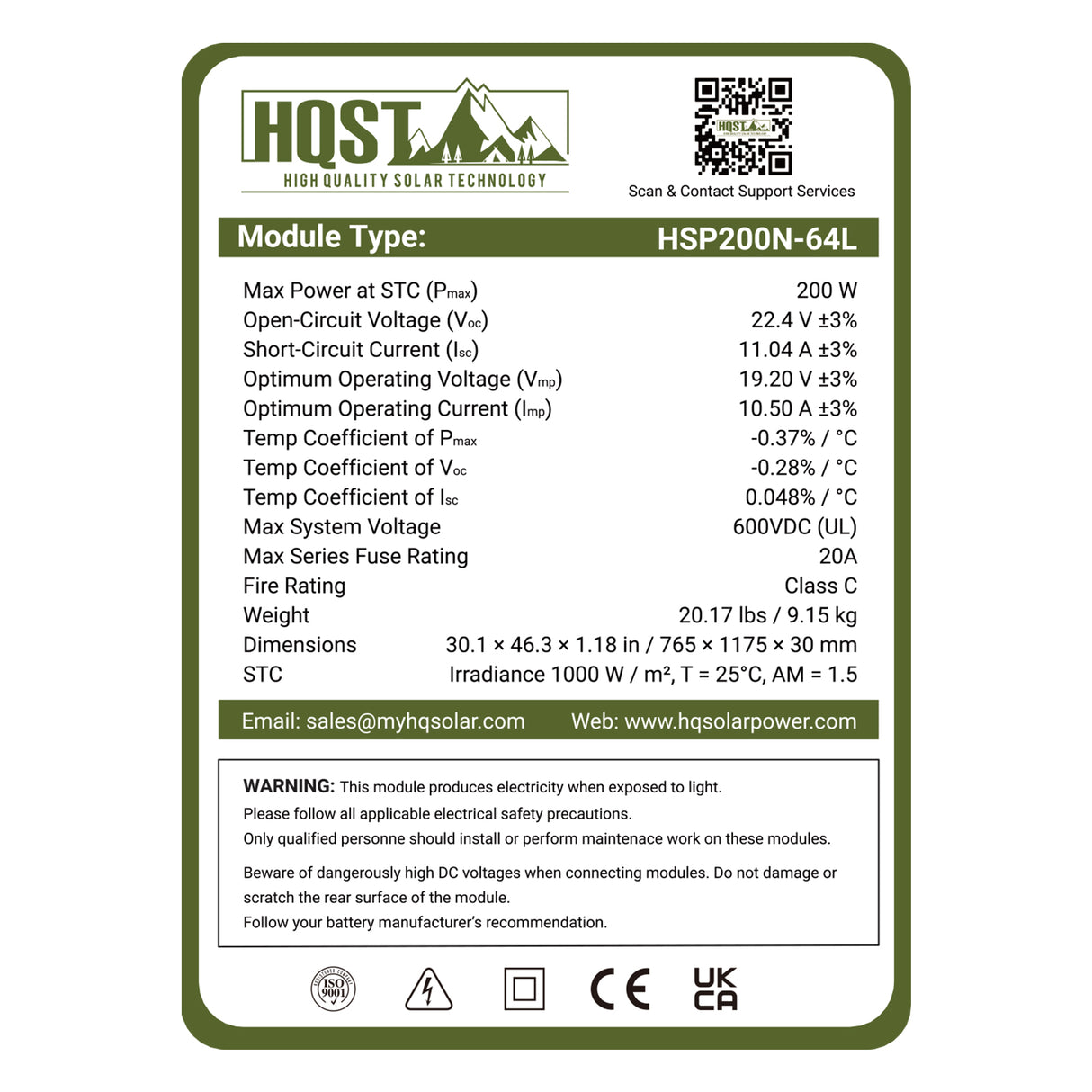

• Each panel outputs ~22.4V, so two in series provide ~44.8V total.
• Voltage stays safely under most 60V power station limits.
• Series connection improves MPPT efficiency for faster charging.
• Current remains the same (~10.5A) while voltage doubles.
Important tips:
• Only connect identical panels together for best performance.
• Use the included weatherproof connectors for a secure connection.
• Face both panels in the same direction for optimal sun exposure.
Do I need an extra controller?
• No extra controller is needed when connecting directly to a solar generator or power station with a built-in MPPT controller — it automatically regulates voltage and current.
• IF you are connecting the panels to a DIY battery system or a unit without an MPPT controller, a separate solar charge controller is Required to protect your batteries.
Do these panels have pre-drilled holes on the back?
Do these panels have pre-drilled holes on the back?
Yes, they do. There are four pre-drilled holes to make installing the solar panel quick and secure.
