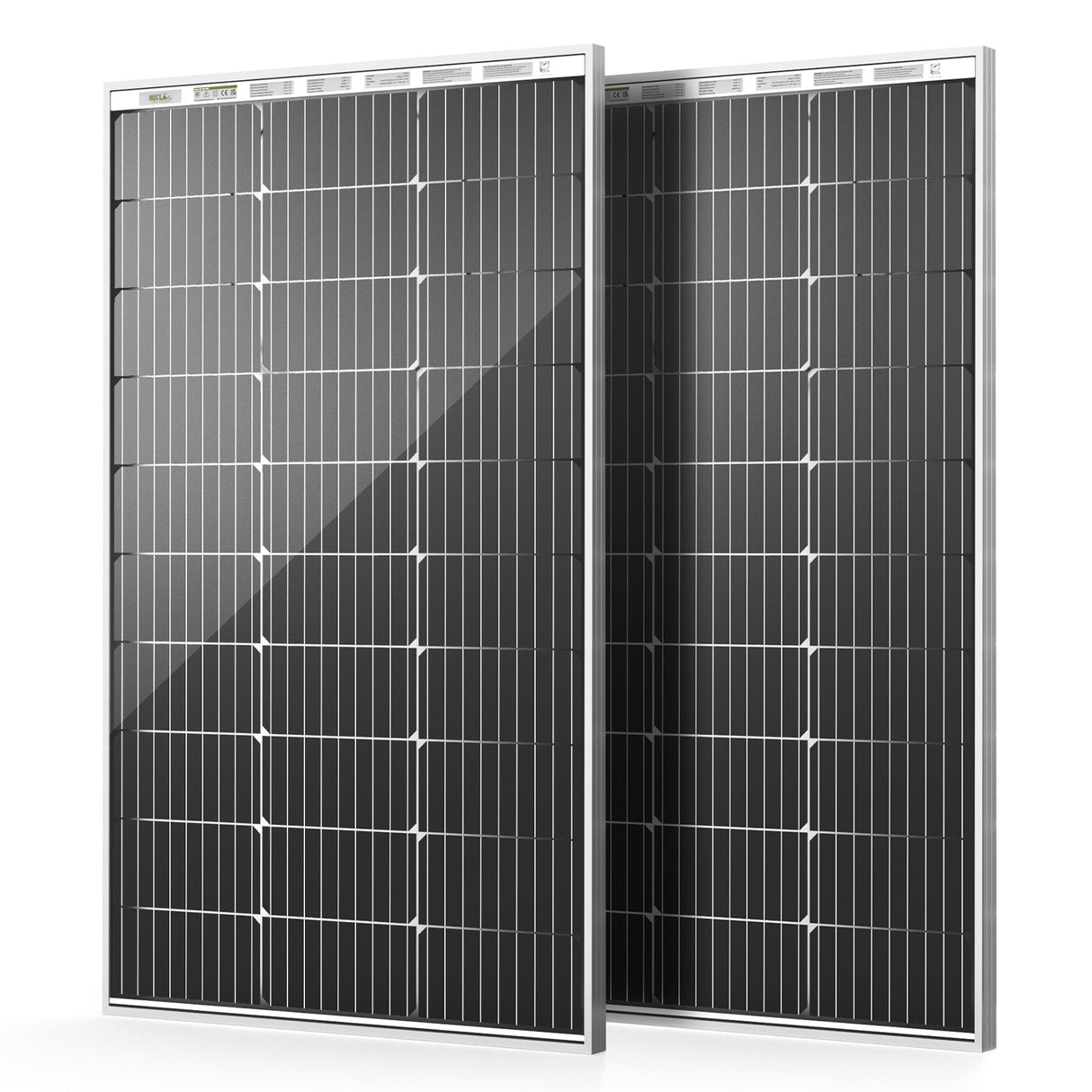

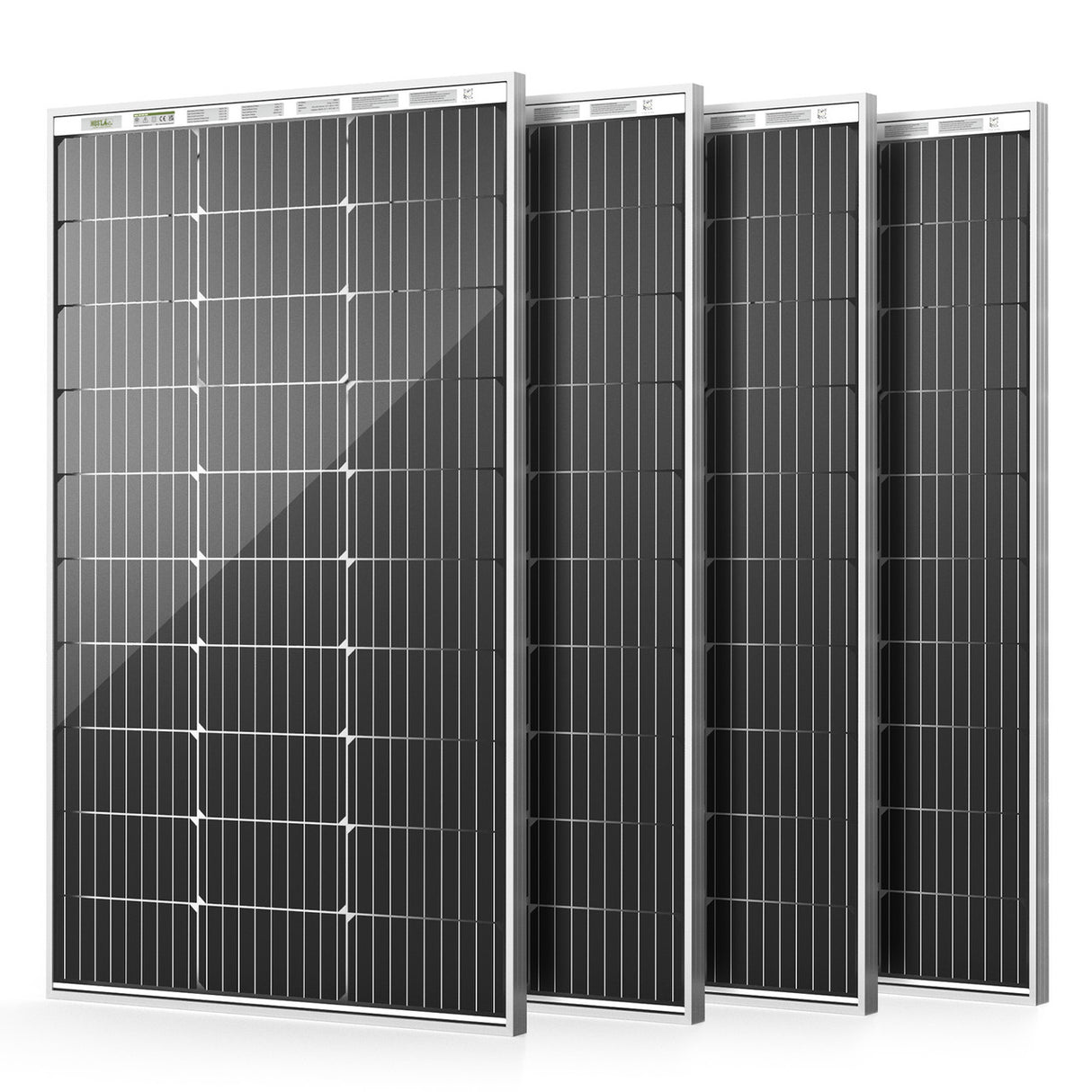

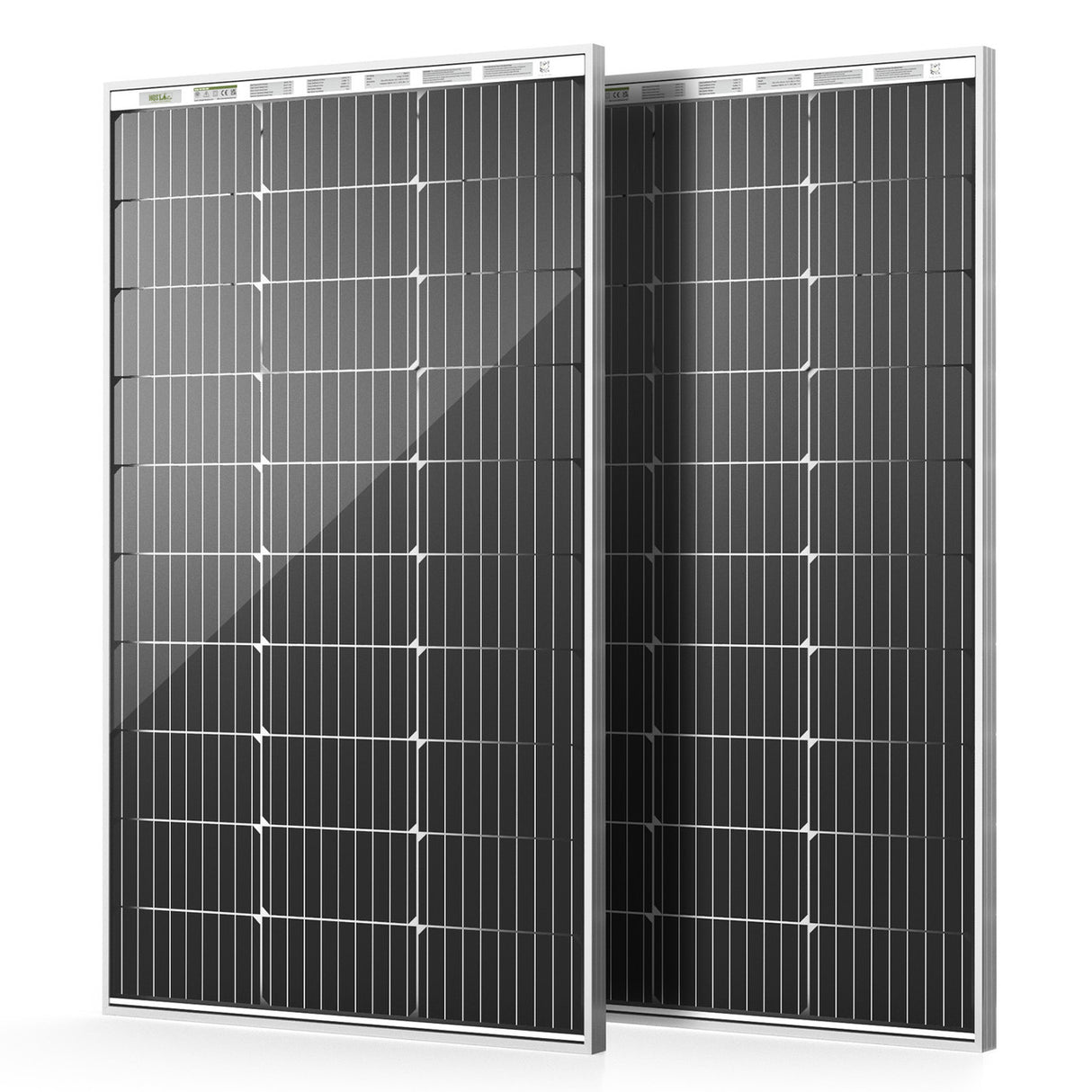

Bifacial 100 Watt 12 Volt 9BB Monocrystalline Solar Panel

SKU:

HSP100D-30AT-G1-US

$129.99 $79.99

Width:

22.70 (in)

Height:

38.20 (in)

Depth:

1.18 (in)

Description
Specification
Downloads
FAQ

OVERVIEW

Bifacial 100 Watt 12 Volt 9BB Monocrystalline Solar Panel

The latest HQST 100W solar panel features a bifacial design, capturing sunlight from both the front and back for up to 15% higher energy output compared to traditional panels. Equipped with advanced Grade A+ monocrystalline PERC solar cells, it achieves an impressive 25% conversion rate, delivering reliable performance even in cloudy or low-light conditions. With a 30-year power output support, this panel is the perfect choice for RVs, camper vans, trailers, marine applications, off-grid homes, and more.

Key Features

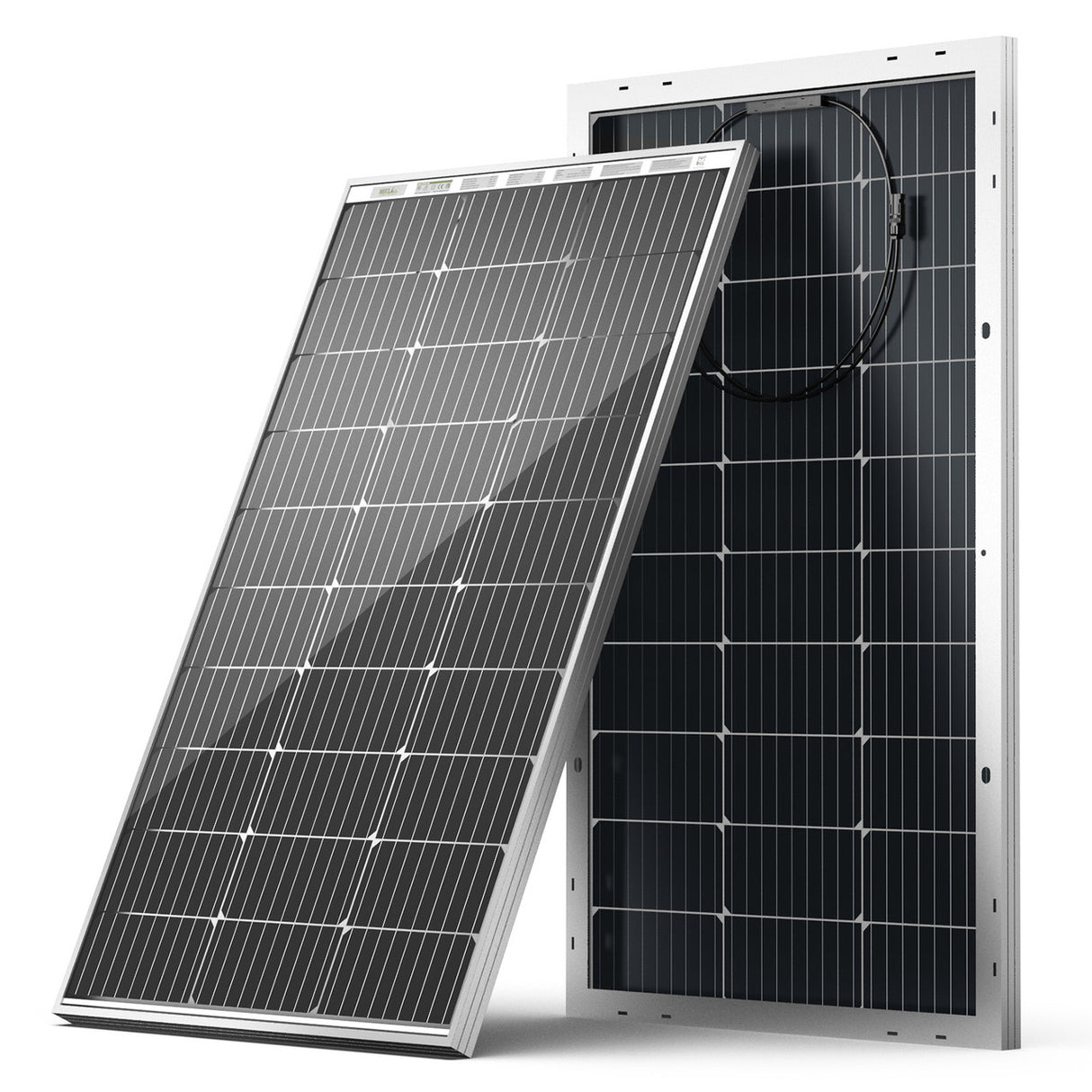

Bifacial Tech, Up to 15% Extra Power

Designed with advanced bifacial technology, HQST 100W Solar Panels capture direct sunlight on the front and reflected sunlight (albedo) on the rear. The result? Up to 15% more energy output than traditional panels, delivering up to 115W of power from a 100W panel. Maximize your solar potential with HQST!

Installation Tips for Maximum Power Output

Maximize energy output by installing bifacial solar panels on reflective surfaces or mounting them above the ground to capture more rear-side sunlight. For optimal results, set the solar panels at an angle between 20° and 45° in highly reflective areas like snow, cement, sand, grass, or white surfaces.

Grade A+ Cells, Up to 25% Efficiency

HQST 100W 12V solar panels feature advanced Grade A+ 9-busbar solar cells, rigorously tested with EL technology to ensure zero cracks. With an outstanding conversion rate of up to 25%, they outperform traditional panels and deliver better performance.

Enhanced Low-Light Performance

HQST solar panels utilize advanced PERC solar cell technology to maximize energy conversion. By reflecting unused sunlight back into the cell, PERC cells capture more light, including low-energy infrared, making them highly efficient in cloudy or low-light conditions. Built-in bypass diodes prevent overheating and ensure the panels continue performing even when partially shaded.

Built to Last, A Smart Investment

Rated IP68 for dust and water resistance, this 100W solar panel is built to withstand dirt, splashes, and rain with ease. Its anti-corrosion aluminum alloy frame ensures decades of outdoor reliability. Engineered to handle extreme conditions, it boasts 2400 Pa wind resistance and 5400 Pa snow load capacity. Delivering powerful energy output for up to 30 years, it’s a smart, long-lasting investment for sustainable power.

Package Includes

One (1) 100A MPPT Solar Charge Controller

Bifacial 100 Watt 12 Volt 9BB Monocrystalline Solar Panel

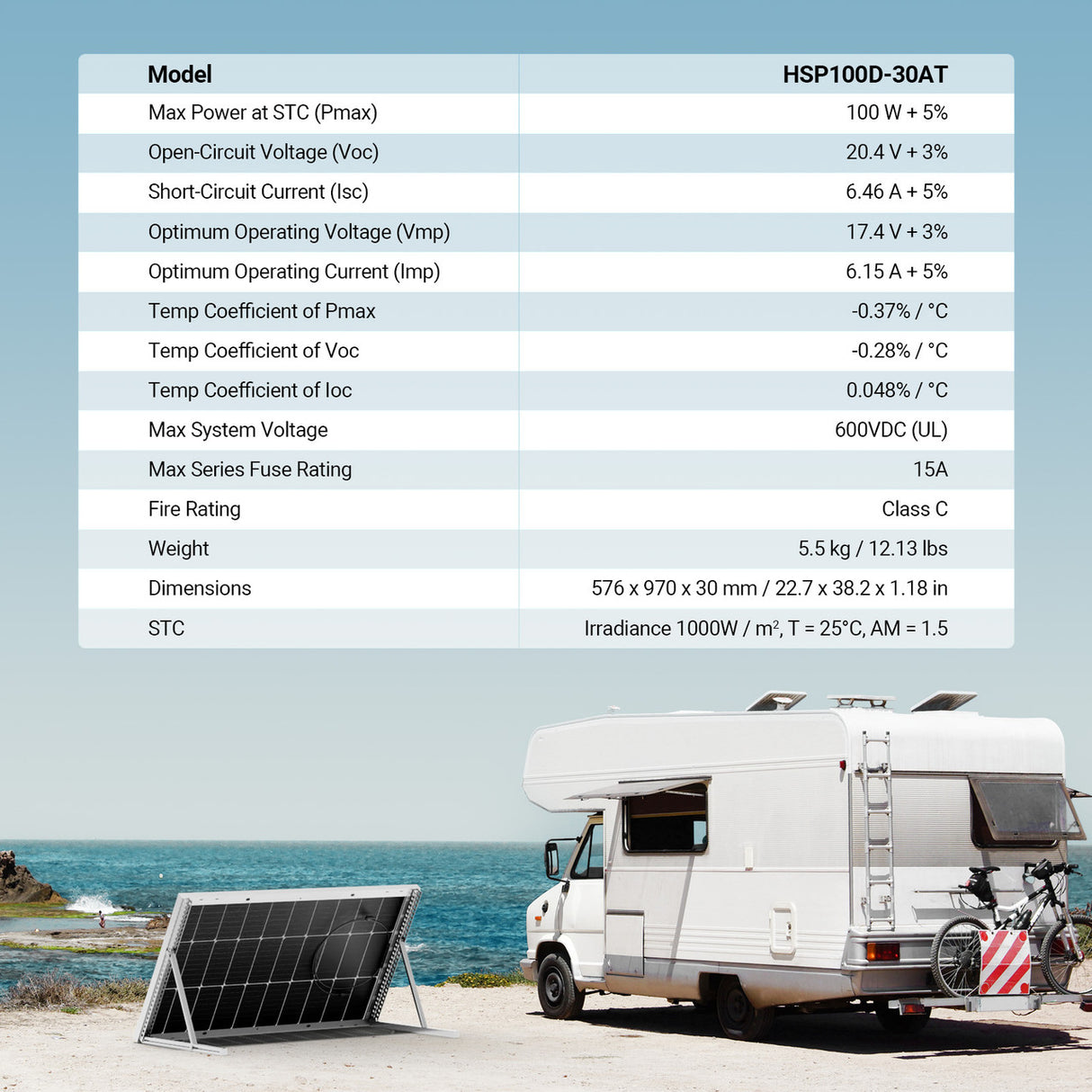

Model
Model: HSP100D-30AT
Electrical
Max Power at STC: 100 W + 5%	Open Circuit Voltage: 20.4 V + 3%
Short Circuit Current: 6.46 A + 5%	Optimum Operating Voltage: 17.4 V + 3%
Optimum Operating Current: 6.15 A + 5%	Cell Efficiency: Up to 25%
Maximum System Voltage: 600 VDC UL	Maximum Series Fuse Rating: 15 A
Mechanical
Cell Type: Monocrystalline	Dimensions: 22.7 x 38.2 x 1.18 in / 576 x 970 x 30 mm
Weight: 12.13 lbs / 5.5 kg	Front Glass: Low Iron-Tempered Glass
Frame: Anti-Corrosion Aluminium Alloy	Connectors: MC4 Solar Connectors
Fire Rating: Class C
Thermal Characteristics
Temperature Coefficient of Pmax: -0.37%/ºC	Temperature Coefficient of Voc: -0.28%/ºC
Temperature Coefficient of Isc: 0.048%/ºC
MC4 Solar Connectors
IP Rating: IP 68
Junction Box
IP Rating: IP 68	Output Cables: 14 AWG (1.97 ft length)
Warranty
Material and Workmanship Warranty: 5 Year	Performance Warranty: 30 Year / 80% Output Warranty

1. How can I increase the energy output of my solar panels?

For this bifacial solar panel, we recommend installing it on reflective surfaces or mounting it above the ground to capture more sunlight from the rear. For optimal performance, position the panels at an angle between 20° and 45° in highly reflective areas such as snow, concrete, sand, grass, or white surfaces.

2. How should I connect solar panels to my electrical circuit (series vs. parallel)?

Solar panels can be connected in either series or parallel, depending on your electrical circuit size and power needs. It’s best to connect panels with the same open-circuit voltage.
When connected in series, the voltage (V) increases, while the current (A) stays the same.
On the other hand, connecting panels in parallel increases the current (A), while the voltage (V) remains constant.

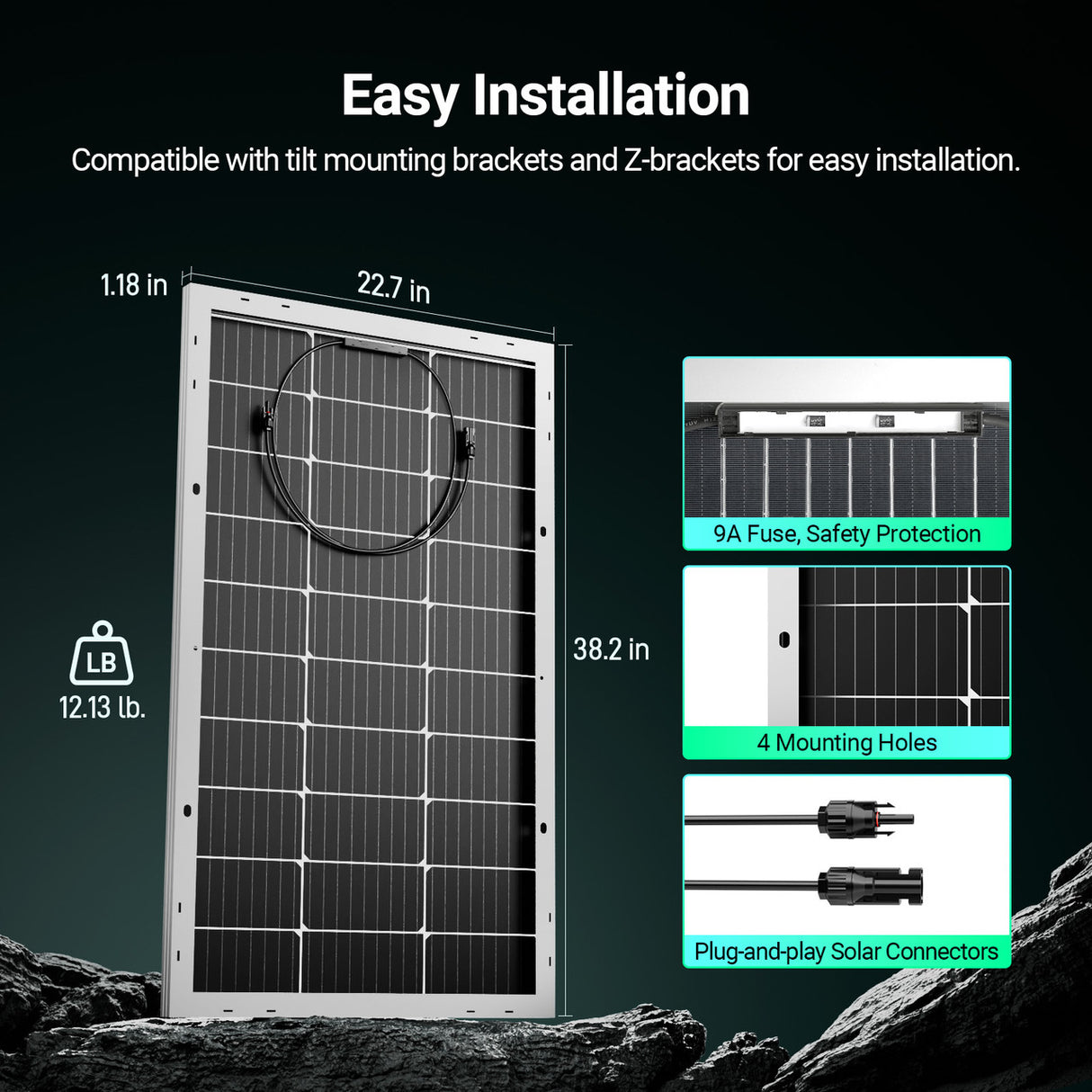

3. Do these panels have pre-drilled holes on the back?

Yes, they do. There are four pre-drilled holes to make installing the solar panel quick and secure.

4. Can this solar panel be used with a 12V marine battery or a 48V lithium battery?

Yes, it can. The optimal operating voltage of this 100W solar panel is 17.4V, making it suitable for charging a 12V marine battery. For a 48V lithium battery, you’ll need to connect at least three solar panels in series.
Please ensure that you connect the solar panel(s) to a charge controller that supports either a 12V or 48V system.

5. What do I need to have to complete my off-grid solar power system?

Here’s a list of all the equipment required for a functioning off-grid solar system:
Solar Panels, Solar Charge Controller, Inverter(s), Battery, Mounting and Racking System, Wiring Cables, and Fuses.

If you have further questions, please feel free to contact us.
