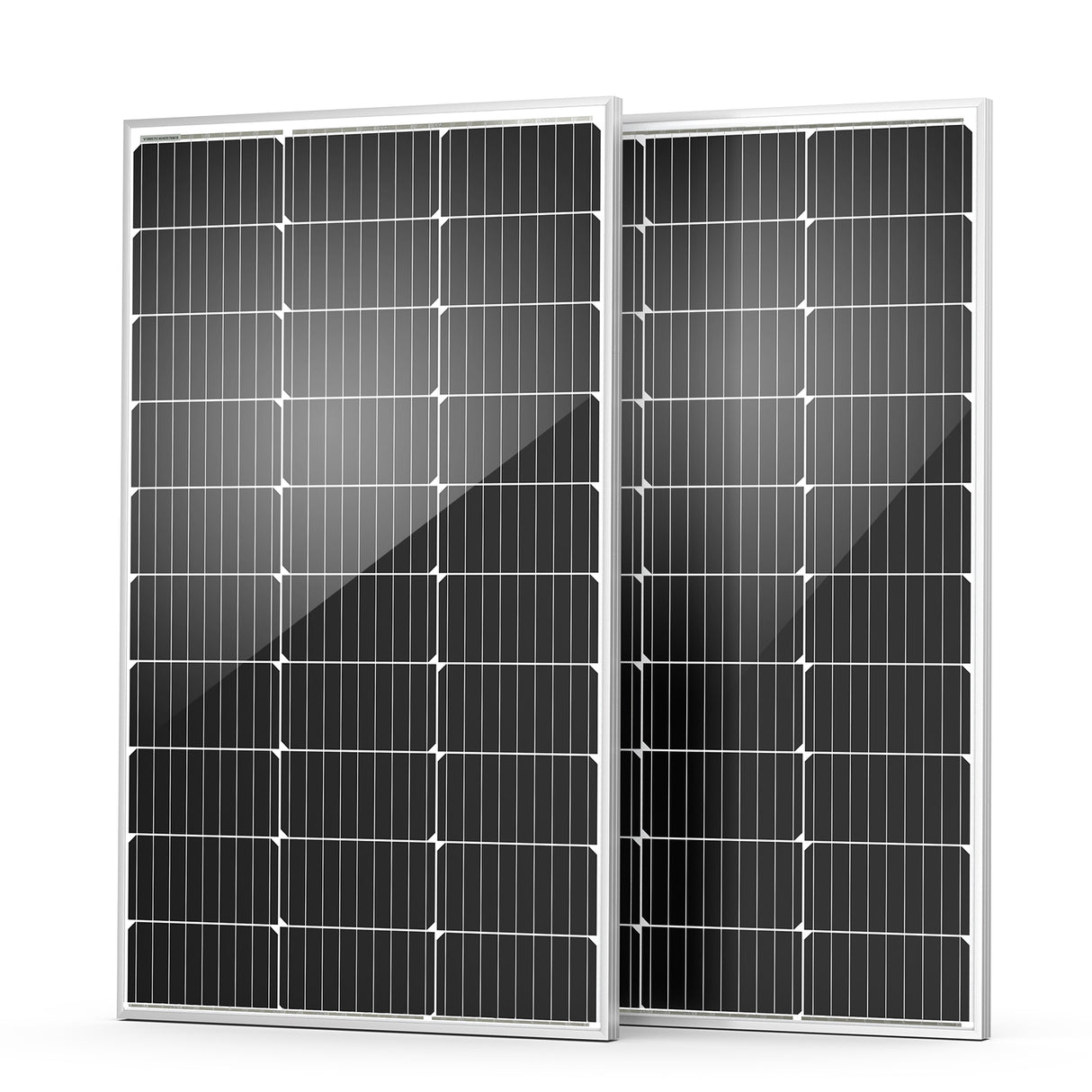

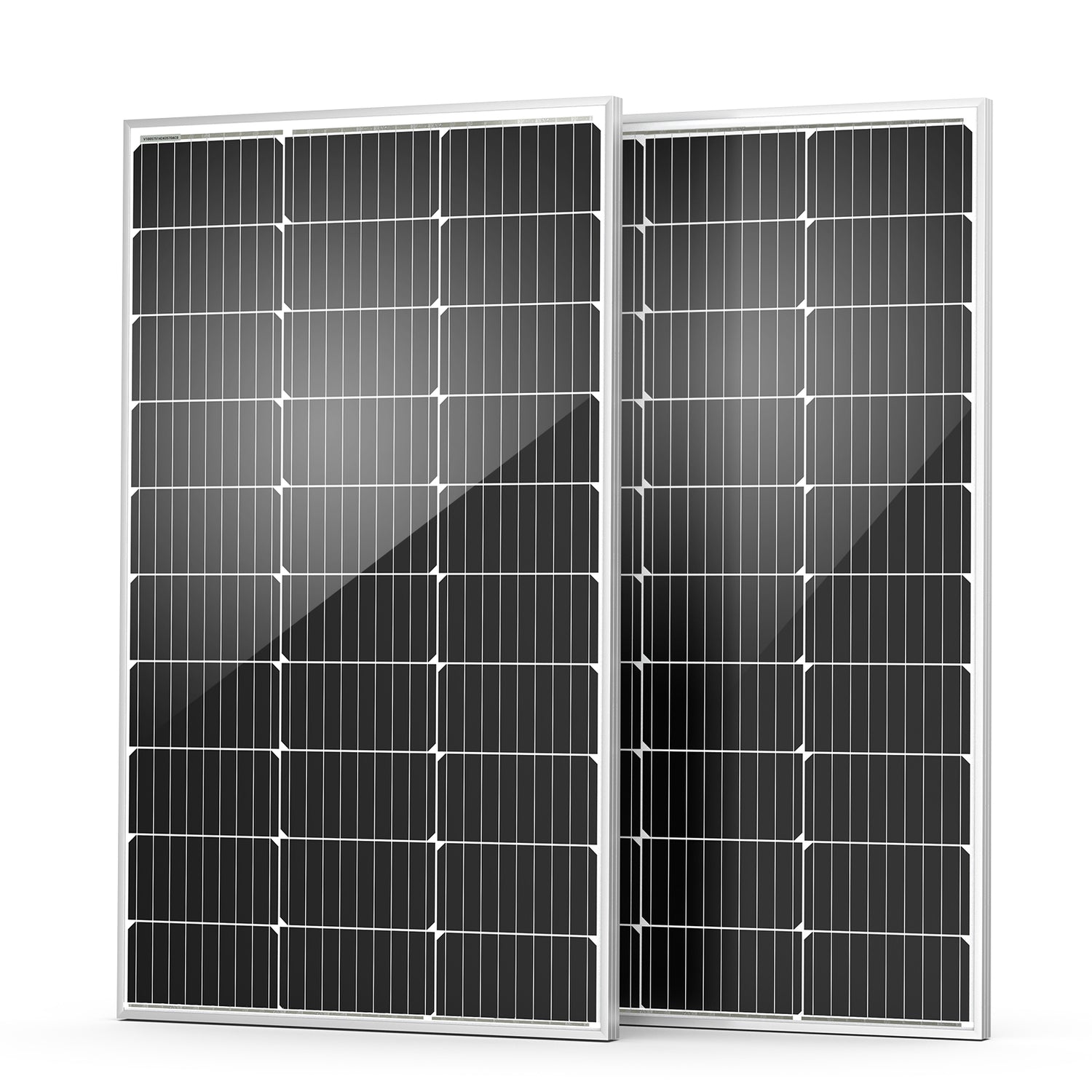

HQST 200W 2 Packs 100W 12V 9BB Monocrystalline Solar Panel

SKU: HSP100D-30Ax2

Bulk Purchase

2 items: Extra 3% off Auto
4 items: Extra 5% off Auto
6 items: Extra 8% off Auto
10 items: Extra 10% off Auto
Boost Your Cart, Boost Your Savings→ Explore Offers
$105.99 $209.99
Save   $104.00

  • Grade A+ 9BB mono cells, EL-tested, up to 25% efficiency.

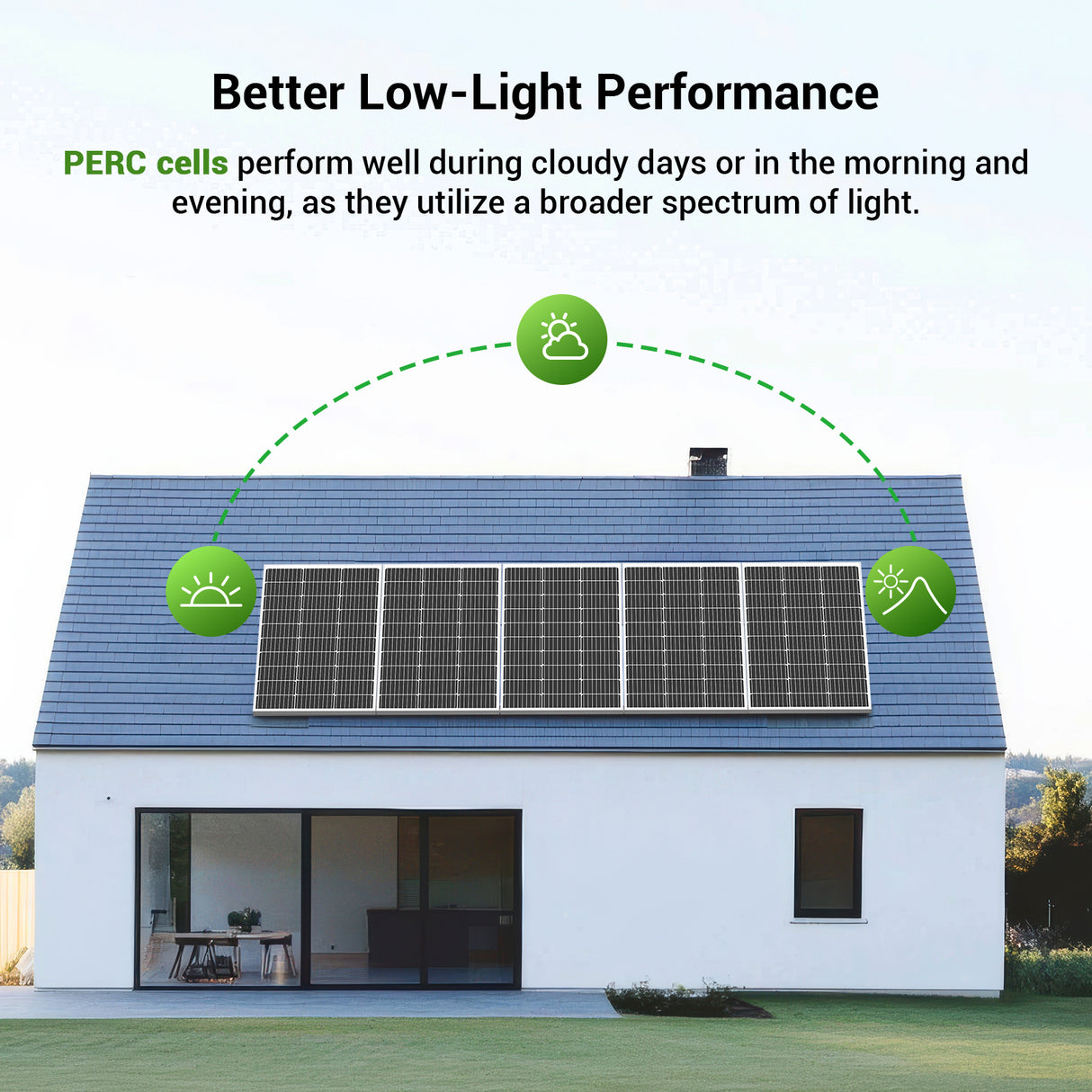

  • Advanced PERC technology, strong low-light performance.
  • IP65 waterproof, anti-corrosion aluminum frame.
  • Built for extremes, 2400 Pa wind & 5400 Pa snow load.
  • 80% power retention after 25 years, long-term reliability.

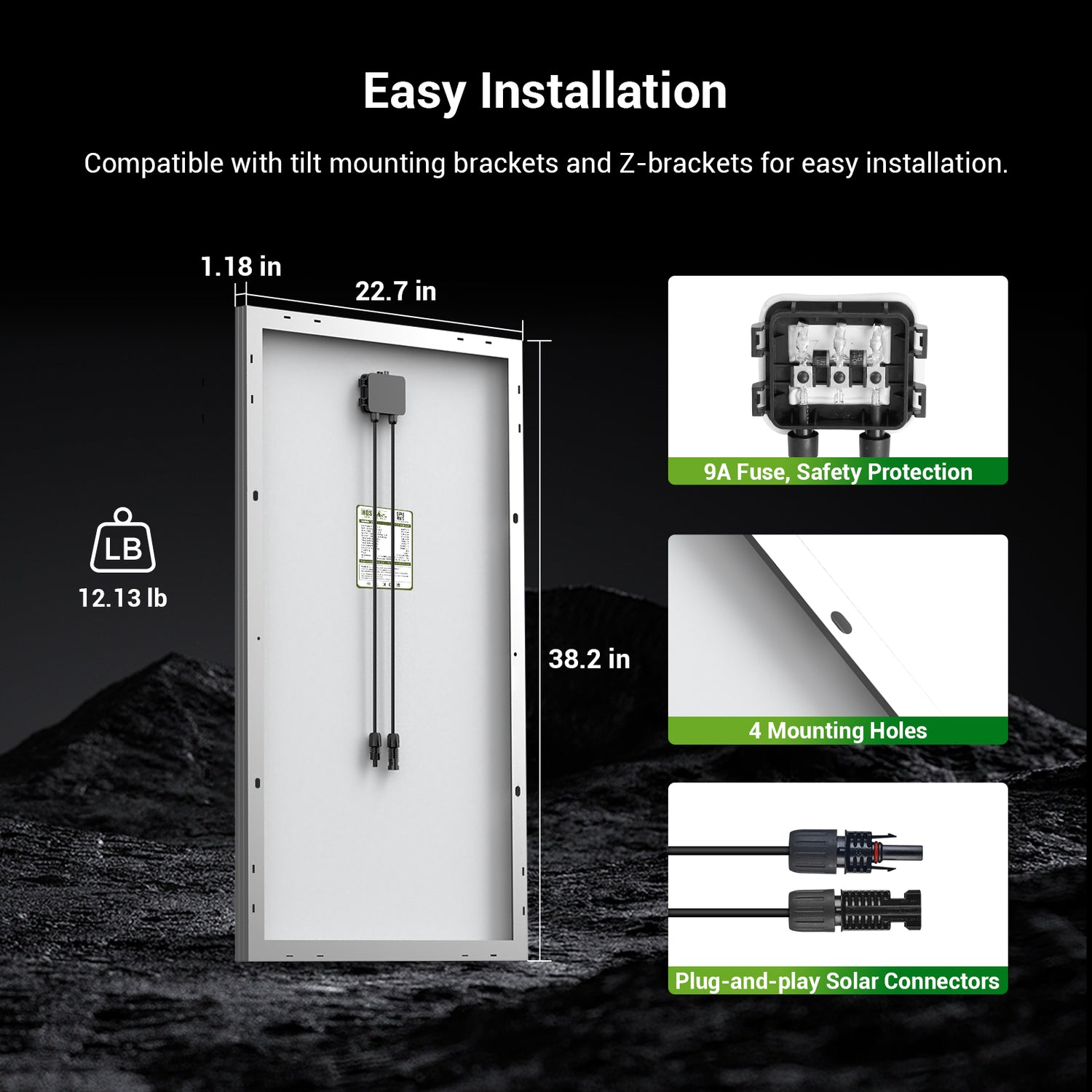

  • Easy installation, four pre-drilled holes, compatible with Z Brackets & Tilt Mounts.
Quantity：
Payment Methods
Delivery Methods
Estimated delivery time: 2–5 business daysShipping Policy.
Description
Includes
Specs
FAQ
Reviews
Advanced PERC Tech

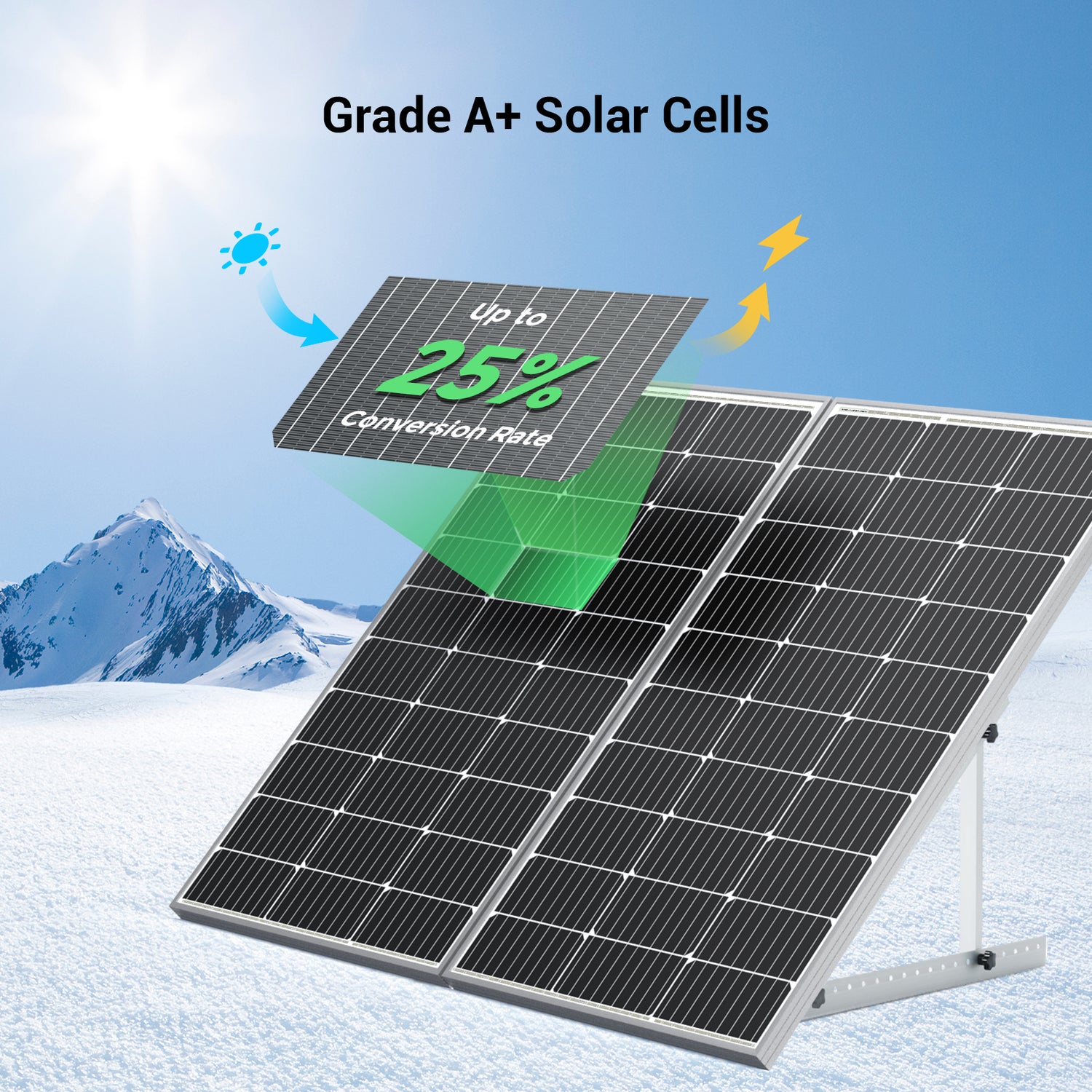

Grade A+ Cells
Built to Last

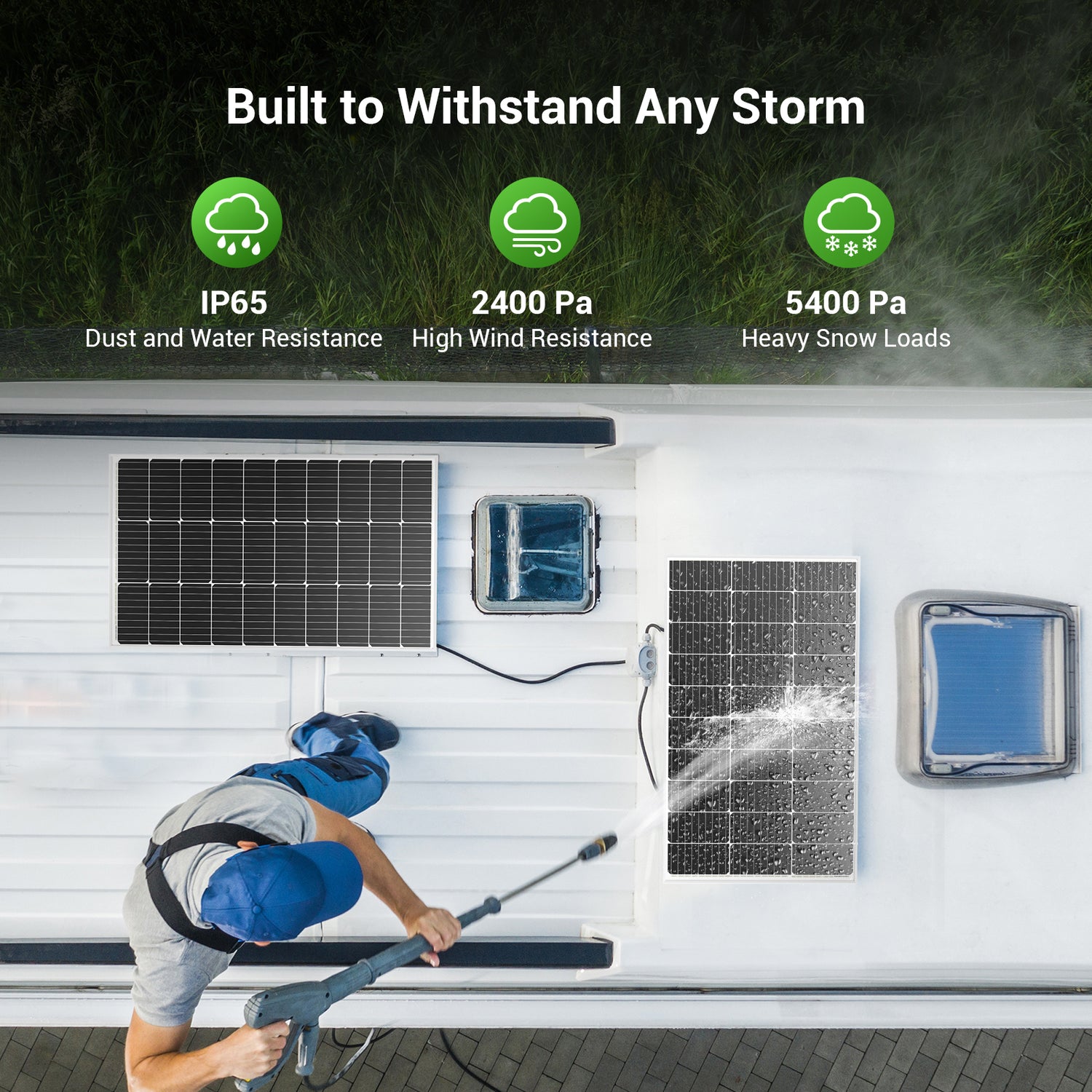

Withstand Extreme Storms
Reliable Package for Maximum Protection
Face Direct Sunlight
Proper Installation Angle
Regular Cleaning
Measure Power Output

Package Includes

100 Watt 12 Volt 9BB Monocrystalline Solar Panel

x 1

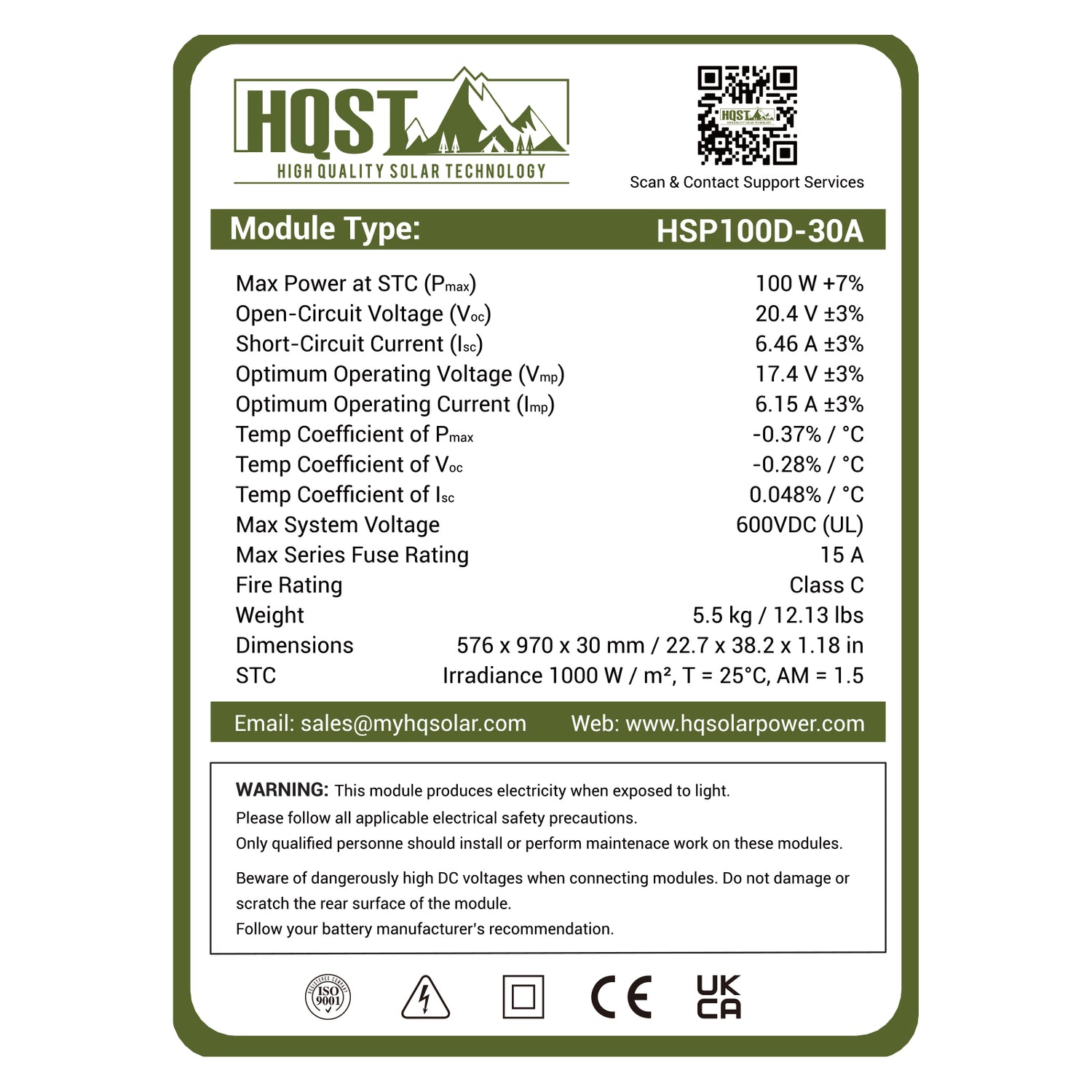

Specification

Maximum Power at STC
100 W + 7%
Cell Efficiency
Up to 25%
Optimum Operating Voltage (Vmp)
17.4 V ± 3%
Open-Circuit Voltage (Voc)
20.4 V ± 3%
Optimum Operating Current (Imp)
6.15 A ± 3%
Short-Circuit Current (Isc)
6.46 A ± 3%
Operating Temperature
-40°F to 194°F
Maximum Series Fuse Rating
15A
Maximum System Voltage
600V DC (UL)
Dimensions
22.7 x 38.2 x 1.18 in/576 x 970x 30 mm
Weight
12.13 lbs/5.5 kg
Material and Workmanship Warranty
5 Year

Frequently Asked Questions

How can I increase the energy output of my solar panels?

Position the solar panels to face direct sunlight without obstructions or shadows. Install at an optimal angle of 30°-45° for maximum absorption. Clean regularly to remove dust, leaves, or debris for consistent energy output.

How should I connect solar panels to my electrical circuit (series vs. parallel)?

Solar panels can be connected in either series or parallel, depending on your electrical circuit size and power needs. It’s best to connect panels with the same open-circuit voltage.
When connected in series, the voltage (V) increases, while the current (A) stays the same.
On the other hand, connecting panels in parallel increases the current (A), while the voltage (V) remains constant.

Do these panels have pre-drilled holes on the back?

Yes, they do. There are four pre-drilled holes to make installing the solar panel quick and secure.

Can this solar panel be used with a 12V marine battery or a 48V lithium battery?

Yes, it can. The optimal operating voltage of this 100W solar panel is 17.4V, making it suitable for charging a 12V marine battery. For a 48V lithium battery, you’ll need to connect at least three solar panels in series.
Please ensure that you connect the solar panel(s) to a charge controller that supports either a 12V or 48V system.
