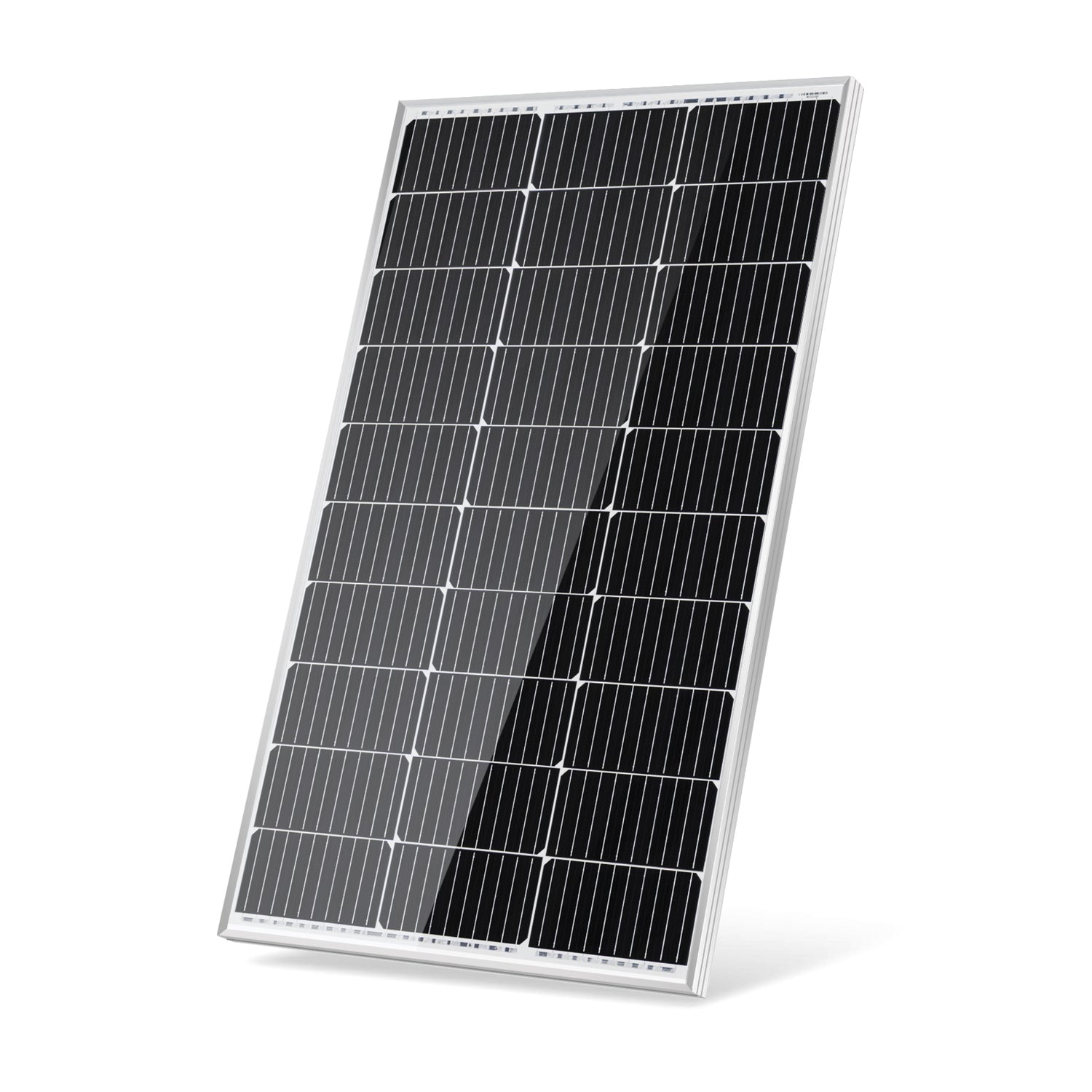

Traver Force 100 Watt 12 Volt 10BB Cell Monocrystalline Solar Panel
Traver Force 100 Watt 12 Volt 10BB Cell Monocrystalline Solar Panel - 1 pack is backordered and will ship as soon as it is back in stock.

Traver Force 100 Watt 12 Volt 10BB Cell Monocrystalline Solar Panel
OVERVIEW

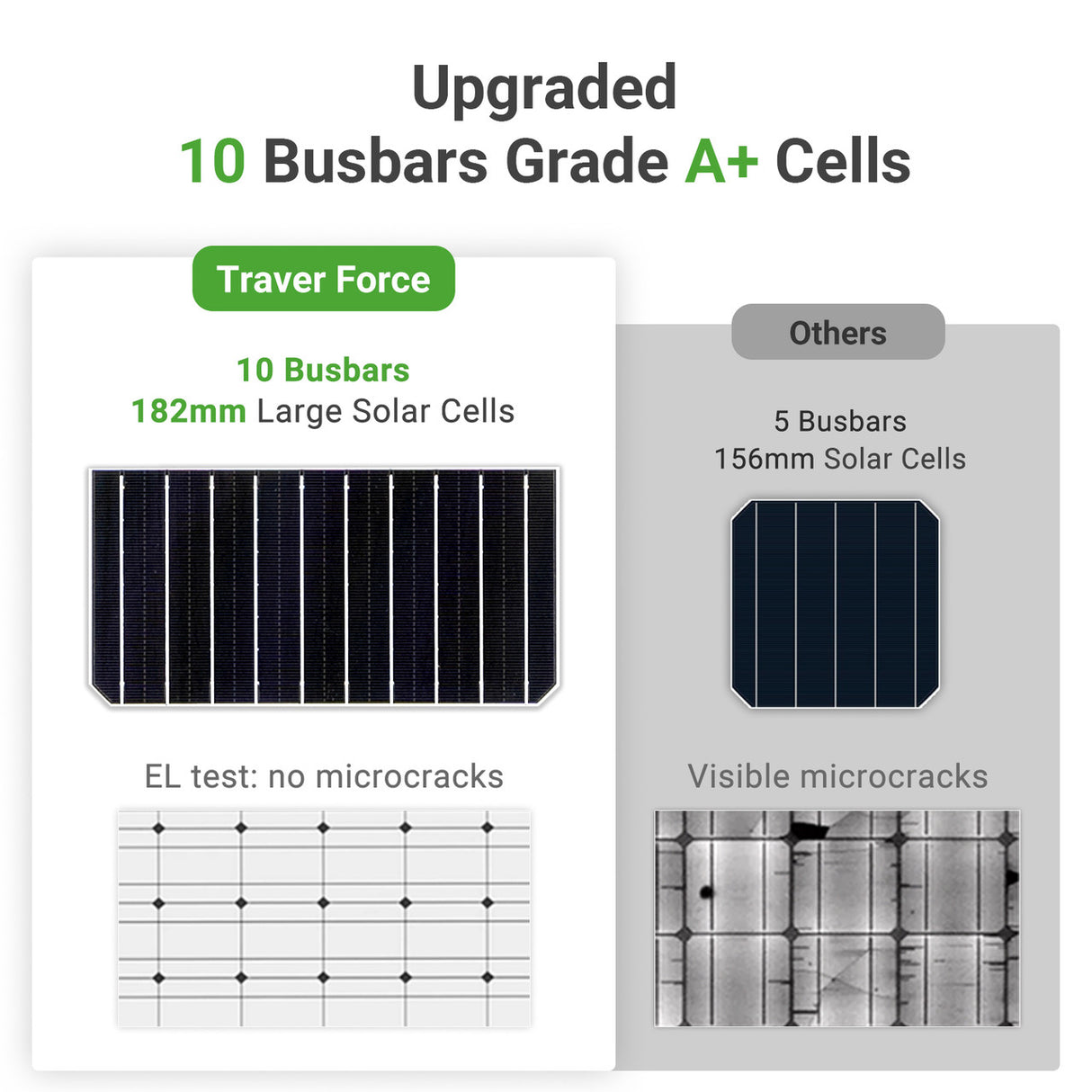

Introducing the Traver Force 100-watt monocrystalline solar panel, meticulously engineered with leading 10-busbar technology. This improved design ensures not only higher efficiency but also an extended service life. Featuring grade A+ 182mm premium solar cells, this solar panel offers an impressive cell efficiency of up to 25%, surpassing conventional counterparts. By making the switch from conventional 5-busbar solar panels, you can revel in improved performance, reduced crack risks, and lower operating temperatures. Upgrade to the Traver Force panel for a solar power solution that is both more efficient and reliable.
Key Features

Read More

Read More

Read More

Read More

Read More

Package Includes

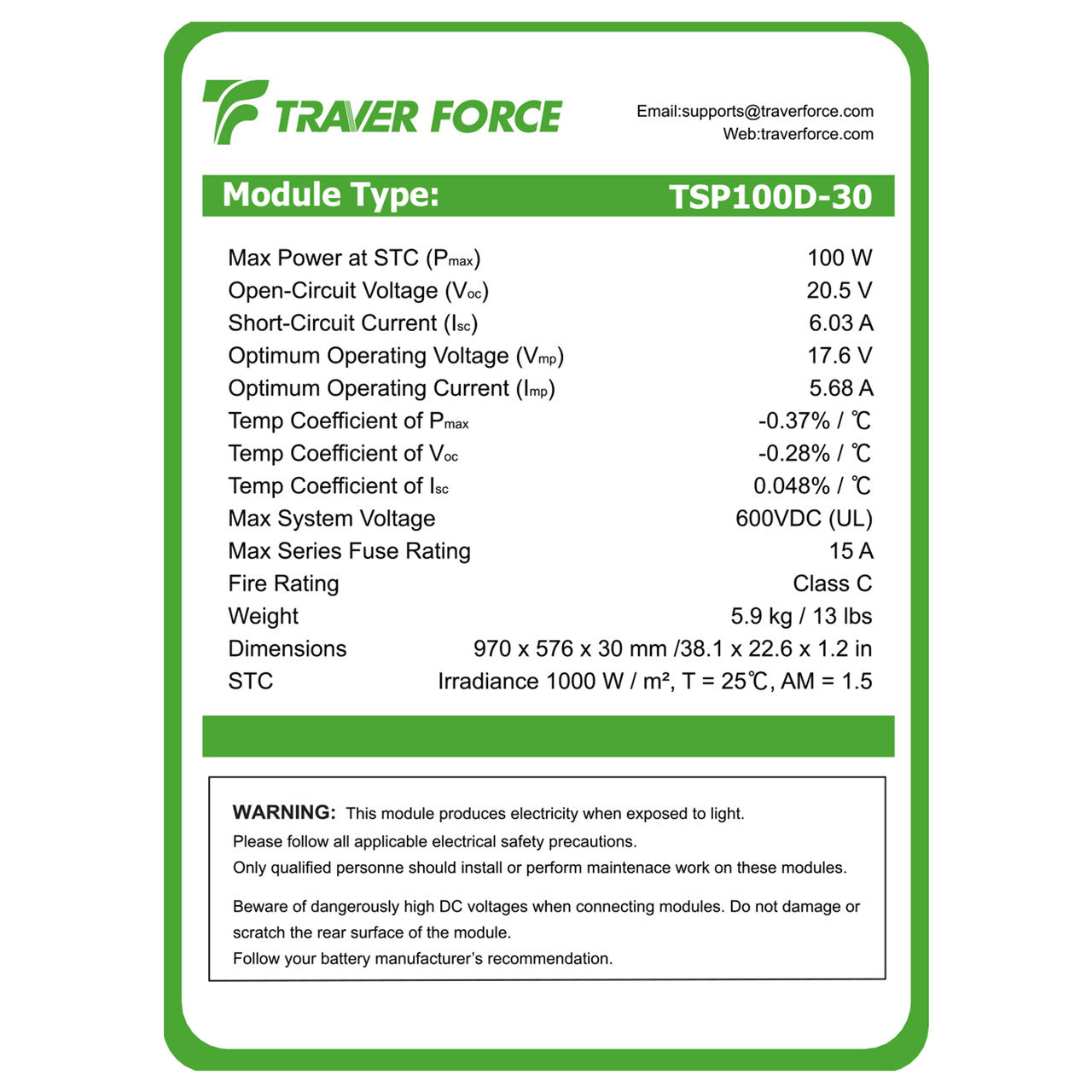

SPECIFICATIONS
General | |
Model | TSP100D-30 |
UPC Number | |
Electrical | |
Max Power at STC | 100W |
Open Circuit Voltage | 20.5 V |
Short Circuit Current | 6.03 A |
Optimum Operating Voltage | 17.6 V |
Optimum Operating Current | 5.68 A |
Cell Efficiency | Up to 25% |
Maximum System Voltage | 600 VDC UL |
Maximum Series Fuse Rating | 15 A |
Mechanical | |
Cell Type | Monocrystalline |

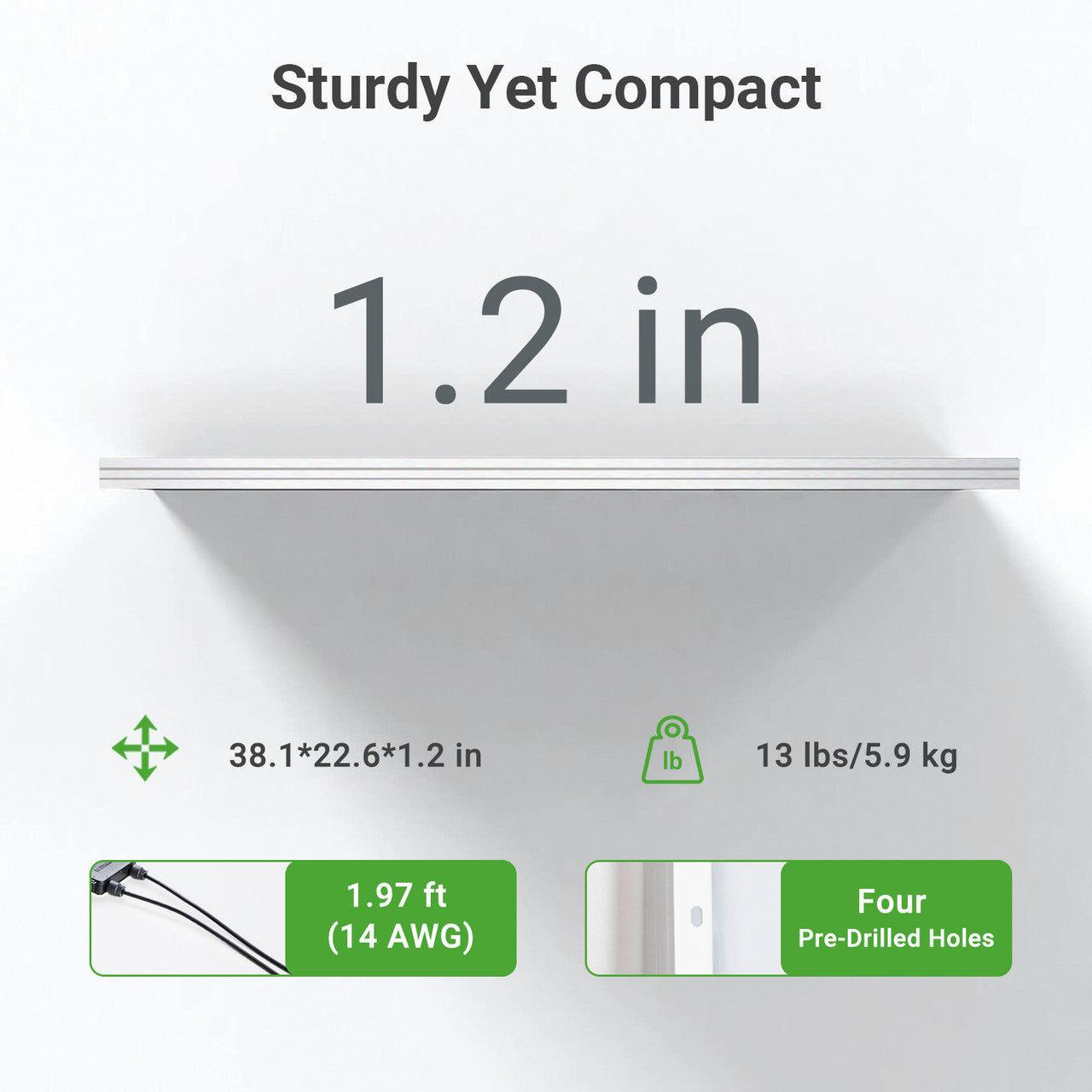

Dimensions | 38.1 x 22.6 x 1.2 in/970 x 576 x 30 mm |
Weight | 13 lbs/5.9 kg |

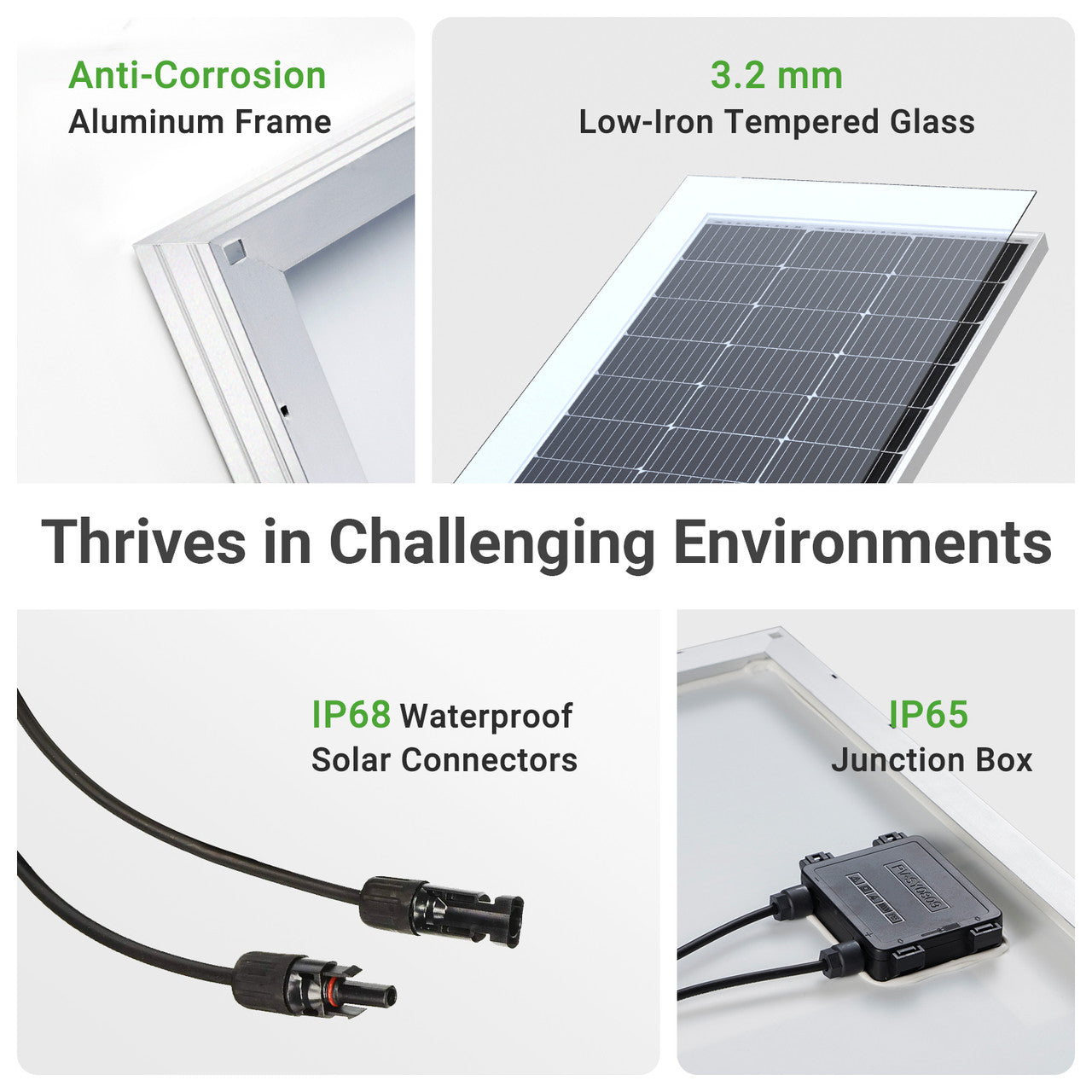

Front Glass | Low Iron-Tempered Glass |
Frame | Anti-Corrosion Aluminium Alloy |
Connectors | MC4 Solar Connectors |
Fire Rating | Class C |
Thermal Characteristics | |
Temperature Coefficient of Pmax | -0.37%/ºC |
Temperature Coefficient of Voc | -0.28%/ºC |
Temperature Coefficient of Isc | 0.048%/ºC |
MC4 Solar Connectors | |
IP Rating | IP 68 |
Junction Box | |
IP Rating | IP 65 |
Output Cables | 14 AWG (1.97 ft length) |
Accessories | |
Junction Box (on the back sheet) | |
MC4 Solar Connectors (on the back sheet) | |
Warranty | |
Material and Workmanship Warranty | 5 Year |
Performance Warranty | 5 year / 95% output, 10 year / 90% output, 25 year / 80% output warranty |
