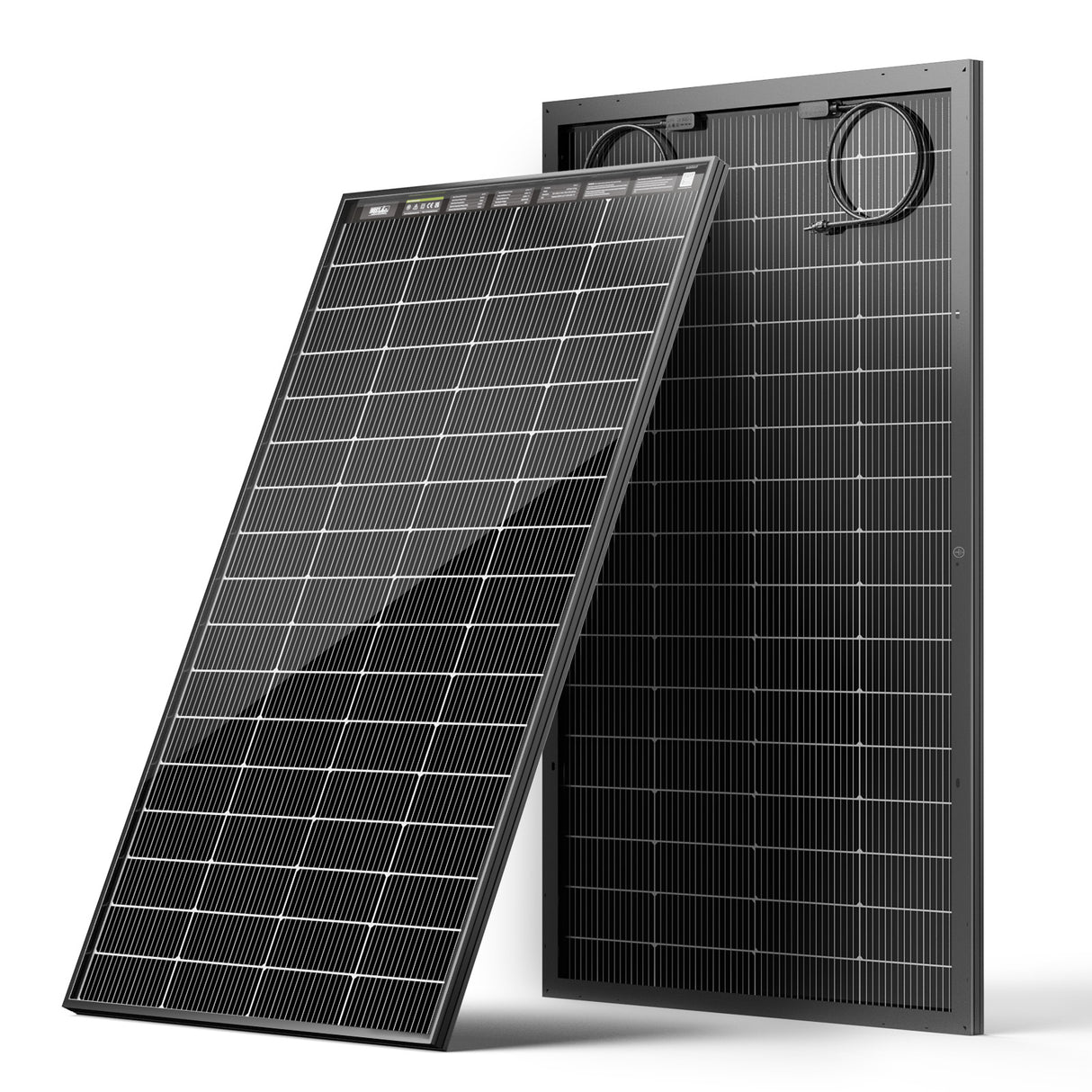

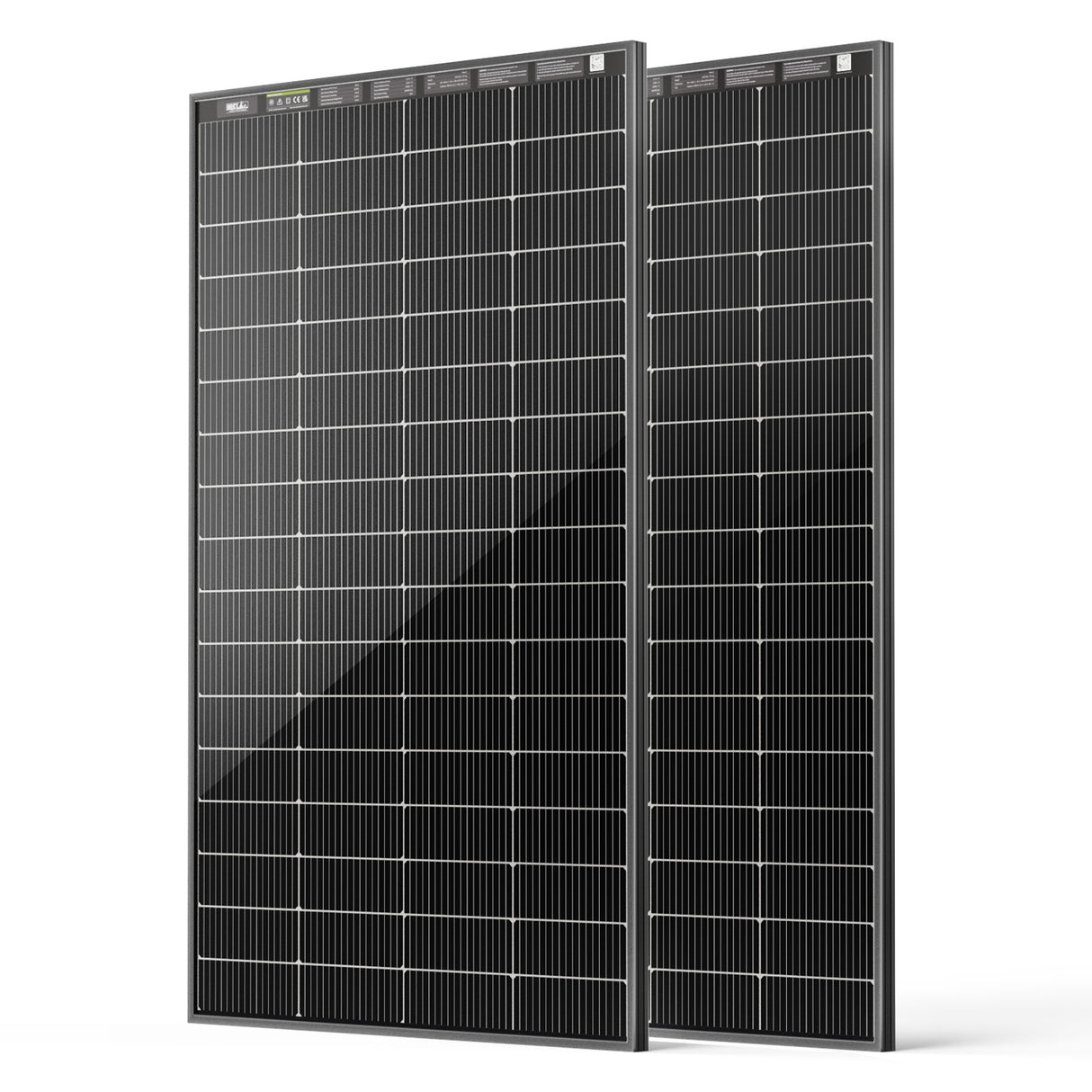

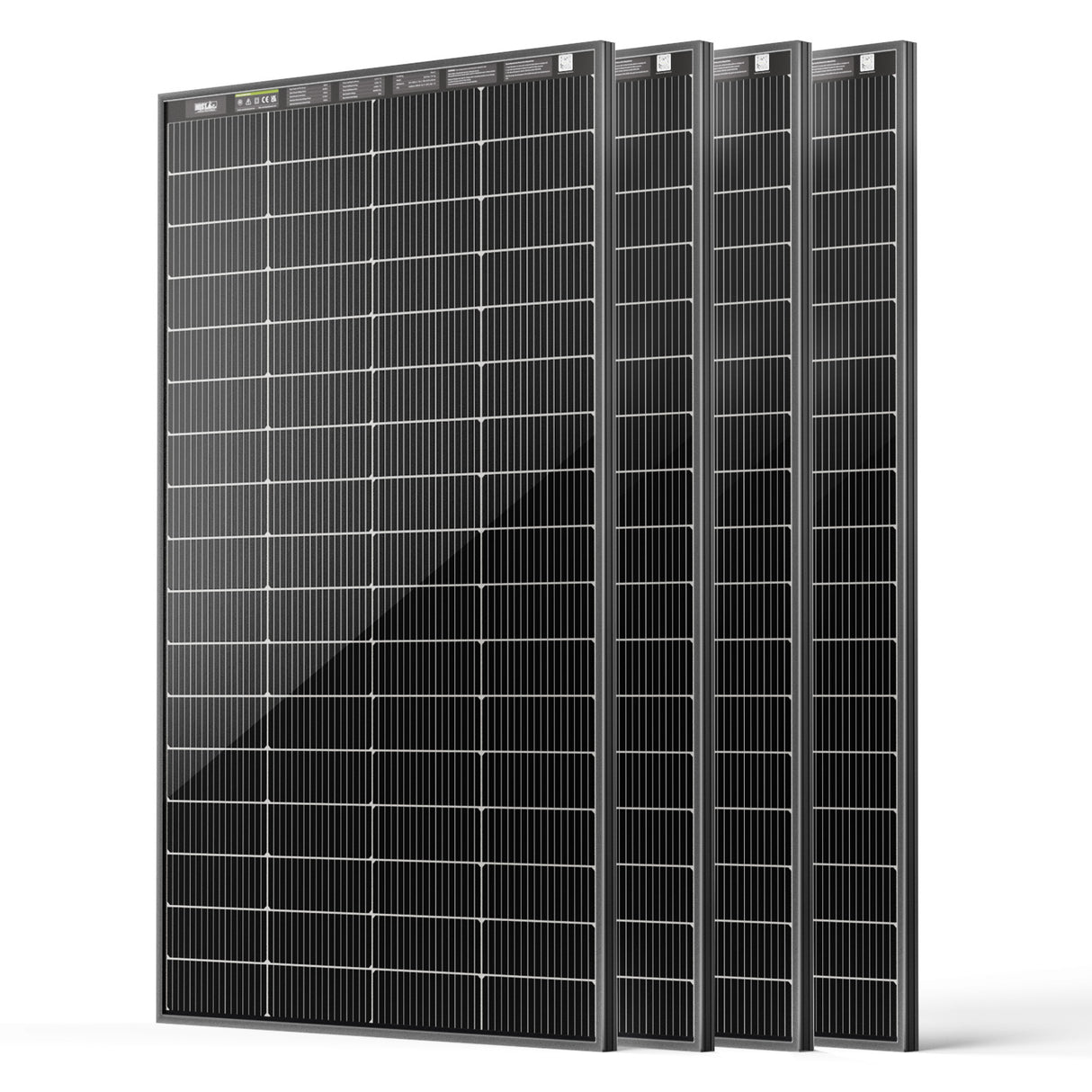

HQST Bifacial 200W N-Type 16BB Monocrystalline Solar Panel with All-Black Design

SKU: HSP200D-68ATB-G1-US

Winter Sale

2 items: Extra 3% off Auto
4 items: Extra 5% off Auto
6 items: Extra 8% off Auto
Boost Your Cart, Boost Your Savings→ Explore Offers
$129.99 $169.99
Save   $40.00
Free shipping.

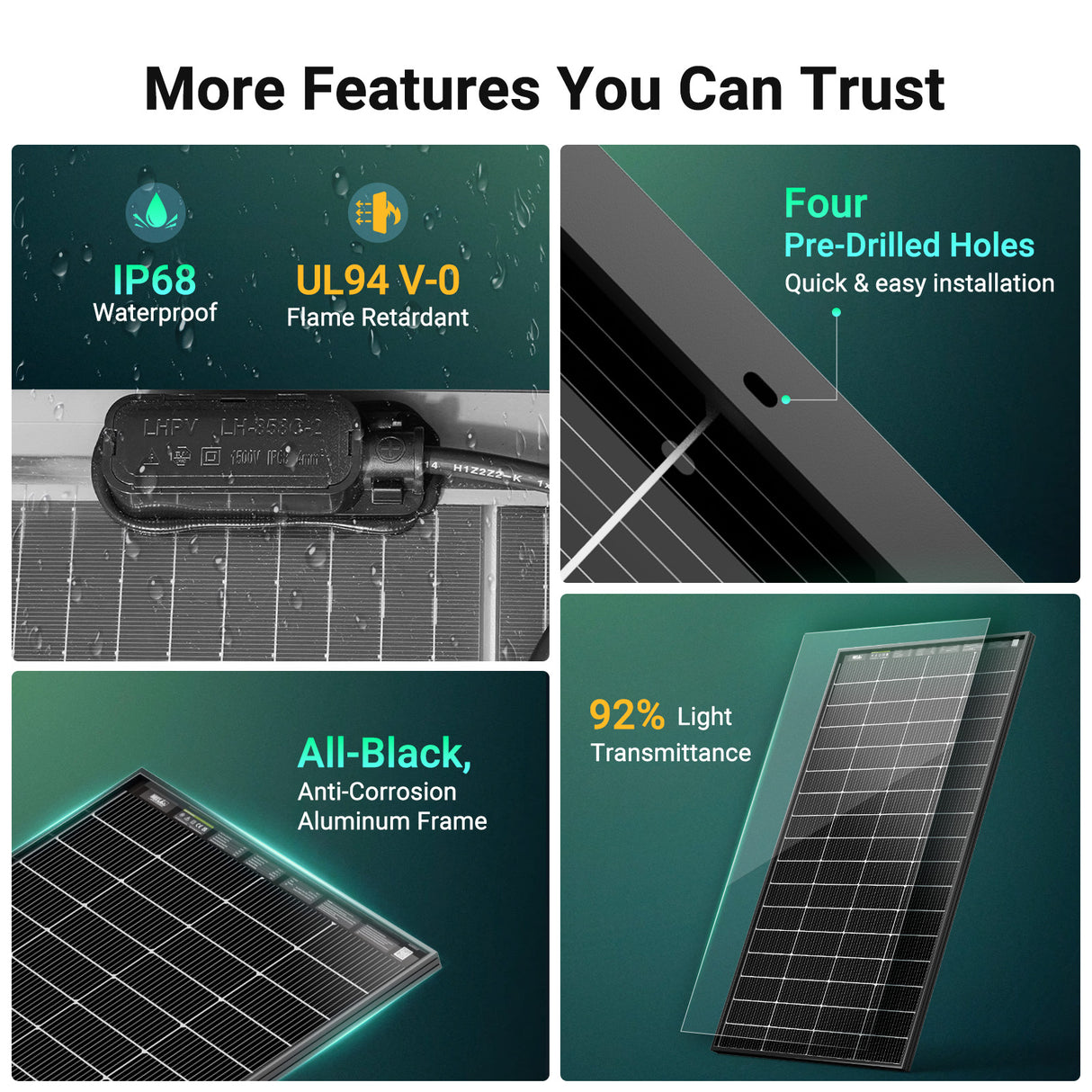

  • IP68 waterproof & UL94 V-0 rated, built to withstand 2400Pa wind and 5400Pa snow loads.
  • Up to 25% conversion efficiency with a 30-year linear power warranty – outperforming standard P-Type panels.

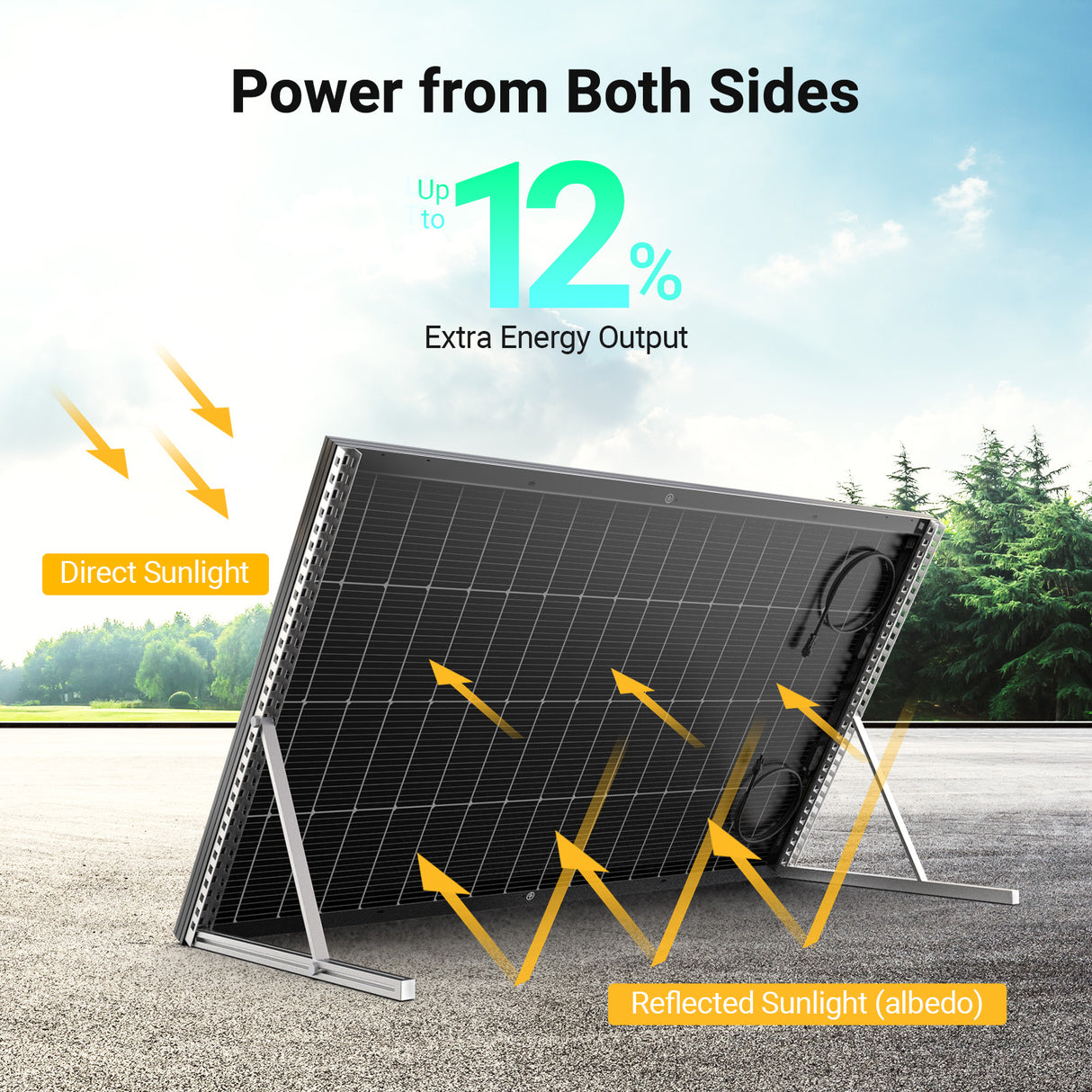

  • Advanced bifacial design delivers up to 12% extra energy from rear-side reflected light.
  • Low -0.29%/℃ temperature coefficient ensures superior performance in high-heat conditions.

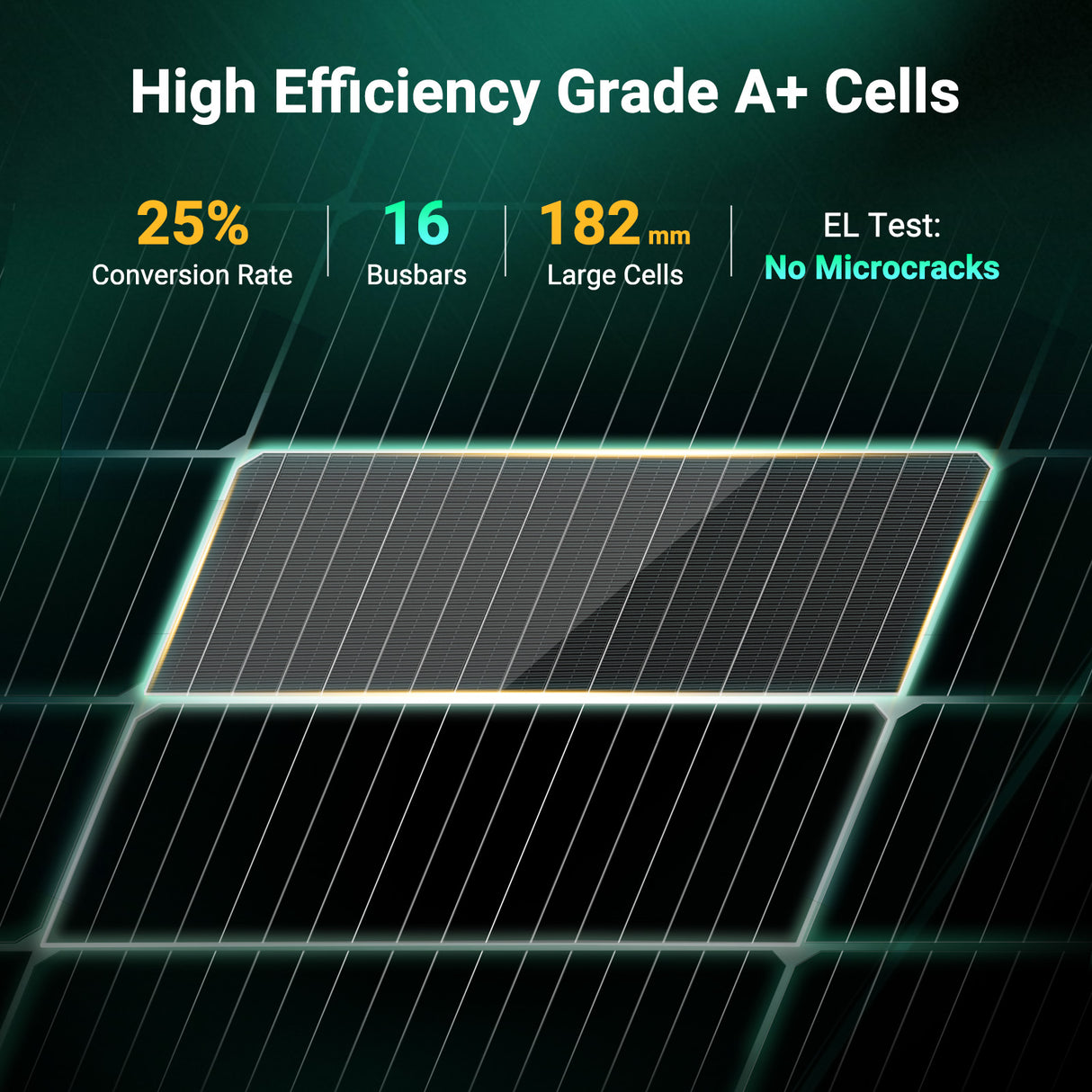

  • 16-busbar (16BB) Grade A+ cells guarantee higher reliability and zero micro-cracks.

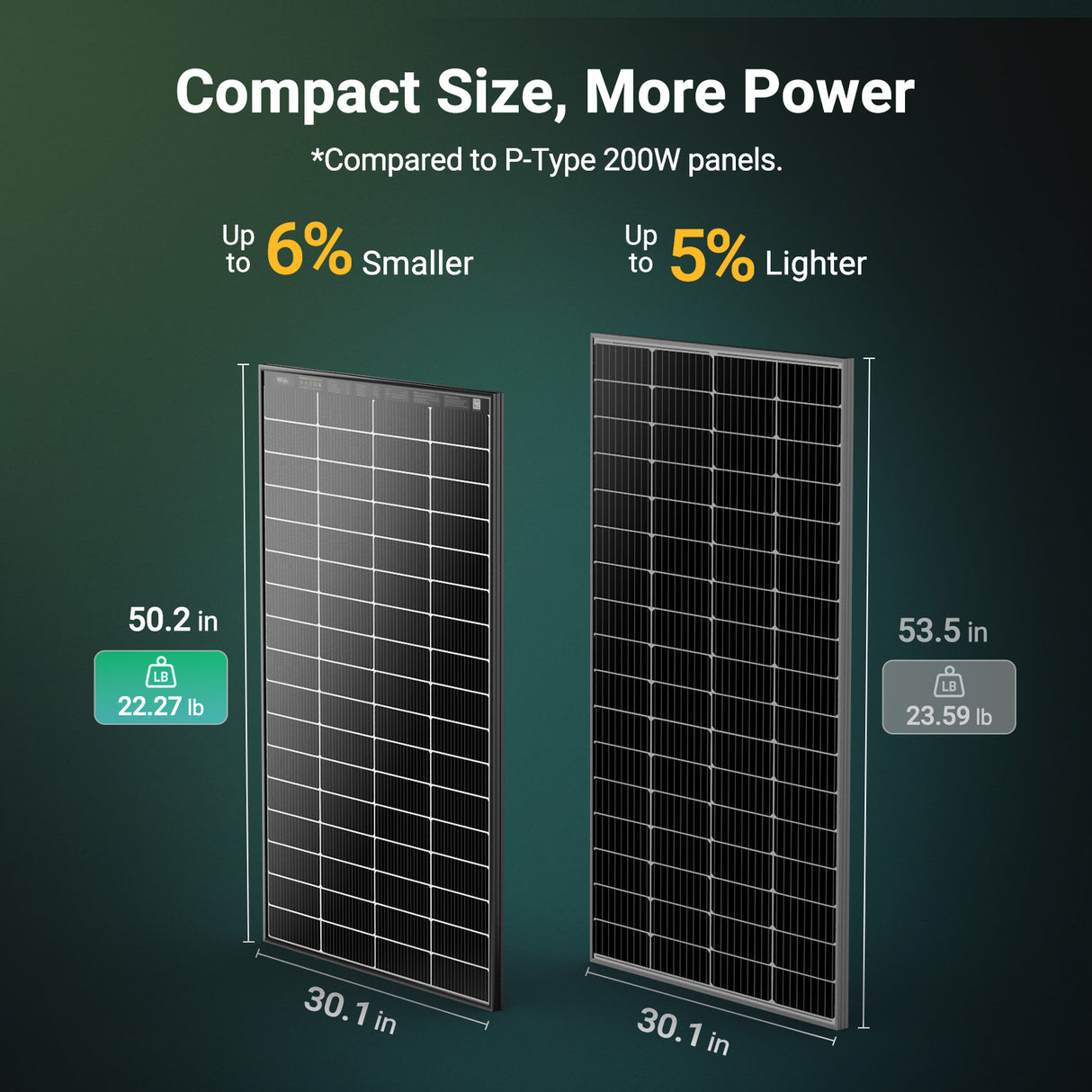

  • 6% smaller and 5% lighter than conventional panels for easier handling and lower balance-of-system costs.
  • All-black, anti-corrosion frame designed for durability and a sleek aesthetic on any installation.
  • Dimensions: 30.1 x 50.2 x 1.18 in / 765 x 1275 x 30 mm
QTY
Quantity：
Payment Methods
Delivery Methods
Estimated delivery time: 2–5 business daysShipping Policy.
Description
Specs
FAQ
Reviews

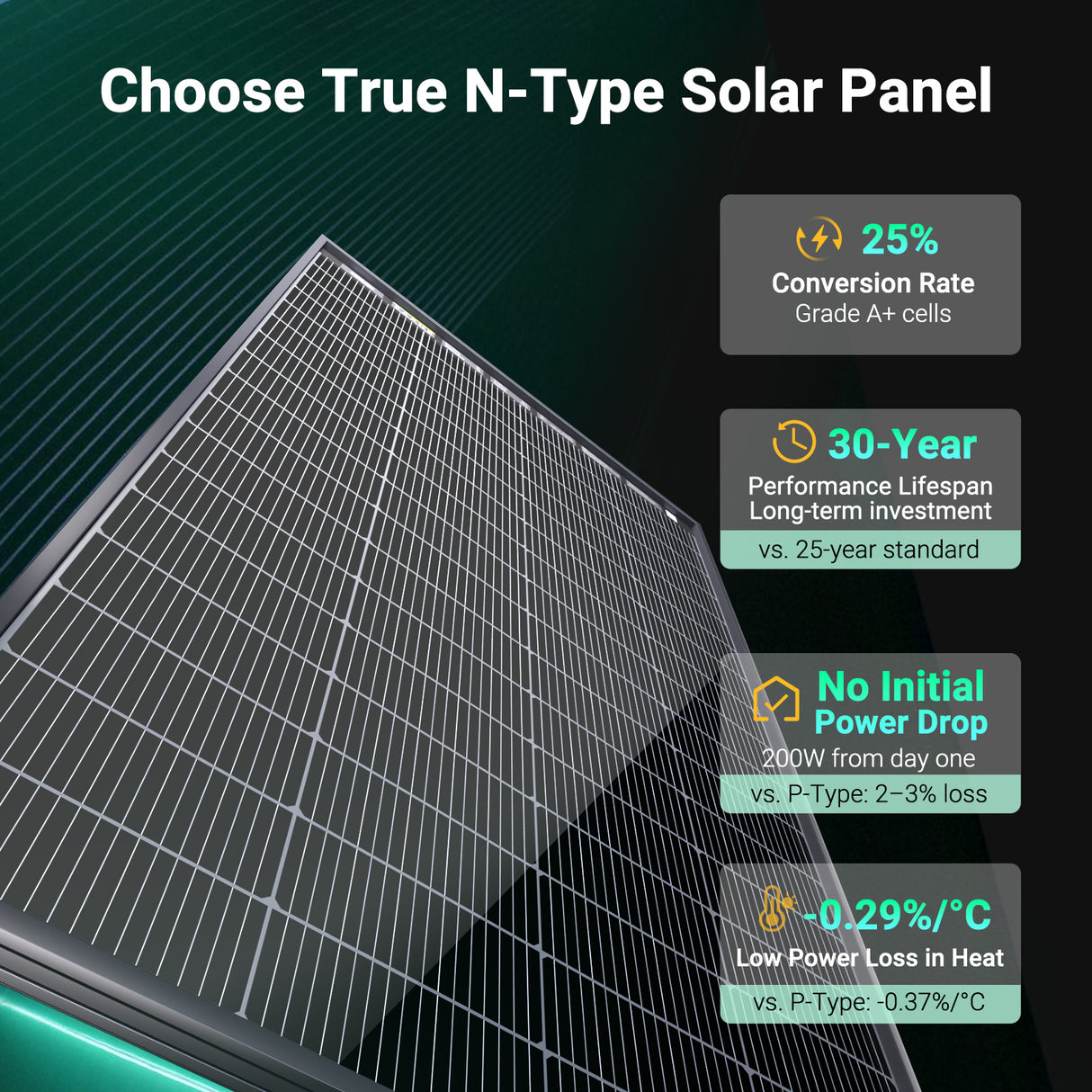

True N-Type Panels
30 Years Service Life
Lower Temp Loss
Withstand Extreme Storms
Thicker Frame
Sleek All-Black Design
Package Protection
Bifacial Tech
Highly Reflective Surfaces
Proper Installation Angle
Versatile Use

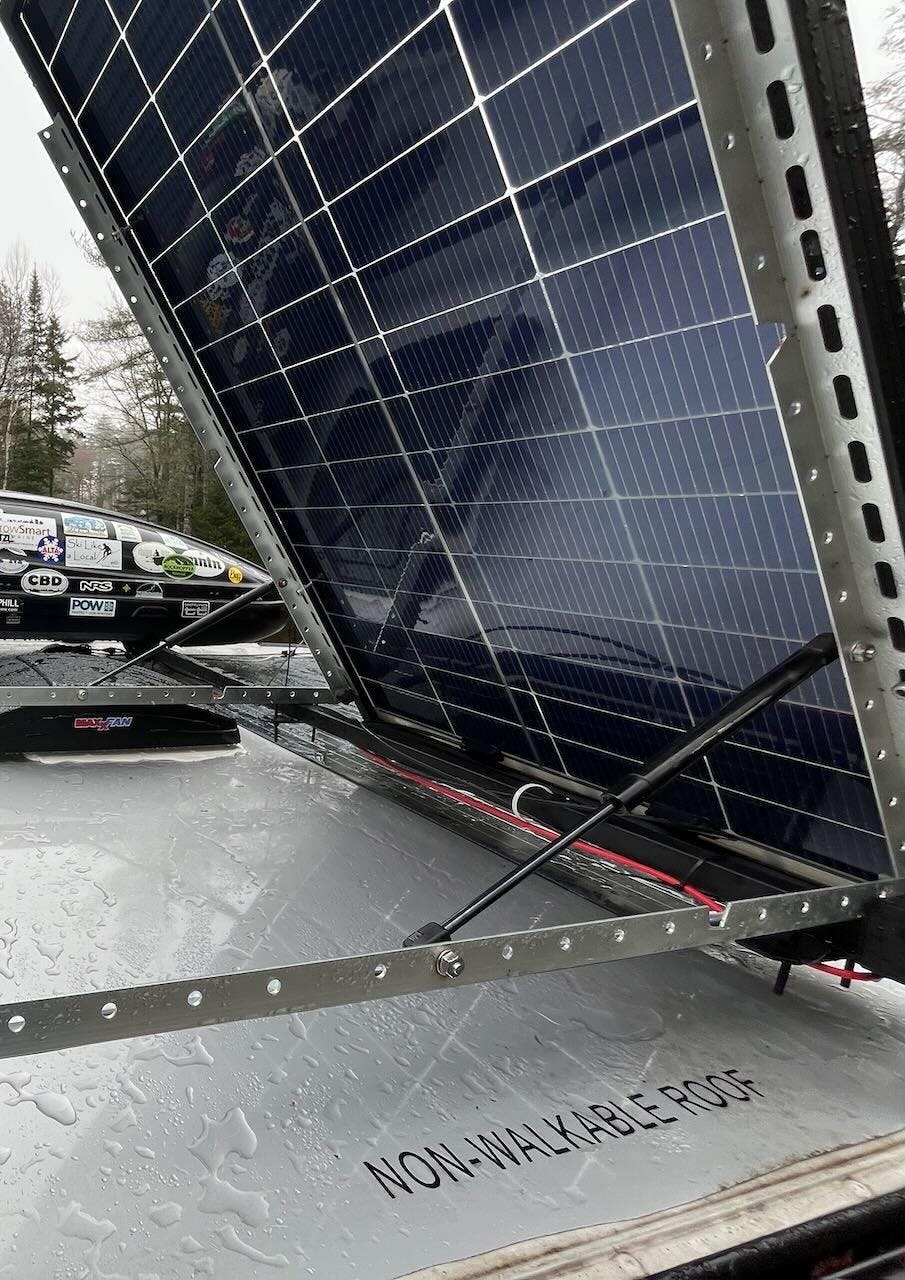

RVs & Camper Vans
Home Backup Power

HQST Bifacial 200 Watt N-Type 16BB Monocrystalline Solar Panel with All-Black Design

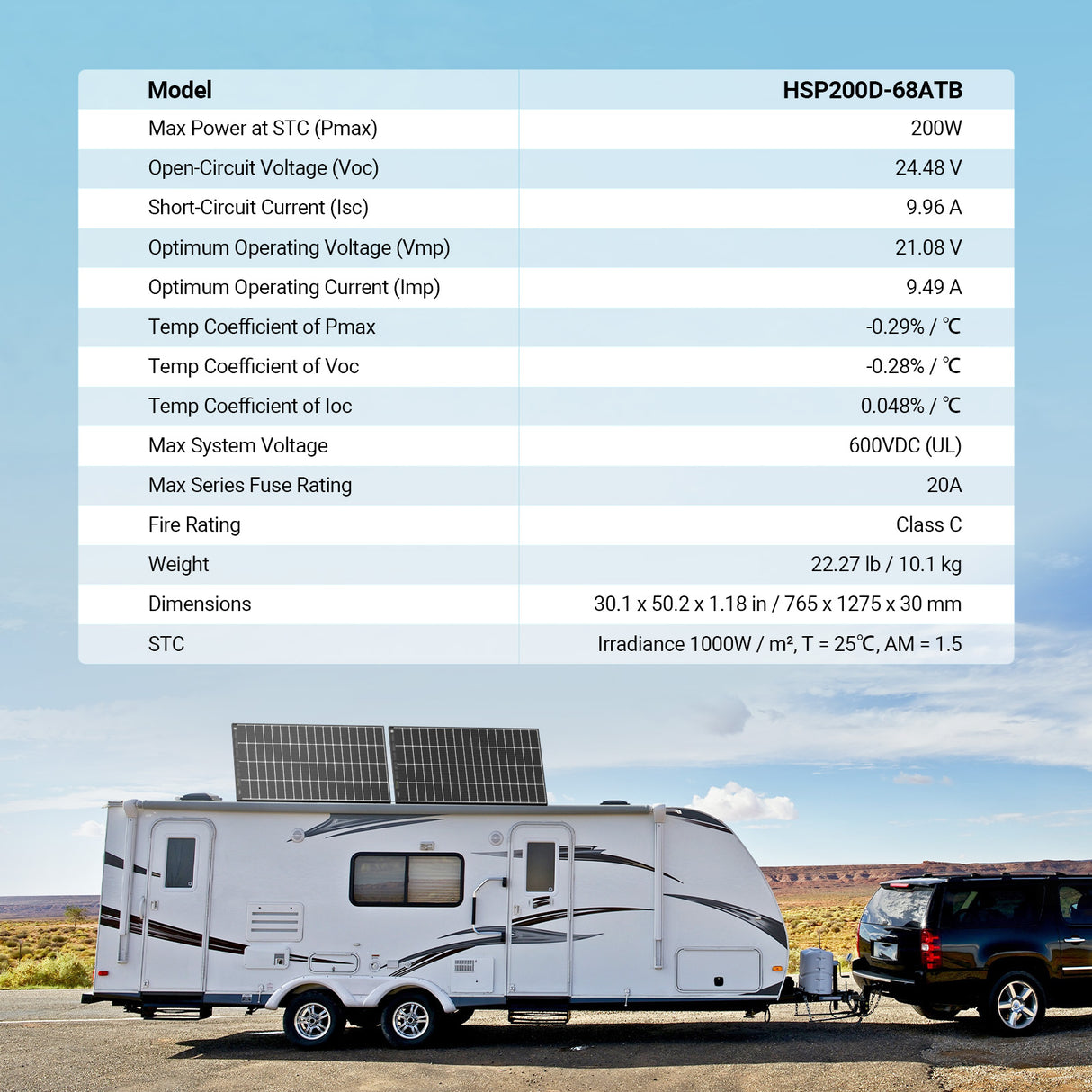

Technical

Max Power at STC
200 W
Open Circuit Voltage
24.48 V
Short Circuit Current
9.96 A
Optimum Operating Voltage
21.08 A
Optimum Operating Current
9.49 A
Cell Efficiency
Up to 25%
Maximum System Voltage
600 VDC UL
Maximum Series Fuse Rating
20 A
Cell Type
Monocrystalline
Front Glass
Low Iron-Tempered Glass
Frame
Anti-Corrosion Aluminium Alloy
Connectors
MC4 Solar Connectors
Fire Rating
Class C
Waterproof Rating
IP68

Dimensions and Weight

Dimensions
30.1 x 50.2 x 1.18 in/765 x 1275 x 30 mm
Weight
22.27 lbs/10.1 kg

Material and Workmanship Warranty

Warranty
5 Year

How can I increase the energy output of my solar panels?

For this bifacial solar panel, we recommend installing it on reflective surfaces or mounting it above the ground to capture more sunlight from the rear. For optimal performance, position the panels at an angle between 20° and 45° in highly reflective areas such as snow, concrete, sand, grass, or white surfaces.

How should I connect solar panels to my electrical circuit (series vs. parallel)?

Solar panels can be connected in either series or parallel, depending on your electrical circuit size and power needs. It’s best to connect panels with the same open-circuit voltage.When connected in series, the voltage (V) increases, while the current (A) stays the same.On the other hand, connecting panels in parallel increases the current (A), while the voltage (V) remains constant.

Do these panels have pre-drilled holes on the back?

Yes, they do. There are four pre-drilled holes to make installing the solar panel quick and secure.

Can this solar panel be used with a 12V marine battery or a 48V lithium battery?

Yes, it can. The optimal operating voltage of this 200W solar panel is 21.08V, making it suitable for charging a 12V marine battery. For a 48V lithium battery, you’ll need to connect at least three solar panels in series.Please ensure that you connect the solar panel(s) to a charge controller that supports either a 12V or 48V system.

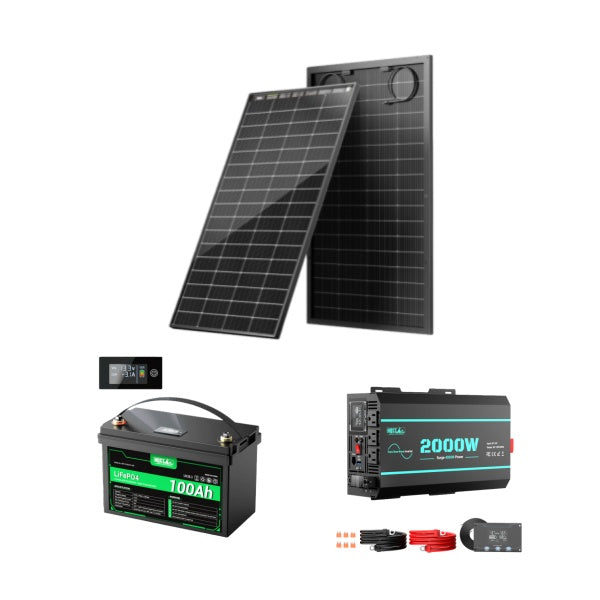

What do I need to have to complete my off-grid solar power system?

Here’s a list of all the equipment required for a functioning off-grid solar system:Solar Panels, Solar Charge Controller, Inverter(s), Battery, Mounting and Racking System, Wiring Cables, and Fuses.
