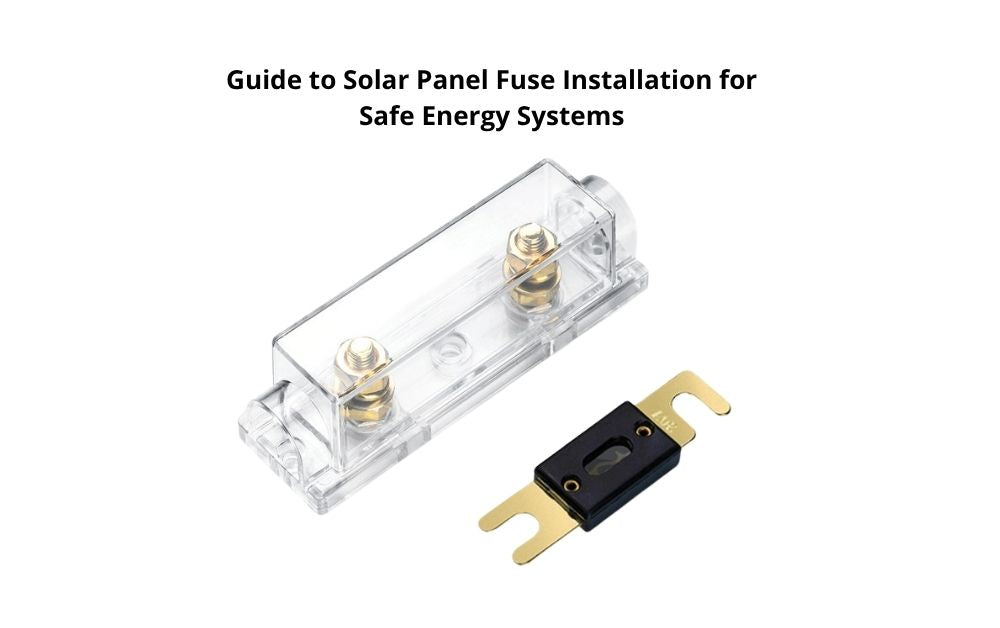

Installing solar fuses is essential for safeguarding your solar panels, batteries, and wiring. A properly rated fuse protects the system by cutting off excessive current, preventing overheating, equipment damage, or fire. Knowing how to select and place solar panel fuses keeps your solar system safe and reliable.
What Are Solar Fuses and How Do They Work?
Solar panel fuses protect your photovoltaic (PV) system from electrical overloads and short circuits. They act as the first line of defense. When an electrical anomaly occurs (like a surge), the fuse melts to interrupt the flow of electricity, preventing damage to expensive equipment (like the inverter or charge controller) and reducing fire hazards.
System Wiring: Safety and Installation Guide
Solar Fuse Safety Precautions Before Installation
Before working on fuses, safety is paramount.
Disconnect Power: Always disconnect the solar system from the grid or battery to eliminate live current.
Cover Solar Panels: Use an opaque material (like a cardboard box) to cover panel faces to stop electricity production during wiring.
PPE & Tools: Use insulated tools and wear personal protective equipment like safety glasses and insulated gloves.
A standard off-grid solar system generally requires fuses in three specific locations:
Installing Solar Battery Fuse for Charge Controller
This fuse protects the wire between the controller and the battery. It should be placed as close to the battery's positive terminal as possible.
Sizing Rule: Rated at 1.25x the charge controller's maximum output current.
Fusing Solar Panels to Charge Controller Safely
This protects the charge controller and wiring from overcurrent if the panels produce more electricity than the system can handle.
Sizing Rule: Rated at 1.25x to 1.56x the Short Circuit Current (Isc) of the solar array.
Series vs. Parallel:
- Series: Voltage increases, amperage stays the same. Fuse = Isc x 1.56.
- Parallel: Amperage increases. You generally need a fuse for each string if you have multiple parallel strings to prevent current backfeed.

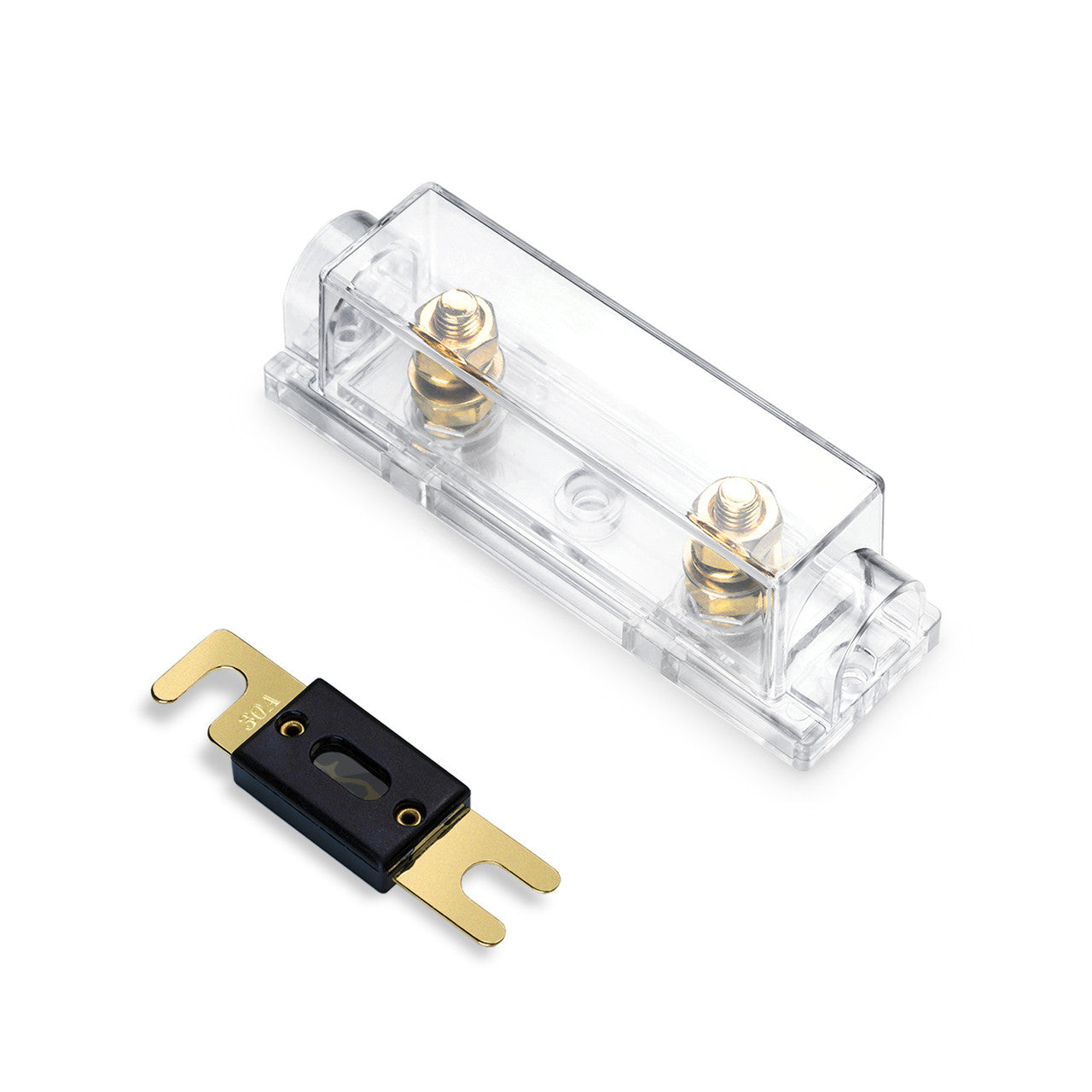

Battery to Inverter Fuse Installation for Solar Systems
The connection between the battery and the inverter handles the highest current in the system and is critical for fire prevention.
Sizing Rule: Typically 1.25x to 1.5x the maximum current draw of the inverter.
Calculation: (Inverter Surge Power / Voltage) * 1.2.
Solar Panel House Wiring Diagram (Series vs. Parallel)
How you wire your panels affects your fuse needs.
Series Wiring: The positive terminal of one panel connects to the negative of the next. Amperage remains the same as a single panel.
Parallel Wiring: Positive connects to positive, negative to negative. Amperage adds up. This often requires a combiner box or branch connectors.
FAQs About Solar Fuses
1. How do I choose the right fuse for my solar panel?
Select a fuse rated 1.25–1.5 times the panel or array’s maximum current. Consider series or parallel wiring when calculating the total amperage.
2. Can I use any brand of fuse for my solar system?
Yes, you can use different fuse brands in a solar system, as long as the fuse is certified and rated for the correct voltage and current of your system. The most important factor is compatibility and safety, not the brand itself.
At HQST, we’ve worked with a wide range of solar components in off-grid and RV systems. Based on that experience, we always recommend choosing high-quality, certified DC fuses that match your system specifications to ensure stable and safe operation.
3. Where should the solar fuse be installed?
Install the fuse as close as possible to the battery or charge controller to protect wiring and prevent damage from short circuits.
4. How often should I check or replace solar fuses?
Inspect fuses at least once a year or after any electrical issue. Replace immediately if a fuse is blown or shows signs of damage.
5. Does wiring type affect solar fuse selection?
Yes. Series connections keep amperage the same, parallel connections sum amperages. Calculate fuse rating accordingly with a 1.25 safety factor.
6. Can a solar fuse prevent battery damage?
Yes. Properly rated fuses stop overcurrent from reaching batteries, preventing overheating, overcharging, and potential fire.
7. Is it safe to use a higher-rated fuse than recommended?
No. Using a fuse rated too high may not blow in an overcurrent situation, risking damage to wiring, panels, or batteries.
8. Can one fuse protect multiple solar panels?
Yes. Series connections keep amperage the same, parallel connections sum amperages. Calculate fuse rating accordingly with a 1.25 safety factor.
6. Can a solar fuse prevent battery damage?
Yes, if the panels are connected in series or parallel properly and the fuse rating matches the combined current output with a safety factor.
